- Integrated into the furniture
- Minimal mounting depth, robust design
- Closed with cables plugged in
- Power strip can be changed quickly
CONI brings flexibility to the work surface as it enables free, individual access to power. CONI's minimal mounting depth provides sufficient space, even if installed near the edge. A wide range of standard surfaces also ensures design freedom.
When closed, the surface of the furniture and CONI produce an even surface. If power or data connections are needed, CONI can be opened, the desired plugs plugged in and CONI is then closed again. The integrated brush insert prevents the cables from jamming.
With CONI, you are free to decide how the sockets are configured because the power strip can be quickly replaced without any tools. Integrated functionality and flexibility not just for today, but also for the developments of tomorrow.
DRŽIAK CONI 6-dielny čierny RAL9005
Držiak CONI farba čierna, dĺžka: 6-násobný, vrátane 2 plastových nitov, balený v kartónovej krabici
| Množstvo v krabici | 1 ks |
| farba | Čierna |
| Farba | čierna |
| Obsahuje montážny materiál | + |
| Hĺbka | 0,37 m |
| Hĺbka balenia (jeden kus) | 390 mm |
| Celková hmotnosť | 1,002 |
| Výška | 0,05 m |
| Výška balenia (jeden kus) | 30 mm |
| Inštalačný manuál | [pdf] |
| Pozemok | Nemecko |
| Výrobca | BACHMANN |
| Výrobca/dovozca | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| kód_výrobcu | 911.9130 |
| Starý model č. | 911.913 |
| Hmotnosť balenia (jeden kus) | 1,002 kg |
| Rozmery balenia (DxŠxV v mm) | 370 x 120 x 50 |
| Skupina produktov | Energetické tyčinky |
| Produktový list | [pdf] |
| Typ produktu | Integrovaná jednotka CONI |
| Regionálne použitie | Bez obmedzenia |
| RoHS / REACH | [pdf] |
| Technické kreslenie | [pdf] |
| Bezpečnostné pokyny/varovania | [pdf] |
| Záruka | 3 roky |
| Hmotnosť | 0,99 kg |
| Šírka | 0,12 m |
| Šírka balenia (jeden kus) | 120 mm |
- Integrated into the furniture
- Minimal mounting depth, robust design
- Closed with cables plugged in
- Power strip can be changed quickly
CONI brings flexibility to the work surface as it enables free, individual access to power. CONI's minimal mounting depth provides sufficient space, even if installed near the edge. A wide range of standard surfaces also ensures design freedom.
When closed, the surface of the furniture and CONI produce an even surface. If power or data connections are needed, CONI can be opened, the desired plugs plugged in and CONI is then closed again. The integrated brush insert prevents the cables from jamming.
With CONI, you are free to decide how the sockets are configured because the power strip can be quickly replaced without any tools. Integrated functionality and flexibility not just for today, but also for the developments of tomorrow.

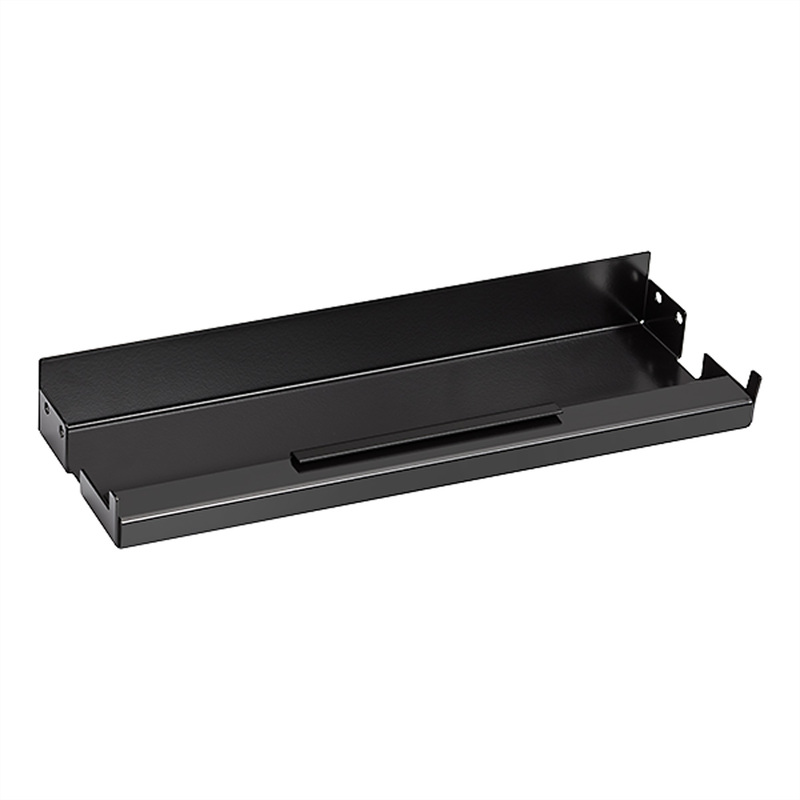

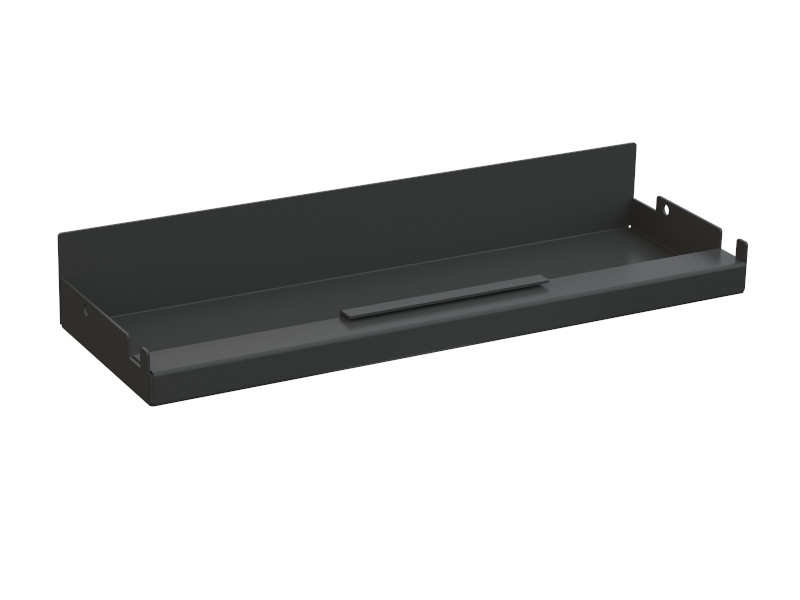

CONI HOLDER 6-gang black RAL9005
CONI Holder colour black, length: 6-gang, incl. 2 plastic rivets packed in cardboard box
| BOX qty | 1 pcs |
| color | Black |
| Colour | black |
| Contains installation material | + |
| Depth | 0.37 m |
| Depth of packaging (single piece) | 390 mm |
| Gross weight | 1.002 |
| Height | 0.05 m |
| Height of packaging (single piece) | 30 mm |
| Installation manual | [pdf] |
| Land | Germany |
| Manufacturer | BACHMANN |
| Manufacturer/Importer | Bachmann GmbH, Ernsthaldenstr. 33, 70565 Stuttgart, info@bachmann.com |
| manufacturer_code | 911.9130 |
| Old model no. | 911.913 |
| Package weight (single piece) | 1.002 kg |
| Packaging dimensions (LxWxH in mm) | 370 x 120 x 50 |
| Product group | Power Bars |
| Product sheet | [pdf] |
| Product type | Integrated unit CONI |
| Regional use | Without restriction |
| RoHS / REACH | [pdf] |

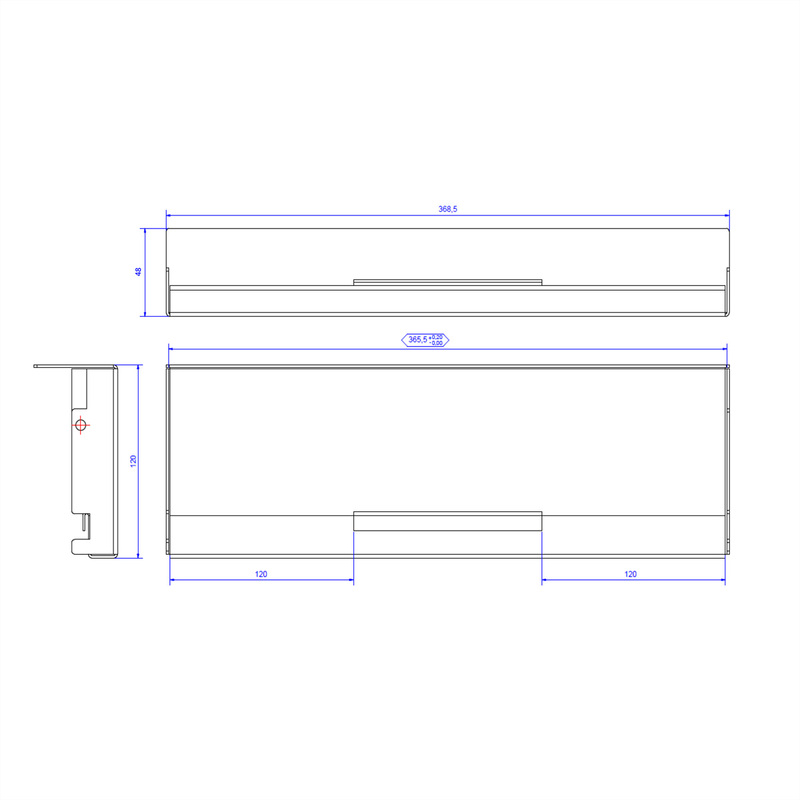

| Technical drawing | [pdf] |
| Warning/safety instructions | [pdf] |
| Warranty | 3 years |
| Weight | 0.99 kg |
| Width | 0.12 m |
| Width of packaging (single piece) | 120 mm |
