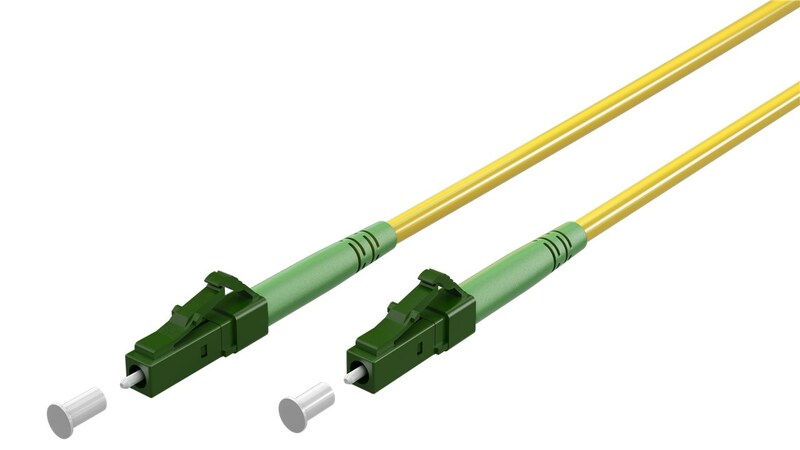

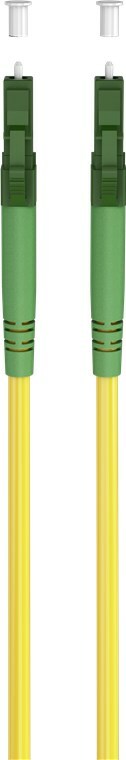

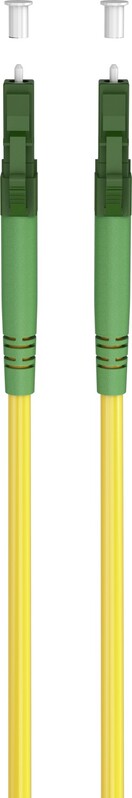

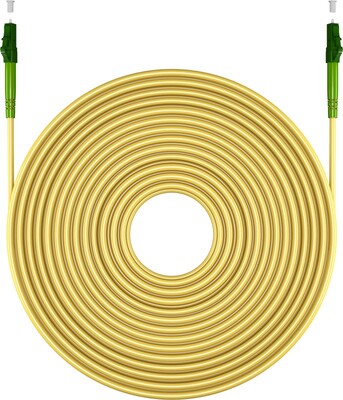

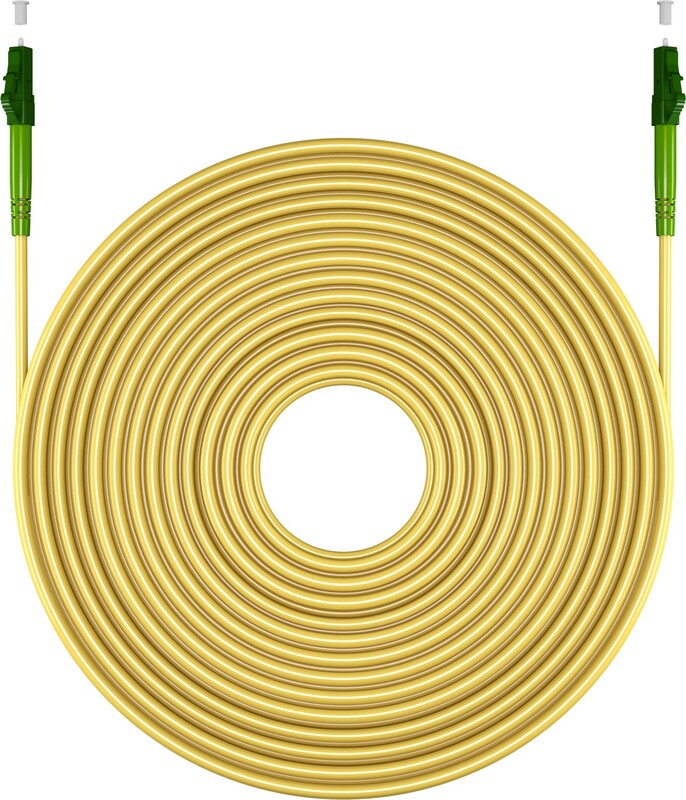

Fiber kábel LC/APC-LC/APC, 10m Simplex OS2(9/125µm), LSOH, 3mm, žltý
Fiber kábel LC/APC-LC/APC, 10m Simplex OS2(9/125µm), LSOH, 3mm, žltý
The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and i..... celý popis
Konektory
LC/APC-LC/APC
Typ kábla
Simplex
Typ vlákna
Singlemod OS2(9/125µm) žltý
Dĺžka kábla
10m
Prevedenie kábla
okrúhly kábel ø3mm
The patch cable is suitable for private and industrial applications, including fibre to the home (FTTH), and is compatible with the FTTH options of a wide range of telecom providers. Thanks to an optimised bend radius of the fibre optic cable, space-saving installation is possible without increasing attenuation and risking interference.

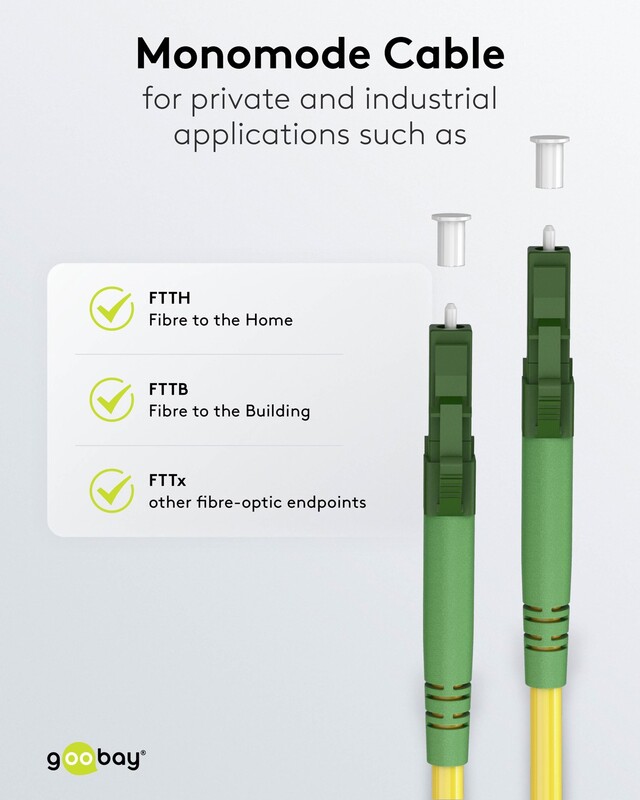

- mono-mode fibre optic cable designed for connection types such as FTTH, FTTB, FTTx, for use at home, in the office, in data centres etc.
- the patch cord forms the connection between the house transfer point and the Optical Network Terminal (ONT) indoors

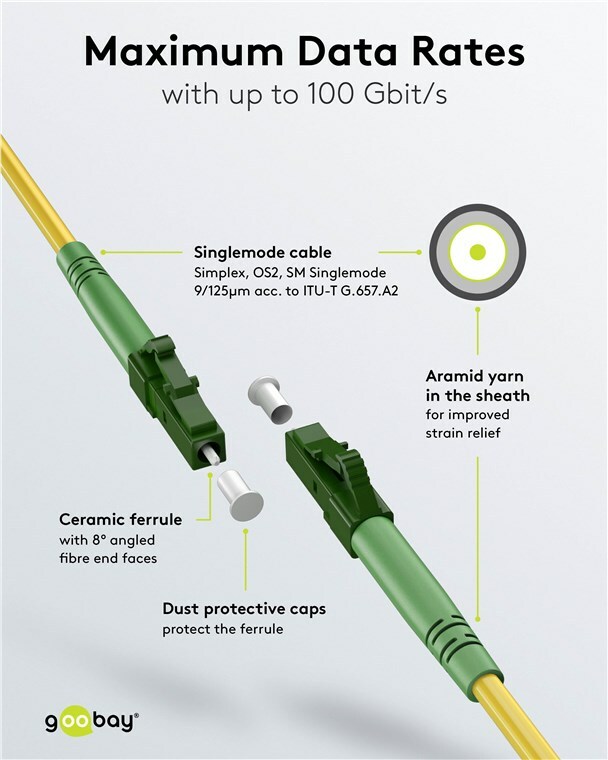

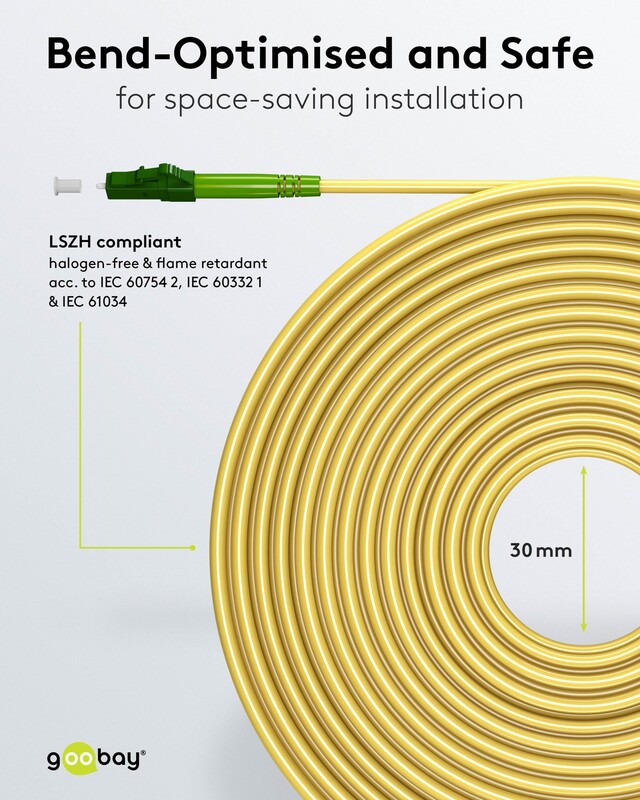

- optical fibre cable for up to 100 Gbit/s that is bend-optimised and space-saving with a minimum bending radius of 30 mm (static)
- LSZH-compliant: cable sheath is halogen-free and flame-retardant according to IEC 60754 2, IEC 60332 1 and IEC 61034

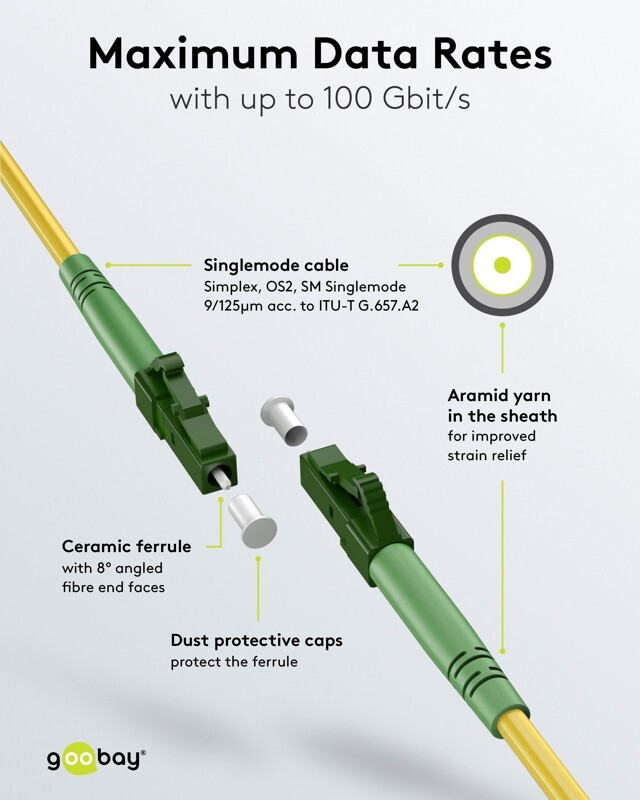

- strain relief reinforced with aramid yarn provides extra stability

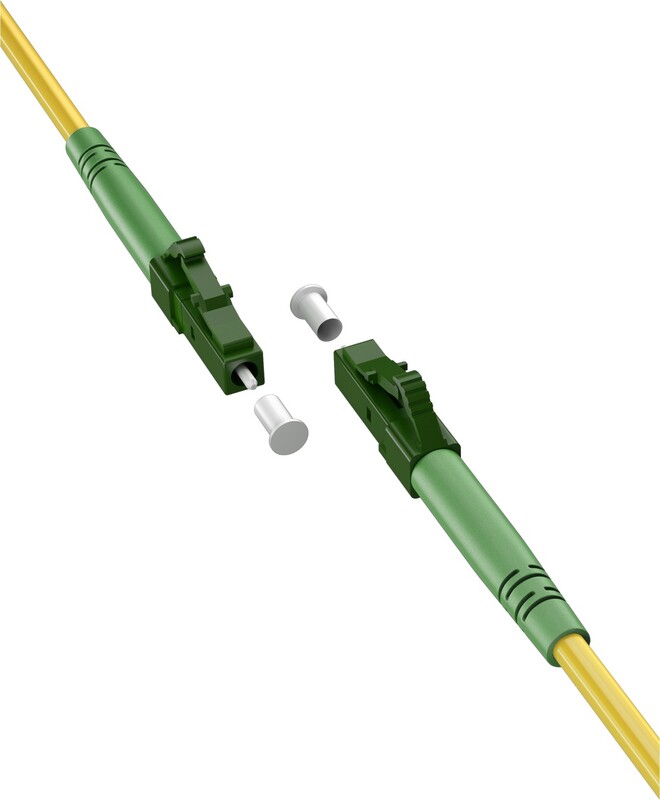

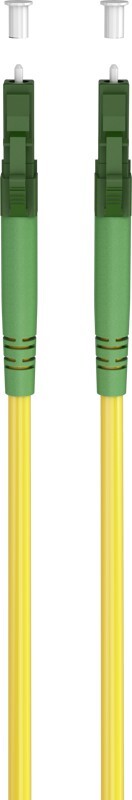

- equipped with dust protection caps, connector: Simplex, fibre type: OS2, SM singlemode 9/125µm according to ITU-T G.657.A2
- individual test protocol with measurement of return loss and insertion loss
Technical specifications

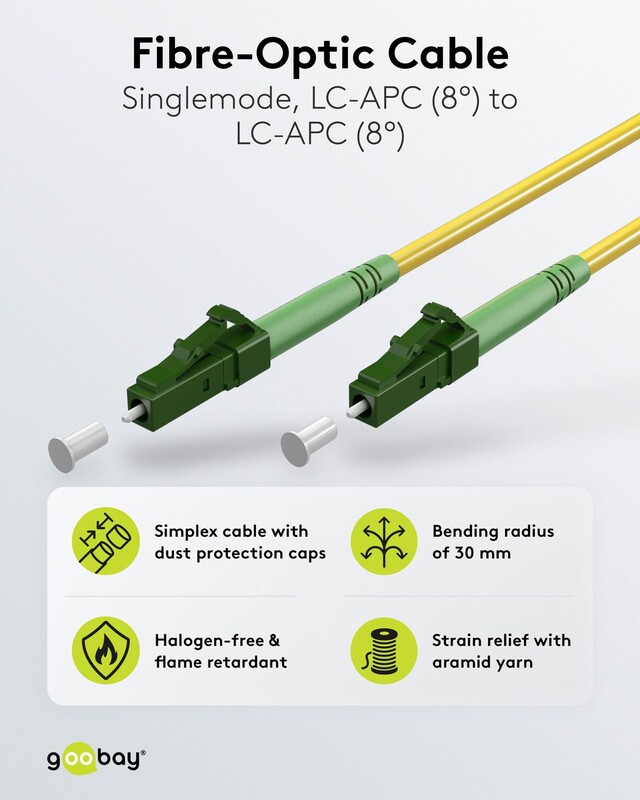

| Connection, type | LC-APC (8°) male |
| Connection 2, type | LC-APC (8°) male |
| Kink protection | yes |
| Cable fiber type | Glass Fibre G.657.A2 |
| Cable type | simplex cable |
| Material cable sheath | LSZH |
| LSZH compliant | yes |
| Color version | yellow |
| Color | yellow |
| Consumption Unit | 1 pc. in polybag |
| Packaging type | Bulk |
| Optical fiber core diameter | 9 µ |
| Optical fiber sheath diameter | 125 µ |
| Contacting | Ceramic Ferrule |
| Wavelength | 1310 nm |
| Specification | Singlemode (OS2) Yellow |

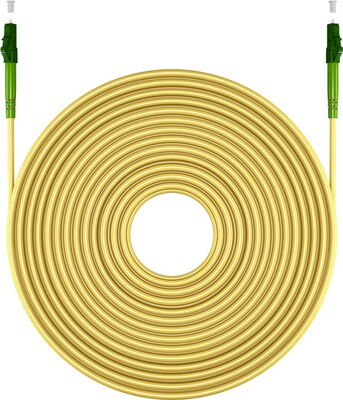

| Cable length | 10 m |
| bending radius > | 30 mm |
| Cable sheath diameter (approx.) | 3 mm |
| Operating temperature from | -40 °C |
| Operating temperature up to | 85 °C |
| SCIP no. | 17a092f3-31a8-482a-b024-d698a31c6b50 |
| chemical substance | Pb |
| CAS no. | 7439-92-1 |
Parametre
Konektory
LC/APC-LC/APC
Typ kábla
Simplex
Typ vlákna
Singlemod OS2(9/125µm) žltý
Dĺžka kábla
10m
Prevedenie kábla
okrúhly kábel ø3mm
LSOH
Áno
Prevedenie konektora
Štandardné
