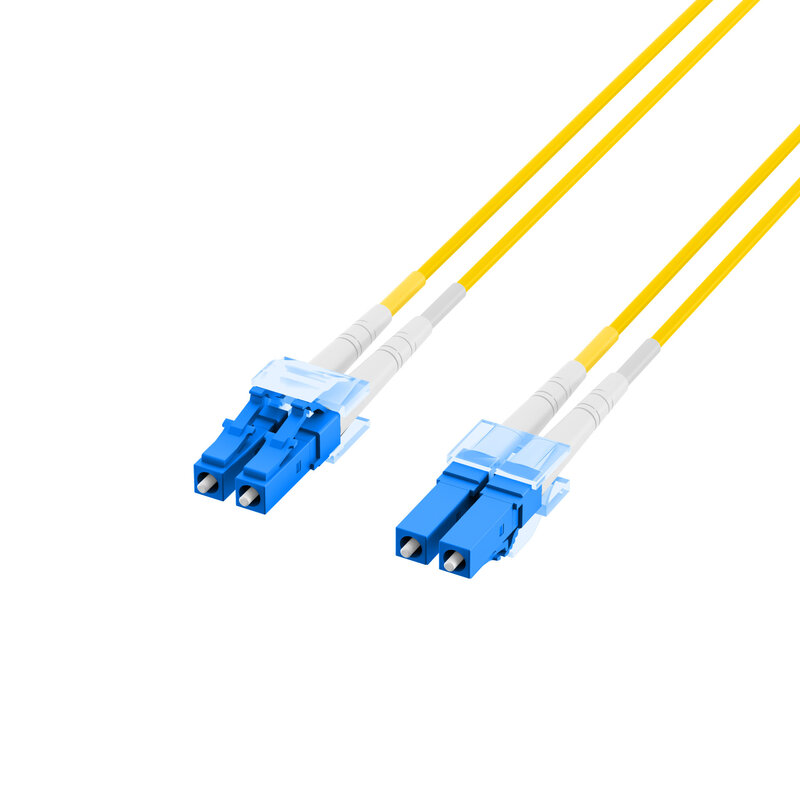

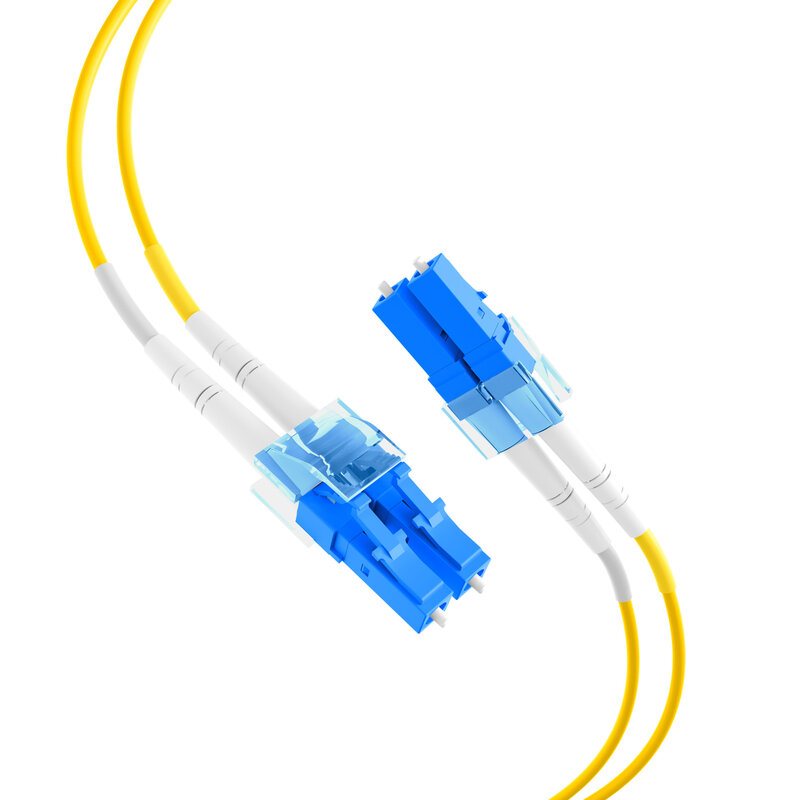

The 1.2 mm Duplex Jumper are characterized due to the small outer diameter. This is an advantage for the installers when they have limited space for cable management. The small outer diameter is also useful in projects with high density areas.

Characteristics
Space-saving installation due to the small outer diameter
Halogen free according to IEC-60754-2
Flame retardant according to IEC-60332-1
Low smoke according to IEC-61034
Connector in colour of category (aqua, erika-violet or blue)
LC connector in Compact design
EFB fiber connectors meet the quality classes
Grade B/2 according to IEC-61753-1 for Singlemode
Grade A/1 according to IEC-61753-122-2 (Draft) for Multimode
pre-coded
100% tested and with individuell measuring protocol

Features:

Fibre type: Singlemode

Category: OS2 acc. to ITU-T G.652.D

Bend optimized fiber: no

Number of fibres: 2

Anti-kink sleeve: put-on

Type of connector connection 1: LC-Duplex

Connector colour 1: blue

Type of connector connection 2: LC-Duplex

Connector colour 2: blue

Min. Bending radius (Static): 10xOD

Min. Bending radius (Dynamic): 20xOD

Cable type: Simplex

Cable Construction: Duplex

Cable Ø: 1.2 mm

Colour outer sheath: yellow

Jacket Material: LSZH

Flame retardant: According to EN 50265-2-1

Halogen free: acc. IEC60754-1

Operating Temperature: -20 – 75 °C

Storage Temperature: -20 – 85 °C

Insertion loss 1310nm: <0.25 dB

Quality class singlemode: B/2 acc. IEC 61753-1

Cabling standard: ISO/IEC 11801;EN-50173-1

Connector Conform to Standard: IEC 61754-20

Cable Conform to Standard: IEC 60793-2
