| Verzia APC: | Nepravdivé |
|---|---|
| Rukáv proti zalomeniu: | obliecť si |
| Vlákno optimalizované na ohyb: | OM5 podľa podľa IEC60793-2-10 typ A1a.4 |
| Kábel zodpovedá štandardu: | IEC 60793-2 |
| Konštrukcia kábla: | Duplex |
| Typ kábla: | IV(ZN) H |
| Ø kábla: | 3,0 mm |
| Kategória: | OM5 |
| Farba vonkajšieho plášťa: | limetková zelená |
| Konektor zodpovedá štandardu: | IEC 61754-4 |
| Farba konektora 1: | béžová |
| Farba konektora 2: | béžová |
| Typ vlákna: | Multi režim 50/125 |
| Spomaľovač horenia: | Podľa EN 50265-2-1 |
| Bez halogénov: | príl. IEC60754-1 |
| Bez halogénu (podľa EN 50267-2-3): | Pravda |
| Vkladný úbytok 850 nm: | < 0,2 dB |
| Nízka dymivosť: | príl. IEC61034-1 |
| Materiál vonkajšieho plášťa: | ĽSZH |
| Max. Napätie: | 160 N |
| Min. Polomer ohybu (dynamický): | 20xOD |
| Min. Polomer ohybu (statický): | 10xOD |
| Počet vlákien: | 2 |
| Prevádzková teplota: | -20 – 70 °C |
| Multimódová trieda kvality: | A/1 podľa IEC-61753-222-2 |
| Skladovacia teplota: | -20 – 85 °C |
| Typ pripojenia konektora 1: | SC duplex |
| Typ pripojenia konektora 2: | SC duplex |
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000©, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade B/2 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000©, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class,Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features of EFB fiber optic patch cables
Tension relief reinforced with aramid yarn
Halogen-free and flame-retardant sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
EFB fiber optic connectors meet the minimum quality class Grade B/2 according to IEC-61753-1 for singlemode and Grade B/2 for multimode according to IEC 61753-122-2 (UPC cut)
100% tested and with individual measurement report

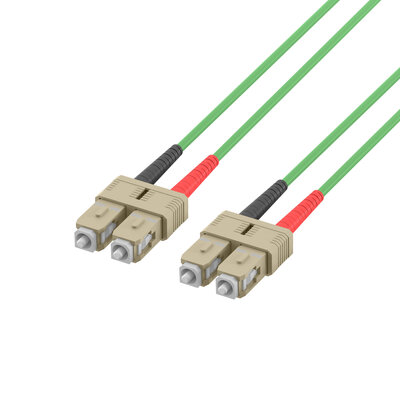

Konektory
SC-SC
Typ kábla
Duplex
Typ vlákna
Multimod OM5(50/125µm) zelený
Dĺžka kábla
7.5m
Prevedenie kábla
okrúhly kábel ø3mm
LSOH
Áno
Prevedenie konektora
Štandardné
