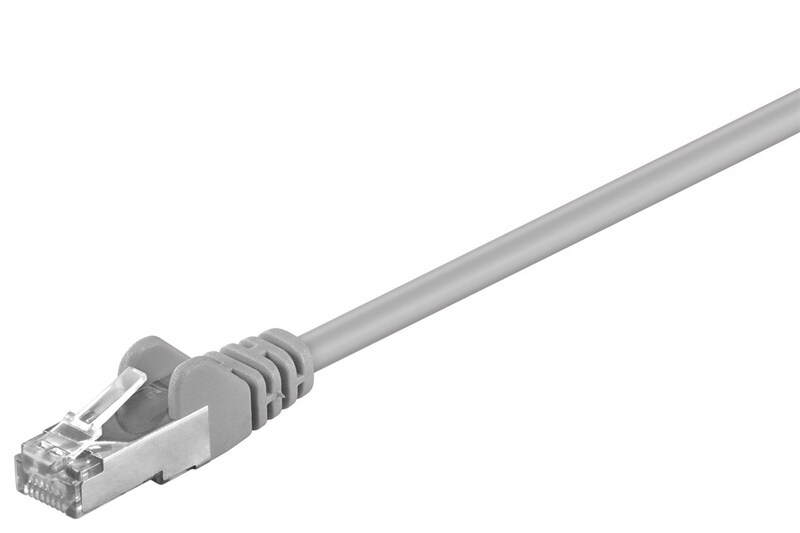

FTP Patchkábel 0.25m cat.5e, sivý, CCA
FTP Patchkábel 0.25m cat.5e, sivý, CCA
shielded LAN/network cable to connect network components with 2 x RJ45 connectorsouter shield..... celý popis
| Predajňa | dostupné ihneď |
|---|---|
| E-shop | doručenie kuriérom |
- shielded LAN/network cable to connect network components with 2 x RJ45 connectors
- outer shield: foil screening
- with gold plated PINs
- with length indication on the slimline strain relief
- with latch protection
- pair-sequence acc. to EIA/TIA 568B
- suitable for Gigabit (10/100/1000 Mbit) network
Technical specifications
| AWG | 26/7 (stranded) |
| Kink protection | both sides |
| Cable type | round cable |
| Specification | CAT 5e |
| Cable sheath diameter (approx.) | 5.5 mm |
| Material cable sheath | PVC |
| Inner conductor material | CCA (copper-clad aluminium) |
| Shielding class | F/UTP |
| Number of shieldings | 1 x |
| Type 1, shielding | foil (aluminium) |
| Connection, shielding | yes |
| Contacting | EIA/TIA-568B |
| Latch protection | both sides |
| Markings | WEEE, CE |
| Color | grey |
| Consumption Unit | 1 pc. in polybag |
| Operating temperature up to | 60 °C |
| Operating temperature from | -20 °C |
| max. bandwidth | 100 MHz |
| Cable length | 0.25 m |
| Connection, type | RJ45 male (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Color version | grey |
Parametre
Zapojenie
1:1 podľa EIA / TIA 568
Tienenie
F/UTP
LSOH/LSZH bezhalogénový
nie
Farba
sivá
Materiál vodiča
CCA
Kategória
cat. 5e / class D
Dĺžka
0,25m
