- tienený LAN/sieťový kábel na pripojenie sieťových komponentov s 2 x RJ45 konektormi
- ideálne riešenie s minimálnym priestorom
- vonkajší štít: tienenie fólie
- s pozlátenými PIN
- štíhla úľava od napätia
- bez ochrany západky
- párová sekvencia príp. podľa EIA/TIA 568B
Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 5,4 mm |
| Trieda tienenia | F/UTP |
| Počet tienenia | 1 x |
| Kontaktovanie | EIA/TIA-568B |
| Označenia | WEEE, CE |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 100 MHz |
| Dĺžka kábla | 2 m |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | okrúhly kábel |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CCA (hliník potiahnutý meďou) |
| Typ 1, tienenie | fólia (hliník) |
| Pripojenie, tienenie | Áno |
| Ochrana západky | č |
| Farba | biely |
| Jednotka spotreby | 1 ks. v polybagu |
| Typ pripojenia | RJ45 samec 90° (8P8C) |
| Pripojenie 2, typ | RJ45 samec 90° (8P8C) |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.

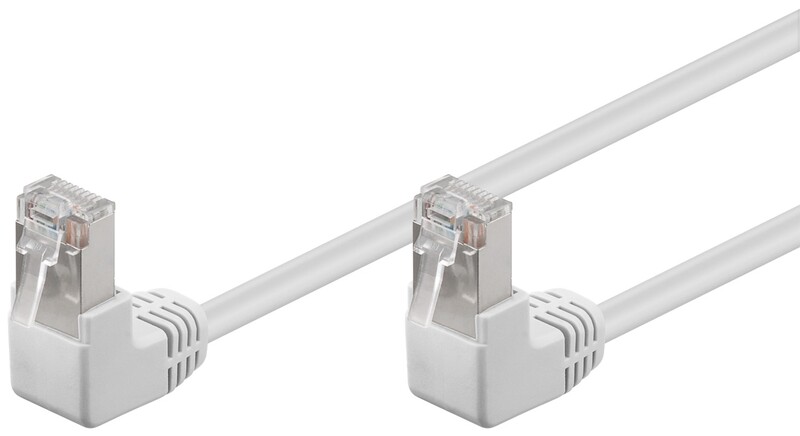

- Prewired, shielded CAT 5e LAN cable with 2x RJ45 plugs for connecting network components
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides ideal signal distribution with minimal losses.

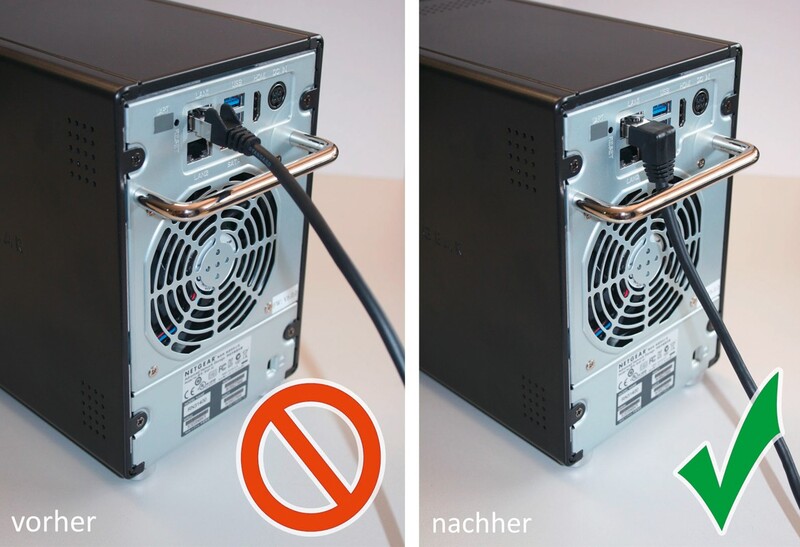

- The CAT 5e network cable with 90° right angle RJ45 connectors (without latch protection) is an ideal solution in confined spaces.
- High-quality copper-clad aluminium wire (CCA) and gold-plated contacts guarantee an excellent, powerful network connection.
- Patch cable with overmoulded slimline bend protection
- Network connector: pair sequence according to EIA/TIA 568B
- Cable construction: twisted pair cable
Technical specifications
| Connection, shielding | yes |
| Connection, type | RJ45 male 90° (8P8C) |
| Latch protection | no |
| Connection 2, type | RJ45 male 90° (8P8C) |
| Cable type | round cable |
| Inner conductor material | CCA (copper-clad aluminium) |
| Material cable sheath | PVC |
| Type 1, shielding | foil (aluminium) |
| Kink protection | both sides |
| Color | white |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Contacting | EIA/TIA-568 B |
| Specification | CAT 5e |
| Cable length | 2 m |
| AWG | 26/7 (stranded) |
| Number of shieldings | 1 x |
| bending radius > | 54 mm |
| Cable sheath diameter (approx.) | 5.4 mm |
| max. bandwidth | 100 MHz |
| Shielding class | F/UTP |
| max. transmission rate | 1 Gbit/s |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Kategória
cat. 5e / class D 100MHz / 1000 BASE-T
Tienenie
F/UTP
Dĺžka
2m
Farba
biela
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
Uhlové konektory (2x90°)
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
nie
Typ vodiča
lanko
