- tienený LAN/sieťový kábel na pripojenie sieťových komponentov s 2 x RJ45 konektormi
- ideálne riešenie s minimálnym priestorom
- vonkajší štít: tienenie fólie
- s pozlátenými PIN
- štíhla úľava od napätia
- ochrana západky a špecifikácia dĺžky na rovnej zástrčke
- párová sekvencia príp. podľa EIA/TIA 568B
Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | okrúhly kábel |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 5,4 mm |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CCA (hliník potiahnutý meďou) |
| Trieda tienenia | F/UTP |
| Počet tienenia | 1 x |
| Typ 1, tienenie | fólia (hliník) |
| Pripojenie, tienenie | Áno |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | jednostranne |
| Označenia | WEEE, CE |
| Jednotka spotreby | 1 ks. v polybagu |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 100 MHz |
| Dĺžka kábla | 2 m |
| Farba | čierna |
| Typ pripojenia | RJ45 samec 90° (8P8C) |
| Pripojenie 2, typ | RJ45 samec (8P8C) |
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

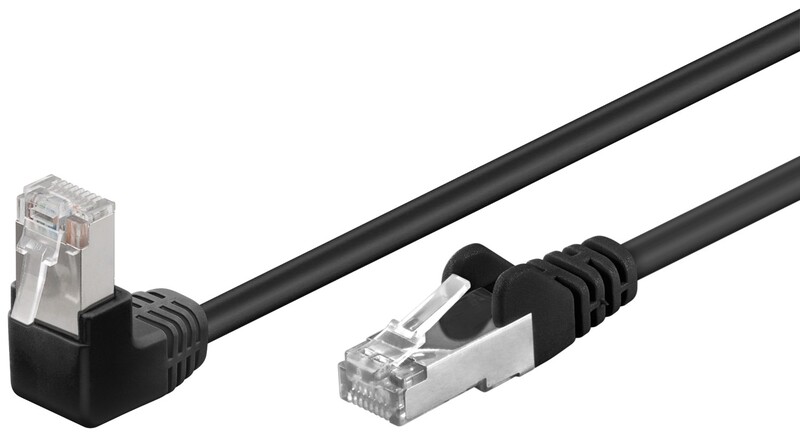

- Prewired, shielded CAT 5e LAN cable with 2x RJ45 plugs for connecting network components
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides ideal signal distribution with minimal losses.
- Gold-plated contact surfaces and copper-clad aluminium (CCA) conductors prevent corrosion and ensure clear signal quality without interference
- Latch protection on the straight RJ45 plug prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.

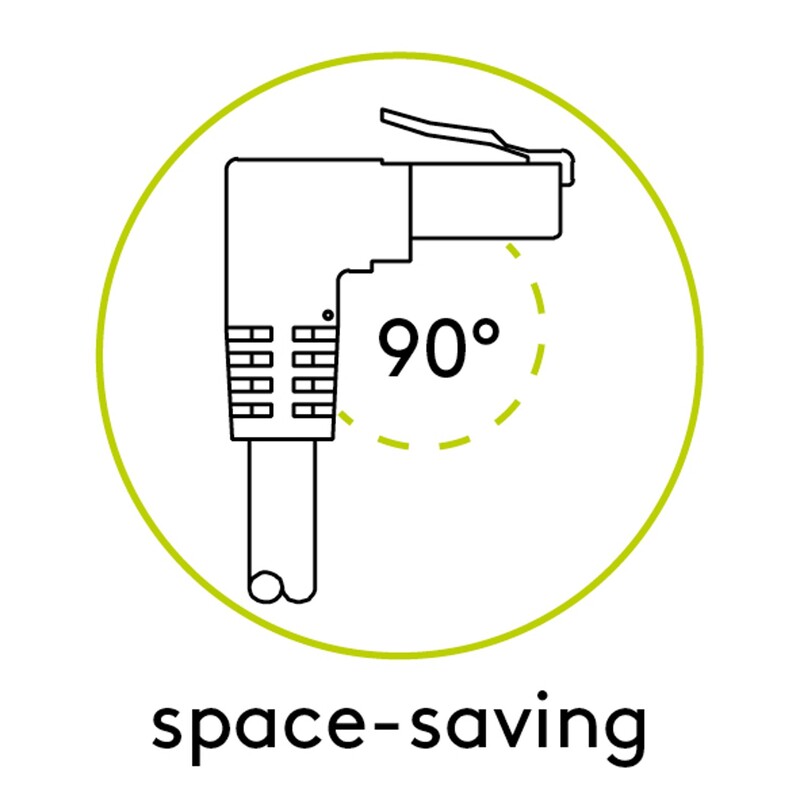

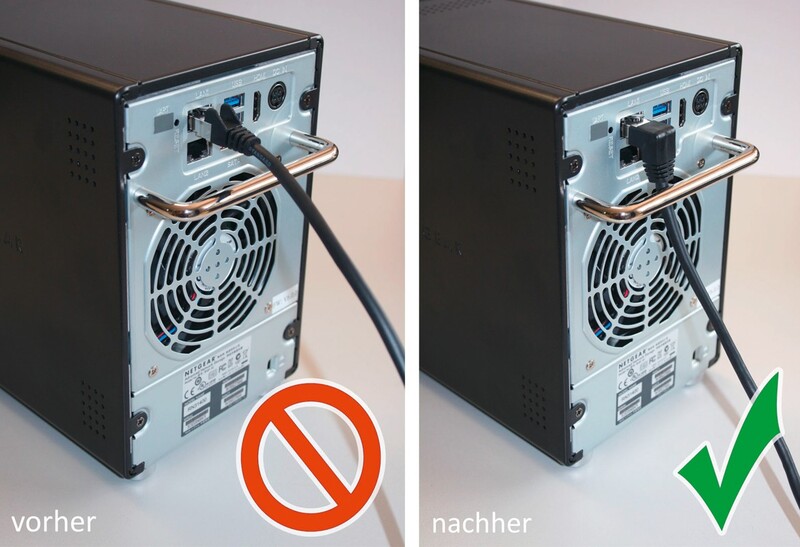

- The CAT 5e network cable with a 90° right angle RJ45 connector is an ideal solution in confined spaces.
- Network connector: pair sequence according to EIA/TIA 568B, cable construction: twisted pair cable
- Cable length indicated on the overmoulded slimline strain relief of the straight connector.
Technical specifications
| Connection, shielding | yes |
| Connection, type | RJ45 male 90° (8P8C) |
| Latch protection | unilaterally |
| Connection 2, type | RJ45 male (8P8C) |
| Cable type | round cable |
| Inner conductor material | CCA (copper-clad aluminium) |
| Material cable sheath | PVC |
| Type 1, shielding | foil (aluminium) |
| Kink protection | both sides |
| Color | black |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Contacting | EIA/TIA-568 B |
| Specification | CAT 5e |
| Cable length | 2 m |
| AWG | 26/7 (stranded) |
| Number of shieldings | 1 x |
| bending radius > | 54 mm |
| Cable sheath diameter (approx.) | 5.4 mm |
| max. bandwidth | 100 MHz |
| Shielding class | F/UTP |
| max. transmission rate | 1 Gbit/s |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Kategória
cat. 5e / class D 100MHz / 1000 BASE-T
Tienenie
F/UTP
Dĺžka
2m
Farba
čierna
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
Uhlový konektor (1x90°)
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
