- dvojité tienenie s vysokou hustotou pre prenos signálu bez rušenia

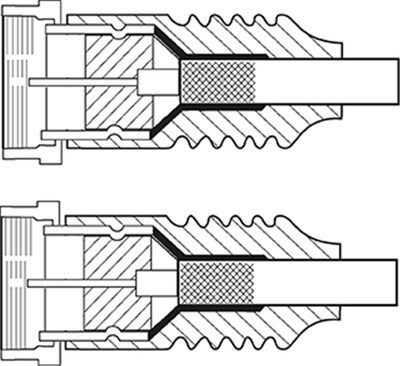

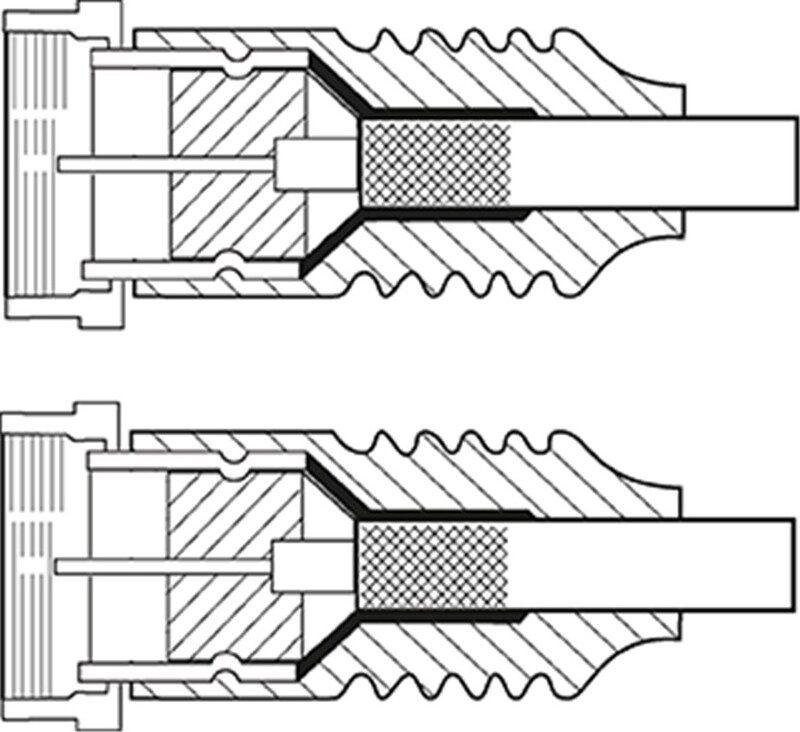

- zástrčky plne tienené, obojstranne zapuzdrená zástrčka, ochrana proti prachu, špine a mechanickému zaťaženiu
- poniklované kontakty
Technické špecifikácie
| Priemer plášťa kábla (približne) | 5,3 mm |
| vnútorný vodič, priemer jadra | 0,5 |
| Počet tienenia | 2 x |
| Označenia | WEEE, CE |
| Impedancia | 75 O |
| Účinnosť tienenia | 80 dB |
| Dĺžka kábla | 2,5 m |
| Typ kábla | koaxiálny kábel |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CCS |
| Typ 1, tienenie | fólia (hliník) |
| Typ 2, tienenie | výplet (hliník) 112x |
| Spojenie, kontaktný materiál | poniklované |
| Pripojenie, tienenie | Áno |
| Farba | biely |
| Jednotka spotreby | 1 ks. v polybagu |
| Materiál vonkajšieho plášťa | PVC |
| Typ pripojenia | F muž (Quick) |
| Pripojenie 2, typ | F muž (Quick) |
| Farebné prevedenie | biely |

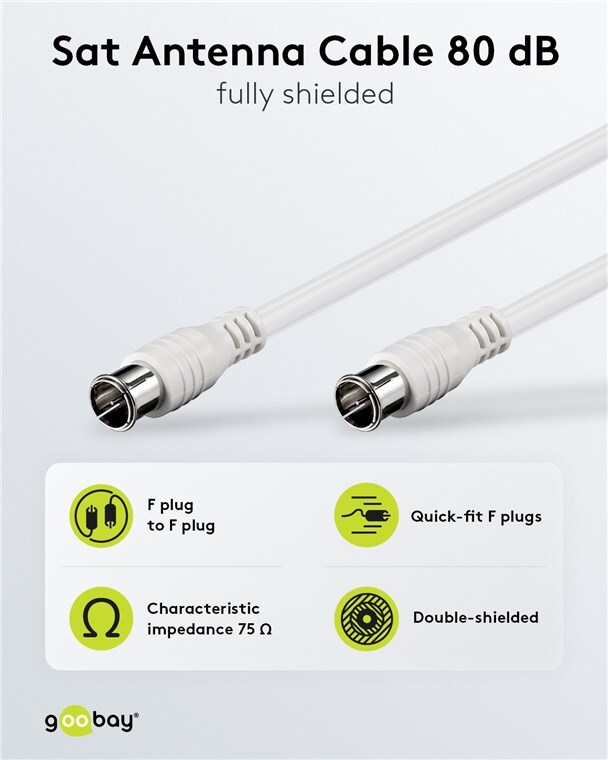

- Double shielded satellite cable for interference-free transmission

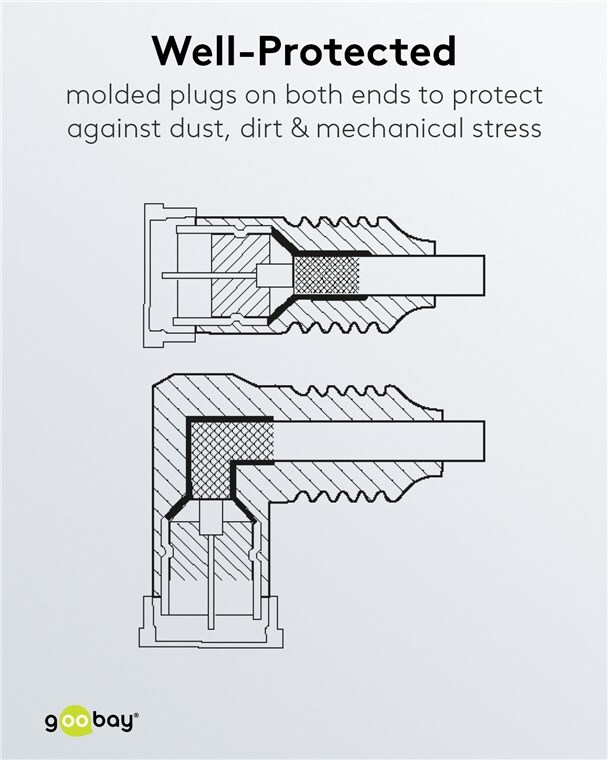

- Molded plug on both sides to protect against dust, dirt and mechanical stresses
- Coaxial cable with nickel-plated, precision-fit contacts
- TV aerial cable for transmitting digital SD/HDTV signals, e. g. from SAT systems to TV sets or receivers

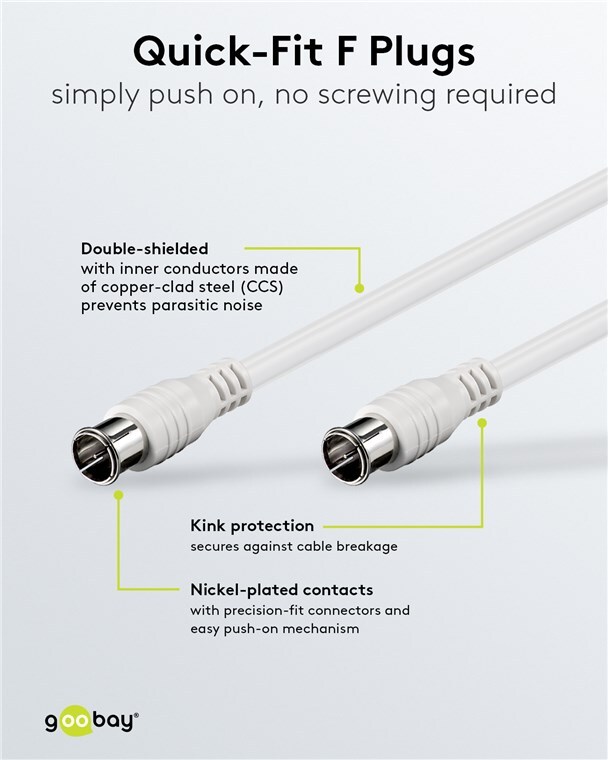

- Quick connection of the antenna cable by means of the quick plug, which is pushed on instead of screwed on.
Technical specifications
| Connection, contact material | nickel-plated |
| Connection, shielding | yes |
| Connection, type | F male (Quick) |
| Connection 2, type | F male (Quick) |
| Cable type | coaxial cable |
| Inner conductor material | CCS |
| Material cable sheath | PVC |
| Type 1, shielding | foil (aluminium) |
| Type 2, shielding | braid (aluminium) 112x |
| Outer sheath material | PVC |
| Color | white |
| Consumption Unit | 1 pc. in polybag |
| Packaging type | Bulk |
| Cable length | 2.5 m |
| inner conductor, core diameter | 0.5 mm |
| Number of shieldings | 2 x |
| Cable sheath diameter (approx.) | 5.3 mm |
| Shielding efficiency | 80 dB |
| Impedance | 75 O |
| Markings | WEEE, CE |
