- Keystone Cat.6a podporujú rýchlosť prenosu dát až 10 GBit/s a šírku pásma 500 MHz
- Montáž prebieha cez LSA plus
- Farebný kód na konektoroch keystone je založený na štandarde EIA/TIA 568
- Možno použiť spolu s rámom Keystone Module 26.11.0357 (čierna) alebo 26.11.0356 (svetlosivá), nástenná zásuvka s montážou pod omietku pre Keystone, 2 porty (25.16.8579)
- Farba: biela
Technické špecifikácie
| Skupina produktov | Technológia pripojenia TP |
| Typ produktu | Keystone Jack RJ45 |
| Farba | biely |
| Typ štítu | Nepreverené |
| Kvalita prenosu | Cat6A / Trieda EA |
| Pripojenie montážneho kábla | Krone LSAplus |
| Pridelenie | EIA/TIA 568A a 568B |
| Smer pripojenia | Rovno |
| Hmotnosť | 7,8 g |
- The Cat.6a keystones support data transfer rates of up to 10 GBit/s and a bandwidth of 500 MHz

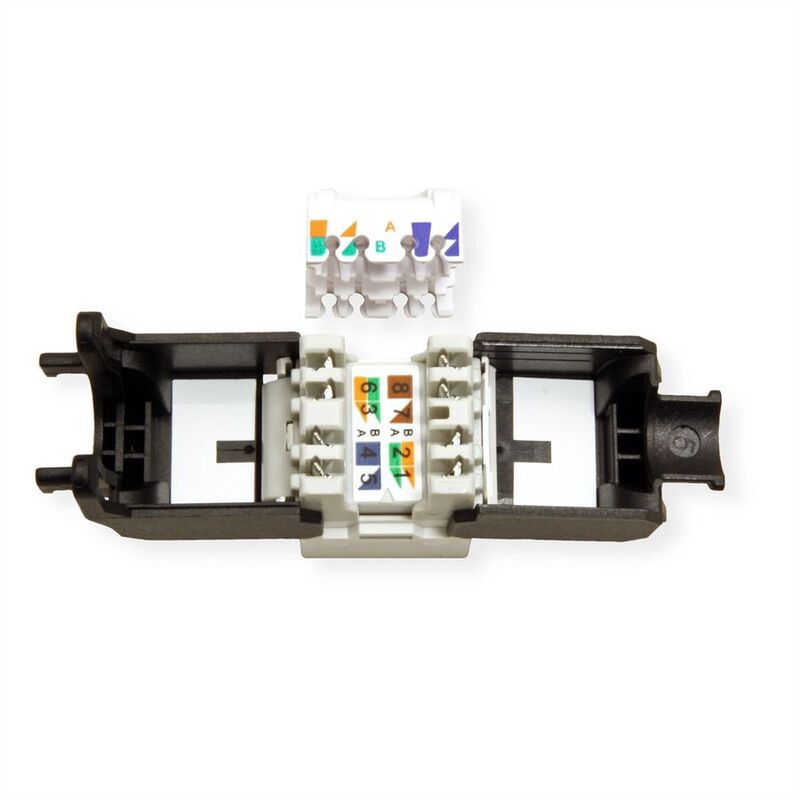

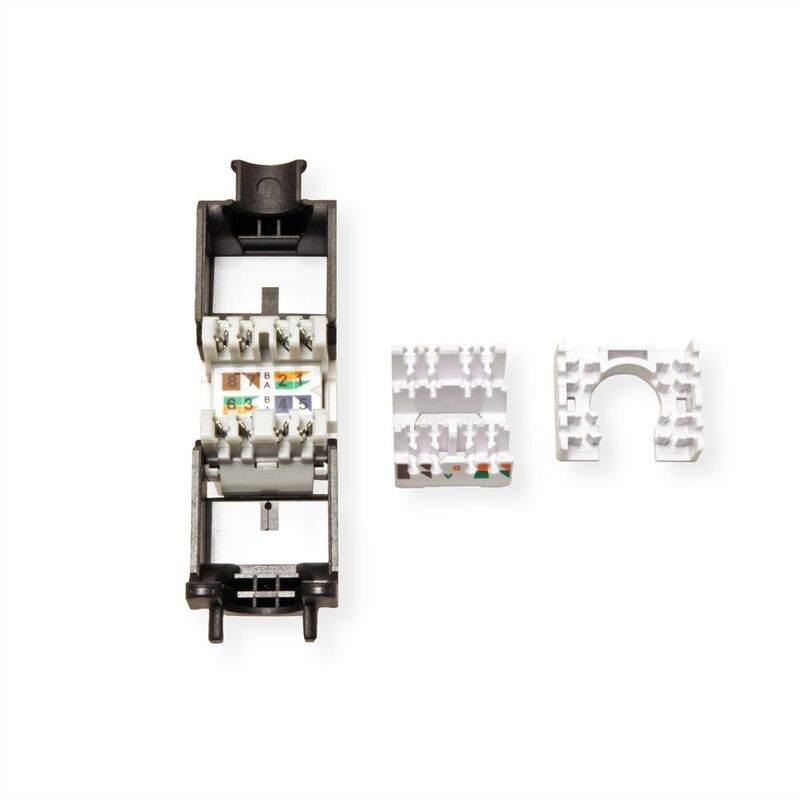

- Assembling takes place over LSA plus
- Colour code on the keystone jacks is based on the standard EIA/TIA 568
- Can be used together with Keystone Module frame 26.11.0357 (black) or 26.11.0356 (light grey), Flush Mount Wall Oulet for Keystones, 2-port (25.16.8579)
- Colour: white
Technical specifications
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | white |
| Scope of delivery | 1x Keystone |
| Shield type | Not screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assembly cable connection | Krone LSAplus |
| Assignment | EIA/TIA 568A&568B |
| Connection direction | Straight |
| Operating temperature min. | -10 |
| Operating temperature max. | 60 |
| Height | 23 |
| Width | 16 |
| Depth | 38 |
| Weight | 7.8 |
| Height of packaging (single piece) | 20 |
| Width of packaging (single piece) | 70 |
| Depth of packaging (single piece) | 120 |
| Package weight (single piece) | 0.02 |
| Gross weight | 0.02 |
Kategória
Cat.6a
Tienenie
Netienený
Spojka
Nie
Slim
Nie
