Nové ešte tenšie a kratšie keystone

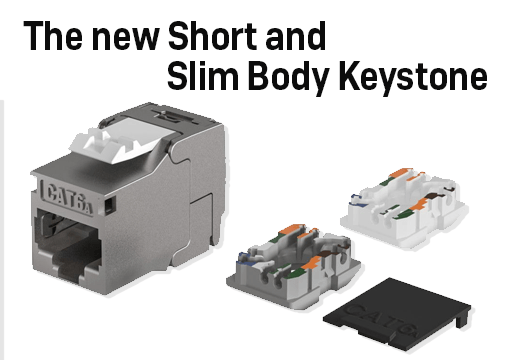

The new Short and Slim Body Keystone

Installations in confined spaces are no challenge for the new Keystone from EFB-Elektronik thanks to its innovative design!

The Keystone for confined spaces

The new Shortbody and Slimline Keystone was developed for applications where space is at a premium: The housing is just 29.2mm deep and 14.64mm wide. The Keystone module therefore combines all the features of a compact, robust housing!

Its short design makes it much easier to install in data outlets and underfloor systems, which significantly increases the efficiency and flexibility of your network design. At the same time, its slimline design allows it to be installed in UAE frames. Thanks to sliding shield contacting, it adapts flexibly to a wide range of cable diameters from 6-9 mm. This means that 10 Gigabit applications can be reliably implemented over a long period of time.

Icon: Cog with 2 in 1 text on blue background Icon: 360 degrees text with arrow on blue background Icon: Certificate with ISO/IEC 11801 text on blue background

Compact housing

Combines the features of a Shortbody and Slimline Keystone in one housing

Robust design

Zinc die-cast housing with high-quality 360° shield connection

Certified transmission properties

Cat.6A component certified according to ISO/IEC 11801



Scope of delivery


RJ45 Keystone Slimline Shortbody Cat 6A E-20094 components RJ45 Keystone Slimline Shortbody Cat 6A E-20094 Measurements
  • 1 x RJ45 module
  • 1 x cable pre-sorter for installation cables AWG24/1 - 22/1 (white)
  • 1 x cable pre-sorter for patch cables AWG27/7..26/7 (gray)
  • 1 x dust protection cap
  • 1 x quick guide
  • Case depth: 29.2 mm
  • Housing width 14.64 mm wide
  • Short design facilitates installation in data outlets and underfloor systems
  • "Slimline" design enables installation in UAE frames
  • Sliding shield contact for cable diameters of 6-9 mm

RJ45 Keystone Slimline Shortbody Cat 6A E-20094 front and back view
