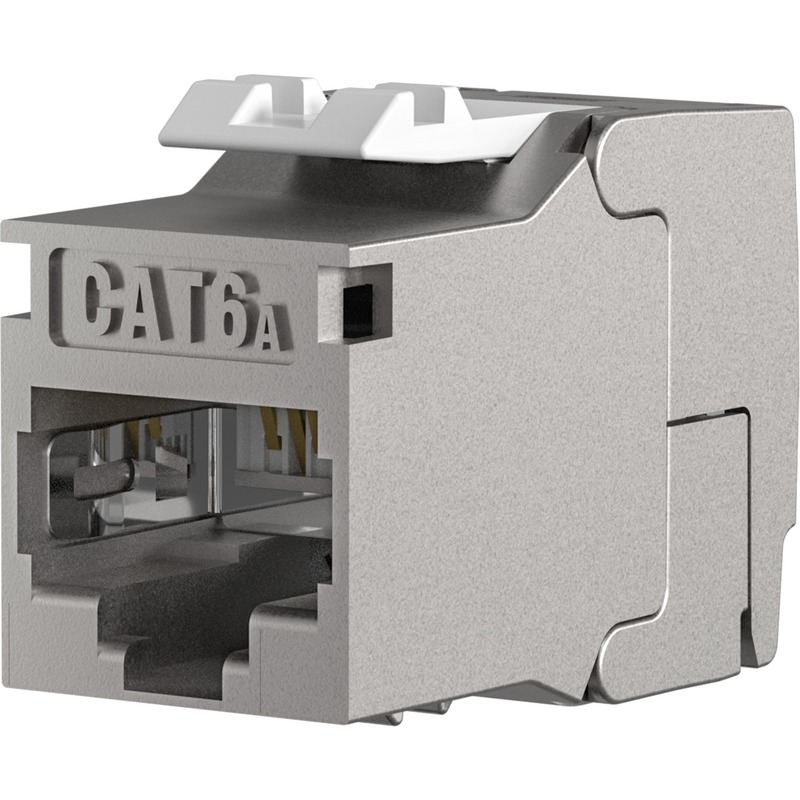

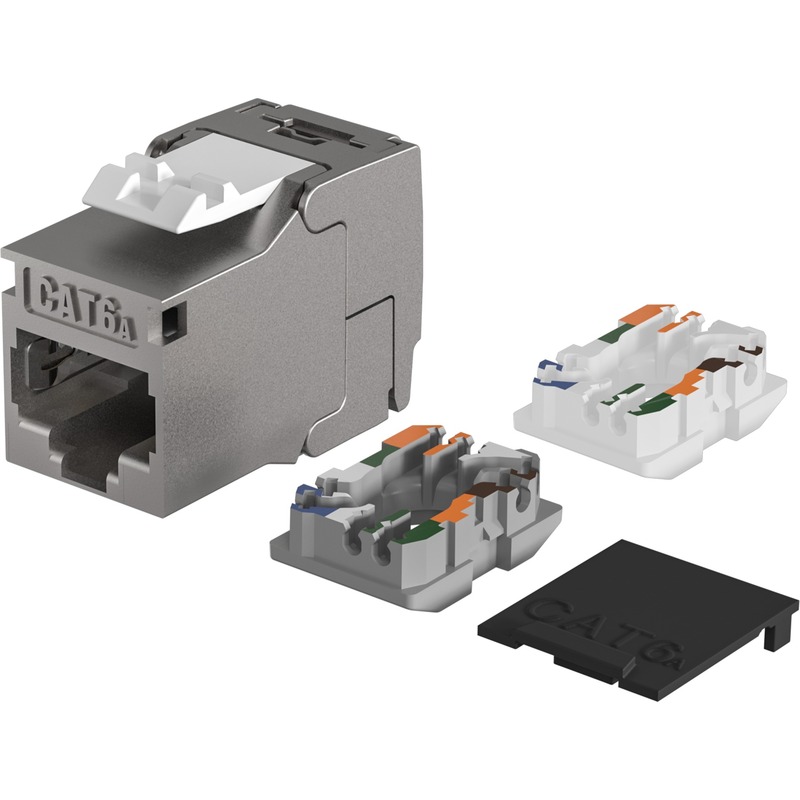

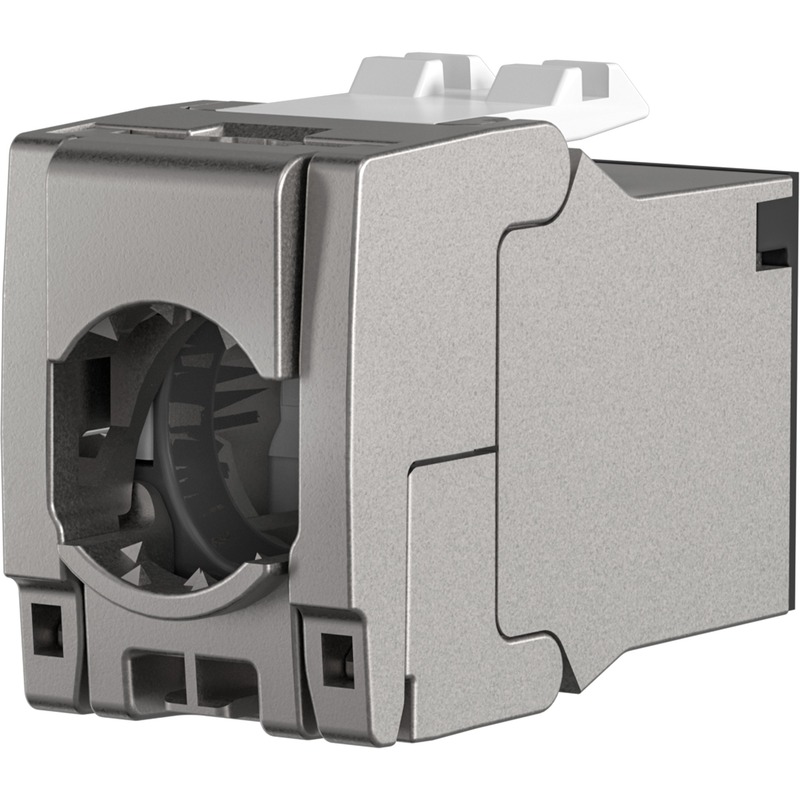

Konektor Keystone cat.6a, tienený, strieborný, beznástrojový (toolless), SlimLine/ShortBody, GHMT
Konektor Keystone cat.6a, tienený, strieborný, beznástrojový (toolless), SlimLine/ShortBody, GHMT
.. celý popis
ARTICLE INFORMATION
The high-quality of the RJ45 Slimeline keystone modules warrants very good characteristics for 10Gbit Ethernet application. Special tools are not needed. The assembling is being carried out fast and easy. With the RJ45 module you get a full shielded module, which provides you good longterm service in your network infrastructure.
Specifications:

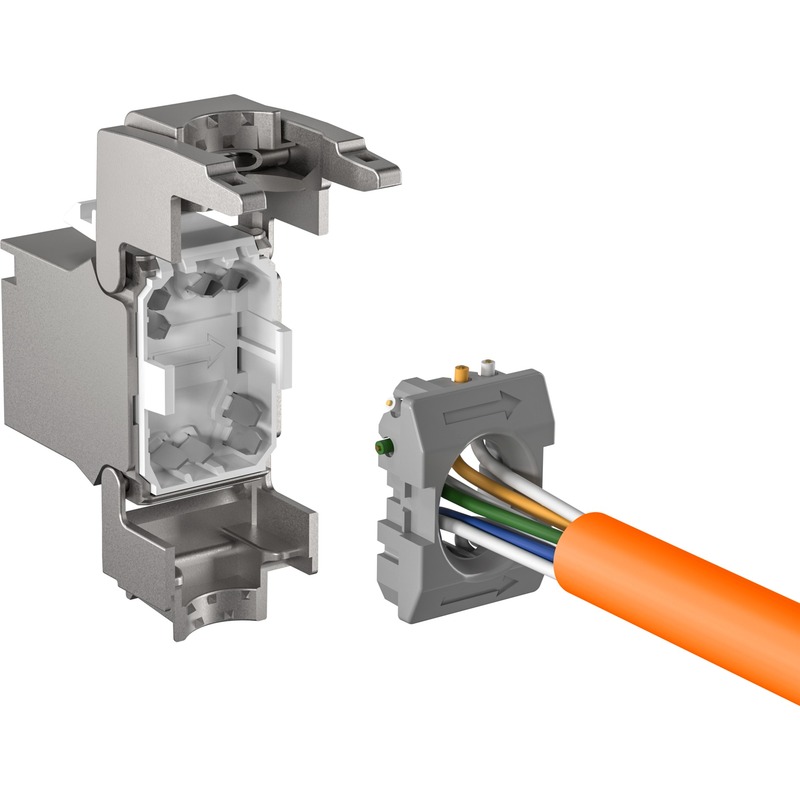

Compact cable presorter for AWG 24/1 .. 22/1 and AWG 26/7 .. AWG 22/7
Pair management according to TIA 568A /B colour codes
Appropriate for distribution panels and frames with keystone slots
Scope of delivery:
1 x RJ45 keystone, cable tie, mounting instruction
| PRODUCT FEATURES |
|
Category |
| 6A (IEC) |
|
Model |
| jack (jack) |
|
Connection type |
| IDC |
|
Type of connector |
| RJ45 8(8) |
|
Screened |
| yes |
|
AWG-range for litz wire conductor |
| 26 – 22 |
|
AWG-range for solid core |
| 24 – 22 |
|
Special tool necessary |
| No |
|
Suitable for round cable |
| yes |
|
Suitable for flat cable |
| No |
|
Suitable for litz wire conductor |
| yes |
|
Suitable for solid core |
| yes |
|
Housing material |
| Zinc die cast |
|
Complaint to UL94 |
| V-0 |
|
For UAE suitable |
| yes |
|
Max. cable diameter |
| 8.5 mm |
|
Insertion force |
| ≤ 30 N |
|
Mating cycles |
| ≥ 750 |
|
Contact coating |
| 6 µ" |
|
360° shield contact |
| yes |
|
Temperature range |
| -10 – 60 °C |
|
Dielectric Withstanding Voltage |
| 700 V AC 60Hz |
|
Current Rating |
| 1,5 A |
|
Insulation Resistance |
| ≥ 500 MΩ |
|
Contact Resistance |
| ≤ 20 mΩ |
