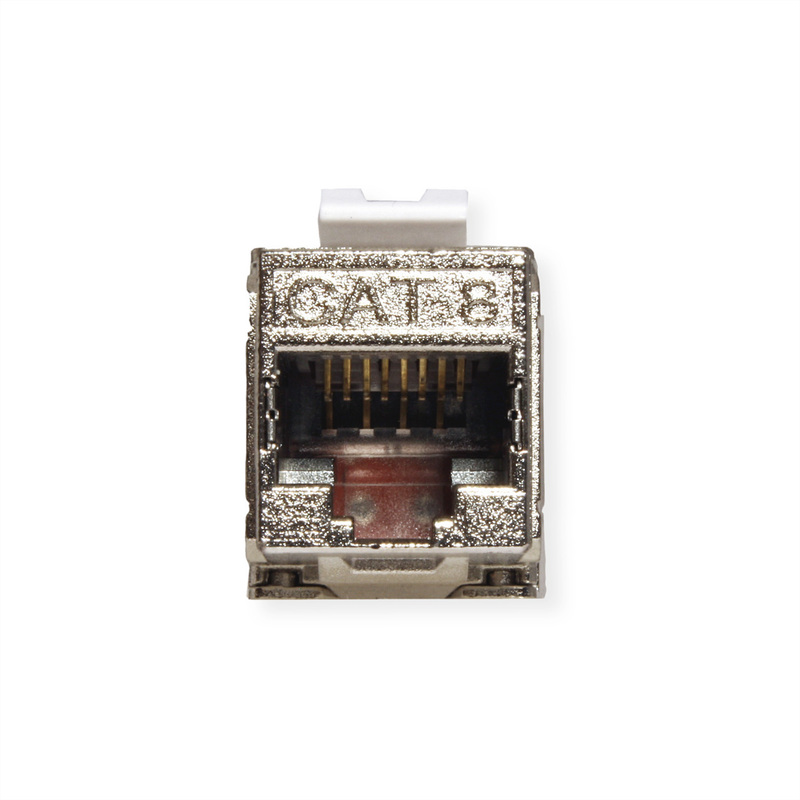

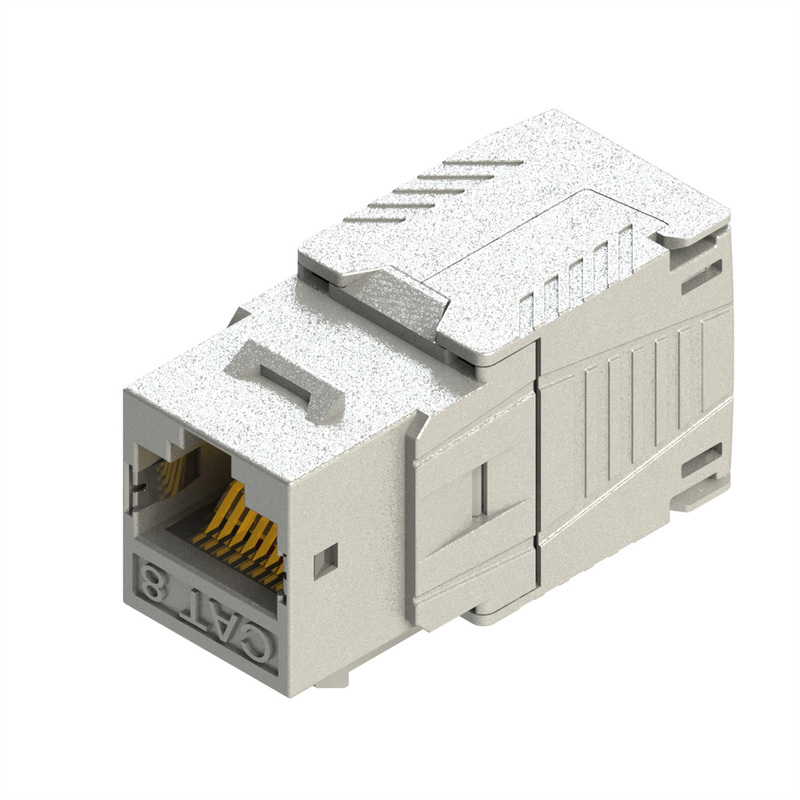

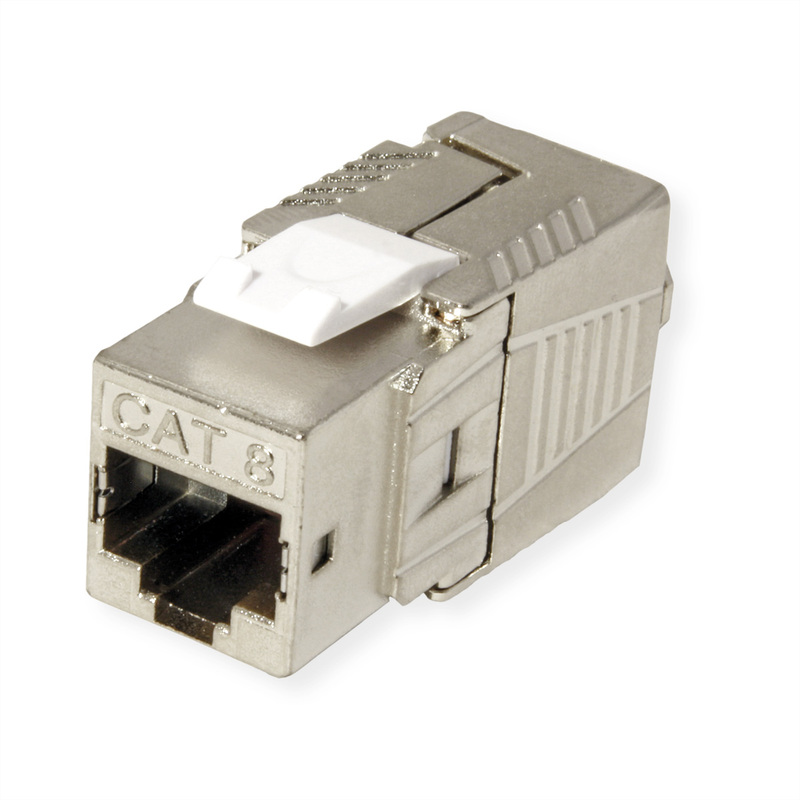

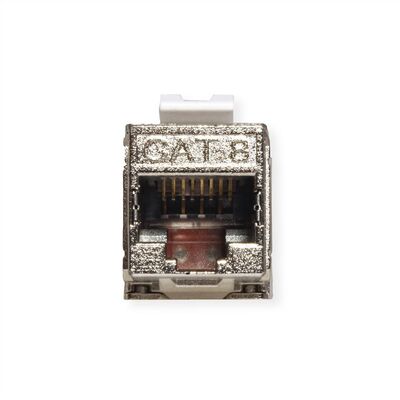

Cat.8 Keystones sú ideálne na použitie v sieťach 10 Gigabit Ethernet
Keystone v osvedčenej kvalite ROLINE!
- ROLINE Cat.8 Keystones sú ideálne na použitie v sieťach Gigabit Ethernet
- Podpora rýchlosti prenosu dát až 10/25/40 Gbit/s so šírkou pásma 2000 MHz

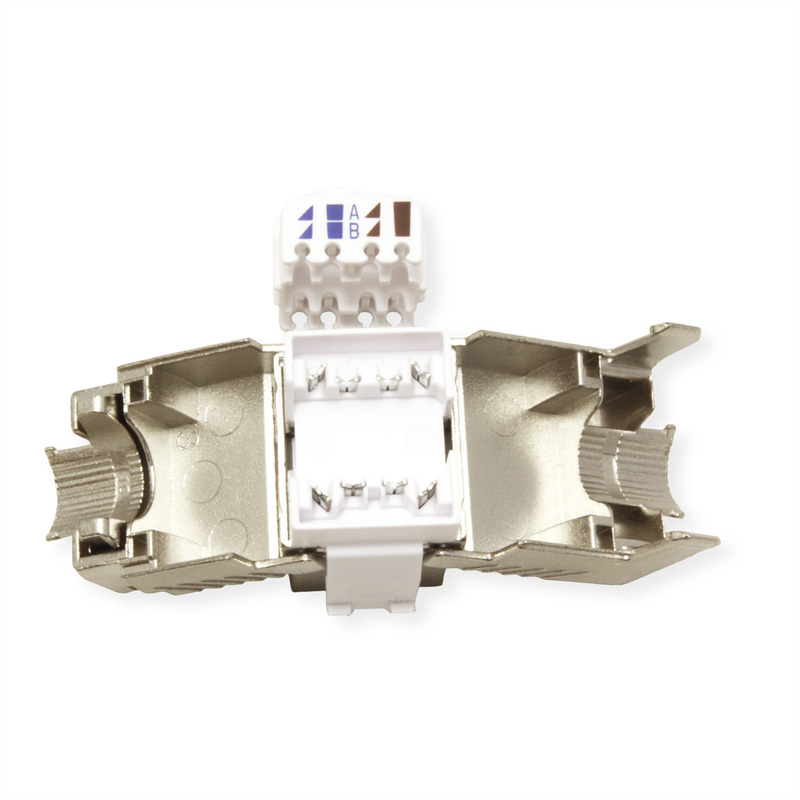

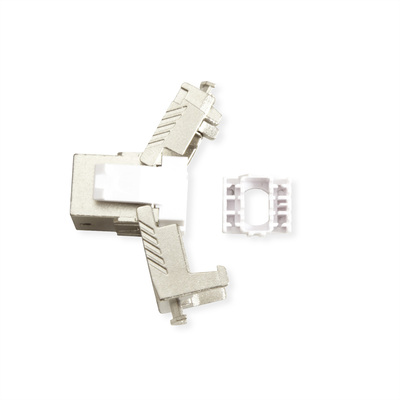

- Pripojte kábel ku Keystones pomocou LSA spojov bez špeciálnych nástrojov - konce káblov jednoducho vložte do vodidiel (s farebným kódovaním), zatvorte a stlačte modul - pripojenie je pripravené na použitie
- Moduly Keystone môžu byť "zachytené" do 19´´ stojana na podporu modulov, ktorý je voliteľne dostupný v čiernej (26.11.00360) alebo svetlosivej (26.11.0359).
- Rozsah priemeru vstupu kábla: 5,5 mm - 9,0 mm
- Rozsah priemeru izolácie: 0,95mm - 1,62mm
- Pevný a lankový vodič: 22AWG - 24AWG pre typ Cat.8
- Schéma kódovania vodičov: EIA/TIA 568
Pre systém štruktúrovanej kabeláže odporúčame použiť nasledovné komponenty: 21.15.0005 ROLINE S/FTP kábel Cat.8, Solid Wire, LSOH, 24 m; 21.15.1853 ROLINE S/FTP Patch Cord Cat.8, pevný, LSOH, žltý, 3 m; 21.15.1863 prepojovací kábel ROLINE S/FTP Cat.8, splietaný, LSOH, žltý, 3 m; 26.11.0381 ROLINE C8 Shield RJ45 Keystone, bez náradia. Akreditované nemecké laboratórium GHMT testovalo a certifikovalo túto kombináciu produktov v 2 konektorovom kanáli (30 m), meď, trieda I až do 2 GHz; osvedčenie č. z5236c-18-E.
Technické špecifikácie
| Skupina produktov | Technológia pripojenia TP |
| Typ produktu | Keystone Jack RJ45 |
| Farba | striebro |
| Typ štítu | Preverené |
| Kvalita prenosu | Cat8.1 / Trieda I |
| Pridelenie | EIA/TIA 568A a 568B |
| Smer pripojenia | Rovno |
| Hmotnosť | 29,4 g |
Cat.8 Keystones are ideal for use in 10 Gigabit Ethernet networks
Keystone in proven ROLINE quality!- The ROLINE Cat.8 Keystones are ideal for use in Gigabit Ethernet networks
- Support data transfer rates up to 10/25/40 Gbit/s with a bandwidth of 2000 MHz
- Connect the cable to the Keystones via LSA connections without special tools - place the cable ends simply into the guides (with color coding), close and compress the module - the connection is ready for use
- The Keystone modules can be "latched" into a 19'' module support rack, which is optionally available in black (26.11.00360) or light gray (26.11.0359).
- Cable entrance diameter range: 5.5mm - 9.0mm
- Insulation diameter range: 0.95mm - 1.62mm
- Solid and Stranded conductor: 22AWG - 24AWG for Cat.8 type
- Wire coded scheme: EIA/TIA 568
For a structured cabling system we recommend to use the following components: 21.15.0005 ROLINE S/FTP Cable Cat.8, Solid Wire, LSOH, 24 m; 21.15.1853 ROLINE S/FTP Patch Cord Cat.8, solid, LSOH, yellow, 3 m; 21.15.1863 ROLINE S/FTP Patch Cord Cat.8, stranded, LSOH, yellow, 3 m; 26.11.0381 ROLINE C8 Shield RJ45 Keystone, toolless. The accredited German laboratory GHMT has tested and certified this product combination, in a 2 Connector Channel (30m), Copper, Class I up to 2 GHz; certificate no. c7794a-23.
Technical specifications
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | silver |
| Scope of delivery | Keystone |
| Shield type | Screened |
| Transfer quality | Cat8.1 / Class I |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A&568B |
| Connection direction | Straight |
| Height | 21 |
| Width | 12 |
| Depth | 38 |
| Weight | 29.4 |
| Height of packaging (single piece) | 20 |
| Width of packaging (single piece) | 20 |
| Depth of packaging (single piece) | 60 |
| Package weight (single piece) | 0.025 |
| Gross weight | 0.025 |
