- Dvojito tienený satelitný kábel pre prenos bez rušenia
- Lisovaná zátka na oboch stranách na ochranu pred prachom, nečistotami a mechanickým namáhaním
- Koaxiálny kábel s poniklovanými, presne uloženými kontaktmi
- Anténny kábel pre TV na prenos digitálnych SD/HDTV signálov, napr. zo satelitných systémov do televízorov alebo prijímačov
Technické špecifikácie
| Typ pripojenia | Muž |
| Pripojenie 2, typ | Muž |
| Typ kábla | koaxiálny kábel |
| Typ 1, tienenie | fólia (hliníková) |
| Typ 2, tienenie | opletenie (hliník) 32x |
| Materiál vnútorného vodiča | CCS |
| Materiál plášťa kábla | PVC |
| Materiál vonkajšieho plášťa | PVC |
| Farba | biely |
| Jednotka spotreby | 1 ks v blistri |
| Typ balenia | Maloobchodný blister |
| Počet tienenia | 2x |
| vnútorný vodič, priemer jadra | 0,5 mm |
| Priemer plášťa kábla (približne) | 5 mm |
| Dĺžka kábla | 5 m |
| Účinnosť tienenia | 70 dB |
| Impedancia | 75 °C |
| Značky | OEEZ, CE |

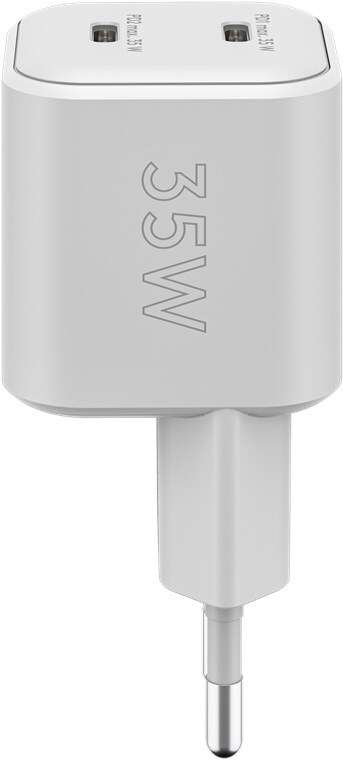

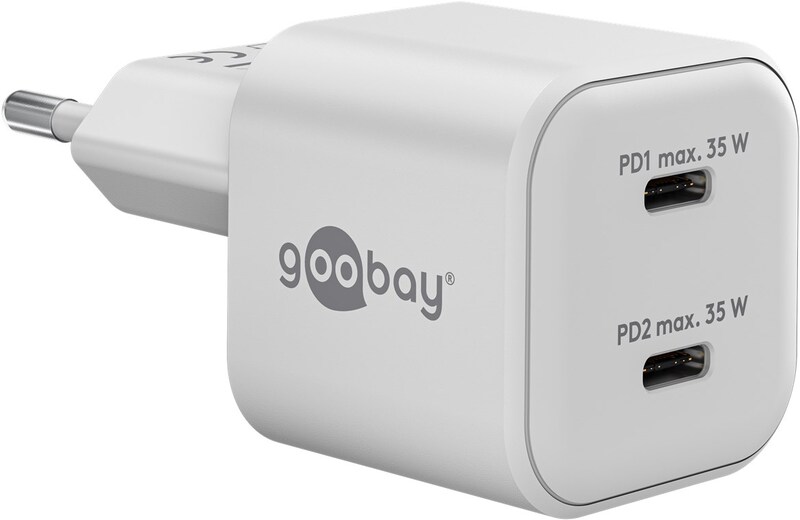

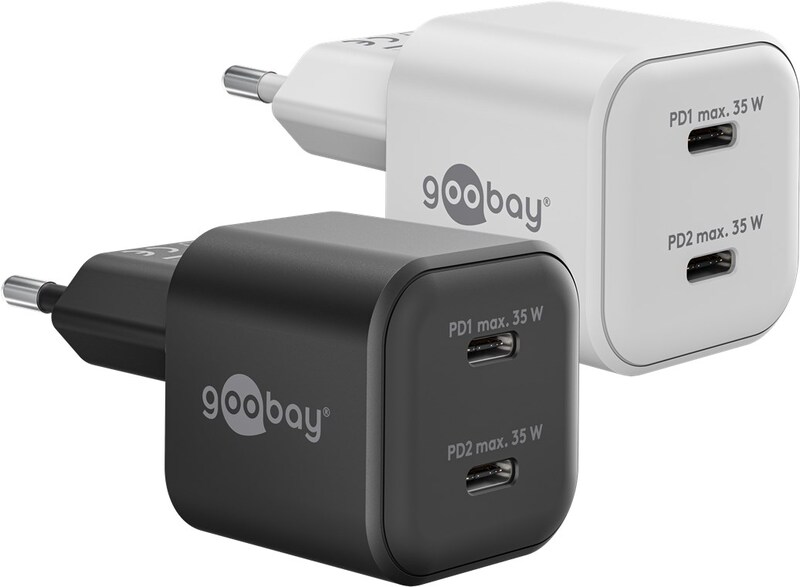

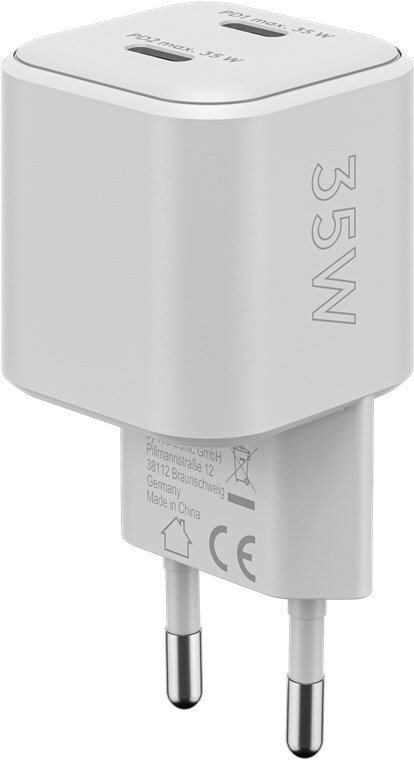

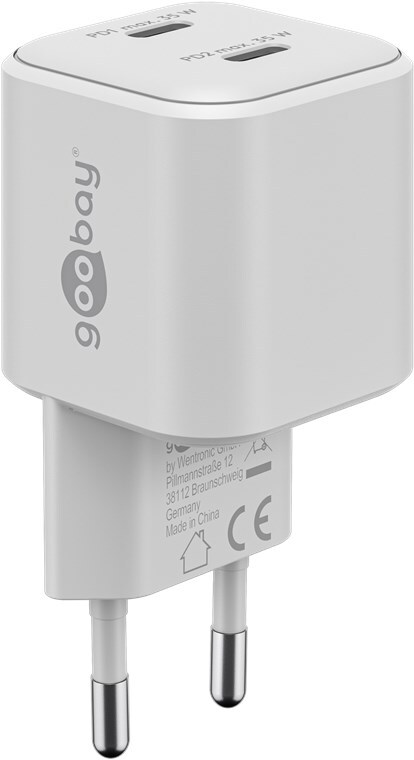

The energy cube in a nano-sized design uses Power Delivery to provide super-fast charging for your mobile phone, tablet, headphones, smartwatch or camera. With its compact, lightweight format and two USB ports, the adapter offers maximum flexibility – at home, on the go and when travelling abroad.
- With 35 W of power, the charging adapter is specially tailored to small devices such as smartphones, Bluetooth headphones, tablets or power banks

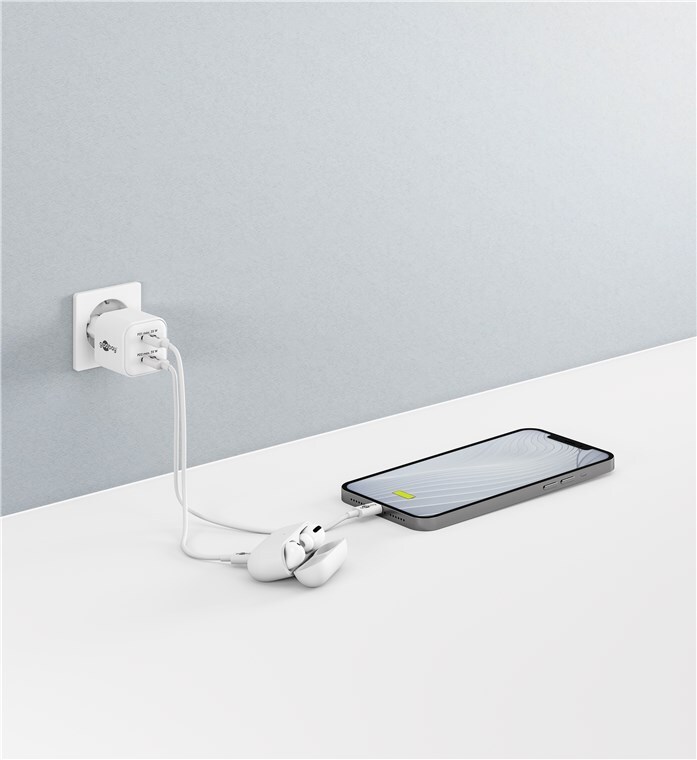

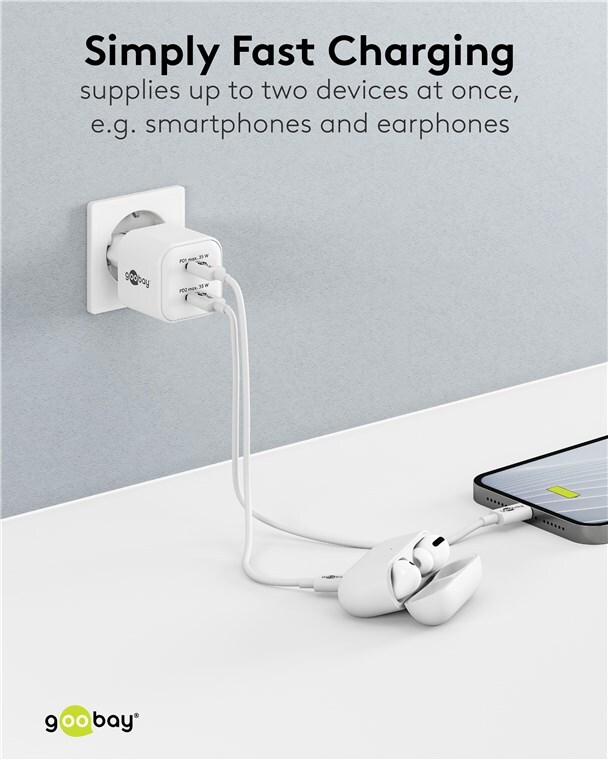

- The wall charger can be used to charge up to two devices at the same time, e.g. via USB-C smartphones such as the Apple iPhone and via USB-A headphones, power banks, etc.
- The super-compact and lightweight design fits in any bag and makes the USB-C power supply the handy companion when travelling

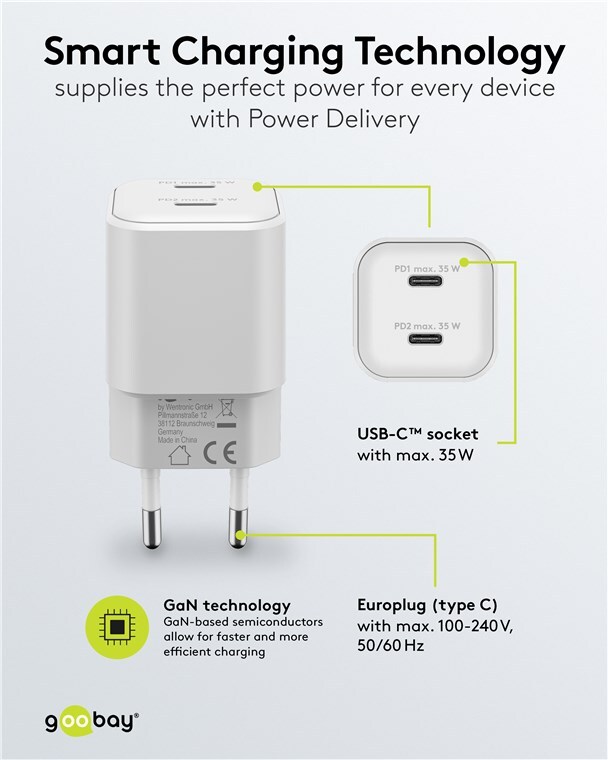

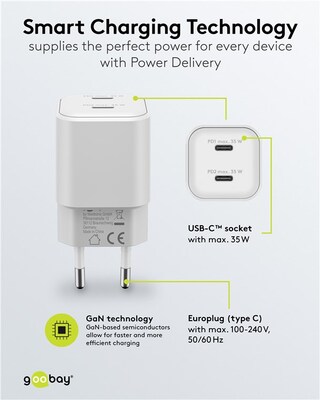

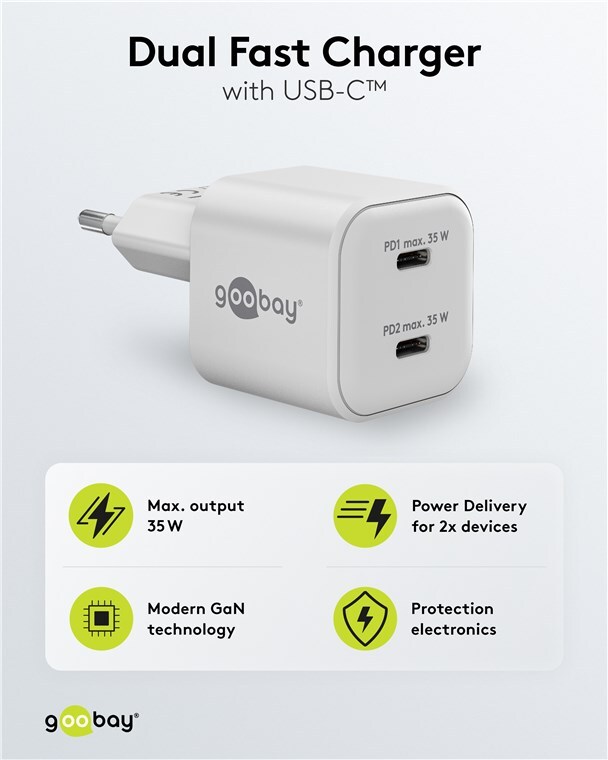

- Semiconductors with GaN technology allow for faster, more efficient charging and a lighter, more compact design compared to conventional chargers
- With Power Delivery, the USB charger comes with a particularly safe and dynamic charging method that identifies the optimal output power for the connected device

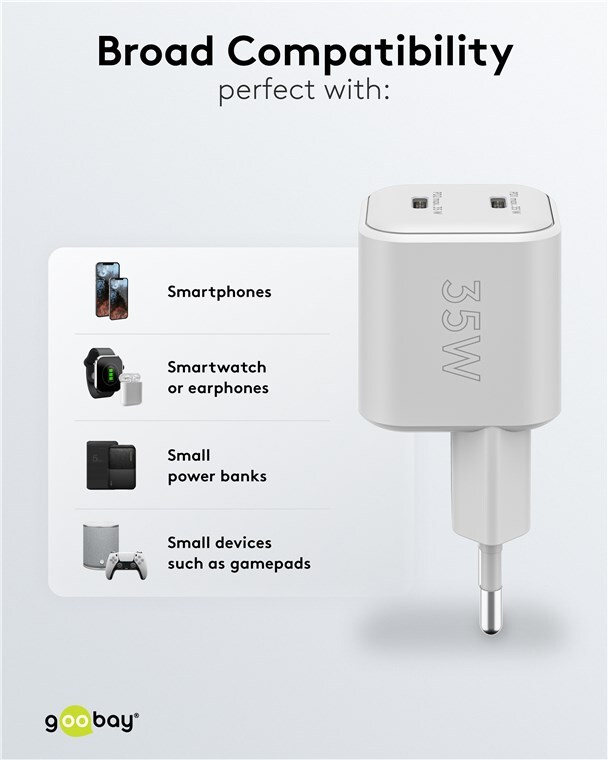

- Compatible with smartphone brands such as Apple iPhone, Samsung, Xiaomi, LG, Huawei, as well as tablets such as the Apple iPad or the Samsung Galaxy
- The integrated protection electronics of the USB-C charger protects connected devices against overcurrent, overcharging and overheating
Technical specifications

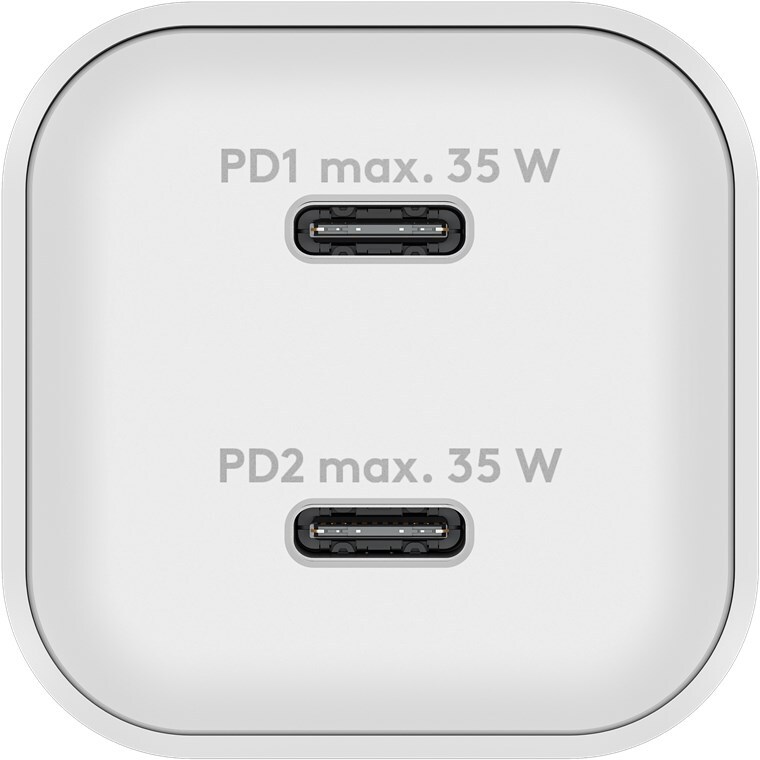

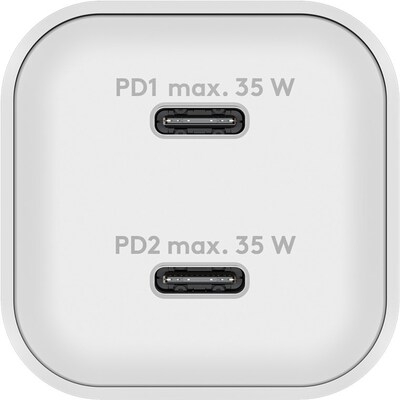

| Output, type | USB-C |
| Output 2, type | USB-C |
| GaN Technology | yes |
| Input, type | Europlug (Type C CEE 7/16) |
| Color version | white |
| Color | white |
| Material | ABS |
| Special feature | USB type C PD charger |
| Consumption Unit | 1 pc. in cardboard box |
| Operation manual | de, en, fr, it, es, nl, da, se, cz, pl |
| Packaging type | Retail Box |
| max. performance | 35 W |
| Technical Details | 5.0 V, 3.0 A, 15.0 W max. or 9.0 V, 3.0 A, 27.0 W max. or 12.0 V, 2.9 A, 35.0 W max. or 15.0 V, 2.3 A, 35.0 W max. or 20.0 V, 1.8 A, 35.0 W max. or PPS1: 5.0-11.0 V, 3.0 A, 33.0 W max. |
| Number of outputs | 2 |

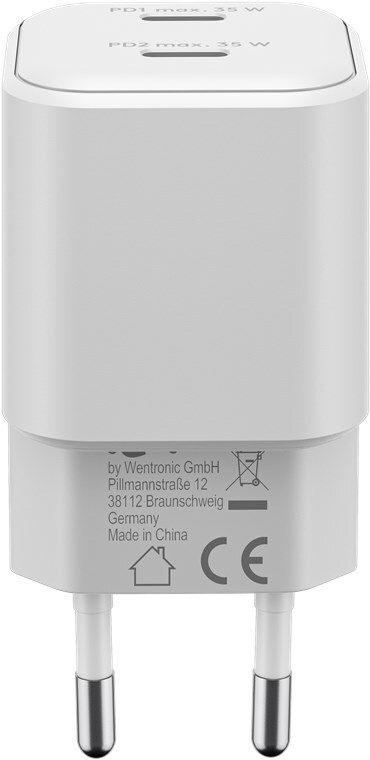

| Markings | CE, WEEE, Indoor use, Safety class 2, Indoor use |
| Input, Voltage Range | 100 - 240 (AC) V |
| Length | 81 mm |
| Width | 36.1 mm |
| depth | 15.3 mm |
| Weight | 40 g |
