- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.
- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.
NAPÁJACÍ RÁM S 1xUTE 1xCM 1xUSB A/C 22W 0,2m GST18
Zásuvková lišta POWER FRAME 1x zásuvka UTE 35° čierna so zvýšenou ochranou proti dotyku 1x nabíjačka USB A/C 22W 1x prázdny zákazkový modul Napájací vstup 0,2 m H05VV-F3G1,5 mm2 so zástrčkou GST18 Napájací kábel cez koncovku s logom BACHMANN Šírka: 220 mm balené v krabici
Verzia UTE - vhodná pre Francúzsko, Českú republiku, Slovensko
| Anschlusskabel | H05VV-F3G1,5 mm2 |
| Počet sád | 1 |
| Počet USB pripojenia | 2 |
| Množstvo v krabici | 1 ks |
| Breite | 0,07 m |
| Farba | čierna |
| Pripojovací kábel | H05VV-F3G1,5 mm2 |
| Hĺbka | 0,22 m |
| Hĺbka balenia (jeden kus) | 330 mm |
| Typ dávky | UTE Schutzkontakt, CEE 7/5, Typ-E |
| Farbe | čierny |
| Gewicht | 0,62 kg |
| Celková hmotnosť | 0,398 |
| Výška | 0,04 m |
| Výška balenia (jeden kus) | 80 mm |
| Hersteller | BACHMANN |
| Höhe | 0,04 m |
| Dlhý | 0,2 m |
| Dĺžka | 0,2 m |
| Výrobca | BACHMANN |
| kód_výrobcu | 916,527 |
| Počet zásuviek | 1 |
| Počet USB pripojení | 2 |
| Hmotnosť balenia (jeden kus) | 0,398 kg |
| Paketgewicht | 0,398 kg |
| Typ zástrčky | Wieland GST18 |
| Skupina produktov | Energetické tyčinky |
| Typ produktu | Integrovaná jednotka POWER FRAME |
| Produktová skupina | Steckdosenleisten |
| Typ produktu | Einbau-Anschlussfelder POWER FRAME |
| Regionálne použitie | Francúzsko, Česká republika, Slovensko |
| Regionálne použitie | Francúzsko, Tschechien, Slowakei |
| Typ zásuvky | 3P. UTE, CEE 7/5, typ E |
| Steckertyp | Wieland GST18 |
| Tiefe | 0,22 m |
| USB nabíjačka | áno |
| Rozmer balenia | 80 mm |
| Baliaca plošina | 80 mm |
| Baliace pásky | 330 mm |
| Hmotnosť | 0,62 kg |
| Šírka | 0,07 m |
| Šírka balenia (jeden kus) | 80 mm |
- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.

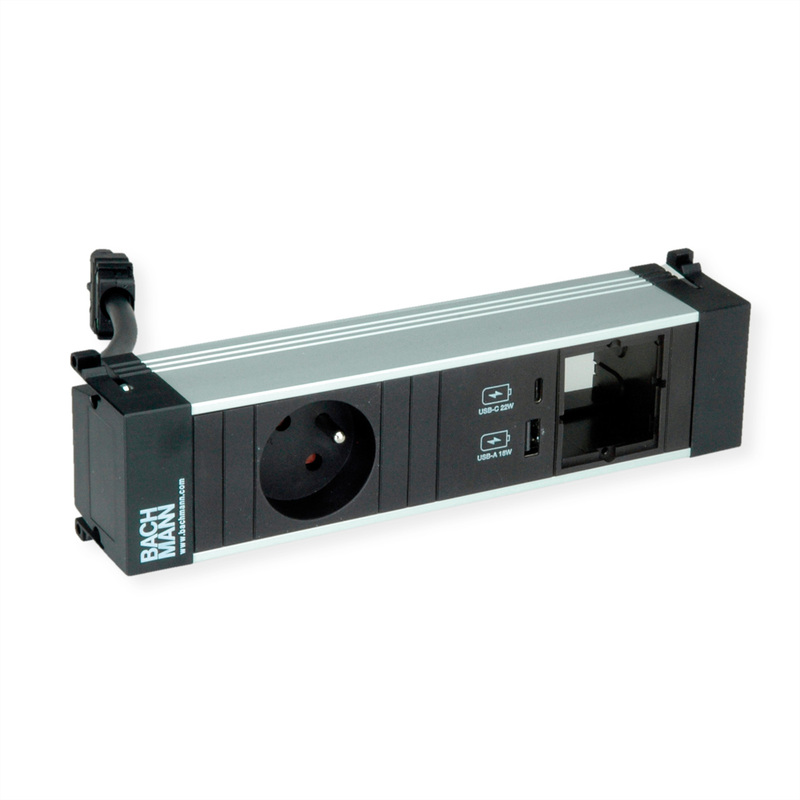

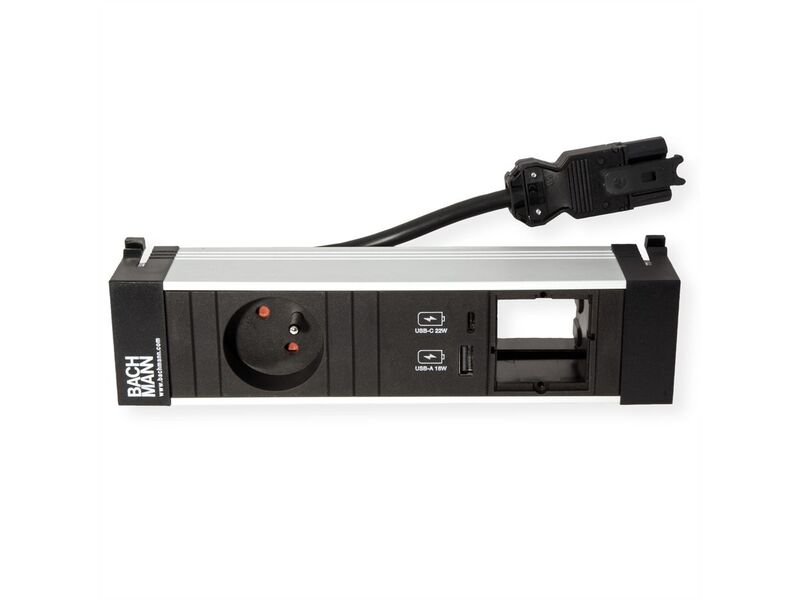

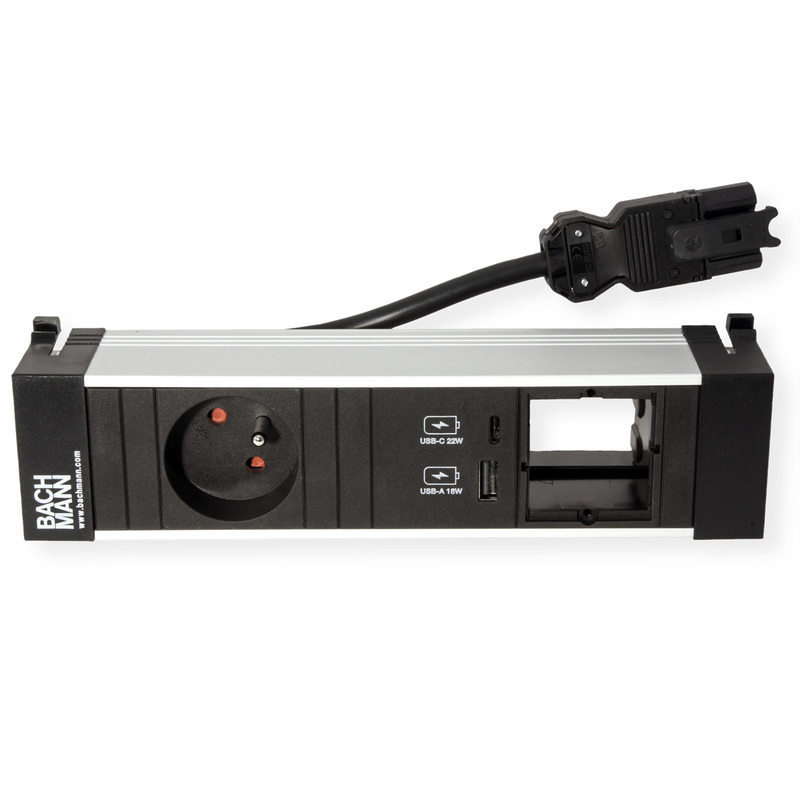

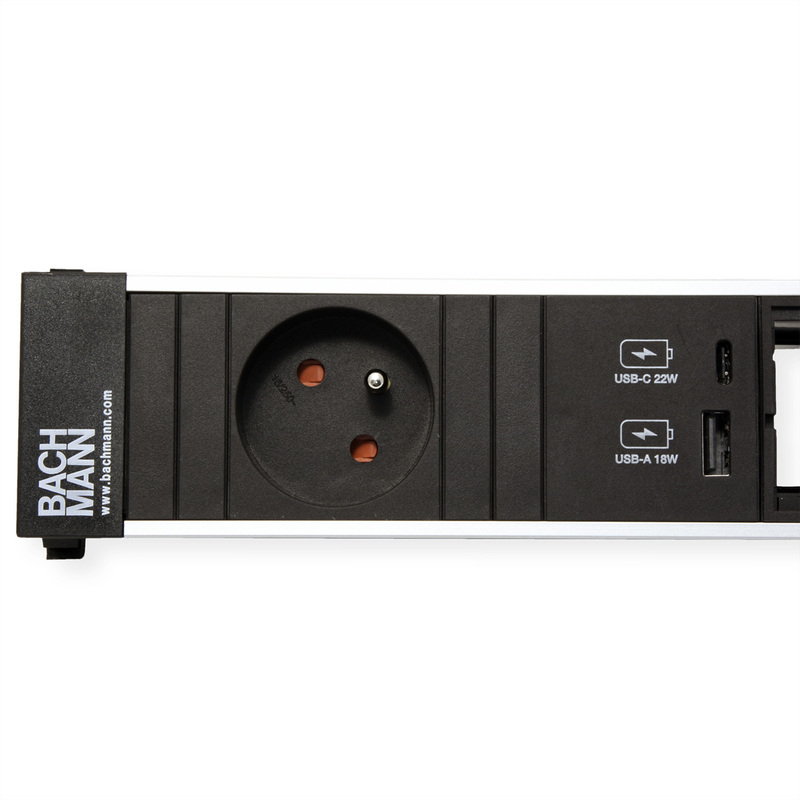

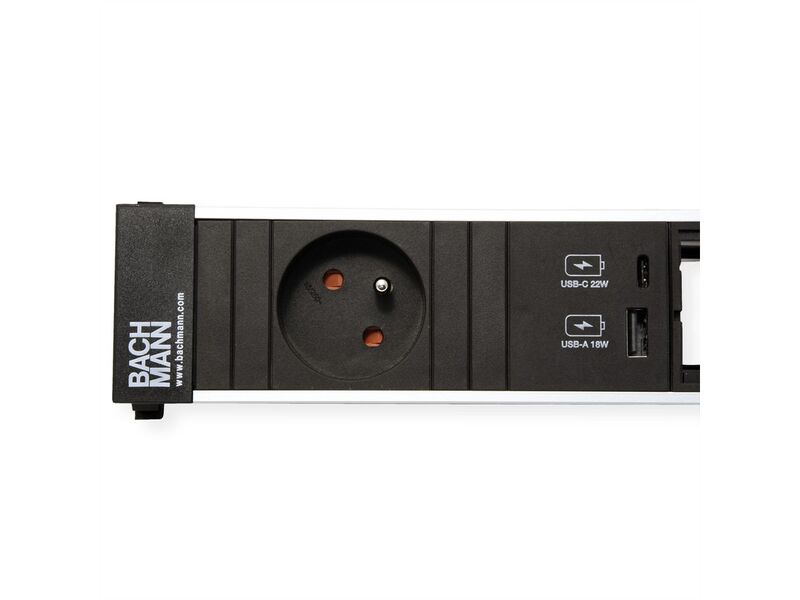

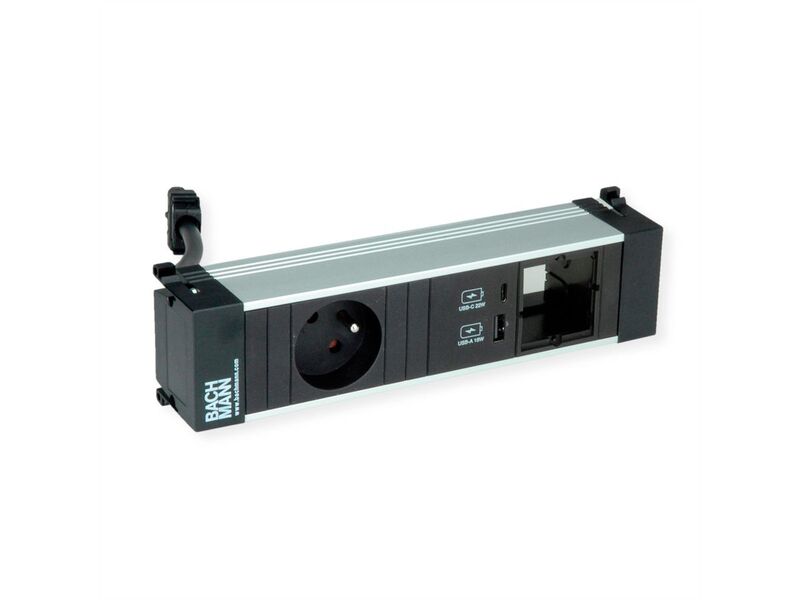

POWER FRAME S 1xUTE 1xCM 1xUSB A/C 22W 0.2m GST18

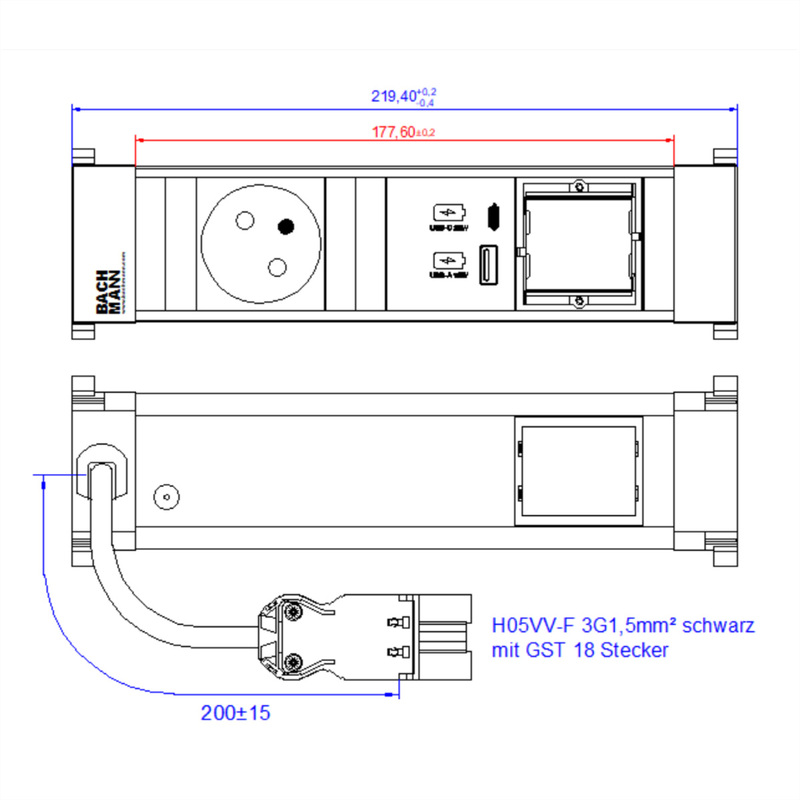

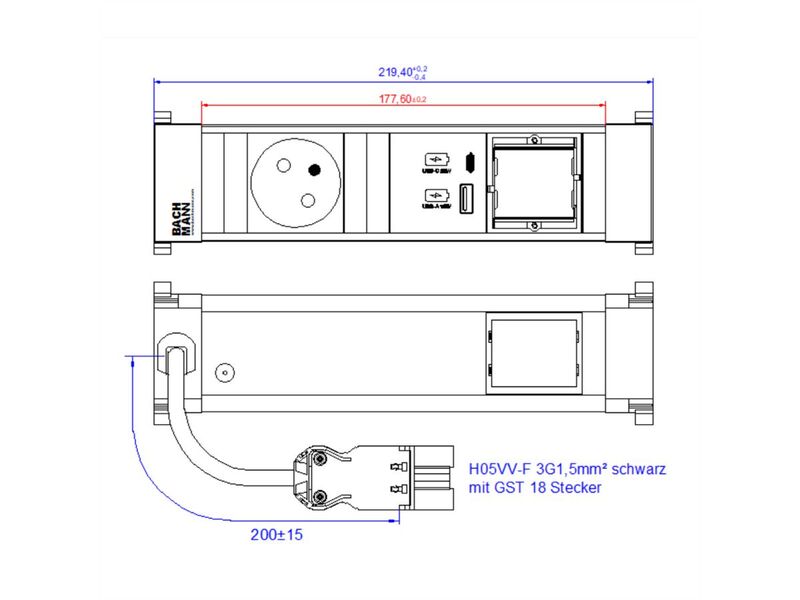

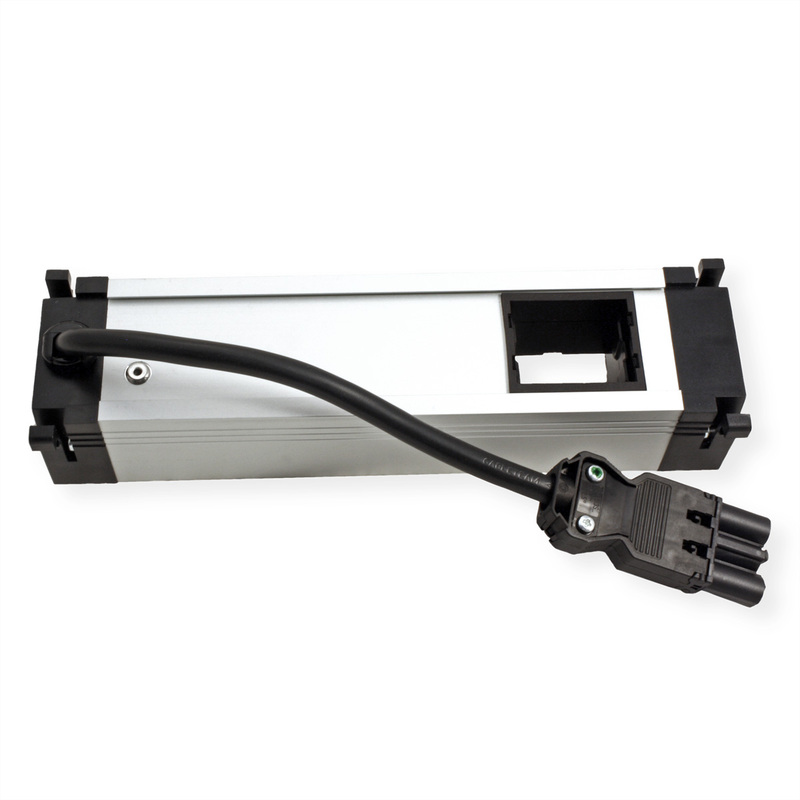

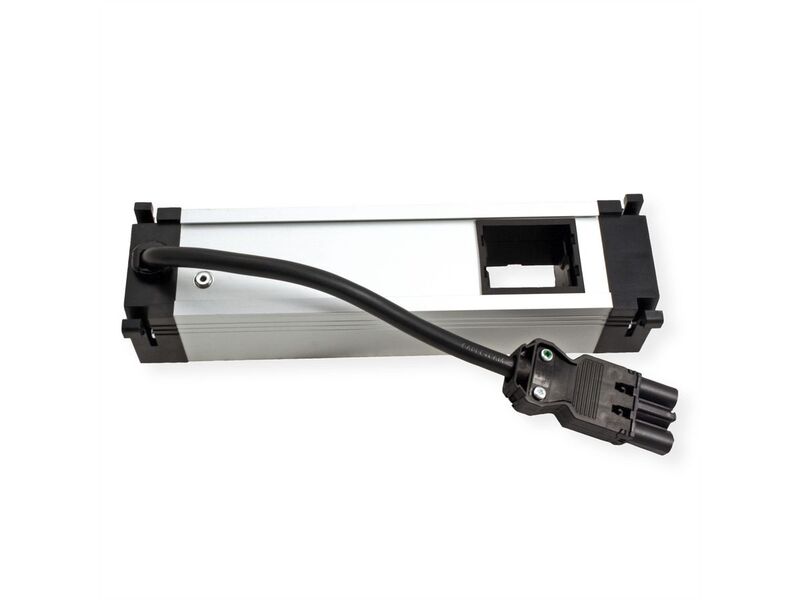

POWER FRAME socket strip 1xUTE socket outlet 35° black with enhanced touch protection 1xUSB A/C 22W Charger 1xCustom module empty Power input 0.2m H05VV-F3G1.5mm² with GST18 plug Supply cable through end cap with BACHMANN logo Width: 220 mm packed in a box
UTE Version - Suitable for France, Czech Republic, Slovakia
| Anschlusskabel | H05VV-F3G1,5mm² |
| Anzahl der Steckdosentöpfe | 1 |
| Anzahl der USB-Anschlüsse | 2 |
| BOX qty | 1 pcs |
| Breite | 0.07 m |
| Colour | black |
| Connection cable | H05VV-F3G1,5mm² |
| Depth | 0.22 m |
| Depth of packaging (single piece) | 330 mm |
| Dosentyp | UTE Schutzkontakt, CEE 7/5, Typ-E |
| Farbe | schwarz |
| Gewicht | 0.62 kg |
| Gross weight | 0.398 |
| Height | 0.04 m |
| Height of packaging (single piece) | 80 mm |
| Hersteller | BACHMANN |
| Höhe | 0.04 m |
| Länge | 0.2 m |
| Length | 0.2 m |
| Manufacturer | BACHMANN |
| manufacturer_code | 916.527 |
| Number of socket pots | 1 |
| Number of USB connections | 2 |
| Package weight (single piece) | 0.398 kg |
| Paketgewicht | 0.398 kg |
| Plug type | Wieland GST18 |
| Product group | Power Bars |
| Product type | Integrated unit POWER FRAME |
| Produktgruppe | Steckdosenleisten |
| Produkttyp | Einbau-Anschlussfelder POWER FRAME |
| Regional use | France, Czech Republic, Slovakia |
| Regionale Verwendung | Frankreich, Tschechien, Slowakei |
| Socket type | 3P. UTE, CEE 7/5, Type-E |
| Steckertyp | Wieland GST18 |
| Tiefe | 0.22 m |
| USB Charger | ja |
| Verpackungsbreite | 80 mm |
| Verpackungshöhe | 80 mm |
| Verpackungstiefe | 330 mm |
| Weight | 0.62 kg |
| Width | 0.07 m |
| Width of packaging (single piece) | 80 mm |
