- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.

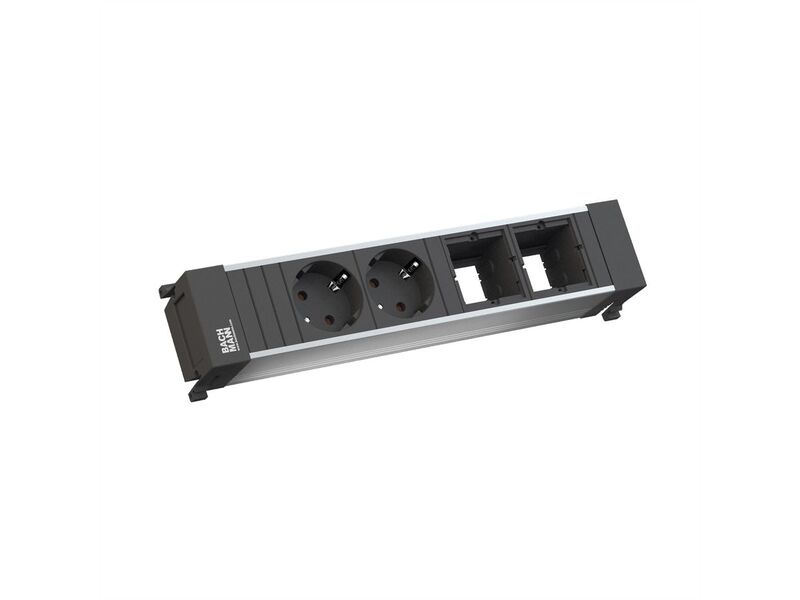

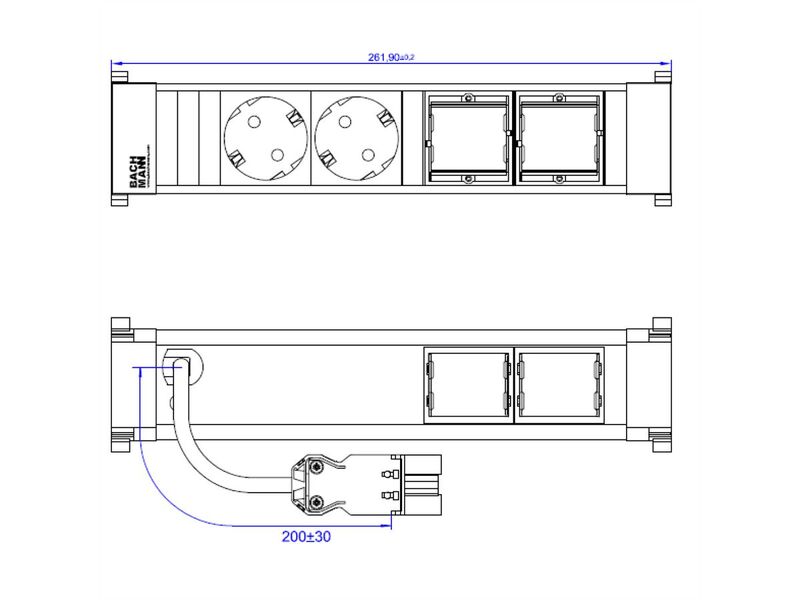

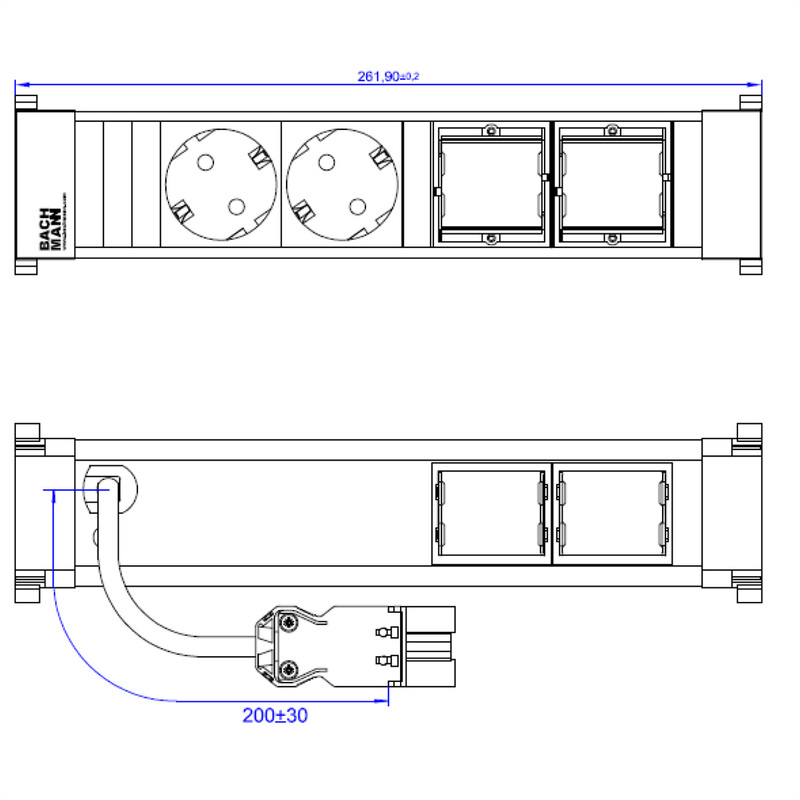

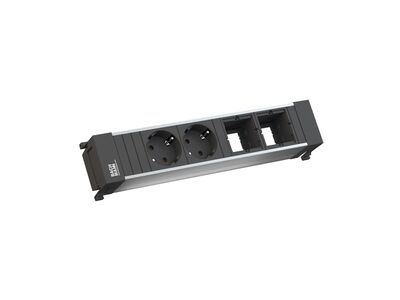

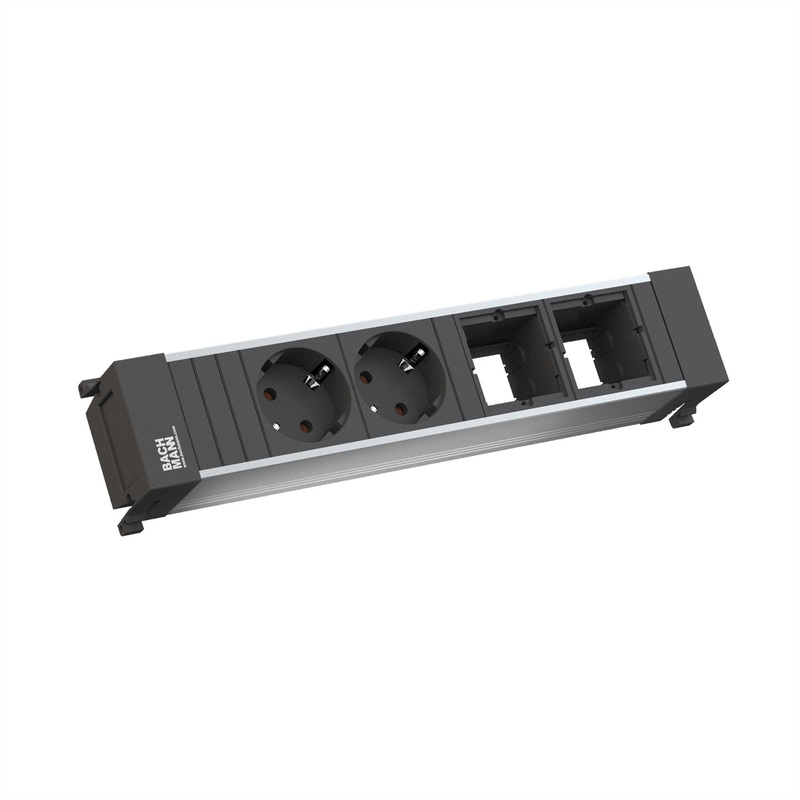

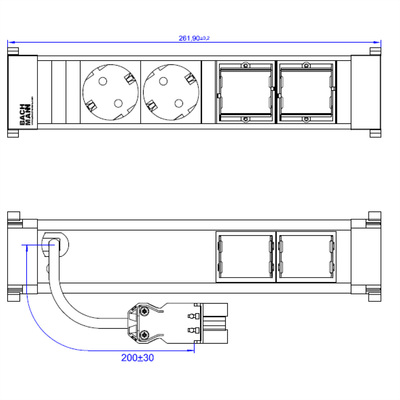

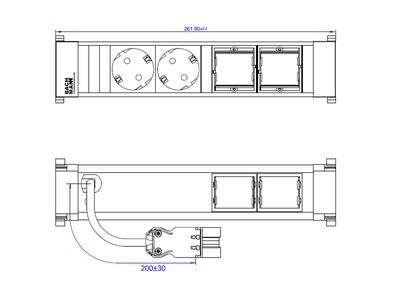

POWER FRAME power strip 2x safety sockets black 2x custom modules empty In black universal profile (plastic) Power input: 0.2m H05VV-F3G1.5mm² with GST18 plug, packed in a box.
The advantages at a glance- Compact dimensions
- Subsequent installation possible
- Timeless design
- Versatile
- Quick installation of complete power strips
BACHMANN POWER FRAME built-in connection panels
POWER FRAME is an easily accessible electrification unit. Compact dimensions combined with high-quality, timeless design give POWER FRAME almost limitless application possibilities.
The power strip can be easily inserted into the installation frame from below without any tools.
specifications
| Manufacturer | BACHMANN |
|---|---|
| product group | power strips |
| product type | built-in connection panels POWER FRAME |
| Color | black |
| length | 0.2 m |
| number of sockets | 4 |
| connection cable | H05VV-F3G1.5mm² |
| connector | GST18 connector |
| connector type | Wieland GST18 |
| Regional Use | Germany, Austria, Netherlands |
| Height | 36 mm |
| Width | 262 mm |
| depth | 73 mm |
| Weight | 366 g |
| packaging height | 80 mm |
| packaging width | 80 mm |
| packaging depth | 320 mm |
| package weight | 0.35 kg |
