- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.
- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.

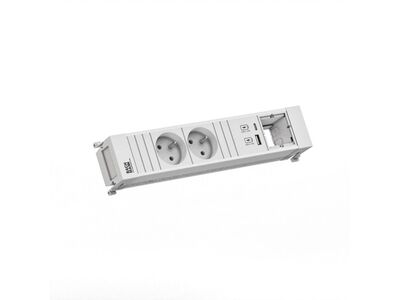

NAPÁJACÍ RÁM 2xUTE 1xCM 1xUSB A/C 22W 0,2m GST18
Zásuvková lišta POWER FRAME farba: biela, podobná RAL9010 lakovaná 2x zásuvky UTE francúzska biela 1x USB nabíjačka A/C 22W 1x modul Custom prázdne plastové komponenty biela, RAL9010 napájací kábel 0,2 m H05VV-F 3G1,5 mm2 biely s vidlicou GST18 biely s logom BACHMANN balené v krabici
Verzia UTE - vhodná pre Francúzsko, Českú republiku, Slovensko
| Počet sád | 2 |
| Počet USB pripojenia | 2 |
| Množstvo v krabici | 1 ks |
| Breite | 0,05 m |
| Farba | biely |
| Hĺbka | 0,26 m |
| Hĺbka balenia (jeden kus) | 80 mm |
| Typ dávky | UTE Schutzkontakt, CEE 7/5, Typ-E |
| Farbe | biely |
| Gewicht | 0,36 kg |
| Celková hmotnosť | 0,448 |
| Výška | 0,04 m |
| Výška balenia (jeden kus) | 70 mm |
| Hersteller | BACHMANN |
| Höhe | 0,04 m |
| Dlhý | 0,2 m |
| Dĺžka | 0,2 m |
| Výrobca | BACHMANN |
| kód_výrobcu | 916.714 |
| Počet zásuviek | 2 |
| Počet USB pripojení | 2 |
| Hmotnosť balenia (jeden kus) | 0,448 kg |
| Paketgewicht | 0,448 kg |
| Typ zástrčky | Wieland GST18 |
| Skupina produktov | Energetické tyčinky |
| Typ produktu | Integrovaná jednotka POWER FRAME |
| Produktová skupina | Steckdosenleisten |
| Typ produktu | Einbau-Anschlussfelder POWER FRAME |
| Farba RAL | RAL 9010 Čistá biela |
| RAL-Farbe | RAL 9010 Biela |
| Regionálne použitie | Francúzsko, Česká republika, Slovensko |
| Regionálne použitie | Francúzsko, Tschechien, Slowakei |
| Typ zásuvky | 3P. UTE, CEE 7/5, typ E |
| Steckertyp | Wieland GST18 |
| Tiefe | 0,26 m |
| USB nabíjačka | áno |
| Rozmer balenia | 320 mm |
| Baliaca plošina | 70 mm |
| Baliace pásky | 80 mm |
| Hmotnosť | 0,36 kg |
| Šírka | 0,05 m |
| Šírka balenia (jeden kus) | 320 mm |
- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.

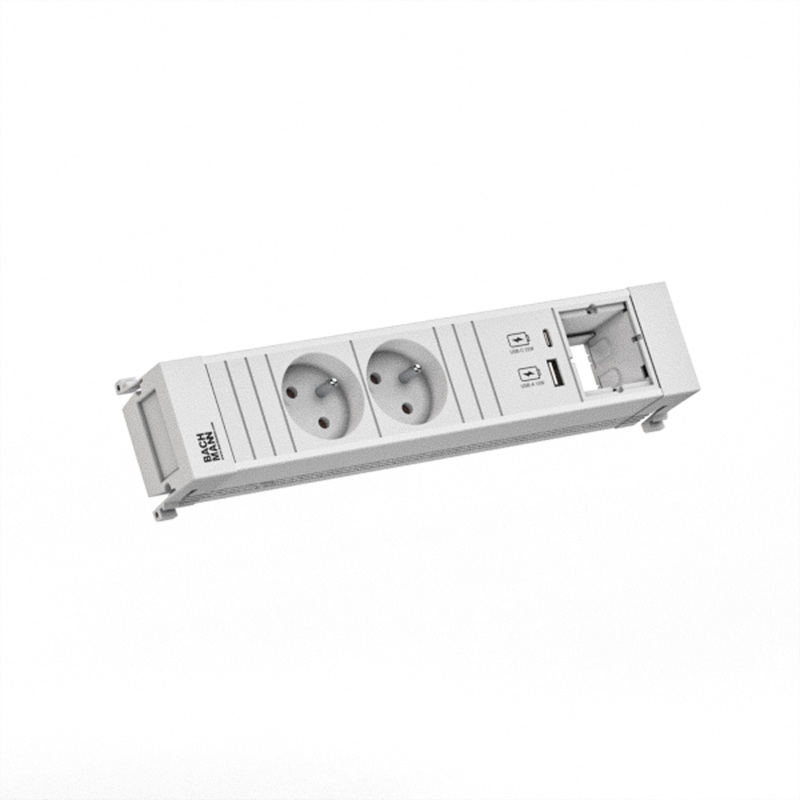

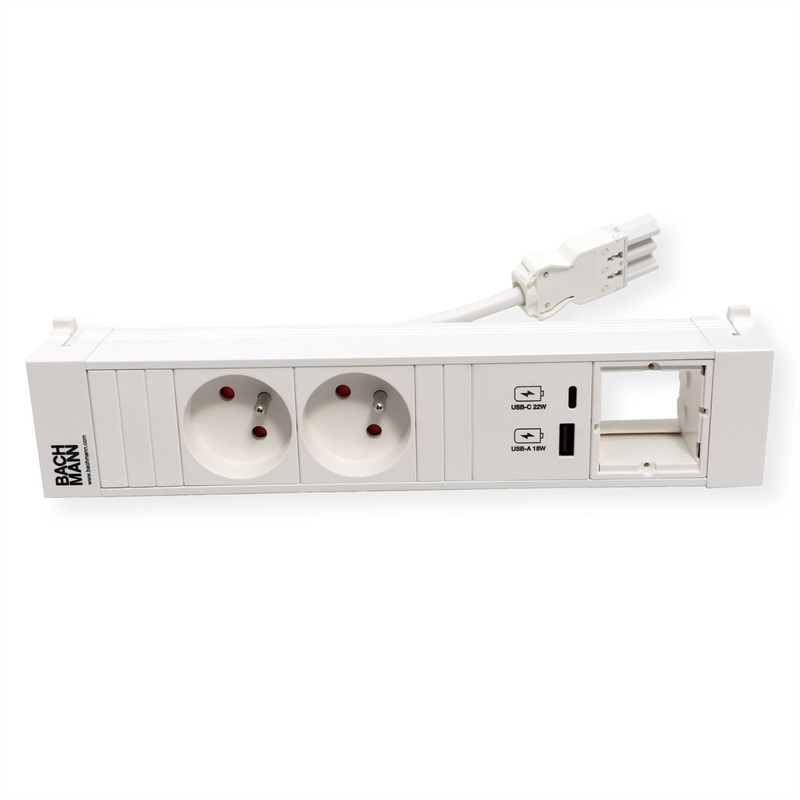

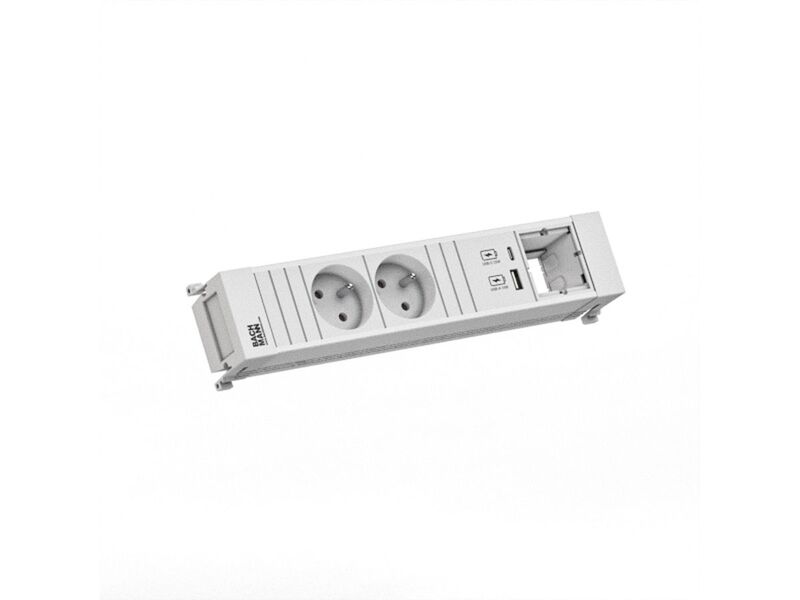

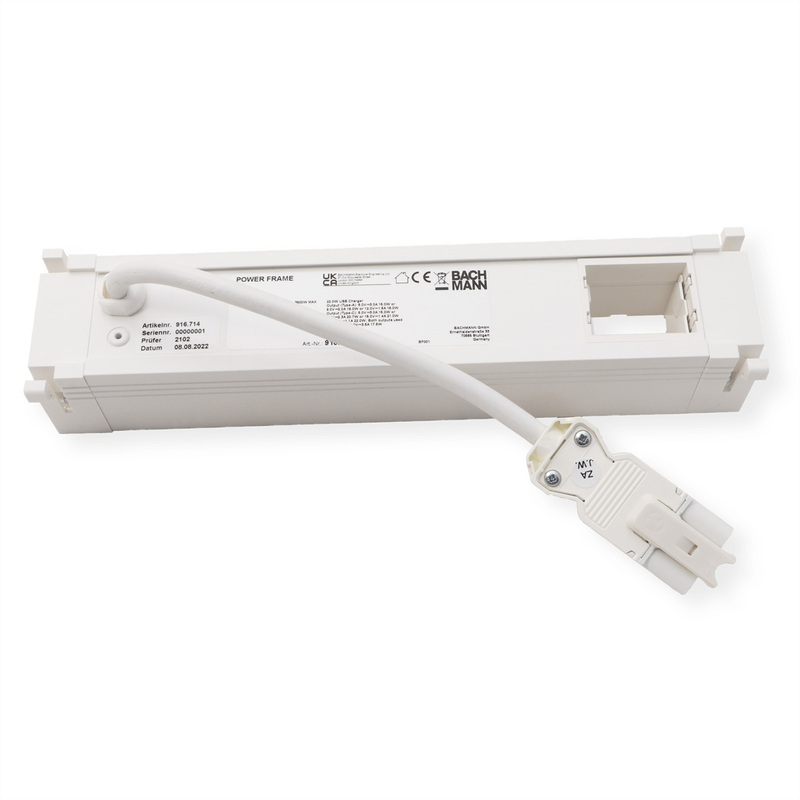

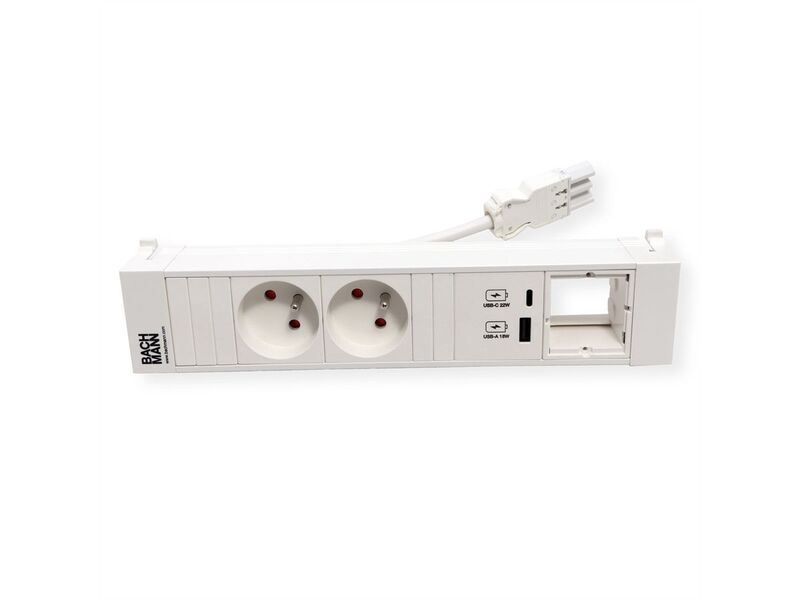

POWER FRAME 2xUTE 1xCM 1xUSB A/C 22W 0.2m GST18

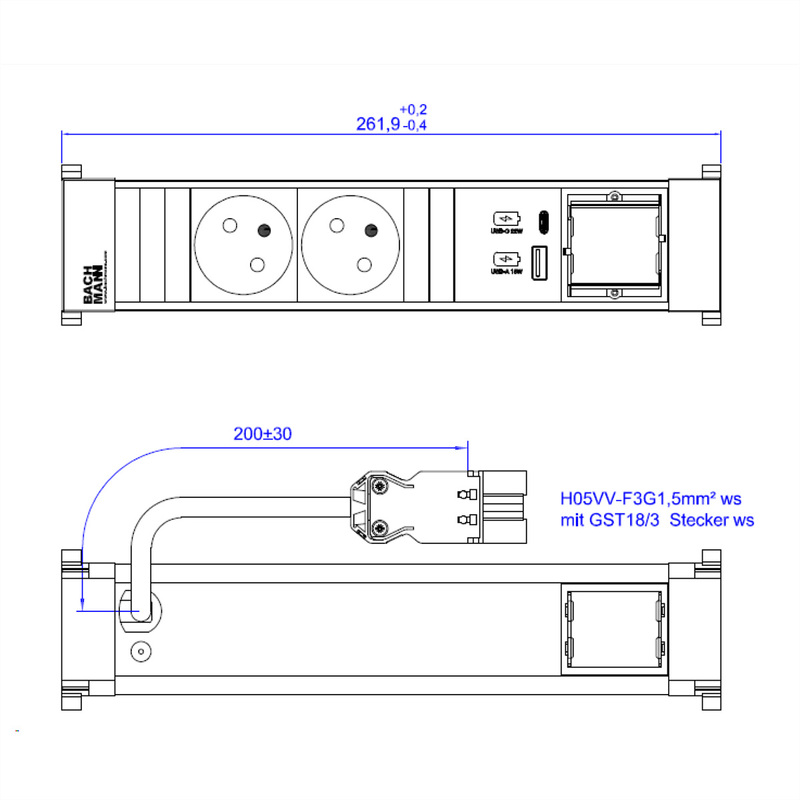

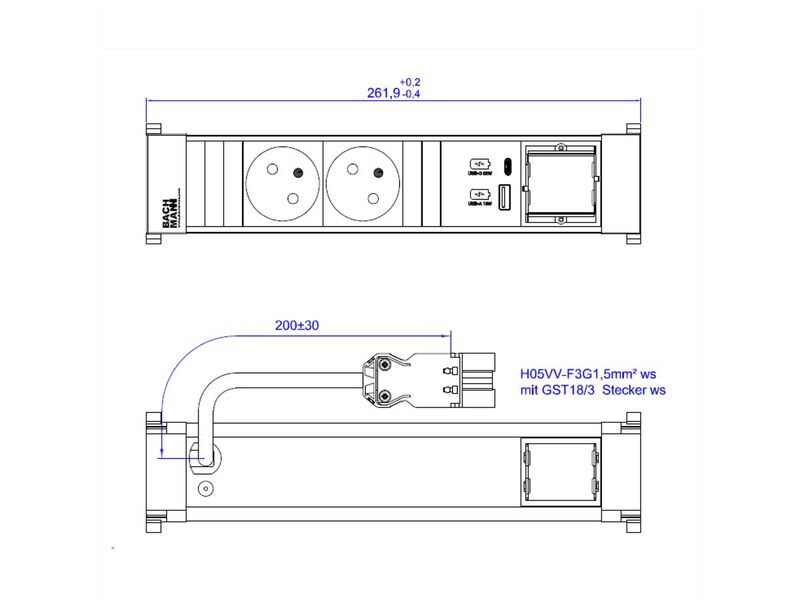

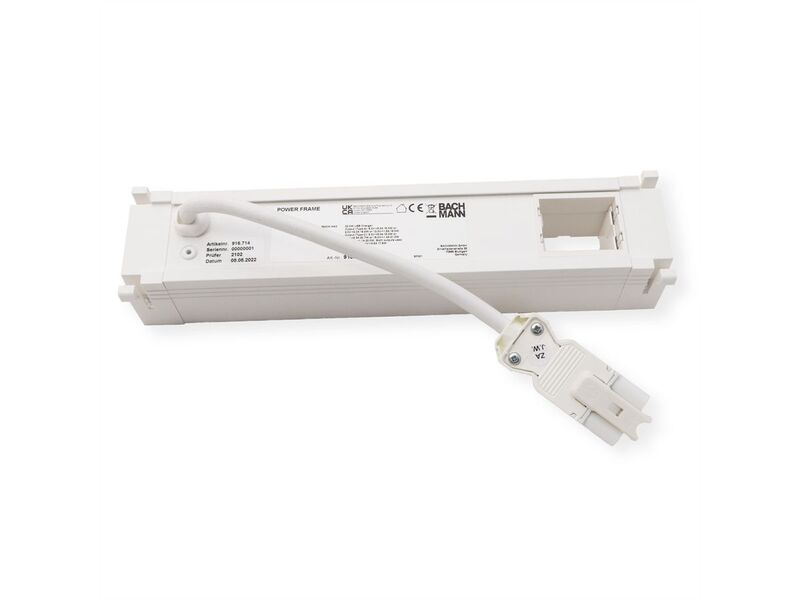

POWER FRAME socket strip colour: white, similar to RAL9010 painted 2xUTE sockets France white 1xUSB A/C 22W Charger 1xCustom module empty plastic components white, RAL9010 supply cable 0.2m H05VV-F 3G1.5mm² white with GST18 plug white with BACHMANN logo packed in box
UTE Version - Suitable for France, Czech Republic, Slovakia
| Anzahl der Steckdosentöpfe | 2 |
| Anzahl der USB-Anschlüsse | 2 |
| BOX qty | 1 pcs |
| Breite | 0.05 m |
| Colour | white |
| Depth | 0.26 m |
| Depth of packaging (single piece) | 80 mm |
| Dosentyp | UTE Schutzkontakt, CEE 7/5, Typ-E |
| Farbe | weiß |
| Gewicht | 0.36 kg |
| Gross weight | 0.448 |
| Height | 0.04 m |
| Height of packaging (single piece) | 70 mm |
| Hersteller | BACHMANN |
| Höhe | 0.04 m |
| Länge | 0.2 m |
| Length | 0.2 m |
| Manufacturer | BACHMANN |
| manufacturer_code | 916.714 |
| Number of socket pots | 2 |
| Number of USB connections | 2 |
| Package weight (single piece) | 0.448 kg |
| Paketgewicht | 0.448 kg |
| Plug type | Wieland GST18 |
| Product group | Power Bars |
| Product type | Integrated unit POWER FRAME |
| Produktgruppe | Steckdosenleisten |
| Produkttyp | Einbau-Anschlussfelder POWER FRAME |
| RAL colour | RAL 9010 Pure white |
| RAL-Farbe | RAL 9010 Reinweiß |
| Regional use | France, Czech Republic, Slovakia |
| Regionale Verwendung | Frankreich, Tschechien, Slowakei |
| Socket type | 3P. UTE, CEE 7/5, Type-E |
| Steckertyp | Wieland GST18 |
| Tiefe | 0.26 m |
| USB Charger | ja |
| Verpackungsbreite | 320 mm |
| Verpackungshöhe | 70 mm |
| Verpackungstiefe | 80 mm |
| Weight | 0.36 kg |
| Width | 0.05 m |
| Width of packaging (single piece) | 320 mm |
