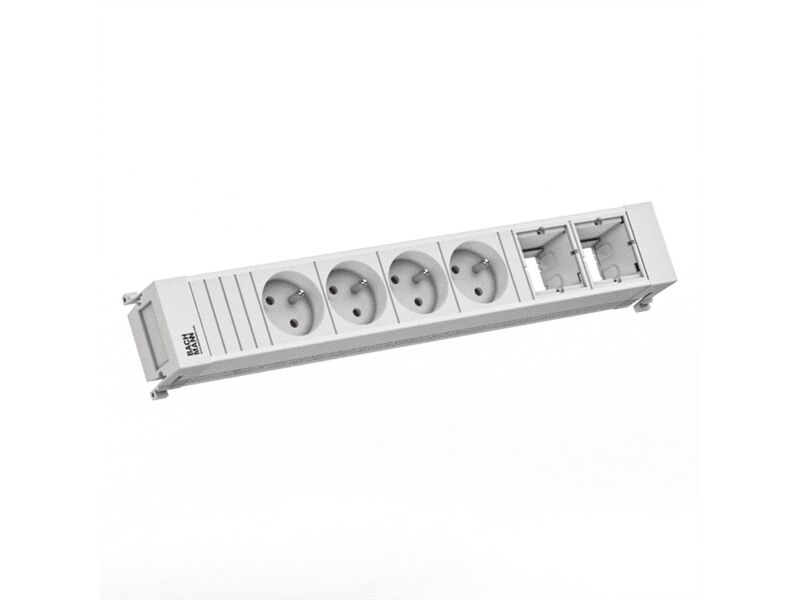

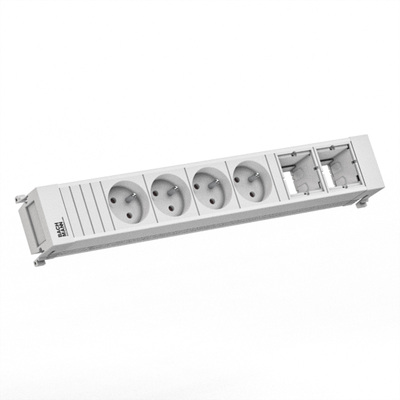

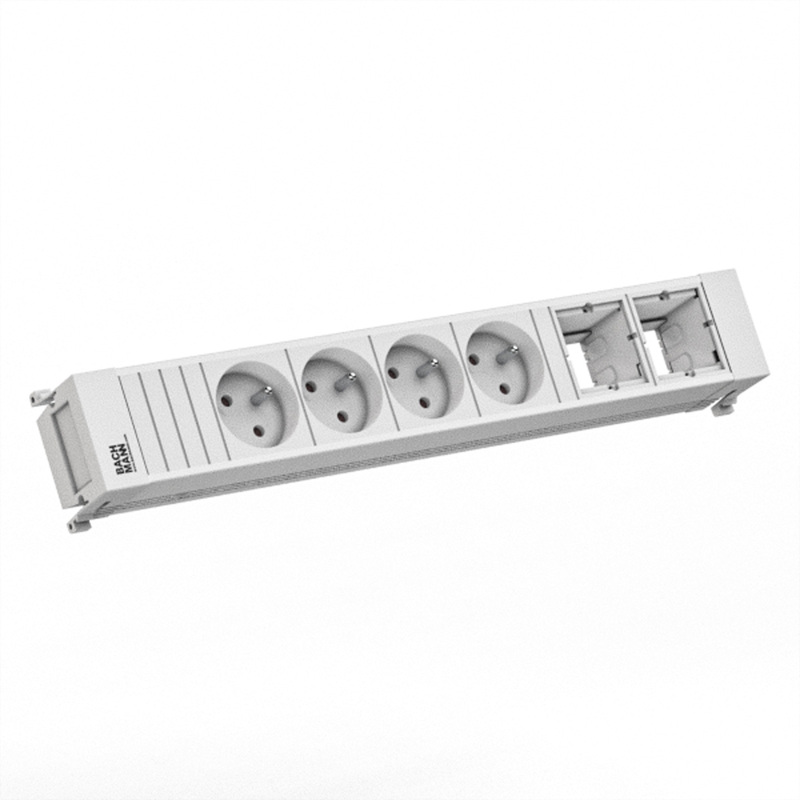

Power Frame 4xUTE 230V, 2xCustom, 0.2m kábel 1.5mm², GST18, biely
Power Frame 4xUTE 230V, 2xCustom, 0.2m kábel 1.5mm², GST18, biely
Compact dimensions Suitable for subsequent assembly Timeless design Versatile i..... celý popis
- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.
Napájacia lišta POWER FRAME Farba: Biela, podobná RAL9010 lakovaná 4xUTE zásuvky Francúzsko 35° biela 2xVlastné moduly prázdne Plastové komponenty biela, RAL9010 Napájací kábel 0,2m H05VV-F 3G1,5mm² biela so zástrčkou GST18 biela s logom BACHMANN zabalené v krabici
Verzia UTE - Vhodné pre Francúzsko, Českú republiku, Slovensko
špecifikácie
| Výrobca | BACHMANN |
|---|---|
| produktovú skupinu | napájacie lišty |
| typ produktu | vstavané spojovacie panely POWER FRAME |
| Farba | biela |
| dĺžka | 0,2 m |
| počet zásuviek | 4 |
| môže písať | Ochranný kontakt UTE, CEE 7/5, Typ-E |
| typ konektora | Wieland GST18 |
| Regionálne použitie | Francúzsko, Česko, Slovensko |
| Farba RAL | RAL 9010 čisto biela |
| Výška | 0,04 m |
| šírka | 0,05 m |
| hĺbka | 0,35 m |
| Hmotnosť | 0,43 kg |
| výška balenia | 80 mm |
| šírka balenia | 80 mm |
| hĺbka balenia | 420 mm |
| hmotnosť balíka | 0,494 kg |
- Compact dimensions
- Suitable for subsequent assembly
- Timeless design
- Versatile in application
POWER FRAME is the compact solution for integrated and easily accessible power and data connections for workstations. Combining compact dimensions with high-quality timeless design, POWER FRAME opens up virtually unlimited application options that go far beyond the realm of office workstations. It is also perfect for sales showrooms and display windows, as well as trade fair and demonstration stands. In short, wherever secure and rapid connections are the order of the day.
Your chosen power strip simply plugs into the mounting frame from below without tools – a stroke of perfection. POWER FRAME is the ideal solution when you need compactness and efficiency.

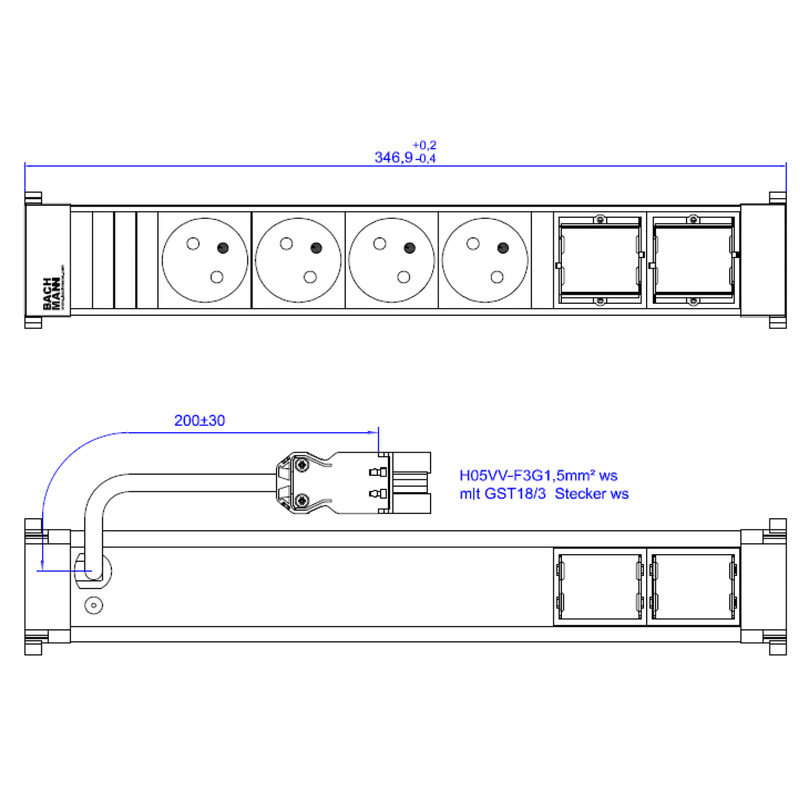

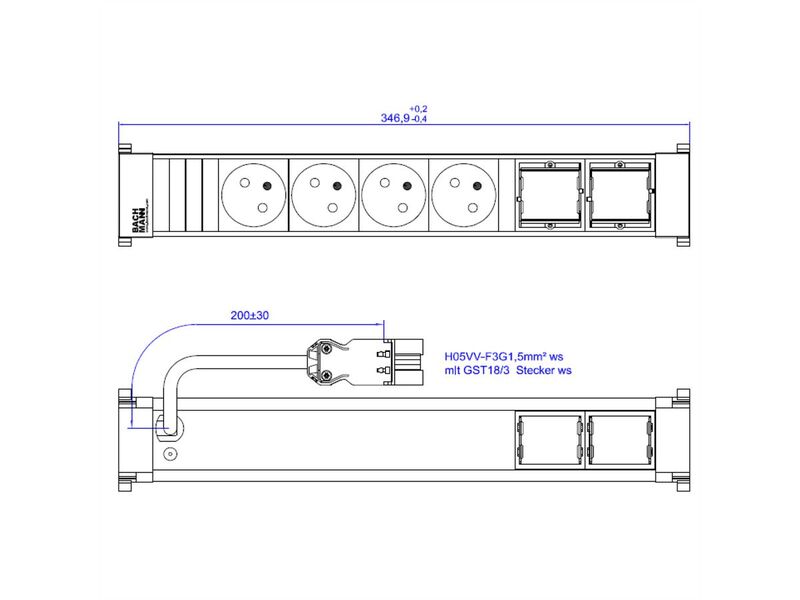

POWER FRAME power strip Color: White, similar to RAL9010 painted 4xUTE sockets France 35° white 2xCustom modules empty Plastic components white, RAL9010 Supply cable 0.2m H05VV-F 3G1.5mm² white with GST18 plug white with BACHMANN logo packed in a box
UTE Version - Suitable for France, Czech Republic, Slovakia
specifications
| Manufacturer | BACHMANN |
|---|---|
| product group | power strips |
| product type | built-in connection panels POWER FRAME |
| Color | white |
| length | 0.2 m |
| number of sockets | 4 |
| can type | UTE protective contact, CEE 7/5, Type-E |
| connector type | Wieland GST18 |
| Regional Use | France, Czech Republic, Slovakia |
| RAL color | RAL 9010 Pure White |
| Height | 0.04 m |
| Width | 0.05 m |
| depth | 0.35 m |
| Weight | 0.43 kg |
| packaging height | 80 mm |
| packaging width | 80 mm |
| packaging depth | 420 mm |
| package weight | 0.494 kg |
