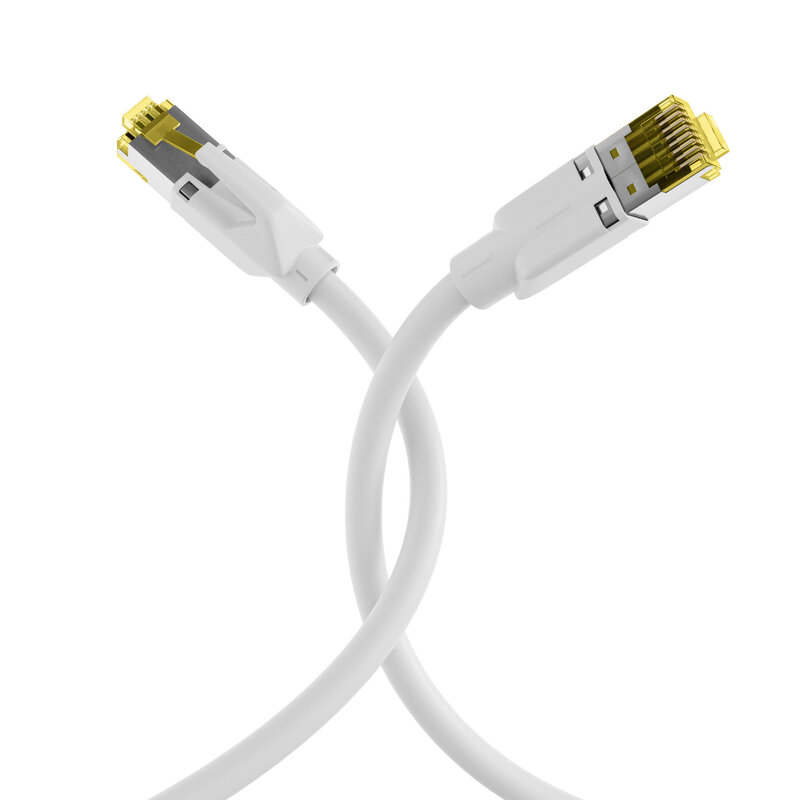

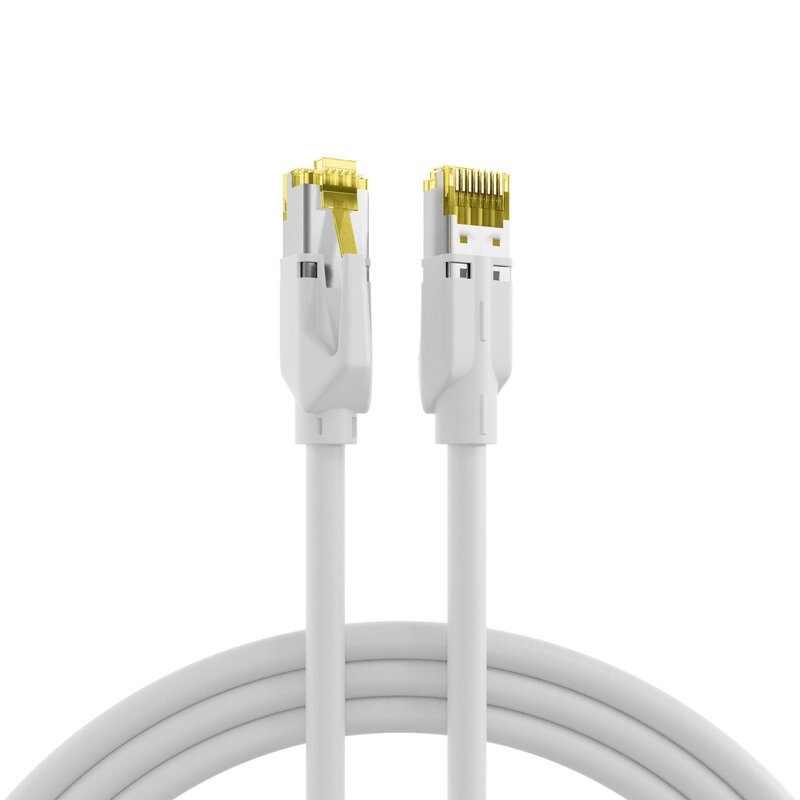

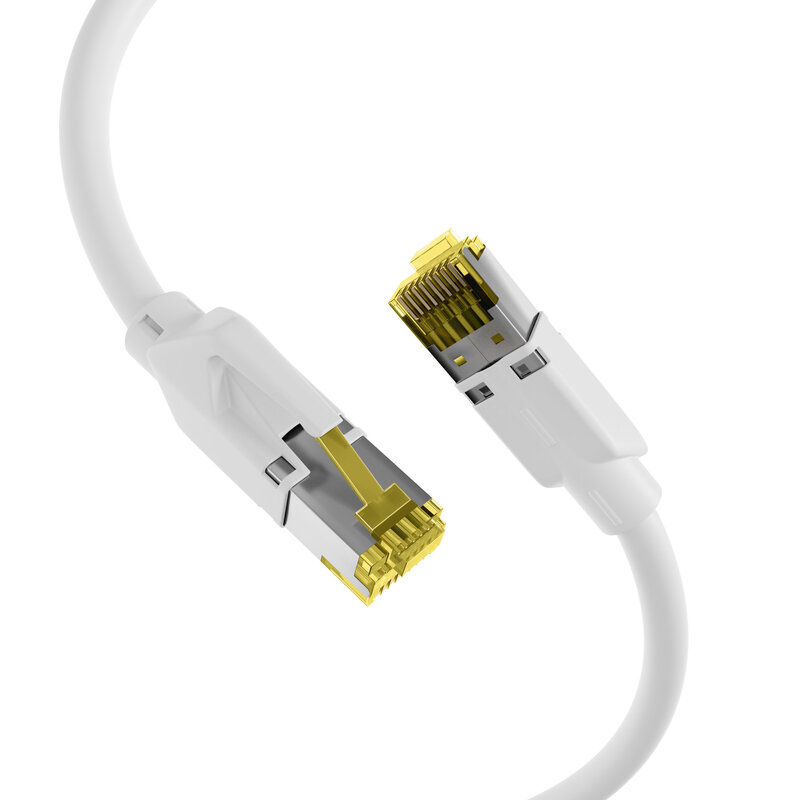

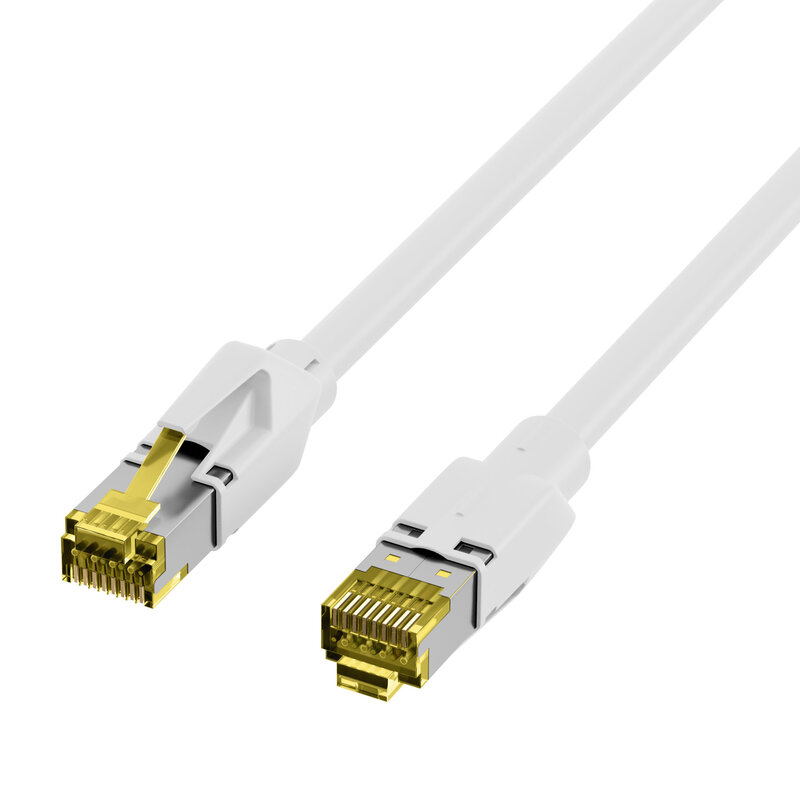

S/FTP (PiMF) Patchkábel LSOH, 0.15m cat.6a, biely, Cu, Draka UC900 s TM31
S/FTP (PiMF) Patchkábel LSOH, 0.15m cat.6a, biely, Cu, Draka UC900 s TM31
Patch kábel Cat.6A RJ45 vyrobený v Európe zaručuje veľmi dobré vlastnosti pre aplikácie .. celý popis
Patch kábel Cat.6A RJ45 vyrobený v Európe zaručuje veľmi dobré vlastnosti pre aplikácie 10 Gigabit Ethernet. Patch kábel sa skladá zo surového kábla Cat.7 UC900 SS27 od Draka a konektorov TM31 od Hirose.
Prierez 4 x 2 x AWG27/7
Namontovaná priechodka proti zalomeniu
| Veľkosť AWG: | 27/7 |
|---|---|
| Pridelenie: | príl. TIA/EIA 568B |
| Rukáv proti zalomeniu: | obliecť si |
| Oblasť použitia: | Dátové centrum Priemyselný Ethernet Štruktúrovaná kabeláž |
| šírka pásma: | 500 MHz |
| Polomer ohybu: | > 25 mm |
| Konštrukcia kábla: | 4x2 |
| Typ kábla: | S/FTP |
| Typ kábla podľa pre výrobcu: | Draka UC900 SS27 |
| Kategória: | 6A (TIA) |
| Farba rukávu proti zalomeniu: | biely |
| Farba vonkajšieho plášťa: | biely |
| Vodivý štít: | 360° kontakt štítu |
| Materiál vodiča: | Meď |
| Odpor vodiča DC: | 170 ?/km |
| Konektor: | IEC 60603-7-51 |
| Typ konektora: | TM31 žltá |
| Kontakty: | Pozlátený |
| Súčasné hodnotenie: | max. 1 A |
| Euro trieda: | Eca |
| Verzia spomaľujúca horenie: | Pravda |
| Spomaľovač horenia: | príl. IEC60332-1 |
| Bez halogénov: | Áno |
| Bez halogénov: | Pravda |
| Harmonizovaný štandard: | EN 50575 |
| Impedancia: | 100 ± 5 ? |
| Izolačný odpor: | > 2000 M? |
| Materiál bundy: | ĽSZH |
| Uzamykacia páka: | Pravda |
| Odolnosť slučky: | < 340 ?/km |
| Nízka dymivosť: | príl. IEC61034 |
| Cykly párenia: | 2000 |
| Model: | Tienené |
| Hodnota NVP: | 79 % |
| Odolné voči olejom (podľa EN 60811-2-1): | Nepravdivé |
| Odolné voči olejom (podľa EN 60811-404): | Nepravdivé |
| Prevádzkové / temperovacie napätie: | max. 50 V DC |
| Vonkajší priemer kábla: | 5,9 mm |
| Trieda POE: | 4PPoE podľa na IEEE802.3bt PoE+ podľa na IEEE802.3at PoE podľa na IEEE802.3af |
| Priradenie špendlíka: | 1:1 |
| Surový kábel: | Kat.7 |
| Nerovnováha odporu: | < 3 % |
| Vhodné pre stupeň ochrany (IP): | IP20 |
| Teplotný rozsah (inštalácia): | 0 – 50 °C |
| Teplotný rozsah (prevádzka): | -20 – 60 °C |
| Testovacie napätie: | 1000 V DC, 1 min |
| Celkový skríning: | cca. 45 % |
| Typ pripojenia konektora 1: | RJ45 8(8) |
| Typ pripojenia konektora 2: | RJ45 8(8) |
This Cat.6A (TIA) LAN cable from EFB-Elektronik brand supports 10Gbit. The S/FTP shielding reliably protects against interference and ensures good signal quality. Since it is a Cat.6A (TIA) patch cable, it offers a frequency range of up to 500MHz, which provides high data transmission performance.
Ě Increase interference immunity in electromagnetically charged environments Í double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Power and connect end devices via one cable Í reduces cabling effort because data and power are transmitted via 4PPoE according to IEEE802.3bt on one line (fewer power supplies/sockets, faster installation).
Product Description
The S/FTP patch cable has double shielding, which effectively reduces electromagnetic interference. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >25 mm. The network cable has an IP20 rating. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.
Technical details
Ě Cat.6A (TIA)
Ě Connector: RJ45 8(8) to RJ45 8(8) with yellow TM31 connectors
Ě Shielding: S/FTP cable with 4x2 x AWG26/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: LSZH sheath material
Ě Outer diameter: 5.9 mm
Ě With an attached anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
Ě Degree of protection: IP20
Ě With a 360ř umbrella attachment
Ě With locking lever protection
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Ě Increase interference immunity in electromagnetically charged environments Í double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Power and connect end devices via one cable Í reduces cabling effort because data and power are transmitted via 4PPoE according to IEEE802.3bt on one line (fewer power supplies/sockets, faster installation).
Product Description
The S/FTP patch cable has double shielding, which effectively reduces electromagnetic interference. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >25 mm. The network cable has an IP20 rating. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.
Technical details
Ě Cat.6A (TIA)
Ě Connector: RJ45 8(8) to RJ45 8(8) with yellow TM31 connectors
Ě Shielding: S/FTP cable with 4x2 x AWG26/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: LSZH sheath material
Ě Outer diameter: 5.9 mm
Ě With an attached anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
Ě Degree of protection: IP20
Ě With a 360ř umbrella attachment
Ě With locking lever protection
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Parametre
Kategória
cat. 6a / class E 500MHz / 10G BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
0.15m
Farba
biela
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
