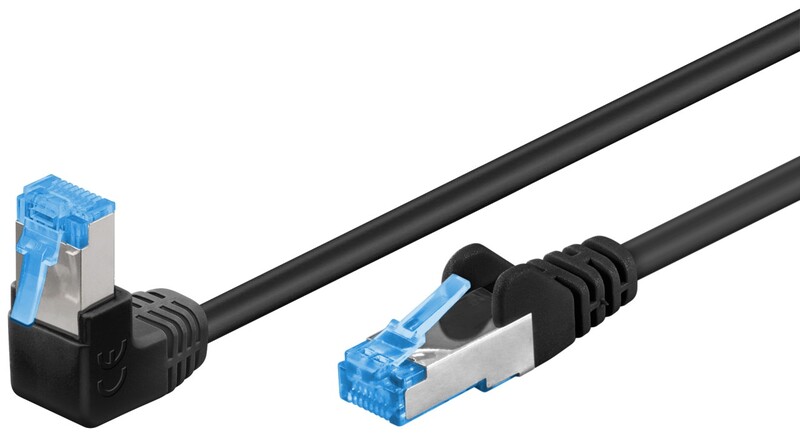

S/FTP (PiMF) Patchkábel LSOH 0.25m cat.6a, čierny, Cu, zahnutý (1x90°)
S/FTP (PiMF) Patchkábel LSOH 0.25m cat.6a, čierny, Cu, zahnutý (1x90°)
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-qu..... celý popis
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

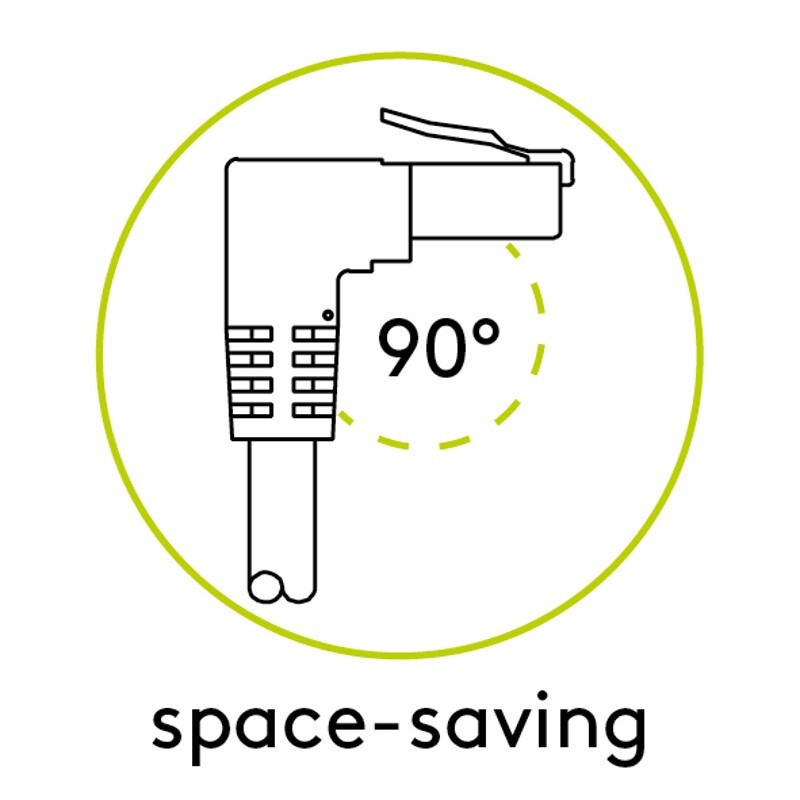

- Double-shielded LAN cable with 1x 90° RJ45 right angle plug is an ideal solution for confined spaces
- CAT 6A internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy jacket effectively protect the network cable from breakage.
- Latch protection on the straight RJ45 plug prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Ethernet cable is suitable for Power over Ethernet (PoE, PoE+).
Technical specifications
| AWG | 27/7 (stranded) |
| bending radius > | 60 mm |
| Specification | CAT 6A |
| Cable sheath diameter (approx.) | 6 mm |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| Contacting | EIA/TIA-568 B |
| Markings | WEEE, CE |
| Operating temperature up to | 65 °C |
| Operating temperature from | -20 °C |
| max. bandwidth | 500 MHz |
| Kink protection | both sides |
| Cable type | round cable |
| Material cable sheath | LSZH |
| Inner conductor material | CU (copper) |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Connection, contact material | gold-plated 3µm |
| Connection, shielding | yes |
| Connection, type | RJ45 male 90° (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Latch protection | unilaterally |
| Color | black |
| Color version | black |
| Consumption Unit | 1 pc. in polybag |
| Special feature | Length indication on connector |
| Cable length | 0.25 m |
Parametre
Zapojenie
1:1 podľa EIA / TIA 568
Tienenie
S/FTP (PiMF)
LSOH/LSZH bezhalogénový
áno
Farba
čierna
Materiál vodiča
meď
Kategória
cat. 6 / class E 250MHz
Dĺžka
0.25m
Vhodný do exteriéru
nie
Uhlový konektor/konektory
Uhlový konektor (1x90°)
Slim / Plochý
Nie
GHMT Certifikát
nie
Flexibilný
nie
Montáž na panel
nie
Predlžovací
nie
