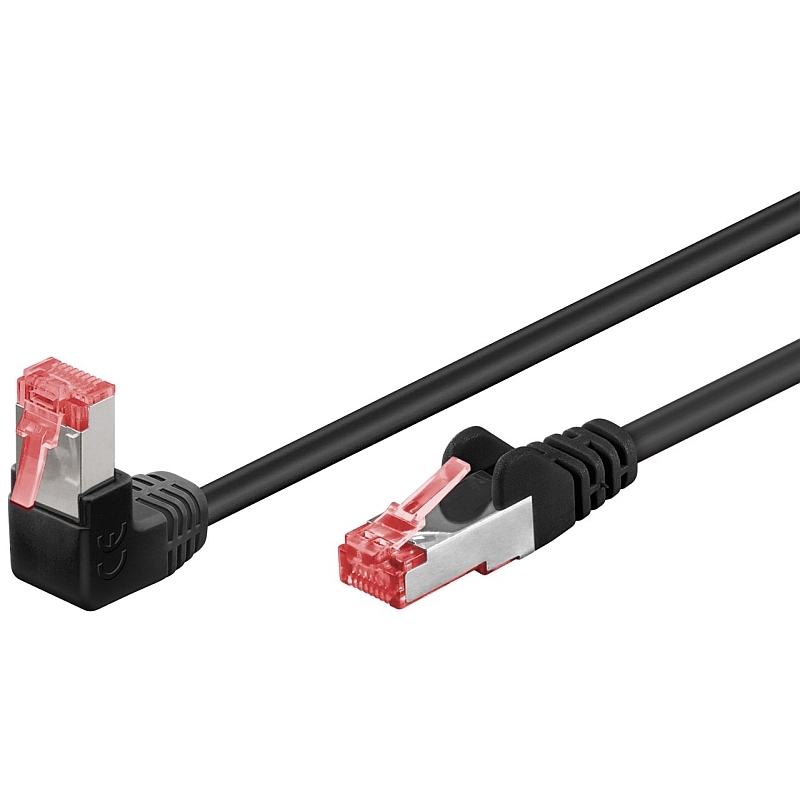

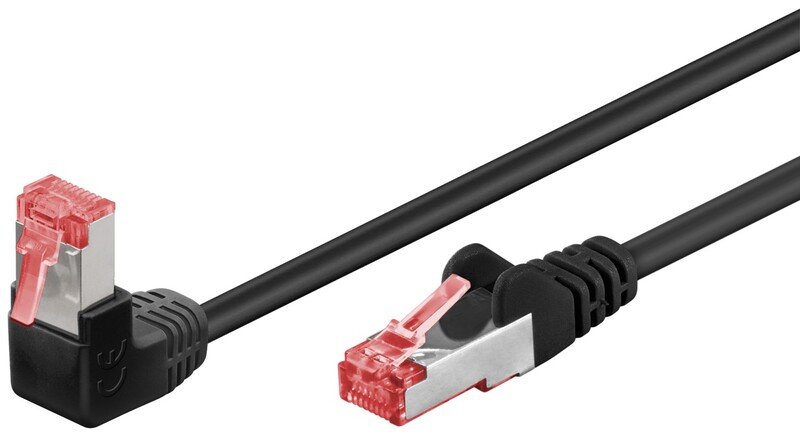

S/FTP (PiMF) Patchkábel LSOH 0.5m cat.6, čierny, Cu, zahnutý (1x90°)
S/FTP (PiMF) Patchkábel LSOH 0.5m cat.6, čierny, Cu, zahnutý (1x90°)
vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)..... celý popis
vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)
Technické špecifikácie
| AWG | 28/7 (uviaznutý) |
| Špecifikácia | CAT 6 |
| Priemer plášťa kábla (približne) | 6 mm |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Kontaktovanie | EIA/TIA-568B |
| Označenia | WEEE, CE |
| Prevádzková teplota až | 65 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 250 MHz |
| Dĺžka kábla | 0,5 m |
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Prewired, double-shielded LAN cable with 2x RJ45 plugs for connecting network components

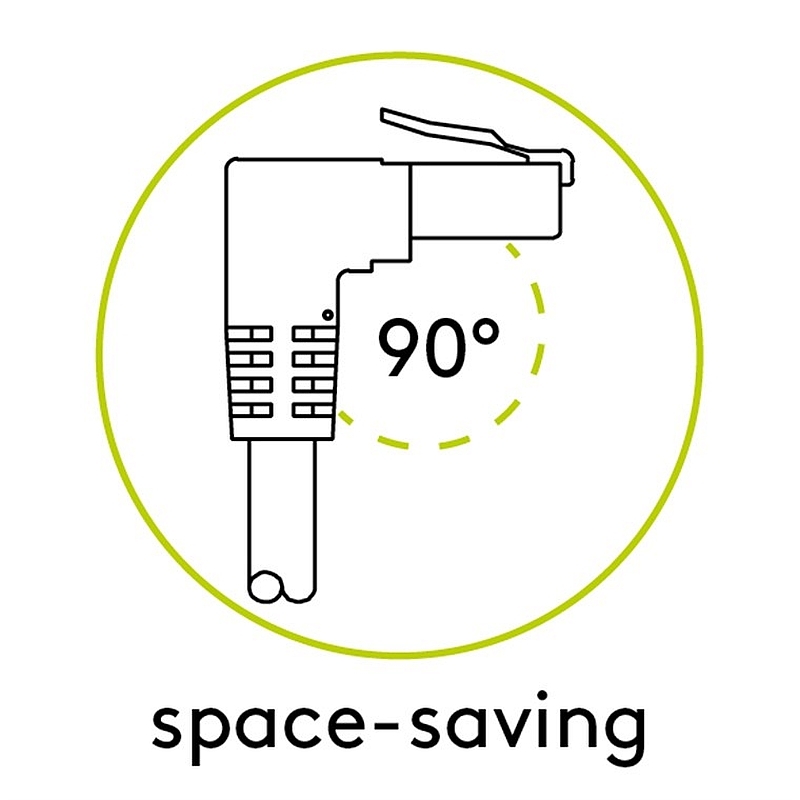

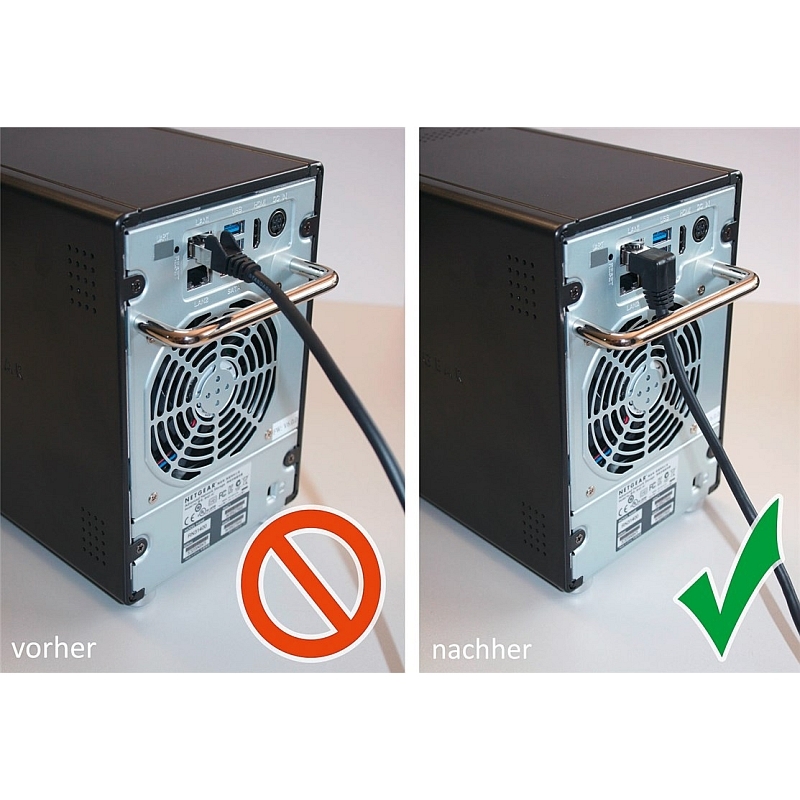

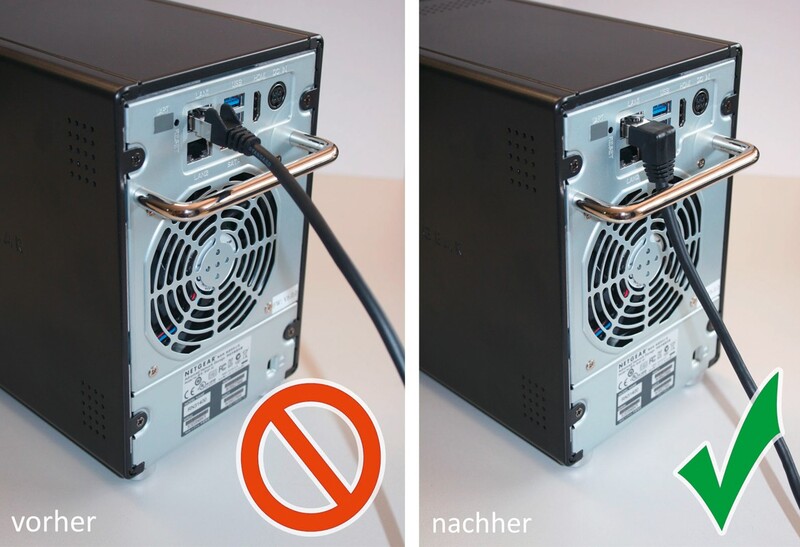

- The 90° right angle RJ45 connector is an ideal solution for confined spaces.
- Latch protection on the straight RJ45 plug prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and 1µ gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage.
- CAT 6 internet cable is suitable for Power over Ethernet (PoE, PoE+) and 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s.

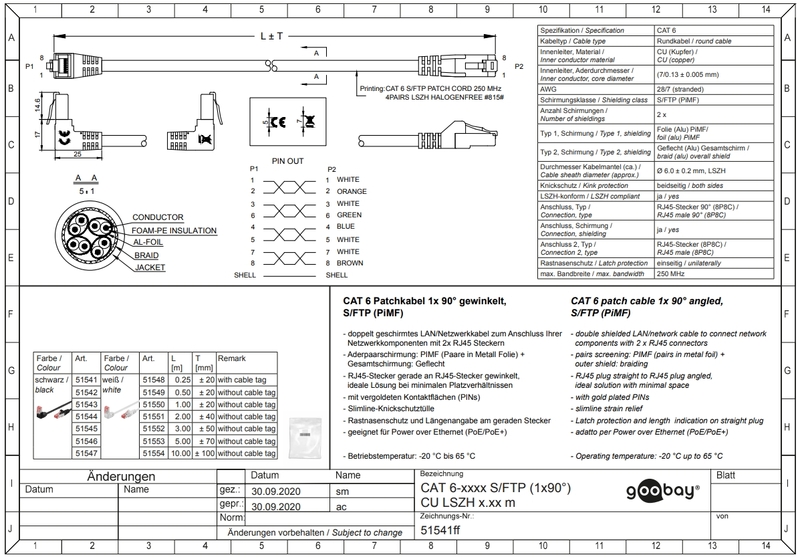

Technical specifications
| AWG | 28/7 (stranded) |
| bending radius > | 60 mm |
| Specification | CAT 6 |
| Cable sheath diameter (approx.) | 6 mm |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| Contacting | EIA/TIA-568 B |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| max. bandwidth | 250 MHz |
| Kink protection | both sides |
| Cable type | round cable |
| Material cable sheath | LSZH |
| Inner conductor material | CU (copper) |
| LSZH compliant | yes |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Connection, contact material | gold-plated 1µm |
| Connection, shielding | yes |
| Connection, type | RJ45 male 90° (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Latch protection | unilaterally |
| Color | black |
| Consumption Unit | 1 pc. in polybag |
| Special feature | Length indication on connector |
| Cable length | 0.5 m |
| Color version | black |
Parametre
Kategória
cat. 6 / class E 250MHz / 1000 BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
0.5m
Farba
čierna
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Uhlový konektor/konektory
Uhlový konektor (1x90°)
Slim / Plochý
Nie
GHMT Certifikát
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
