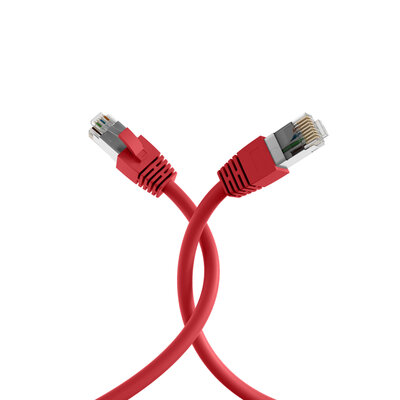

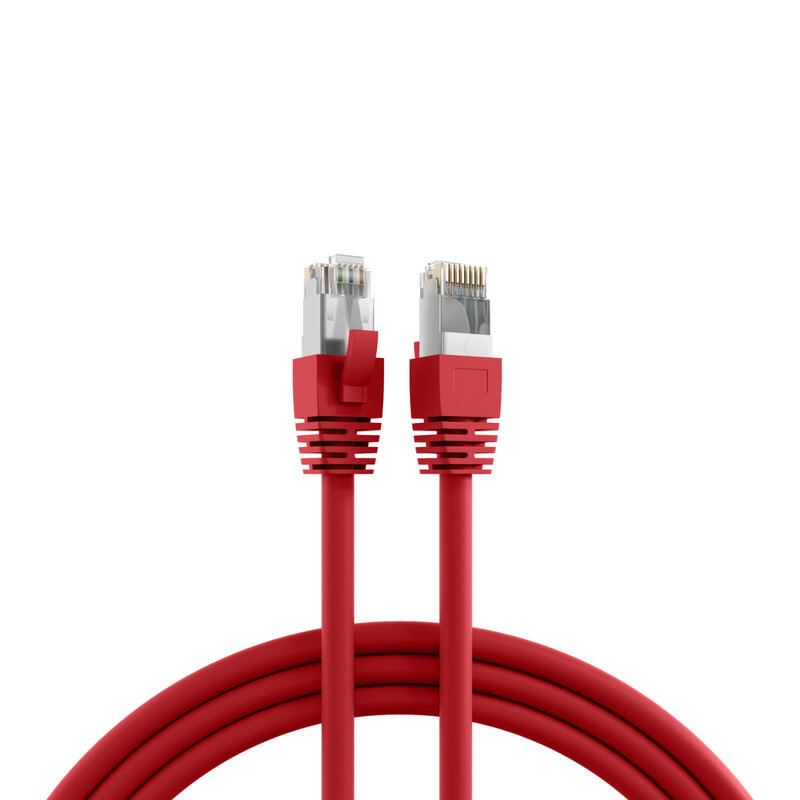

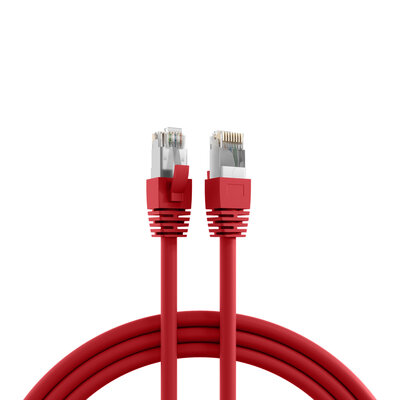

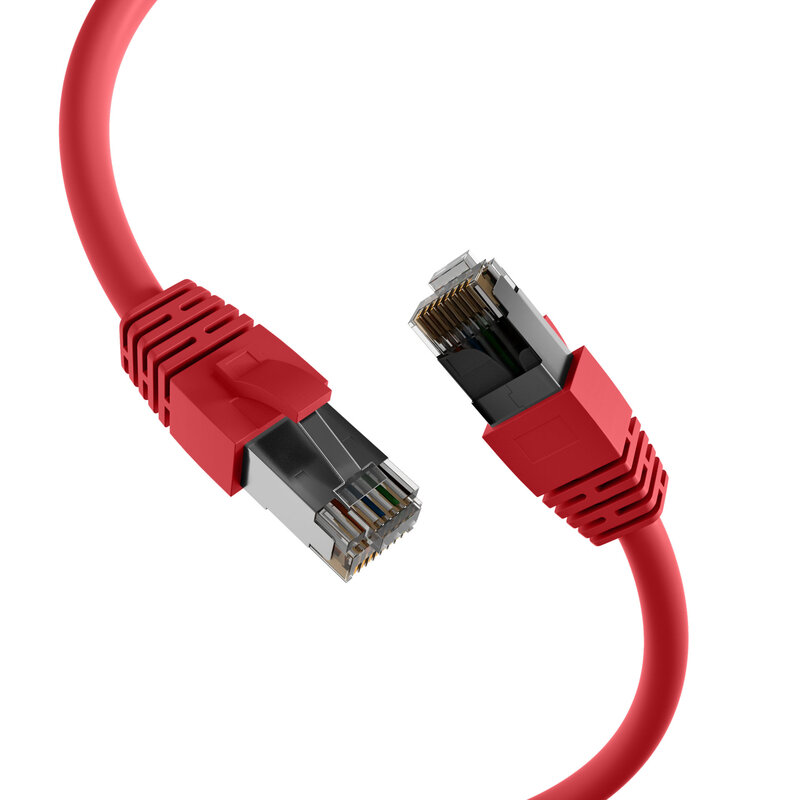

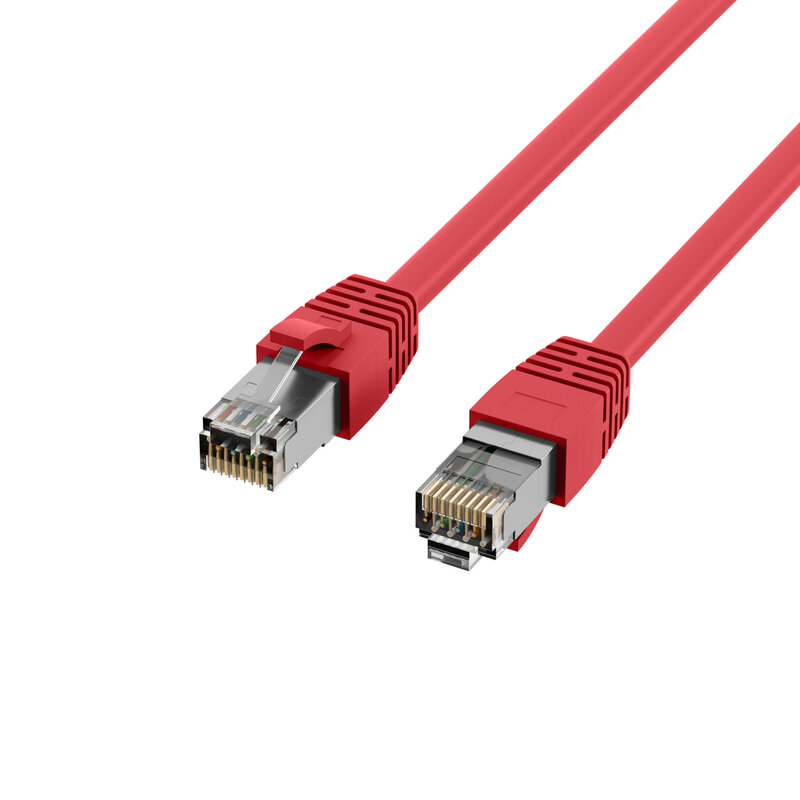

Patch kábel Cat.8.1 je vhodný pre 25GBASE-T a 40GBASE-T aplikácie založené na RJ45. Cat.8.1 má frekvenčný rozsah až 2000 MHz a maximálnu prenosovú vzdialenosť v súčasnosti 30 m.
Kábel: S/FTP 4x2xAWG24/7
Materiál bundy: LSZH
Vonkajší priemer: 8 mm
Štandardy prenosu: 25Gbit, 40Gbit
VLASTNOSTI PRODUKTU
Kategória: 8.1
Typ pripojenia konektora 1: RJ45 8(8)
Typ pripojenia konektora 2: RJ45 8(8)
Typ konektora: RJ45 Standard
Priradenie pinov: 1:1
Pridelenie: prísl. TIA/EIA 568B
Typ: Tienený
Dĺžka potlače: áno
Objímka proti zalomeniu: zasunutá
Blokovacia páka: áno
Cykly párenia: ≥750
Polomer ohybu: >40 mm
Vodivé tienenie: Zvolený kontakt tienenia
Štruktúra kábla: S/FTP
Konštrukcia kábla: 4x2
Veľkosť AWG/vlákna na jadro: 24/7
Materiál vodiča: meď
Materiál bundy: LSZH
Tlač: CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801
Vonkajší priemer kábla: 8 mm
Impedancia: 100 ±15 Ω
Izolačný odpor: 10 MΩ
Kontaktný odpor: 5 mΩ
Šírka pásma: 2000 MHz
• Increase interference immunity in electromagnetically charged environments double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
• Cover fire protection requirements in compliance with standards flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
• Increased safety in the event of a fire according to IEC60754-2 halogen-free materials reduce corrosive fire gases, which means that people, technology and building structures are better protected.
Product Description
The S/FTP network cable has double shielding, which effectively minimizes electromagnetic interference. The temperature range of the cable is -20 60 řC. The wide range of possible applications is supported by the bending radius of >40 mm. The LAN cable has an IP20 rating. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.
Technical details
• Cat.8.1
• Connector: RJ45 8(8) to RJ45 8(8) with RJ45 connectors
• Shielding: S/FTP cable with 4x2 x AWG24/7
• Cable shape: round
• Pin assignment: 1:1 according to TIA/EIA 568B
• Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
• Gold-plated contacts
• Sheath: LSZH sheath material
• Outer diameter: 8 mm
• With an injected anti-kink grommet
• Fire protection: flame-retardant according to IEC60332-1, halogen-free according to IEC60754-2
• Degree of protection: IP20
• With a punctual screen contact
• With locking lever protection
• Mating cycles: =750
• With length print
• Brand: EFB-Elektronik
