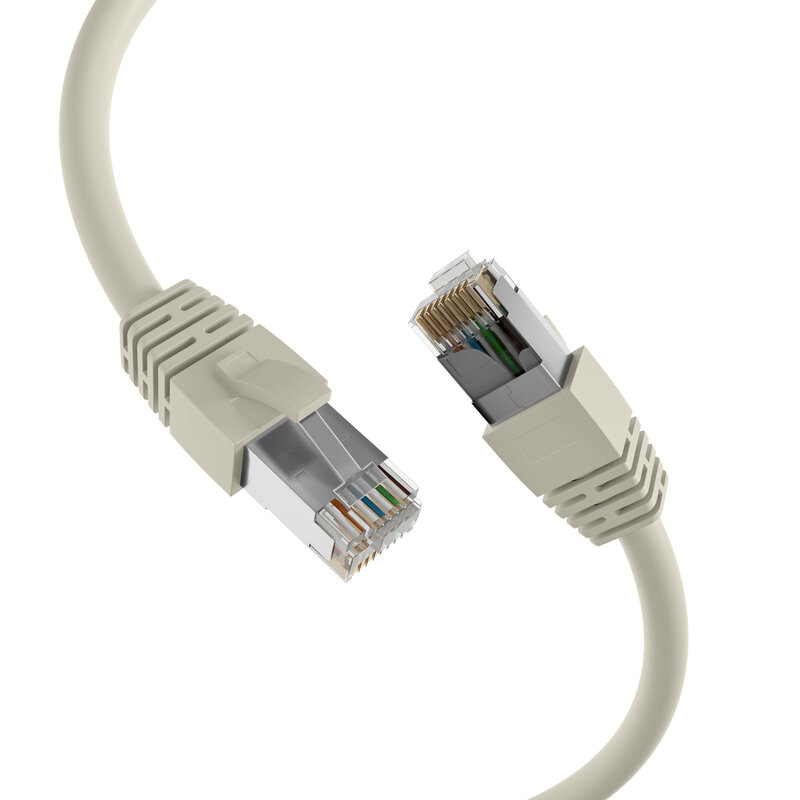

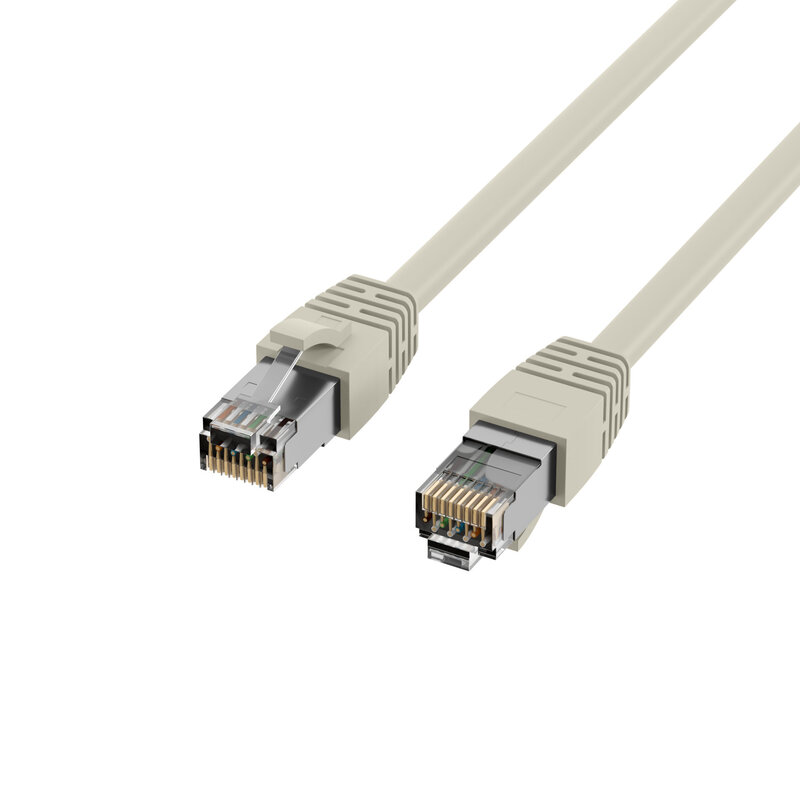

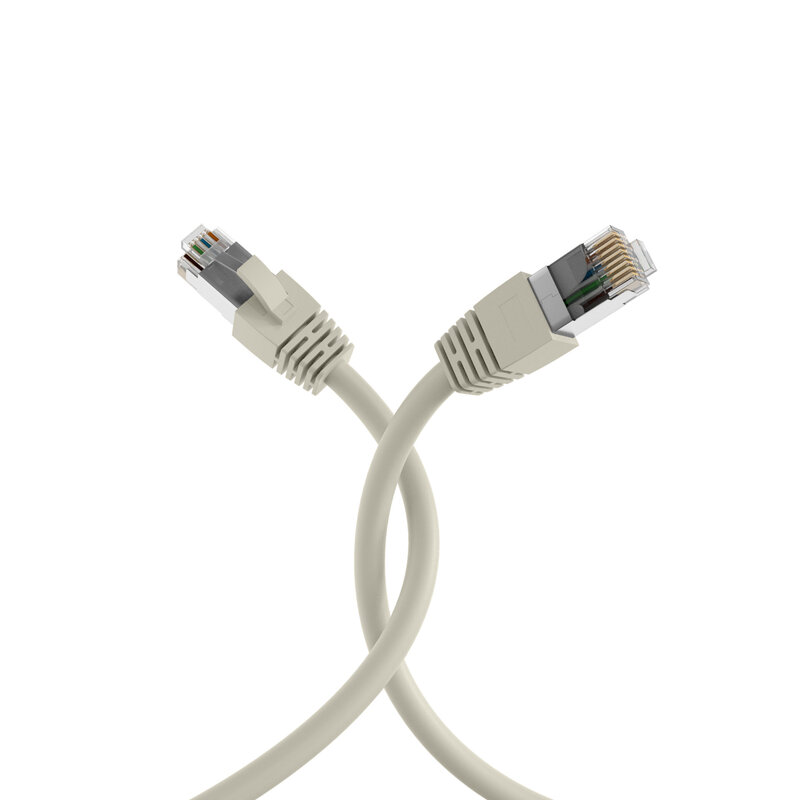

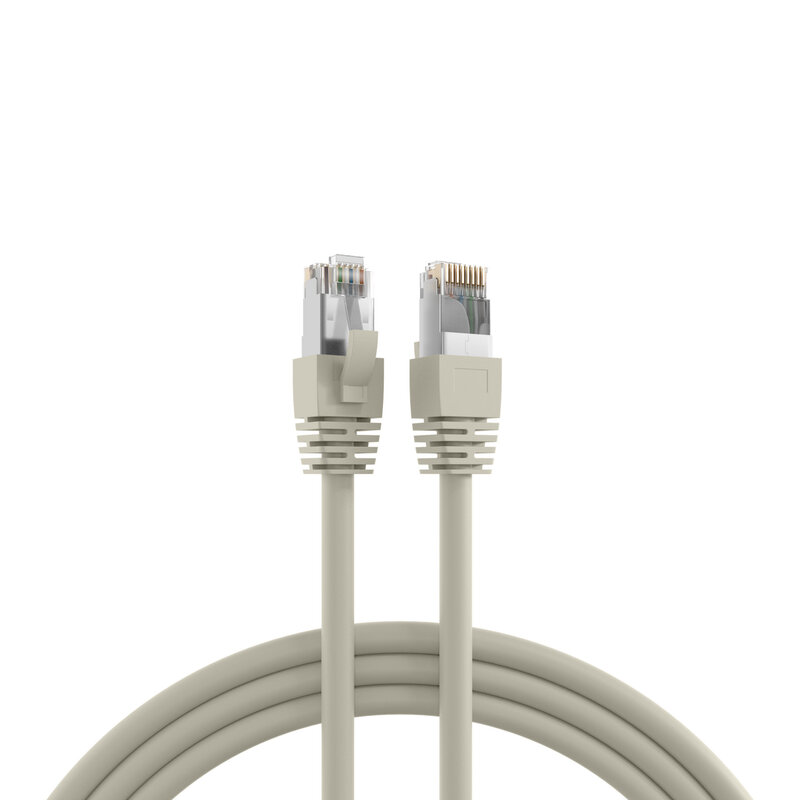

S/FTP (PiMF) Patchkábel LSOH 0.5m cat.8.1, sivý, Cu, 40GBit/s, 2000MHz

Kód: {{ productModel }}

Výrobca: EFB

Kat. č.: K5528GR.0,5

EAN: 4049759215415

Patch kábel Cat.8.1 je vhodný pre 25GBASE-T a 40GBASE-T aplikácie založené na RJ45. Cat.8.1 má frekvenčný rozsah..... celý popis

Externý sklad

6,52 € s DPH 5,30 € bez DPH

Pridať do zoznamu

Popis a parametre produktu

Máte nás radi? Dajte to vedieť aj ostaným

Popis produktu

Patch kábel Cat.8.1 je vhodný pre 25GBASE-T a 40GBASE-T aplikácie založené na RJ45. Cat.8.1 má frekvenčný rozsah až 2000 MHz a maximálnu prenosovú vzdialenosť v súčasnosti 30 m.

Kábel: S/FTP 4x2xAWG24/7
Materiál bundy: LSZH
Vonkajší priemer: 8 mm
Štandardy prenosu: 25Gbit, 40Gbit

VLASTNOSTI PRODUKTU
Kategória: 8.1
Typ pripojenia konektora 1: RJ45 8(8)
Typ pripojenia konektora 2: RJ45 8(8)
Typ konektora: RJ45 Standard
Priradenie pinov: 1:1
Pridelenie: prísl. TIA/EIA 568B
Typ: Tienený
Dĺžka potlače: áno
Objímka proti zalomeniu: zasunutá
Blokovacia páka: áno
Cykly párenia: ≥750
Polomer ohybu: >40 mm
Vodivé tienenie: Zvolený kontakt tienenia
Štruktúra kábla: S/FTP
Konštrukcia kábla: 4x2
Veľkosť AWG/vlákna na jadro: 24/7
Materiál vodiča: meď
Materiál bundy: LSZH
Tlač: CAT8 S/FTP 4x2x24AWG/7 LSZH 2000MHz ISO11801
Vonkajší priemer kábla: 8 mm
Impedancia: 100 ±15 Ω
Izolačný odpor: 10 MΩ
Kontaktný odpor: 5 mΩ
Šírka pásma: 2000 MHz

This Cat.8.1 patch cable from EFB-Elektronik supports data transfers up to 40Gbit. S/FTP shielding reliably protects against interference and ensures good signal quality. Because it is a Cat.8.1 data cable, it supports a frequency range of up to 2000MHz, which provides high data transmission performance.

Ě Increase interference immunity in electromagnetically charged environments Í double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Increased safety in the event of a fire according to IEC60754-2 Í halogen-free materials reduce corrosive fire gases, which means that people, technology and building structures are better protected.

Product Description
The S/FTP data cable has double shielding, which effectively reduces electromagnetic interference. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >40 mm. The patch cable has an IP20 rating. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.

Technical details
Ě Cat.8.1
Ě Connector: RJ45 8(8) to RJ45 8(8) with RJ45 connectors
Ě Shielding: S/FTP cable with 4x2 x AWG24/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: LSZH sheath material
Ě Outer diameter: 8 mm
Ě With an injected anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1, halogen-free according to IEC60754-2
Ě Degree of protection: IP20
Ě With a punctual screen contact
Ě With locking lever protection
Ě Mating cycles: =750
Ě With length print
Ě Brand: EFB-Elektronik

Parametre

Kategória

cat. 8 / class G / 2000 MHz / 40G BASE-T

Tienenie

S/FTP (PiMF)

Dĺžka

0.5m

Farba

sivá

Materiál vodiča

meď

Predlžovací
