S/FTP (PiMF) Patchkábel LSOH 1.5m cat.6a, červený, Cu

Name: S/FTP (PiMF) Patchkábel LSOH 1.5m cat.6a, červený, Cu
Brand: Goobay
SKU: 23709
Price: 2.55 EUR
Availability: OutOfStock

Kód: {{ productModel }}

Výrobca: Goobay

Kat. č.: W.95606

EAN: 4040849956065

vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)..... celý popis

Na objednávku

2,55 € s DPH 2,07 € bez DPH

Pridať do zoznamu

Máte nás radi? Dajte to vedieť aj ostaným

Popis produktu

vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)

Technické špecifikácie

AWG	27/7 (uviaznutý)
Ochrana proti zalomeniu	obe strany
Typ kábla	okrúhly kábel
Špecifikácia	CAT 6A
Priemer plášťa kábla (približne)	6 mm
Materiál plášťa kábla	ĽSZH
Materiál vnútorného vodiča	CU (meď)
Vyhovuje LSZH	Áno
Trieda tienenia	S/FTP (PiMF)
Počet tienenia	2 x
Typ 1, tienenie	fólia (alu) PiMF
Typ 2, tienenie	vrkoč (alu) celkový štít
Spojenie, kontaktný materiál	pozlátené 3µ
Pripojenie, tienenie	Áno
Kontaktovanie	EIA/TIA-568B
Ochrana západky	obe strany
Označenia	CE, WEEE
Farba	červená
Jednotka spotreby	1 ks. v polybagu
Prevádzková teplota až	65 °C
Prevádzková teplota od	-20 °C
max. šírku pásma	500 MHz
Dĺžka kábla	1,5 m

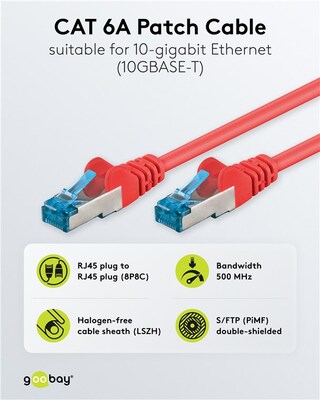

Double-shielded LAN cable with 2x RJ45 plugs for connecting network components
CAT 6A internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

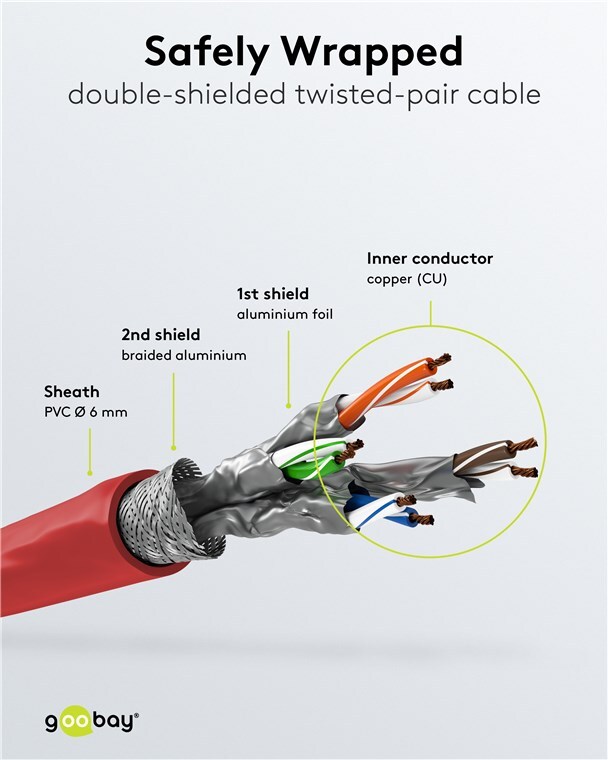

S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
High-quality copper conductor (CU) and 3µ gold-plated contacts guarantee an excellent, powerful network connection.

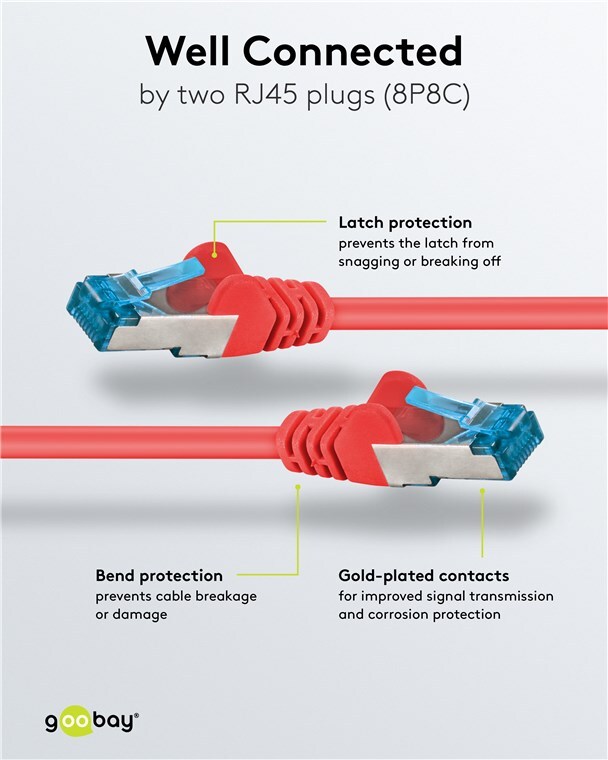

Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage.
Latch protection on RJ45 plugs prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
Network cable is CAT 6A tested (incl. test report) and suitable for Power over Ethernet (PoE,PoE+).

AWG	27/7 (stranded)
bending radius >	59 mm
Specification	CAT 6A
Cable sheath diameter (approx.)	5.9 mm
Shielding class	S/FTP (PiMF)
Number of shieldings	2 x
Contacting	EIA/TIA-568 B
Markings	CE, WEEE
Operating temperature up to	65 °C
Operating temperature from	-20 °C
max. bandwidth	500 MHz
Kink protection	both sides
Cable type	round cable
Material cable sheath	LSZH
Inner conductor material	CU (copper)
LSZH compliant	yes
Type 1, shielding	foil (alu) PiMF
Type 2, shielding	braid (alu) overall shield
Connection, contact material	gold-plated 3µm
Connection, shielding	yes
Connection, type	RJ45 male (8P8C)
Connection 2, type	RJ45 male (8P8C)
Latch protection	both sides
Color	red
Consumption Unit	1 pc. in polybag
Special feature	Length indication on connector
Cable length	1.5 m
Color version	red
