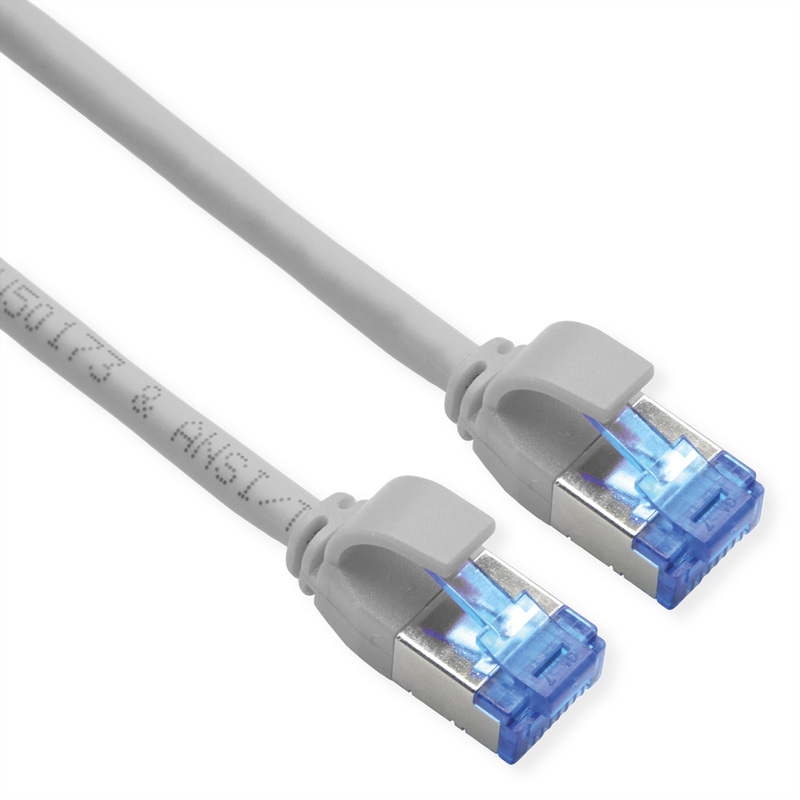

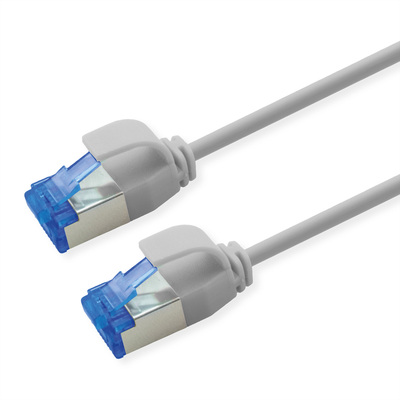

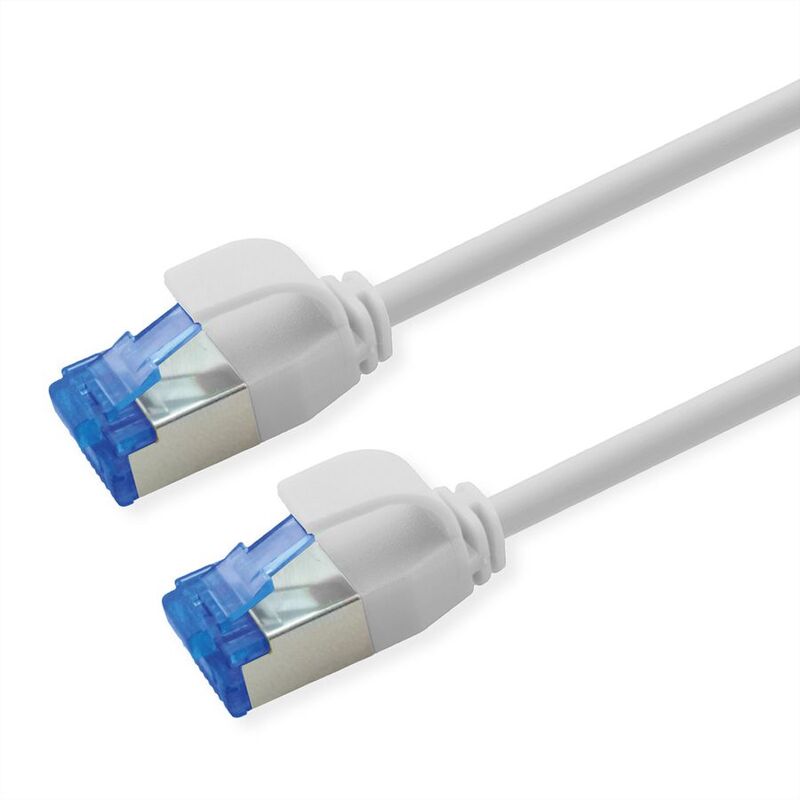

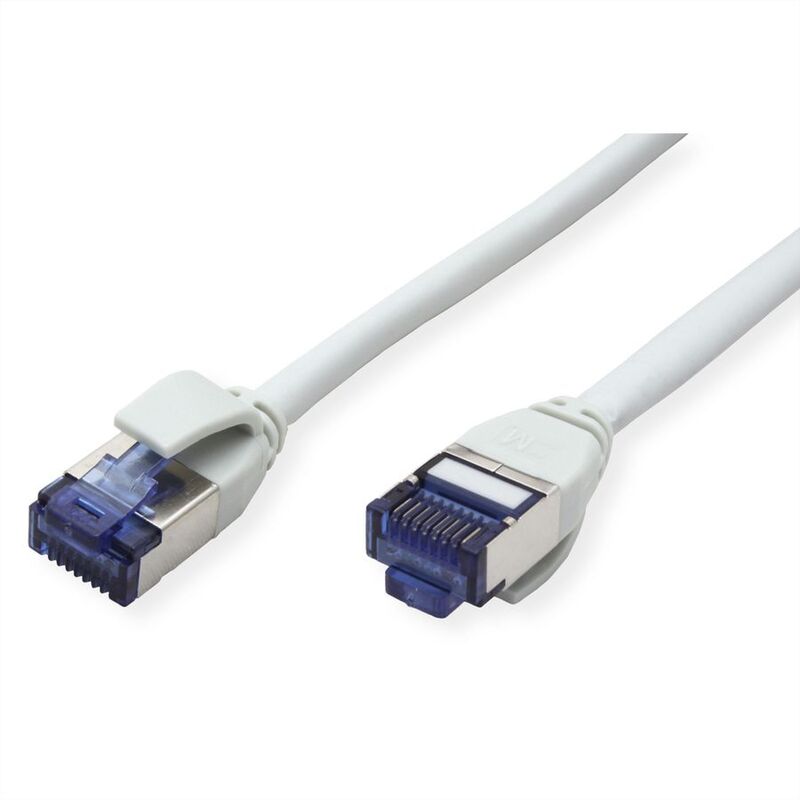

S/FTP (PiMF) Patchkábel LSOH 1.5m cat.6a, sivý, slim, Cu
S/FTP (PiMF) Patchkábel LSOH 1.5m cat.6a, sivý, slim, Cu
S/FTP (PiMF) Cat. 6A LSOH Patch Cord with shielded RJ-45 connectors on both sides. PoE-capable although it..... celý popis
S/FTP (PiMF) Cat. 6A LSOH Patch Cord with shielded RJ-45 connectors on both sides. PoE-capable although it is slim, flexible and tangle-free.
- S/FTP (PiMF) LSOH Cat. 6A Patch Cord
- For use in Gigabit Ethernet networks, especially for connecting devices (e.g. IP cameras)
- Slim, flexible and tangle-free
- Suitable for PoE applications and multimedia applications where the extension is working over TP
- High quality plugs with gold plated contacts
- Durable due to moulded kink protection
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard

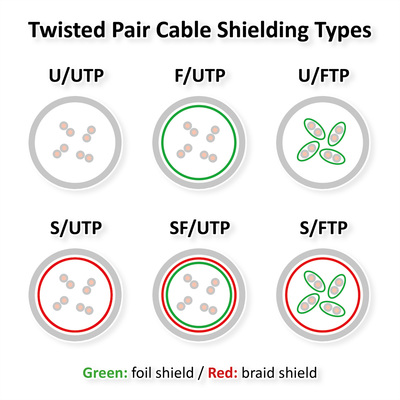

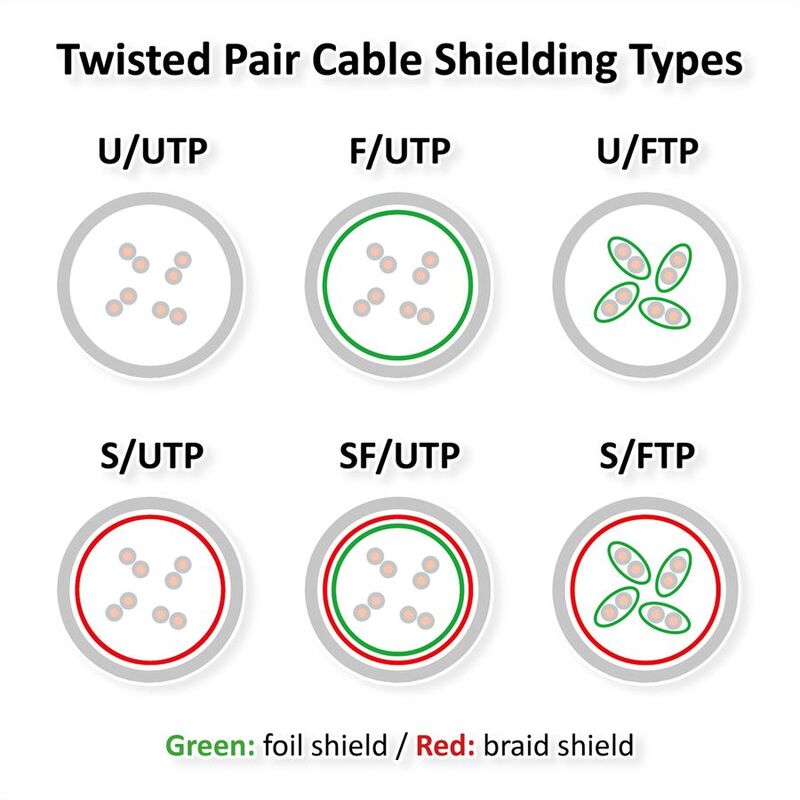

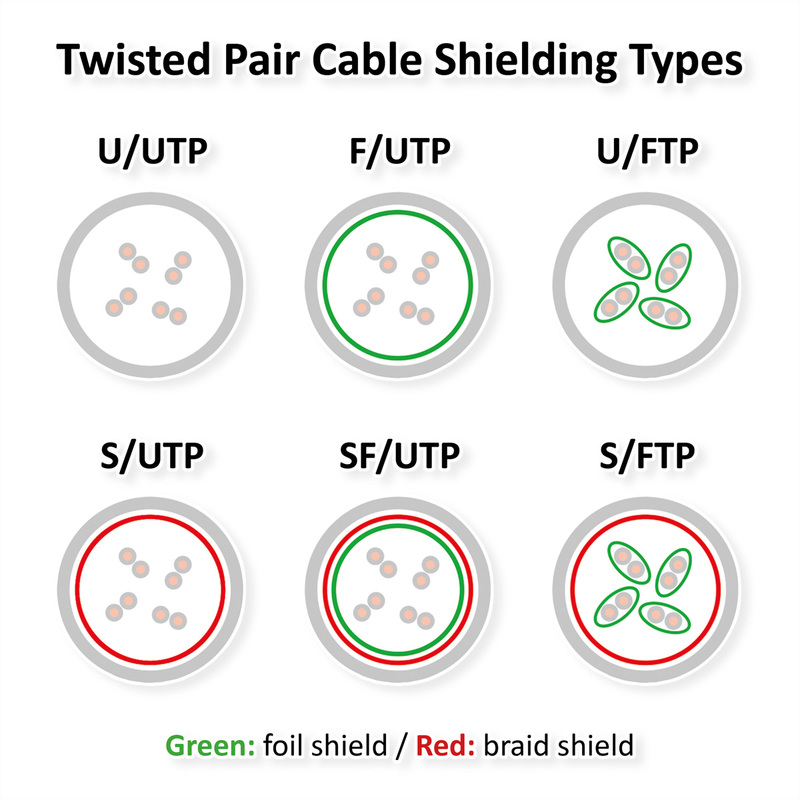

- Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium foil
Technical specifications
| Product group | Twisted Pair Cable |
| Product type | S/FTP Patchcord |
| Colour | grey |
| Length | 1.5 m |
| Shield type | PiMF |
| Transfer quality | Cat6A / Class EA |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 28 |
| Conductor type | Stranded |
| Bend radius | Min. 27 mm |
| Locking lever | yes |
| Anti-kink sleeve | Moulded-on |
| External cable diameter | 4.5 +/-0.2mm |
| Cable LSOH | yes |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | Standard |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 75 °C |
| Weight | 64 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 100 mm |
| Depth of packaging (single piece) | 100 mm |
| Package weight (single piece) | 0.036 kg |
| Gross weight | 0.036 |
