vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)
Technické špecifikácie
| AWG | 27/7 (uviaznutý) |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | okrúhly kábel |
| Špecifikácia | CAT 6A |
| Priemer plášťa kábla (približne) | 6 mm |
| Materiál plášťa kábla | ĽSZH |
| Materiál vnútorného vodiča | CU (meď) |
| Vyhovuje LSZH | Áno |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Typ 1, tienenie | fólia (alu) PiMF |
| Typ 2, tienenie | vrkoč (alu) celkový štít |
| Spojenie, kontaktný materiál | pozlátené 3µ |
| Pripojenie, tienenie | Áno |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | obe strany |
| Označenia | CE, WEEE |
| Farba | zelená |
| Jednotka spotreby | 1 ks. v polybagu |
| Prevádzková teplota až | 65 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 500 MHz |
| Dĺžka kábla | 1,5 m |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
- Double-shielded LAN cable with 2x RJ45 plugs for connecting network components
- CAT 6A internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

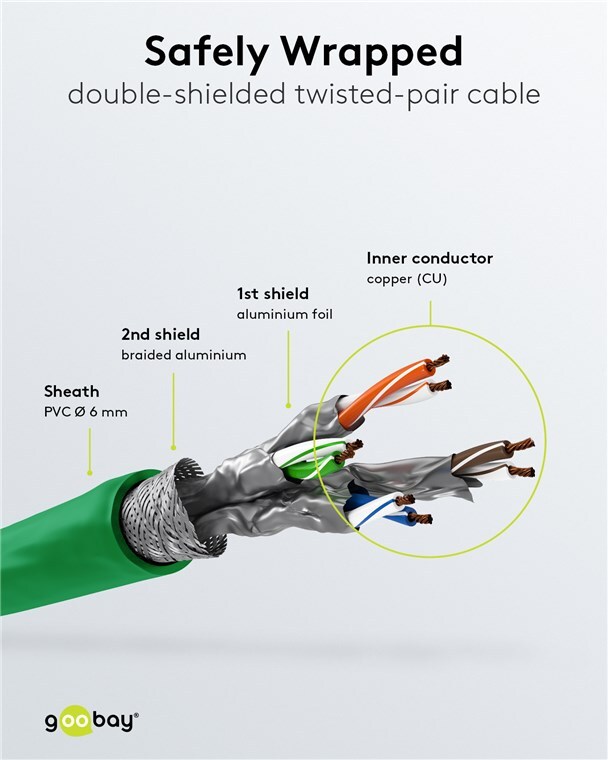

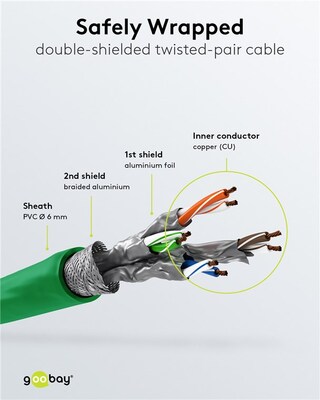

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- 3 µm gold-plated contact surfaces and pure copper (CU) conductors prevent corrosion and ensure clear signal quality without interference

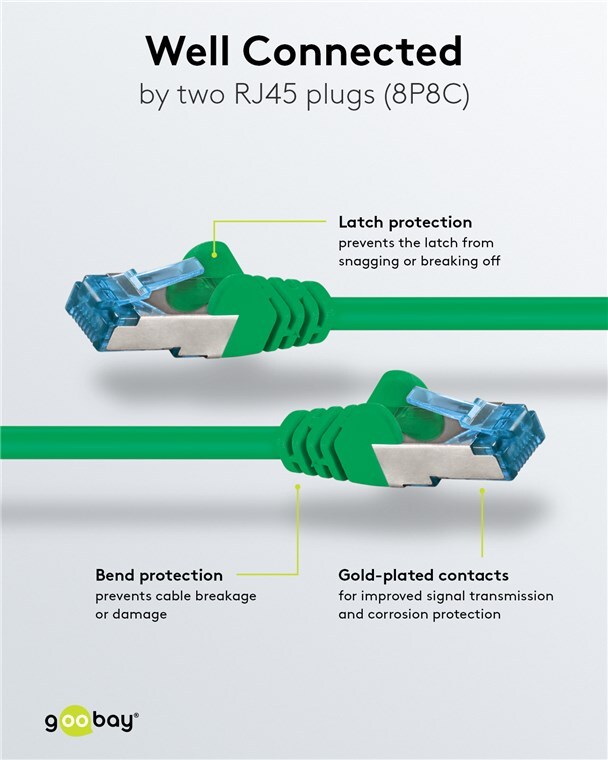

- Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage.
- Latch protection on RJ45 plugs prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Network cable is CAT 6A tested (incl. test report) and suitable for Power over Ethernet (PoE,PoE+).
Technical specifications
| Connection, type | RJ45 male (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Kink protection | both sides |
| Latch protection | both sides |
| Connection, shielding | yes |
| Connection, contact material | gold-plated 3µm |
| Cable type | round cable |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Inner conductor material | CU (copper) |
| Material cable sheath | LSZH |
| LSZH compliant | yes |
| Color | Green |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. in polybag |
| Packaging type | Bulk |
| Contacting | EIA/TIA-568 B |
| Specification | CAT 6 A |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| AWG | 27/7 (stranded) |
| Cable sheath diameter (approx.) | 5.9 mm |
| bending radius > | 59 mm |
| Cable length | 1.5 m |
| max. bandwidth | 500 MHz |
| max. transmission rate | 10 Gbit/s |
| Markings | CE, WEEE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 65 °C |
Kategória
cat. 6a / class E 500MHz / 10G BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
1.5m
Farba
zelená
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
