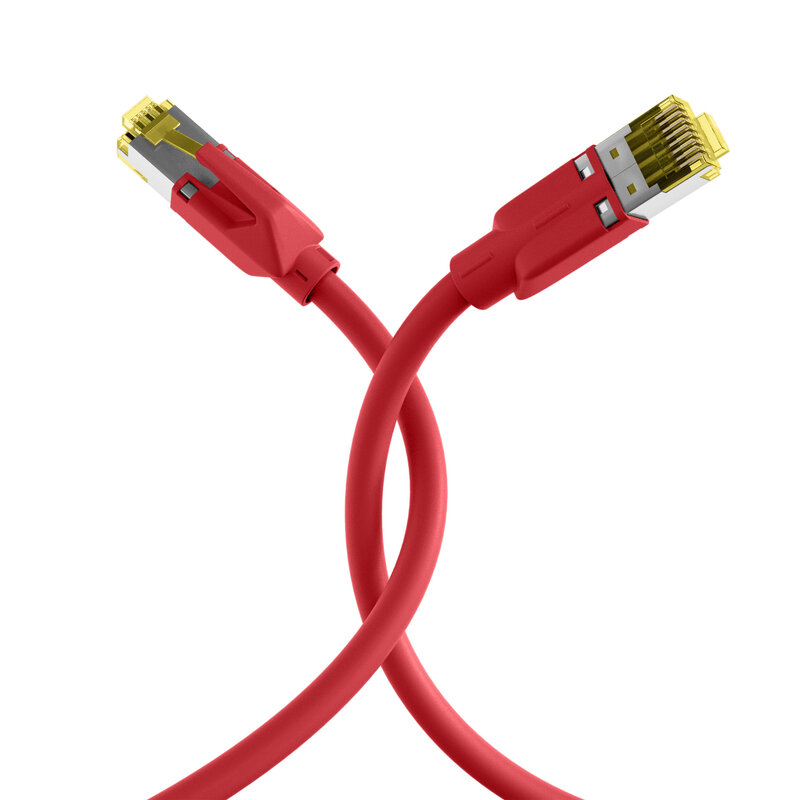

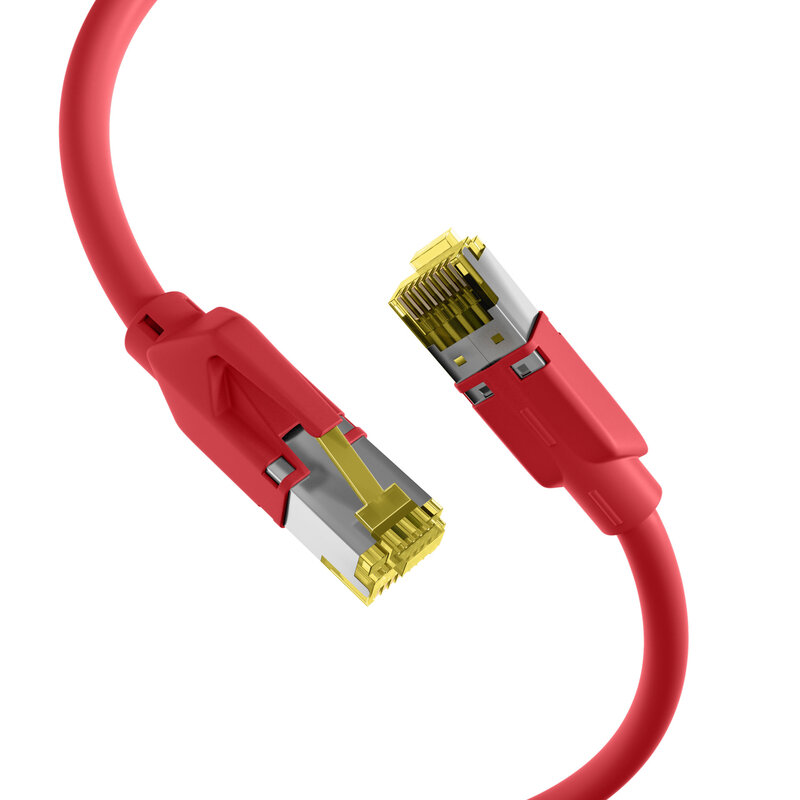

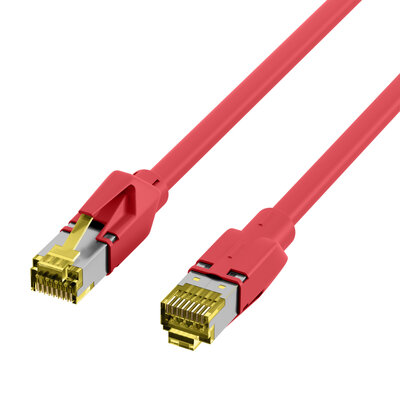

S/FTP (PiMF) Patchkábel LSOH 10m cat.6a, červený, Cu, Dätwyler 7702 Flex s TM31
S/FTP (PiMF) Patchkábel LSOH 10m cat.6a, červený, Cu, Dätwyler 7702 Flex s TM31
Patch kábel Cat.6A RJ45 vyrobený v Európe zaručuje veľmi dobré vlastnosti pre 10 Gigabi..... celý popis
Patch kábel Cat.6A RJ45 vyrobený v Európe zaručuje veľmi dobré vlastnosti pre 10 Gigabit Ethernet aplikácie. Patch kábel sa skladá zo surového kábla Cat.7 CU 7702 flex od Daetwyler a konektorov TM31 od Hirose.
Prierez 4 x 2 x AWG26/7
Namontovaná priechodka proti zalomeniu
Jasné rozlíšenie jadier v zostavenom konektore vďaka rôznym farbám jadier
| (Bez halogénov): | Pravda |
|---|---|
| Veľkosť AWG: | 26/7 |
| Pridelenie: | príl. TIA/EIA 568B |
| Rukáv proti zalomeniu: | obliecť si |
| Oblasť použitia: | Dátové centrum Priemyselný Ethernet Štruktúrovaná kabeláž |
| šírka pásma: | 500 MHz |
| Polomer ohybu: | >20 mm |
| Konštrukcia kábla: | 4x2 |
| Typ kábla: | S/FTP |
| Typ kábla podľa pre výrobcu: | D twyler CU 7702 flex |
| Štandardná kabeláž: | ANSI/TIA-568-C.2 EN50173 ISO/IEC 11801 |
| Kategória: | 6A (TIA) |
| Vodivý štít: | 360° kontakt štítu |
| Materiál vodiča: | Meď |
| Odpor vodiča DC: | 135 ?/km |
| Konektor: | IEC 60603-7-51 |
| Typ konektora: | TM31 žltá |
| Kontakty: | Pozlátený |
| Aktuálna kapacita: | max. 1 A |
| Verzia spomaľujúca horenie: | Pravda |
| Spomaľovač horenia: | príl. IEC60332-1 |
| Bez halogénov: | Áno |
| Impedancia: | 100 ± 5 ? |
| Materiál bundy: | ĽSZH |
| Uzamykacia páka: | Pravda |
| Odolnosť slučky: | 270 ?/km |
| Nízka dymivosť: | príl. IEC61034 |
| Cykly párenia: | 2000 |
| Model: | Tienené |
| Hodnota NVP: | 78 % |
| Odolné voči olejom (podľa EN 60811-2-1): | Nepravdivé |
| Odolné voči olejom (podľa EN 60811-404): | Nepravdivé |
| Prevádzkové / temperovacie napätie: | max. 50 V DC |
| Vonkajší priemer kábla: | 5,8 mm |
| Trieda POE: | 4PPoE podľa na IEEE802.3bt PoE+ podľa na IEEE802.3at PoE podľa na IEEE802.3af |
| Priradenie pinu: | 1:1 |
| Surový kábel: | Kat.7 |
| Vhodné pre stupeň ochrany (IP): | IP20 |
| Teplotný rozsah (inštalácia): | 0 – 50 °C |
| Teplotný rozsah (prevádzka): | -20 – 60 °C |
| Prenos: | 10 Gbit |
| Typ pripojenia konektora 1: | RJ45 8(8) |
| Typ pripojenia konektora 2: | RJ45 8(8) |
This Cat.6A (TIA) Ethernet cable from EFB-Elektronik transmits data up to 10Gbit. The S/FTP shielding reliably protects against interference and ensures high-quality signal. Since it is a Cat.6A (TIA) patch cable, it supports a frequency range of up to 500MHz, which provides high data transmission performance.
Ě Increase interference immunity in electromagnetically charged environments Í double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Power and connect devices via a cable Í reduces cabling effort because data and power are transmitted via 4PPoE to IEEE802.3bt on a single line. 4PPoE according to IEEE802.3bt can only be used up to certain cable lengths.
Product Description
The S/FTP LAN cable has double shielding, which effectively reduces electromagnetic interference. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >20 mm. The data cable has an IP20 rating. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.
Technical details
Ě Cat.6A (TIA)
Ě Connector: RJ45 8(8) to RJ45 8(8) with yellow TM31 connectors
Ě Shielding: S/FTP cable with 4x2 x AWG26/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: LSZH sheath material
Ě Outer diameter: 5.8 mm
Ě With an attached anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
Ě Degree of protection: IP20
Ě With a 360ř umbrella attachment
Ě With locking lever protection
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Ě Increase interference immunity in electromagnetically charged environments Í double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
Ě Cover fire protection requirements in compliance with standards Í flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
Ě Power and connect devices via a cable Í reduces cabling effort because data and power are transmitted via 4PPoE to IEEE802.3bt on a single line. 4PPoE according to IEEE802.3bt can only be used up to certain cable lengths.
Product Description
The S/FTP LAN cable has double shielding, which effectively reduces electromagnetic interference. It can be used in a temperature range of -20 Í 60 řC. The wide range of possible applications is supported by the bending radius of >20 mm. The data cable has an IP20 rating. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.
Technical details
Ě Cat.6A (TIA)
Ě Connector: RJ45 8(8) to RJ45 8(8) with yellow TM31 connectors
Ě Shielding: S/FTP cable with 4x2 x AWG26/7
Ě Cable shape: round
Ě Pin assignment: 1:1 according to TIA/EIA 568B
Ě Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
Ě Gold-plated contacts
Ě Sheath: LSZH sheath material
Ě Outer diameter: 5.8 mm
Ě With an attached anti-kink grommet
Ě Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
Ě Degree of protection: IP20
Ě With a 360ř umbrella attachment
Ě With locking lever protection
Ě Mating cycles: =750
Ě Brand: EFB-Elektronik
Parametre
Kategória
cat. 7 / class F / 1000MHz / 10G BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
10m
Farba
červená
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
Flex Cable
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
