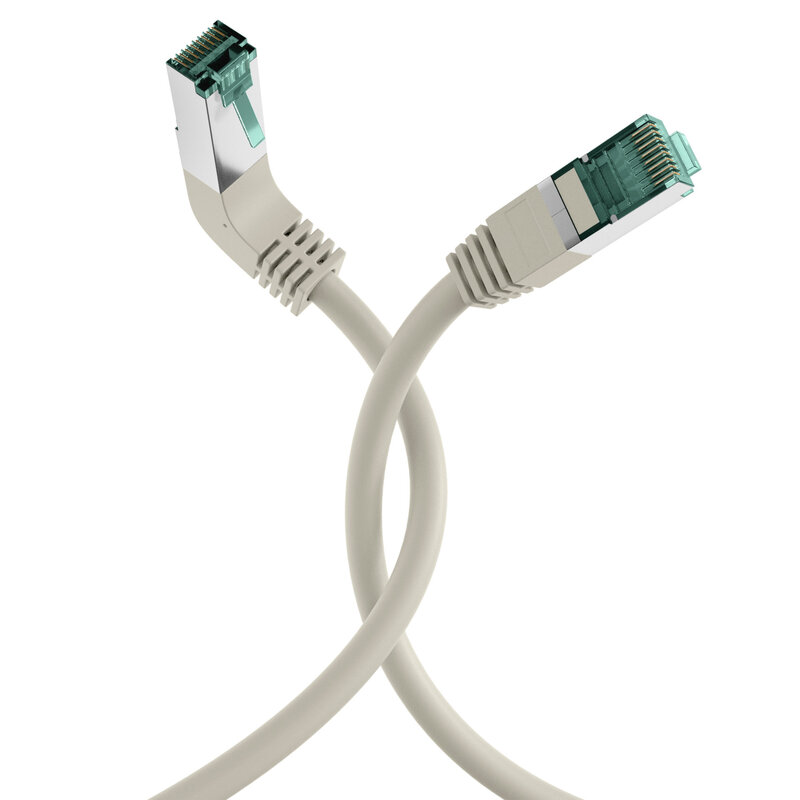

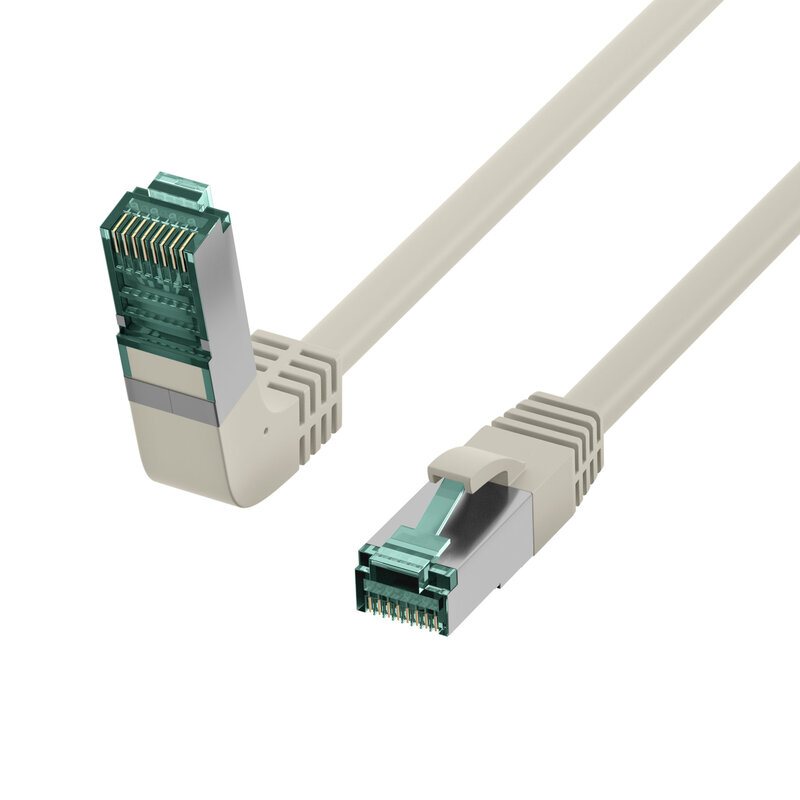

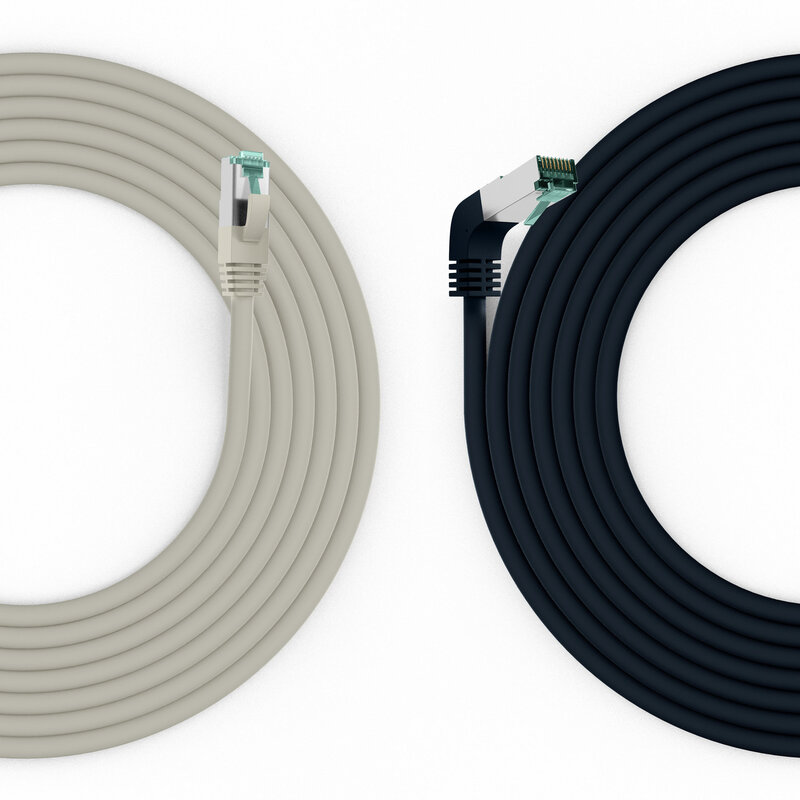

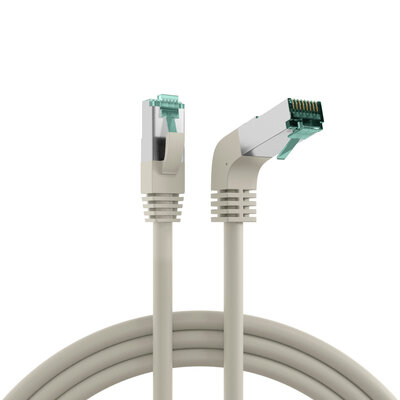

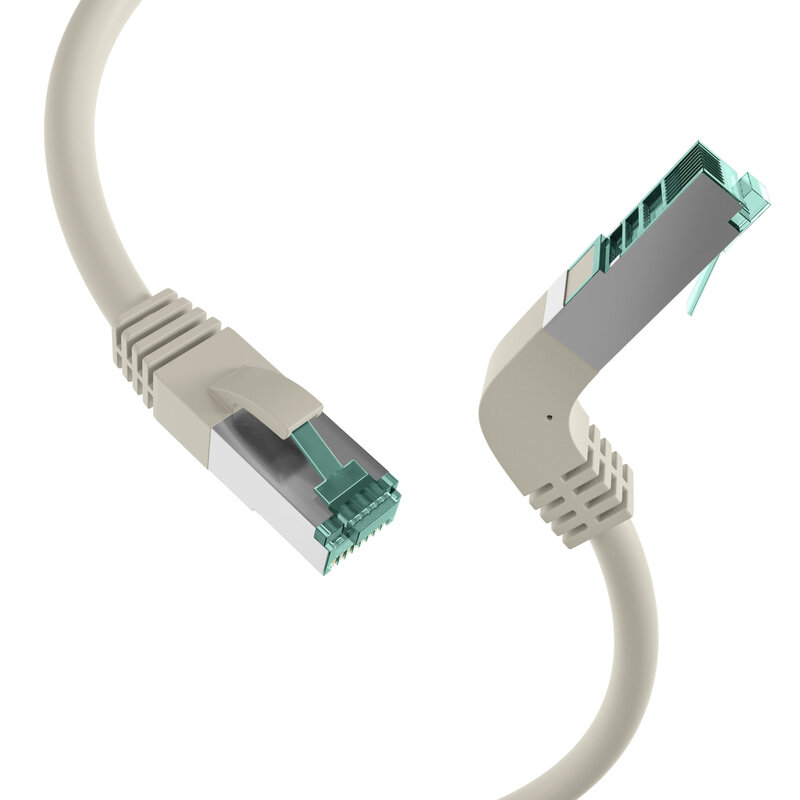

S/FTP (PiMF) Patchkábel LSOH 1m cat.6a, sivý, Cu, zahnutý (1x90°)

Kód produktu: {{ productModel }}

Výrobca: EFB

Kat. č.: MK6001W.1G

EAN: 4049759266080

RJ45 patch kábel Cat.6A S/FTP LSZH 1x90 Patch kábel Cat.6A (TIA) má pozlátené kontakty a umožňuje 2,5 Gbit,..... celý popis

2,85 € s DPH 2,32 € bez DPH

16 ks na sklade

Zajtra 28.10.2026 na predajni v BA Zdarma

30.10.2026 v balíkoboxoch od 4,92 €

30.10.2026 doručíme k vám od 4,92 €

Nákup nad 159,90 € s DPH Preprava zdarma

Popis a parametre produktu
Na stiahnutie (1)

Jazyk

RJ45 patch kábel Cat.6A S/FTP LSZH 1x90

Patch kábel Cat.6A (TIA) má pozlátené kontakty a umožňuje 2,5 Gbit, 5 Gbit a 10 Gbit Ethernet ako štandard prenosu.

Technické vlastnosti produktu< br> Cat.6A (TIA)
S/FTP kábel s AWG27/7
Materiál bundy vyrobený z bezhalogénového LSZH
Protipožiarna ochrana: spomaľuje horenie, bez halogénov, nízka dymivosť
Zástrčné pripojenie: RJ45 až RJ45< br> S ochranou uzamykacej páky
Má pozlátené kontakty

Plášť tieneného patch kábla je vyrobený z bezhalogénového materiálu LSZH a má dĺžkovú potlač na priechodke. Kábel navyše ponúka možnosť napájania cez PoE podľa IEEE802.3af, PoE+ podľa IEEE802.3at a 4PPoE podľa IEEE802.3bt.

Priradenie modrých konektorov RJ45 je 1:1 a zodpovedá TIA/EIA 568B. Vhodné pre teplotný rozsah -20 60 C.

Sieťový kábel má vodičový materiál vyrobený z medi a je ideálny pre aplikácie v štruktúrovanej kabeláži budov, priemyselnom Ethernete a v dátových centrách. Frekvenčný rozsah je 500 MHz.

This Cat.6A (TIA) network cable from the EFB-Elektronik brand transmits data up to 10Gbit. The S/FTP shielding reliably protects against interference and ensures good signal quality. Since it is a Cat.6A (TIA) LAN cable, it offers a frequency range of up to 500MHz, which provides high data transmission performance.

• Increase interference immunity in electromagnetically charged environments double shielding (S/FTP) improves EMC reserve, reduces susceptibility to radiation and stabilizes transmission in parallel cable routing.
• Cover fire protection requirements in compliance with standards flame-retardant cable behaviour according to IEC60332-1 reduces the spread of fire in the event of a fault and supports compliance with common installation specifications.
• Increased safety in the event of a fire low smoke development after IEC61034 helps to keep escape routes as low as possible in the event of a fire, and the halogen-free materials according to IEC60754-2 reduce the development of corrosive fire gases.

Product Description
The S/FTP Ethernet cable has double shielding, which effectively reduces electromagnetic interference. The temperature range of the cable is -20 60 řC. The wide range of possible applications is supported by the bending radius of >30 mm. The Ethernet cable is IP20 rated. The LSZH jacket is halogen-free and low-smoke. In the event of a fire, it minimizes smoke development and increases indoor safety.

Technical details
• Cat.6A (TIA)
• Connector: RJ45 8(8) to RJ45 8(8) with blue RJ45 connectors
• Shielding: S/FTP cable with 4x2 x AWG27/7
• Cable shape: round
• Pin assignment: 1:1 according to TIA/EIA 568B
• Equivalent to PoE class: PoE to IEEE802.3af, PoE+ to IEEE802.3at, and 4PPoE to IEEE802.3bt
• Gold-plated contacts
• Sheath: LSZH sheath material
• Outer diameter: 6.0 mm
• With an injected anti-kink grommet
• Fire protection: flame-retardant according to IEC60332-1, low-smoke according to IEC61034, halogen-free according to IEC60754-2
• Degree of protection: IP20
• With a punctual screen contact
• With locking lever protection
• Mating cycles: =750
• With length print
• Brand: EFB-Elektronik

Kategória

cat. 6a / class E 500MHz / 10G BASE-T

Tienenie

S/FTP (PiMF)

Dĺžka

Farba

sivá

Materiál vodiča

meď

Predlžovací

nie

Zapojenie
