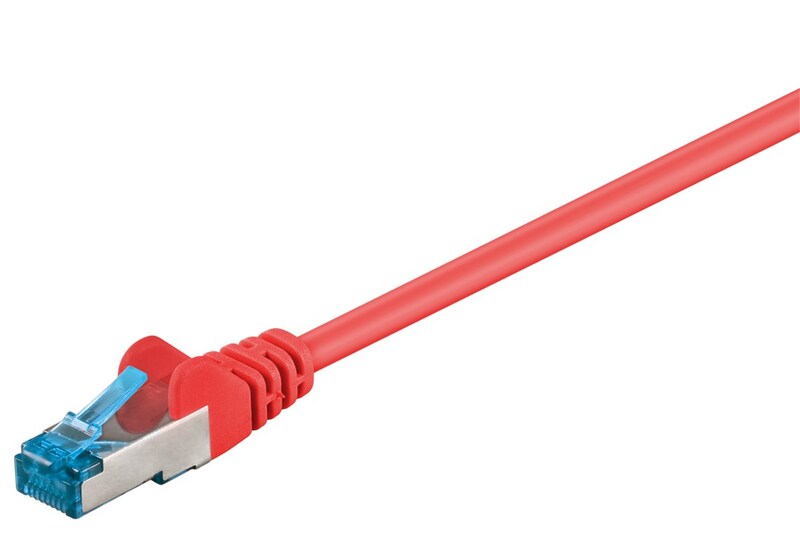

S/FTP (PiMF) Patchkábel LSOH 2m cat.6a, červený, Cu
S/FTP (PiMF) Patchkábel LSOH 2m cat.6a, červený, Cu
vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)Technické..... celý popis
vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)
Technické špecifikácie
| AWG | 27/7 (uviaznutý) |
| Ochrana proti zalomeniu | |
| Typ kábla | |
| Špecifikácia | CAT 6A |
| Priemer plášťa kábla (približne) | 6 mm |
| Materiál plášťa kábla | |
| Materiál vnútorného vodiča | |
| Vyhovuje LSZH | |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Typ 1, tienenie | |
| Typ 2, tienenie | |
| Spojenie, kontaktný materiál | |
| Pripojenie, tienenie | |
| Kontaktovanie | EIA/TIA-568B |
| Ochrana západky | |
| Označenia | CE, WEEE |
| Farba | |
| Jednotka spotreby | |
| Prevádzková teplota až | 65 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 500 MHz |
| Dĺžka kábla | 2 m |
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

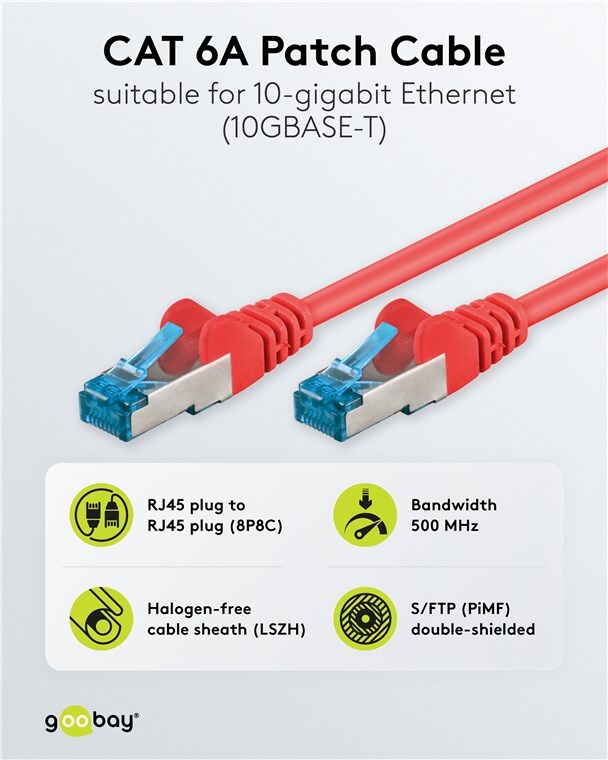

- Double-shielded LAN cable with 2x RJ45 plugs for connecting network components
- CAT 6A internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

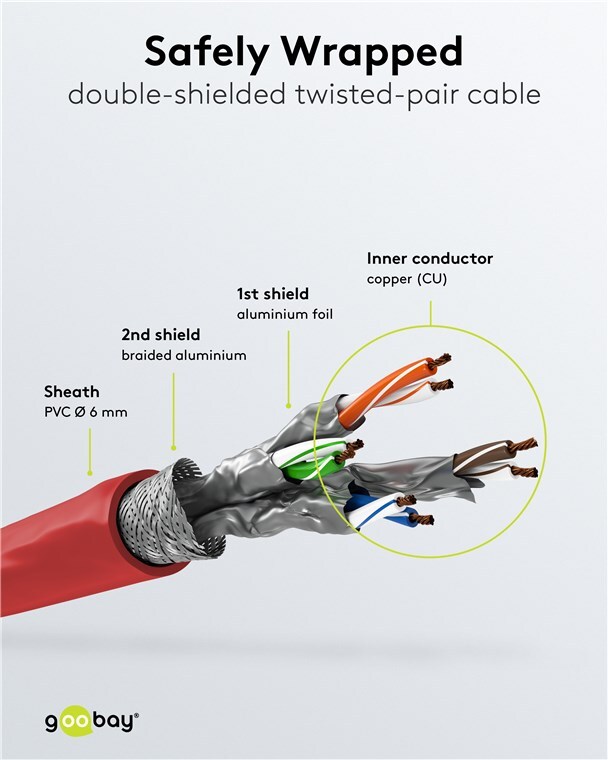

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) and 3µ gold-plated contacts guarantee an excellent, powerful network connection.
- Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage.

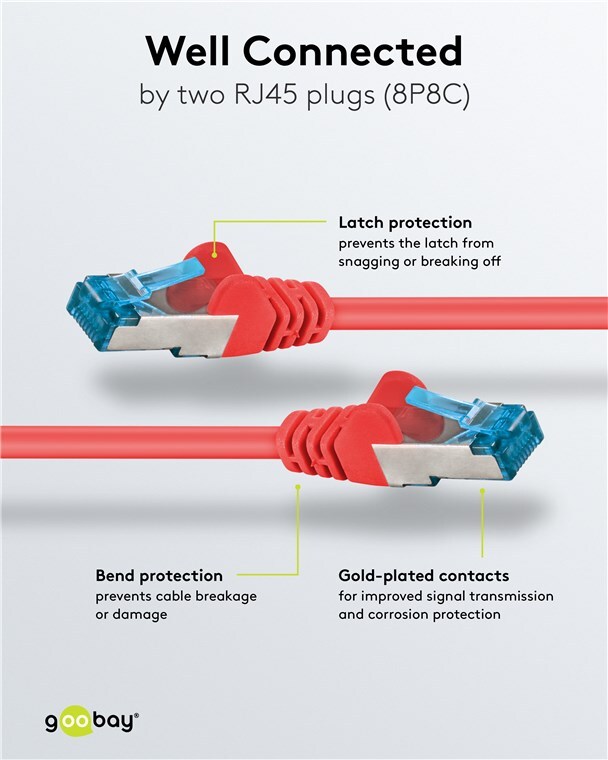

- Latch protection on RJ45 plugs prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Network cable is CAT 6A tested (incl. test report) and suitable for Power over Ethernet (PoE,PoE+).

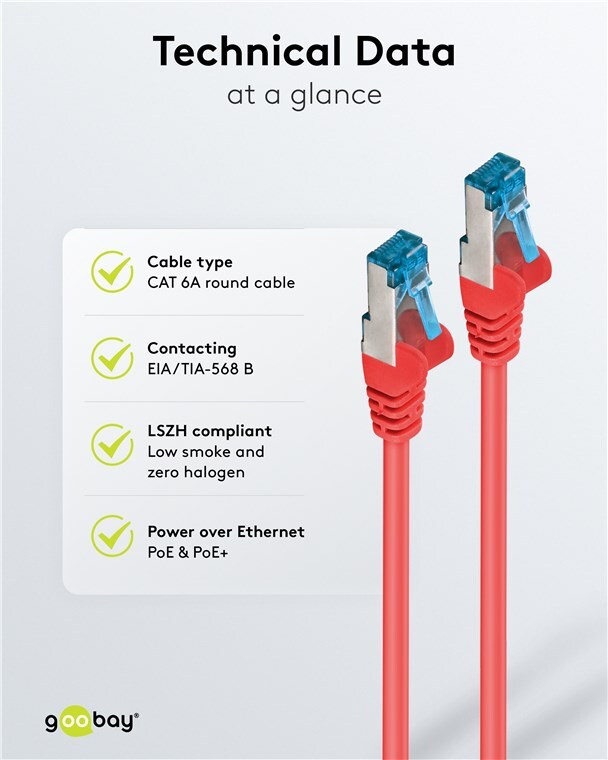

Technical specifications
| AWG | 27/7 (stranded) |
| bending radius > | 59 mm |
| Specification | CAT 6A |
| Cable sheath diameter (approx.) | 5.9 mm |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| Contacting | EIA/TIA-568 B |
| Markings | CE, WEEE |
| Operating temperature up to | 65 °C |
| Operating temperature from | -20 °C |
| max. bandwidth | 500 MHz |
| Kink protection | both sides |
| Cable type | round cable |
| Material cable sheath | LSZH |
| Inner conductor material | CU (copper) |
| LSZH compliant | yes |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Connection, contact material | gold-plated 3µm |
| Connection, shielding | yes |
| Connection, type | RJ45 male (8P8C) |
| Connection 2, type | RJ45 male (8P8C) |
| Latch protection | both sides |
| Color | red |
| Color version | red |
| Consumption Unit | 1 pc. in polybag |
| Special feature | Length indication on connector |
| Cable length | 2 m |
Parametre
Zapojenie
1:1 podľa EIA / TIA 568
Tienenie
S/FTP (PiMF)
LSOH/LSZH bezhalogénový
áno
Farba
červená
Materiál vodiča
meď
Kategória
cat. 6a / class E 500MHz
Dĺžka
2m
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
GHMT Certifikát
nie
Flexibilný
nie
Montáž na panel
nie
Predlžovací
nie
