S/FTP (PiMF) Patchkábel LSOH 5m cat.6a, zelený, Cu

Name: S/FTP (PiMF) Patchkábel LSOH 5m cat.6a, zelený, Cu
Brand: Wentronic
SKU: 34801
Price: 5.93 EUR
Availability: OutOfStock

Kód: {{ productModel }}

Výrobca: Wentronic

Kat. č.: W.93816

EAN: 4040849938160

vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit) Technic..... celý popis

Externý sklad

5,93 € s DPH 4,82 € bez DPH

Pridať do zoznamu

Máte nás radi? Dajte to vedieť aj ostaným

Popis produktu

vhodné pre 10 Gigabit Ethernet (10BASE-T/ 100BASE-TX/ 1000BASE-T), (10/100/1000/10000 Mbit)

Technické špecifikácie

AWG	27/7 (uviaznutý)
Ochrana proti zalomeniu
Typ kábla
Špecifikácia	CAT 6A
Priemer plášťa kábla (približne)	6 mm
Materiál plášťa kábla
Materiál vnútorného vodiča
Vyhovuje LSZH
Trieda tienenia	S/FTP (PiMF)
Počet tienenia	2 x
Typ 1, tienenie
Typ 2, tienenie
Spojenie, kontaktný materiál
Pripojenie, tienenie
Kontaktovanie	EIA/TIA-568B
Ochrana západky
Označenia	CE, WEEE
Farba
Jednotka spotreby
Prevádzková teplota až	65 °C
Prevádzková teplota od	-20 °C
max. šírku pásma	500 MHz
Dĺžka kábla	5 m
Farebné prevedenie	zelená

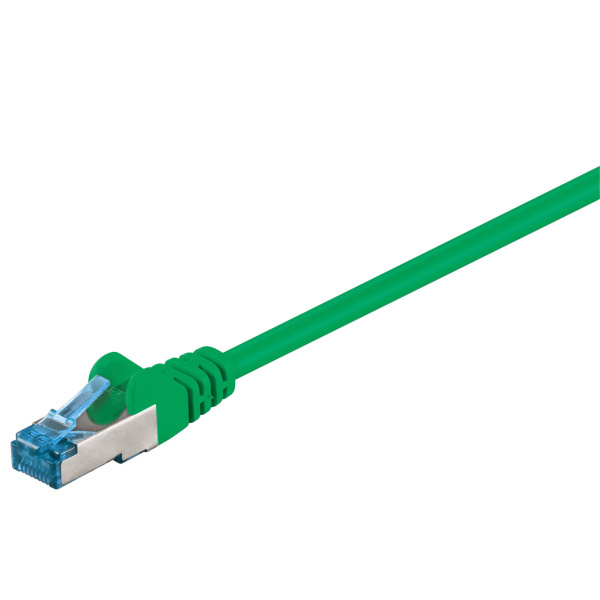

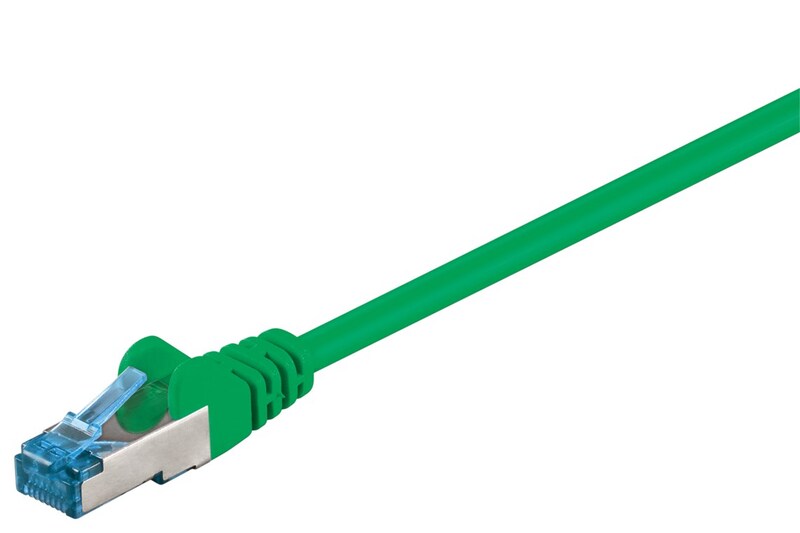

Double-shielded LAN cable with 2x RJ45 plugs for connecting network components

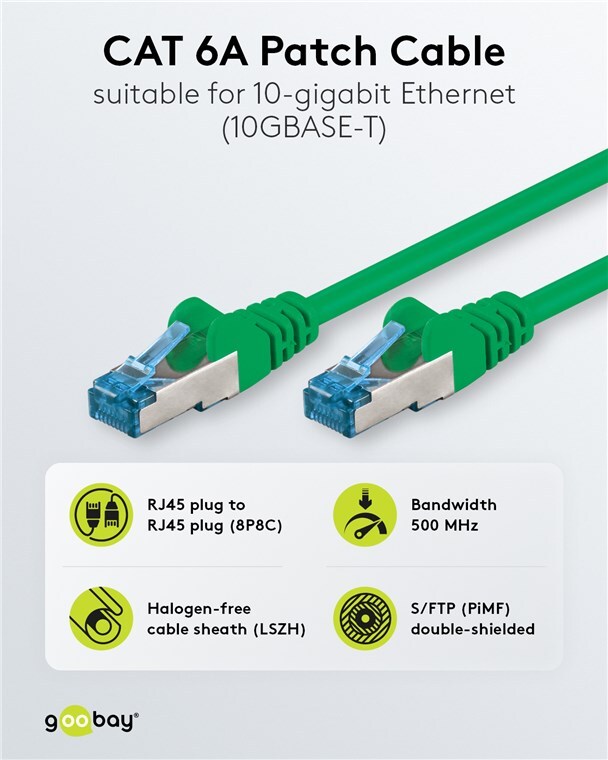

CAT 6A internet cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

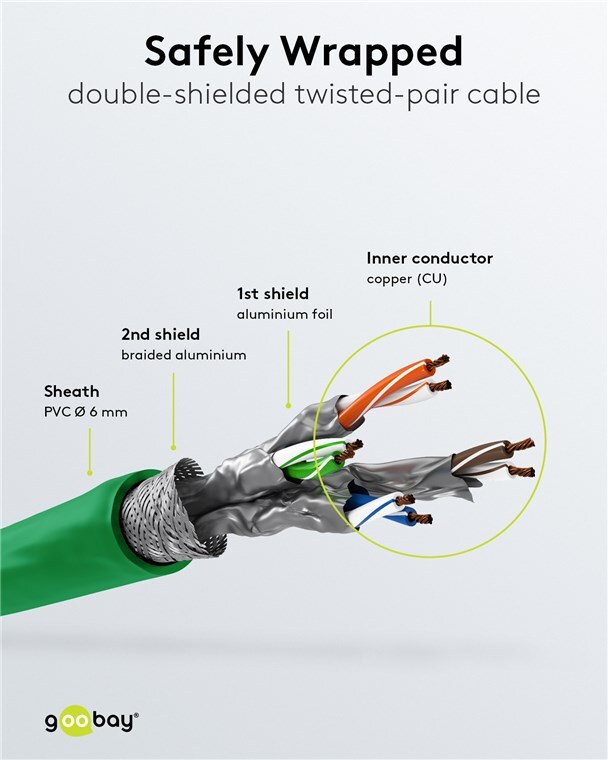

S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
High-quality copper conductor (CU) and 3µ gold-plated contacts guarantee an excellent, powerful network connection.

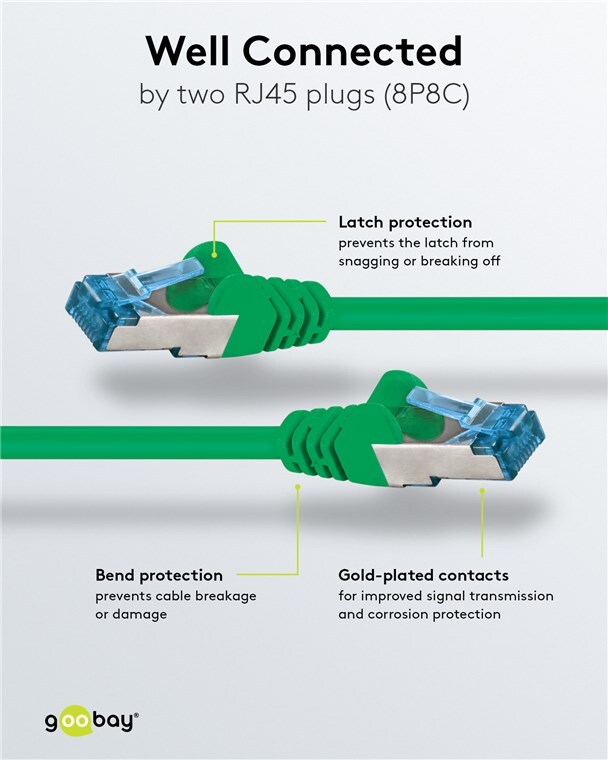

Bend protection and a sturdy jacket effectively protect the Ethernet cable from breakage.
Latch protection on RJ45 plugs prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.

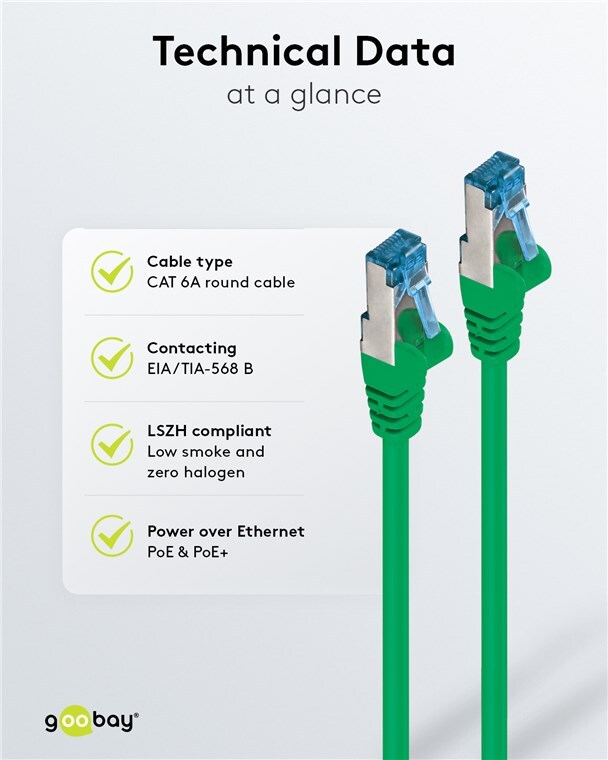

Network cable is CAT 6A tested (incl. test report) and suitable for Power over Ethernet (PoE,PoE+).

Connection, type	RJ45 male (8P8C)
Connection 2, type	RJ45 male (8P8C)
Kink protection	both sides
Latch protection	both sides
Connection, shielding	yes
Connection, contact material	gold-plated 3µm
Cable type	round cable
Type 1, shielding	foil (alu) PiMF
Type 2, shielding	braid (alu) overall shield
Inner conductor material	CU (copper)
Material cable sheath	LSZH
LSZH compliant	yes
Color	Green
Special feature	Length indication on connector
Consumption Unit	1 pc. in polybag
Packaging type	Bulk
Contacting	EIA/TIA-568 B
Specification	CAT 6A
Shielding class	S/FTP (PiMF)
Number of shieldings	2 x
AWG	27/7 (stranded)
Cable sheath diameter (approx.)	5.9 mm
bending radius >	59 mm
Cable length	5 m
max. bandwidth	500 MHz
Markings	CE, WEEE
Operating temperature from	-20 °C
Operating temperature up to	65 °C
