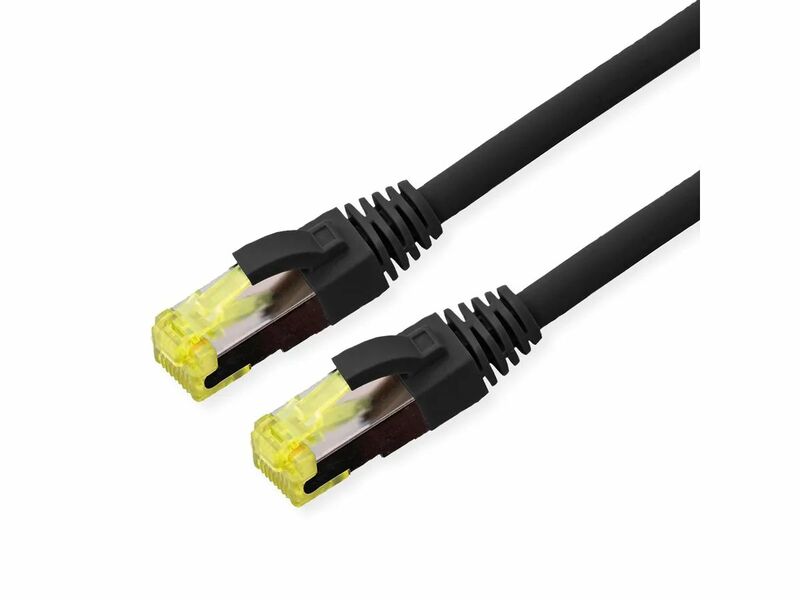

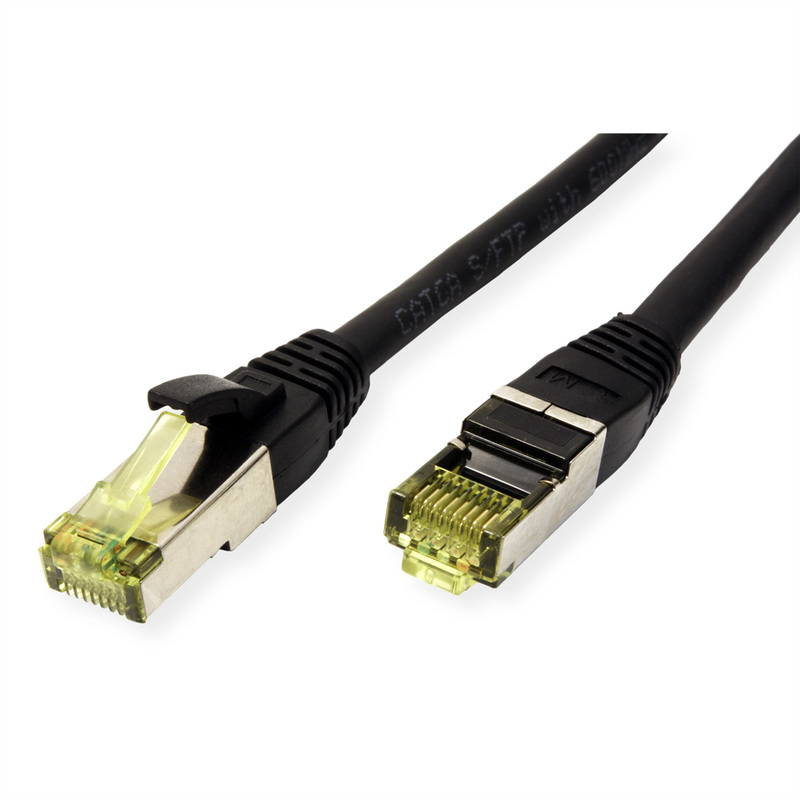

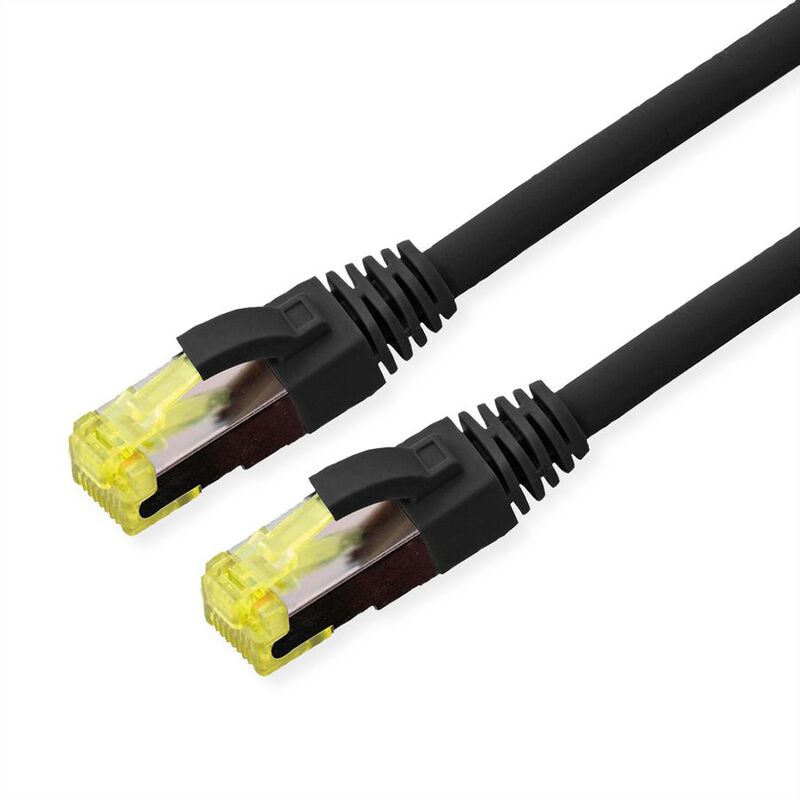

S/FTP (PiMF) Patchkábel TPE 0.15m cat.6a, čierny, Cu, vonkajší, UV odolný
S/FTP (PiMF) Patchkábel TPE 0.15m cat.6a, čierny, Cu, vonkajší, UV odolný
Assembled double shielded (PiMF) twisted pair cable category 6A with shielded RJ-45 connectors on both sid..... celý popis
Assembled double shielded (PiMF) twisted pair cable category 6A with shielded RJ-45 connectors on both sides. For outdoor use (cable routing), e.g. for connecting an IP camera.
Patch cord for networking connections between devices in combination with outdoor application (e.g. connection to outdoor surveillance cameras)- Prepared double shielded Twisted Pair cable with screened RJ-45 connectors on both ends
- Durable due to moulded kink protection
- Suitable for PoE applications and multimedia applications where the extension is working over TP
- High quality plugs with gold plated contacts
- UV - resistant (Ultraviolet resistance - ability of the material to withstand the degradation that can be caused by exposure to ultraviolet light)
- Contact settings 1:1, in accordance with the EIA/TIA 568 standard
- Construction: 4-pair stranded copper wire, complete braid shielding, pairs shielded with aluminium foil
REMARK: NOT suitable for underground installation / application
Technical specifications
| Product group | Twisted Pair Cable |
| Product type | S/FTP Patchcord |
| Colour | black |
| Length | 2 m |

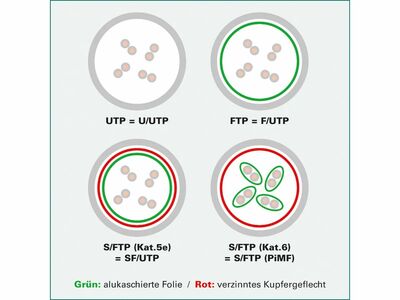

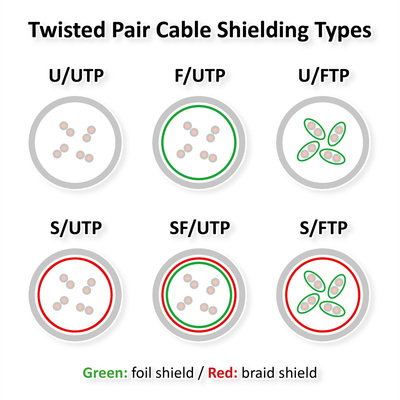

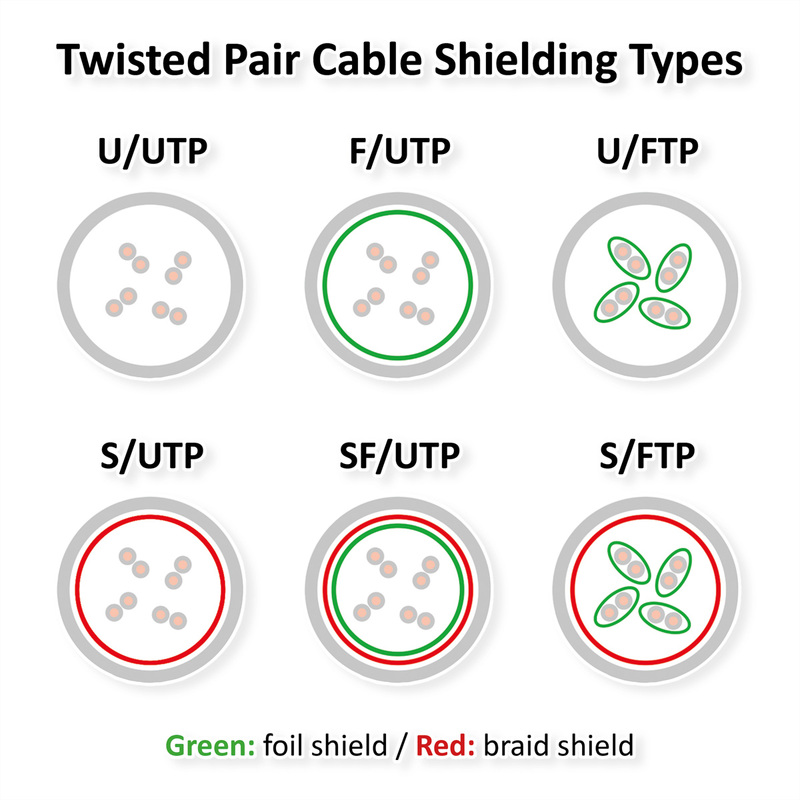

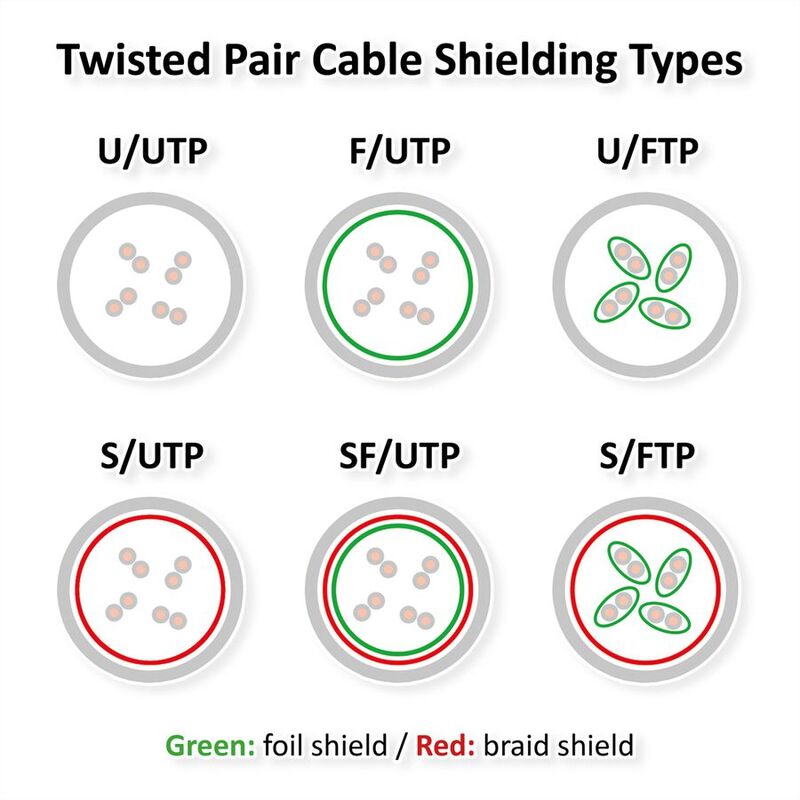

| Shield type | PiMF |
| Transfer quality | Cat6A / Class EA |
| Quantity of wires | 8 |
| Conductor cross section (AWG) | AWG 26 |
| Power over Ethernet (PoE) | yes |
| Conductor type | Stranded |
| Crossed | no |
| Bend radius | Min. 25mm |
| Locking lever | yes |
| Anti-kink sleeve | Moulded-on |
| External cable diameter | 6.0 +/-0.2mm |
| Cable LSOH | yes |
| Material (external cable mantle) | TPE |
| Side 1 Connector Type | RJ-45 |
| Side 1 Connector Gender | Male |
| Side 2 Connector Type | RJ-45 |
| Side 2 Connector Gender | Male |
| Connector Type RJ45 | Standard |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 60 °C |
| Storage temperature min. | -40 °C |
| Storage temperature max. | 75 °C |
| Weight | 65.8 g |
| Height of packaging (single piece) | 10 mm |
| Width of packaging (single piece) | 120 mm |
| Depth of packaging (single piece) | 120 mm |
| Package weight (single piece) | 0.075 kg |
| Gross weight | 0.075 |
Parametre
Kategória
cat. 6a / class E 500MHz / 10G BASE-T
Tienenie
S/FTP (PiMF)
Dĺžka
0.15m
Farba
čierna
Materiál vodiča
meď
Predlžovací
nie
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
áno
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
GHMT Certifikát
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
