- na pripojenie dvoch sieťových inštalačných káblov
- skutočný kovový kryt/kryt (namiesto metalizovaného plastu)
- kovové puzdro, plášť
- s doskou PCB
- pin out: 1:1
- vhodné pre PoE+ podľa IEEE 802.3at
Technické špecifikácie
| Špecifikácia | CAT 6A |
| Trieda tienenia | S/FTP (PiMF) |
| Označenia | WEEE, CE |
| Výška | 17,8 mm |
| Dĺžka | 30,4 mm |
| Prevádzková teplota až | 85 °C |
| Prevádzková teplota od | -20 °C |
| šírka | 15,8 mm |
| max. šírku pásma | 500 MHz |
| Typ pripojenia | RJ45 samica (8P8C) |
| Pripojenie 2, typ | RJ45 samica (8P8C) |

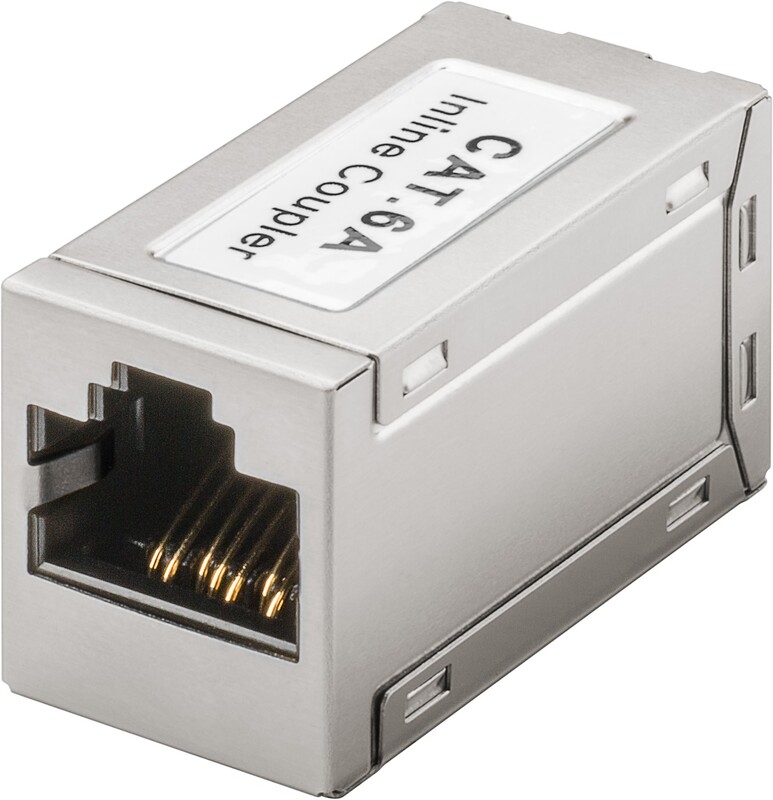

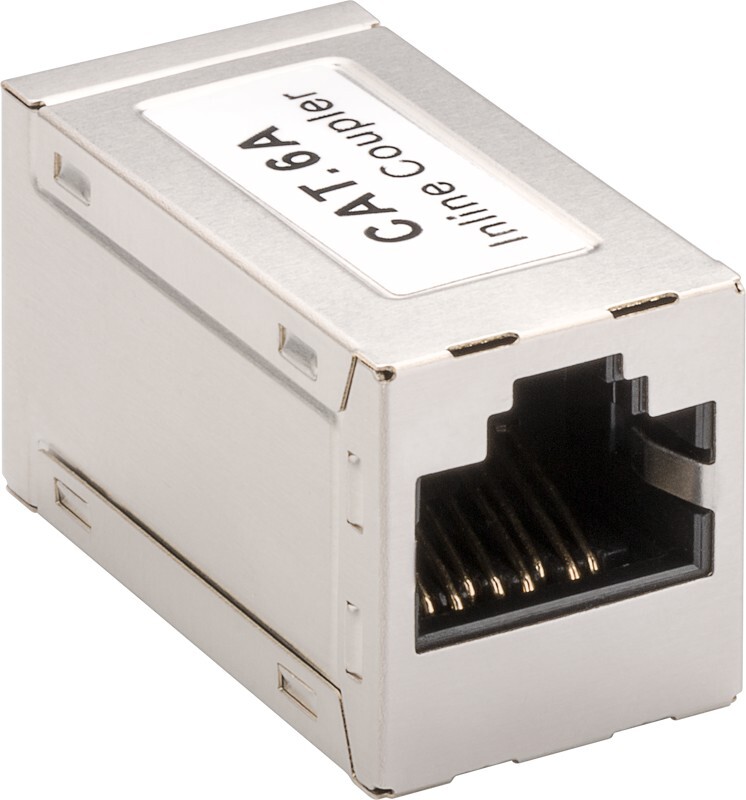

- RJ45 coupling for extending and connecting 2x network cables with RJ45 plugs
- Ethernet coupler with robust metal housing and shielding jacket for a perfect transmission of electrical or optical signals
- Real metal housing/cover (instead of metalised plastic)
- Commonly used in laboratories, workshops, home entertainment and network installations
- RJ45 jack sockets are suitable for PoE+ according to IEEE 802.3at.
- CAT 6A jack with PCB board contacting
- LAN connections with 1:1 pin assignment
Technical specifications
| Connection, type | RJ45 female (8P8C) |
| Connection 2, type | RJ45 female (8P8C) |
| Packaging type | Bulk |
| Specification | CAT 6A |
| Shielding class | S/FTP (PiMF) |
| max. bandwidth | 500 MHz |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 85 °C |
| Length | 30.4 mm |
| Width | 15.8 mm |
| Height | 17.8 mm |
