| Priradenie | 1:1 |
| Zvuk | Áno |
| Značka | InLine® |
| Krajina pôvodu | Čína |
| Číslo colného sadzobníka | 8536699099 |
| Čiarový kód EAN | 4043718197910 |
| Výška balenia | 0,012 m |
| Dĺžka balenia | 0,027 m |
| Informácie o výrobcovi | INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com |
| Číslo výrobcu | 17600N |
| Čistá hmotnosť | 0,015 kg |
| Objem balenia | 0,001 m3 |
| Strana A | HDMI A samica |
| Strana B | HDMI A samica |
| Signál | Zvuk/Video |
| Podporované rozlíšenie displeja | 4K2K pri 30 Hz |
| Typ | Pozlátené kontakty |
| Variant | Verzia so závitovou inštaláciou |
| Hmotnosť | 0,019 kg |
| Šírka balenia | 0,032 m |

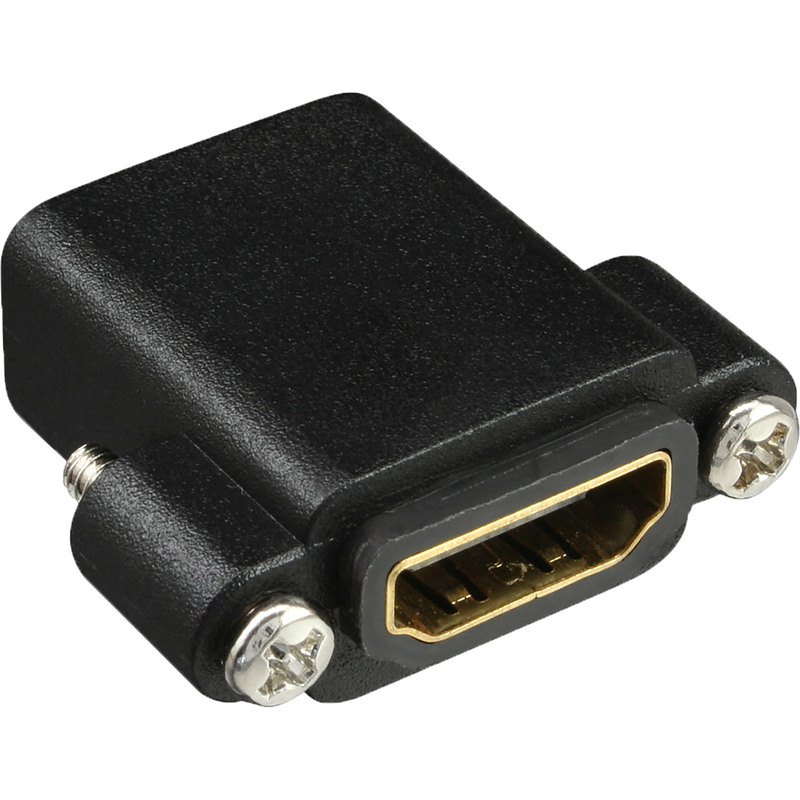

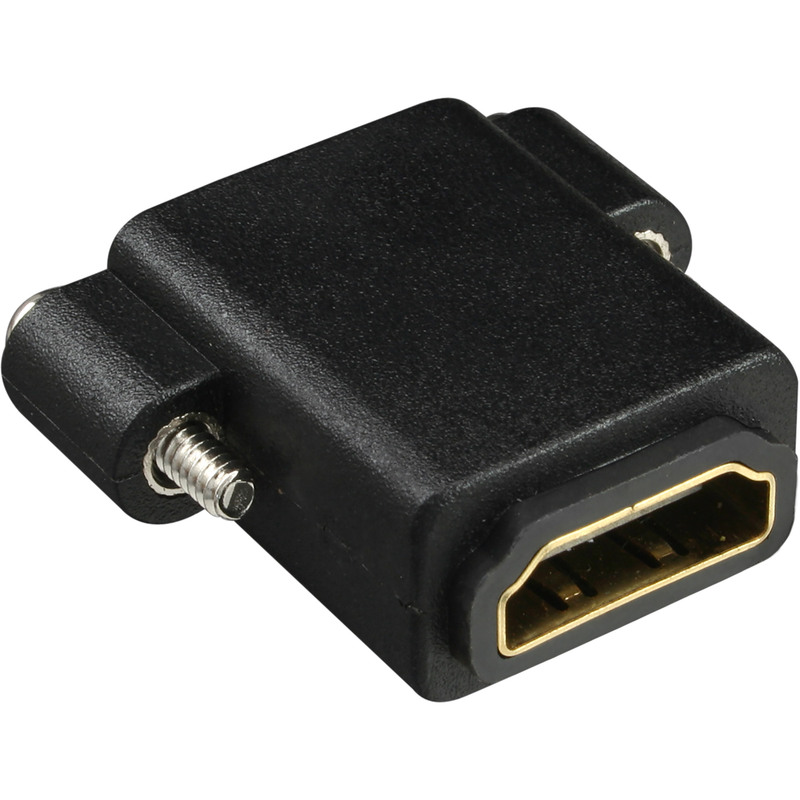

Integrate an HDMI port cleanly into panels
- Secure panel mounting: Threads and the included #4-40 screws securely fasten the HDMI port in patch panels and control panels.
- UHD video transmission: 4K2K @30 Hz (3840 x 2160) compatible for clear display in A/V setups and digital signage.
- Direct pass-through: 2x HDMI A sockets with 1:1 pinout for a continuous connection without an adapter cable.
- High-quality contacting: Gold-plated contacts for a high-quality digital connection.
With this HDMI panel-mount adapter, you route an HDMI port cleanly to the front of patch panels, control panels, or integrated systems. The HDMI A sockets on both sides pass the signal through 1:1, allowing you to directly couple two HDMI cables and connect devices without additional electronics.
It proves itself in professional IT and A/V environments in on-site installations and service deployments, from the conference room and auditorium to airports, stadiums, and existing digital signage infrastructures, where a robust, maintenance-friendly front interface is required.
- Connection: 2x HDMI A sockets, 19-pin
- Mounting: panel mounting with threads
- Dimensions: 8 x 18 mm
- Hole spacing: approx. 25 mm
- Screws: 2 x approx. 15 mm, #4-40 thread, included
- Resolution: 4K2K @30 Hz (3840 x 2160) compatible
- Pinout: 1:1 (straight)
- Contacts: gold-plated

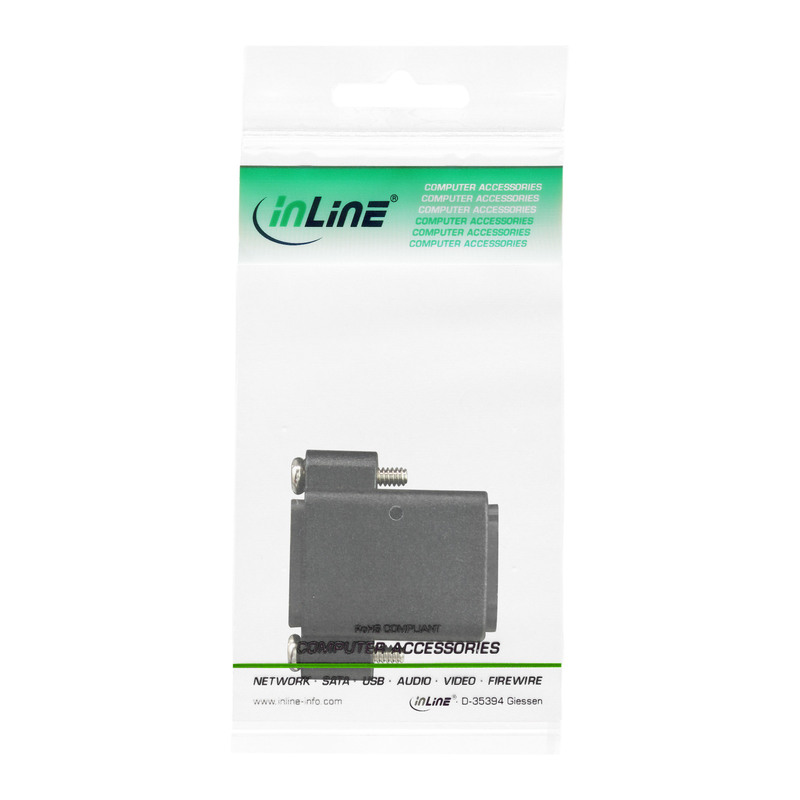

- Packaging: resealable blister PE packaging with EAN code
