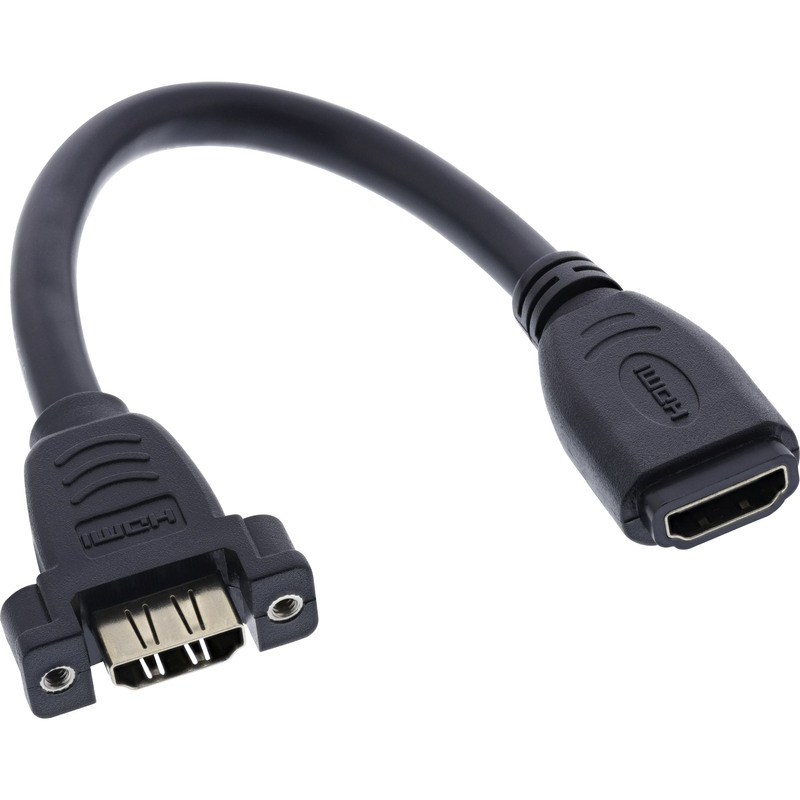

Adaptérový kábel HDMI na inštaláciu, konektor HDMI samica-HDMI pre šasi, pozlátené kontakty, kompatibilný s HDMI High Speed so štandardným Ethernetom, otvor pre HDMI jack približne 8x18 mm, rozteč otvorov: 25 mm, dĺžka závitu 15 mm, skrutky č. 4-40, priradenie 1:1, kompatibilný s 4K2K pri 60 Hz, farba: čierna, dĺžka: ~0,2 m
| Značka | InLine® |
| Farba | Čierna |
| Krajina pôvodu | Čína |
| Číslo colného sadzobníka | 8544429090 |
| Čiarový kód EAN | 4043718198177 |
| Výška balenia | 0,023 m |
| Dĺžka | 0,20 m |
| Dĺžka balenia | 0,155 m |
| Informácie o výrobcovi | INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com |
| Číslo výrobcu | 17600R |
| Čistá hmotnosť | 0,030 kg |
| Vonkajší priemer | 7,3 mm |
| Objem balenia | 0,0002 m³ |
| Strana A | HDMI A samica |
| Strana B | HDMI A samica |
| Signál | Zvuk/Video |
| Variant | Pozlátené kontakty |
| Hmotnosť | 0,036 kg |
| Šírka balenia | 0,098 m |
Clean HDMI panel connection with 4K at 60 Hz
- Fast mounting in front panels: Panel-mount socket leads the connector neatly to the outside.
- High-resolution transmission: 4K at 60 Hz for sharp images and smooth playback.
- Wide compatibility: Complies with HDMI High Speed with Ethernet for current device generations.
- Stable connection: 1:1 pinout and gold-plated contacts for reliable contact.
The adapter cable enables a tidy HDMI feed-through on front panels, racks, or enclosures. One side provides an HDMI A socket on the cable, the other a panel-mount socket. It supports 4K at 60 Hz according to HDMI High Speed with Ethernet and passes the signal through without adjustments thanks to 1:1 pinout; gold-plated contacts promote consistently good contact quality.
In professional IT environments, the media technology of companies and public institutions as well as during on-site setups, the feed-through creates defined connection points on devices and panels, facilitates service deployments, and adapts to existing infrastructures.
- Connection: HDMI A socket to HDMI A panel-mount socket
- Standard: HDMI High Speed with Ethernet
- Resolution: 4K at 60 Hz compatible
- Pinout: 1:1
- Contacts: gold-plated
- Opening: approx. 8 x 18 mm
- Hole spacing: approx. 25 mm
- Screws: #4-40, thread length approx. 15 mm
- Length: approx. 0.2 m
- Color: black
Konektor 1
HDMI A samica
Konektor 2
HDMI A samica s úchytom na panel / panelový konek.
Dĺžka
0.2m
Štandard
High Speed s Ethernetom
Max. rozlíšenie
3840 x 2160 @30Hz (4K@30Hz, Full HD)
Verzia
v1.4
Slim / Tenký kábel
nie
Aktívny
nie
Optický
nie
Farba
Čierny
Pozlatený konektor
nie
Flexibilný
nie
Certifikovaný
nie
