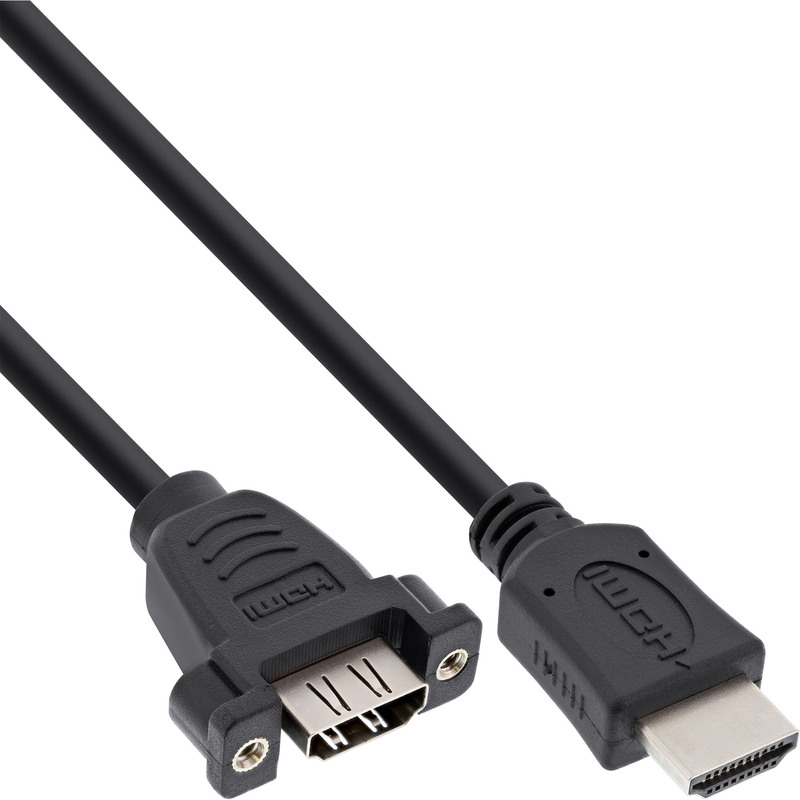

Adaptérový kábel HDMI na inštaláciu, HDMI samec - HDMI konektor na šasi, HDMI 4K@60Hz (4096x2160@60HZ 4:2:0 8bit, HD-TV), otvor pre HDMI jack približne 8x18 mm, rozstup otvorov: 25 mm, dĺžka závitu 15 mm, skrutky č. 4-40, osadenie 1:1, farba: čierna, dĺžka: približne 0,6 m
| Priradenie | 1:1 |
| Zvuk | Áno |
| Značka | InLine® |
| Farba | Čierna |
| Kompatibilita s HDMI | HDMI 2.0 (3D, hlboké farby) HDCP 2.2 |
| Krajina pôvodu | Čína |
| Číslo colného sadzobníka | 8544429090 |
| Čiarový kód EAN | 4043718261345 |
| Výška balenia | 0,027 m |
| Dĺžka balenia | 0,095 m |
| Informácie o výrobcovi | INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com |
| Číslo výrobcu | 17500B |
| Čistá hmotnosť | 0,052 kg |
| Objem balenia | 0,001 m³ |
| Strana A | HDMI A konektor |
| Strana B | HDMI A samica |
| Signál | Zvuk/Video |
| Podporované rozlíšenie displeja | 4K pri 60 Hz |
| UL | Áno |
| Číslo UL E | E119932-T |
| Variant | Verzia so závitovou inštaláciou |
| Hmotnosť | 0,059 kg 0,063 kg |
| Šírka balenia | 0,098 m |
Clean HDMI panel feed-through with 4K/60 support
- Front panel mounting in minutes: Panel-mount socket with included #4-40 screws for a clean finish.
- Protects device ports: Fixed feed-through reduces strain and mating cycles directly on the TV, monitor, or source device.
- 4K/60 transmission: Supports 4096x2160@60 Hz at 4:2:0, 8-bit for high-resolution video signals.
- Simple cable management: 0.6 m lead simplifies routing inside the enclosure.
The adapter cable brings an HDMI connection to the front or rear of a chassis or panel. Internally, the HDMI A plug connects to the source, externally an HDMI A panel-mount socket is available. The 1:1 pinout enables transparent signal routing up to 4K at 60 Hz (4:2:0, 8-bit) without additional active components.
In professional IT environments, AV racks, and conference rooms, the fixed feed-through facilitates on-site installations and service work. Ports remain easily accessible, mechanically relieved, and integrate reliably into existing infrastructures of companies and public institutions.
- Connection: HDMI A plug to HDMI A panel-mount socket
- Length: 0.6 m
- Supported resolution: 4096x2160@60 Hz, 4:2:0, 8-bit
- Pinout: 1:1
- Mounting cutout: approx. 8 x 18 mm
- Hole spacing: approx. 25 mm
- Screws: #4-40, thread length approx. 15 mm
Konektor 1
HDMI A samica
Konektor 2
HDMI A samica s úchytom na panel / panelový konek.
Dĺžka
0.6m
Štandard
Ultra High Speed s Ethernetom
Max. rozlíšenie
3840 x 2160 @60Hz (4K@60Hz, UHD-1)
Verzia
v2.0
Slim / Tenký kábel
nie
Aktívny
nie
Optický
nie
Farba
Čierny
Pozlatený konektor
nie
Flexibilný
nie
Certifikovaný
nie
