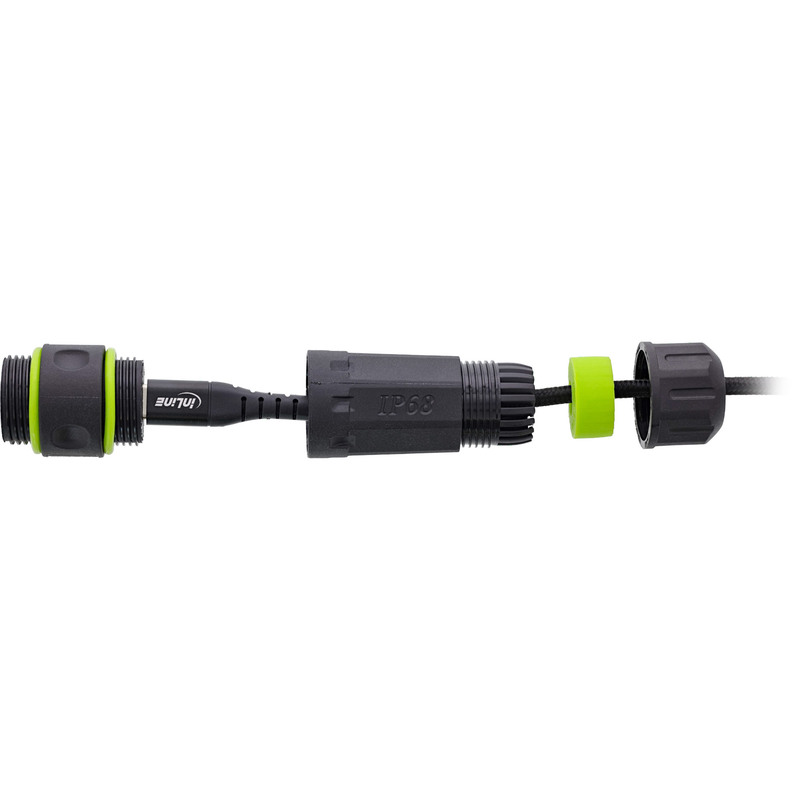

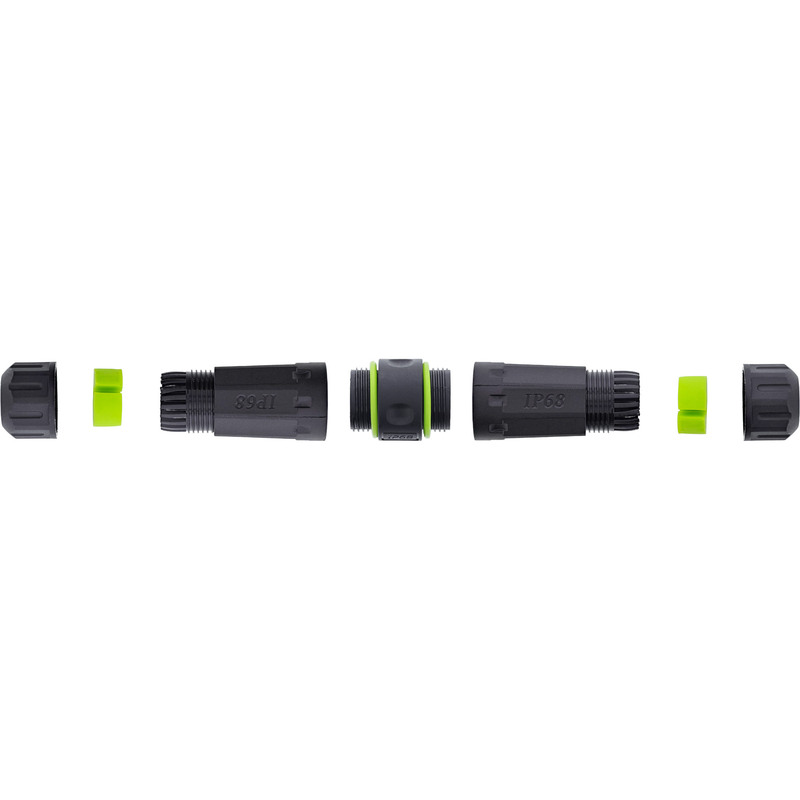

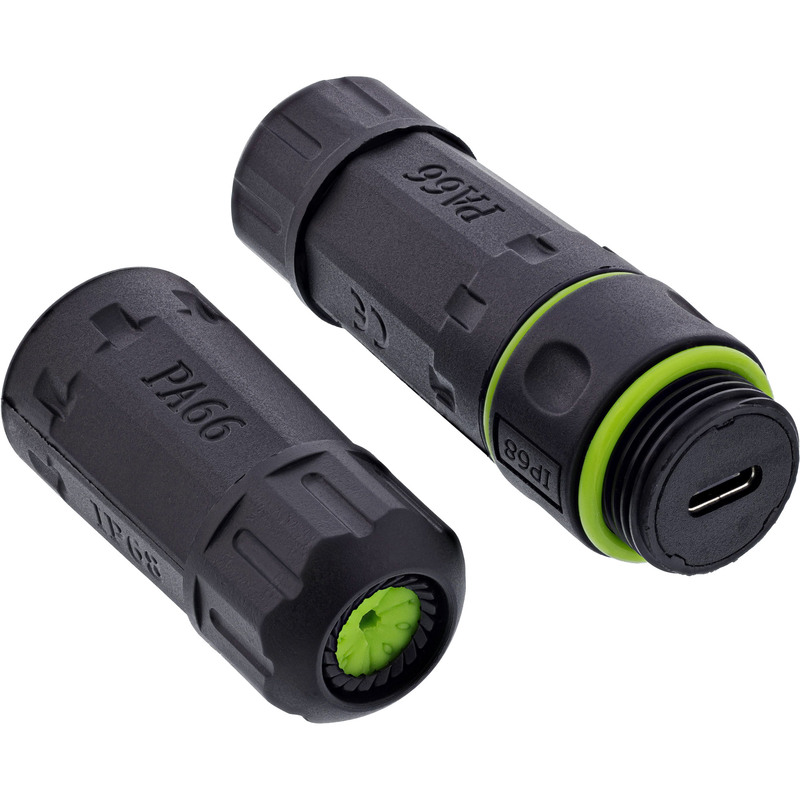

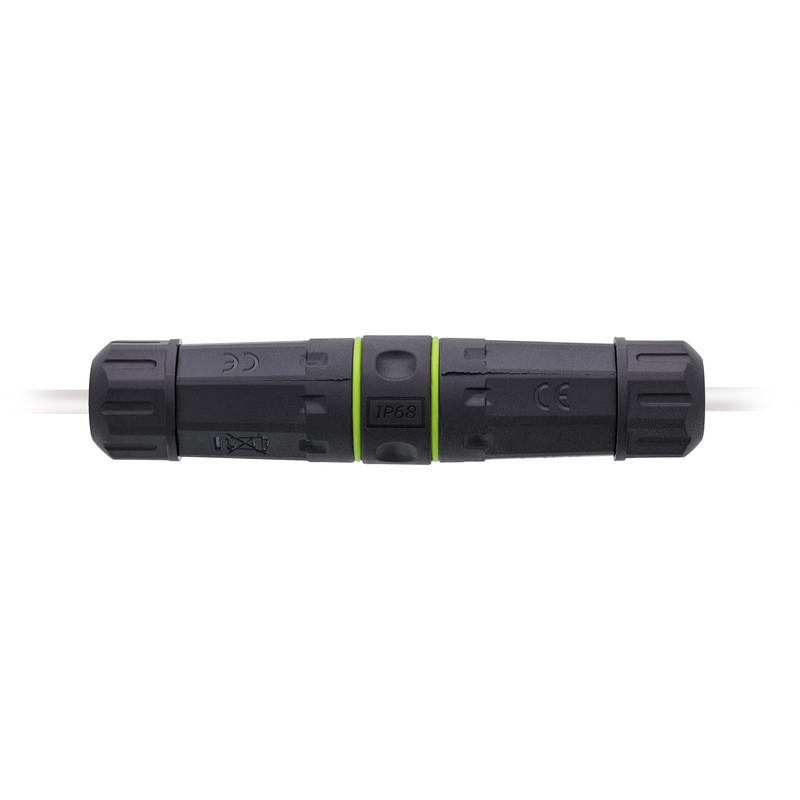

USB-C connector for outdoor use: The shielded connector protects your connection from water, dust, and environmental influences thanks to its IP68 protection rating. Reliable data transfer: Supports transfer rates of up to 5 Gb/s—ideal for industrial and outdoor applications. Power supply included: Charging function with 5 V / 2 A – suitable for live USB connections. Compact design with M20 thread: Enables integration into standard housings and distribution systems. Flexible cable compatibility: Suitable for cable diameters of 1.5–4.5 mm, 4.5–7.5 mm – tool-free installation via silicone seal. The InLine® USB-C cable coupling with IP68 protection is the robust solution for modern connections in demanding environments. It connects two USB-C cables securely and permanently – ideal for industrial applications, outdoor areas, mobile systems, or measurement environments. The coupler supports data transfers of up to 5 Gb/s and can simultaneously provide a power supply of 5 V at 2 A – for combined charging and data connections. The housing is made of durable PA66 and protects the connection from dust, water, and mechanical stress. Thanks to its M20 thread, the coupler can be integrated into distribution boxes or enclosures. The included silicone seal ensures secure routing of cables with diameters between 1.5 and 4.5 mm, 4.5 and 7.5 mm. Installation is quick and tool-free, simply by screwing it in place. Whether for connecting sensors, embedded systems, or mobile devices, the InLine® USB-C coupler provides reliable protection for your connections. Material: Nylon (PA66) Thread size: M20 Module: USB-C female/female Seal: Silicone Transfer rate: 5 Gb/s Current: 2 A Voltage: 5 V Charging: yes Protection rating: IP68 Temperature resistance: -25 °C to +105 °C Cable diameter: 1.5–4.5 mm, 4.5–7.5 mm

Article height	2.5 cm
Article length	12.5 cm
Article width	2.5 cm
Brand	InLine®
Colour	Black
Country of origin	Taiwan
Customs tariff number	8536699099
EAN Barcode	4043718346790
Height packaging	0.050 m
Length packaging	0.240 m
Manufacturer information	INTOS ELECTRONIC AGSiemensstrasse 1135394 GießenDeutschlandservice@inline-info.com
Manufacturer No.	69927L
Net weight	0.042 kg
Packaging volume	0.0002 m³
Side A	USB-C female
Side B	USB-C female
Variant	IP68
Weight	0.064 kg
Width packaging	0.070 m
