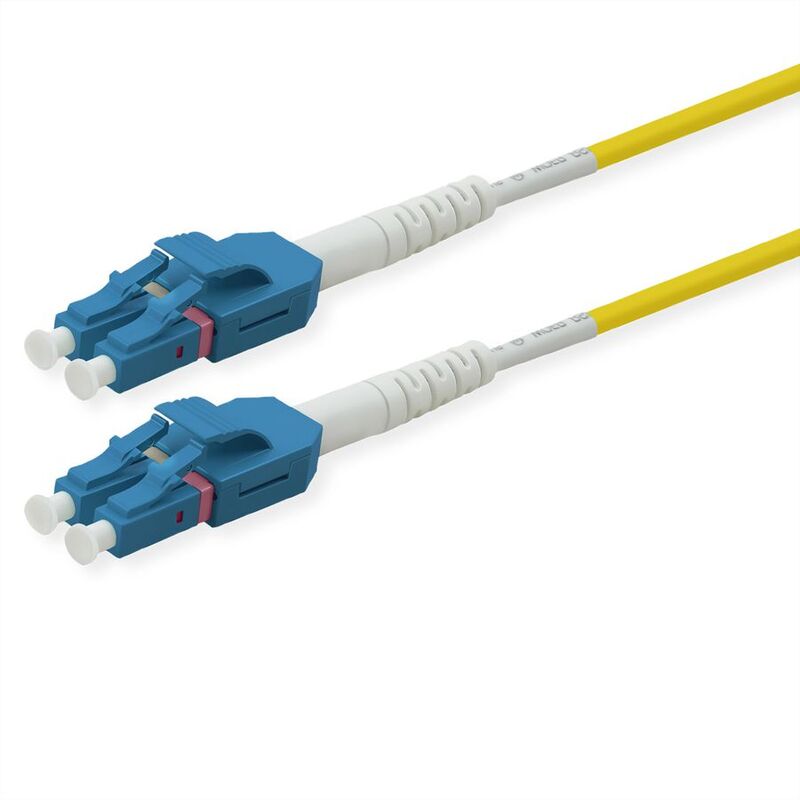

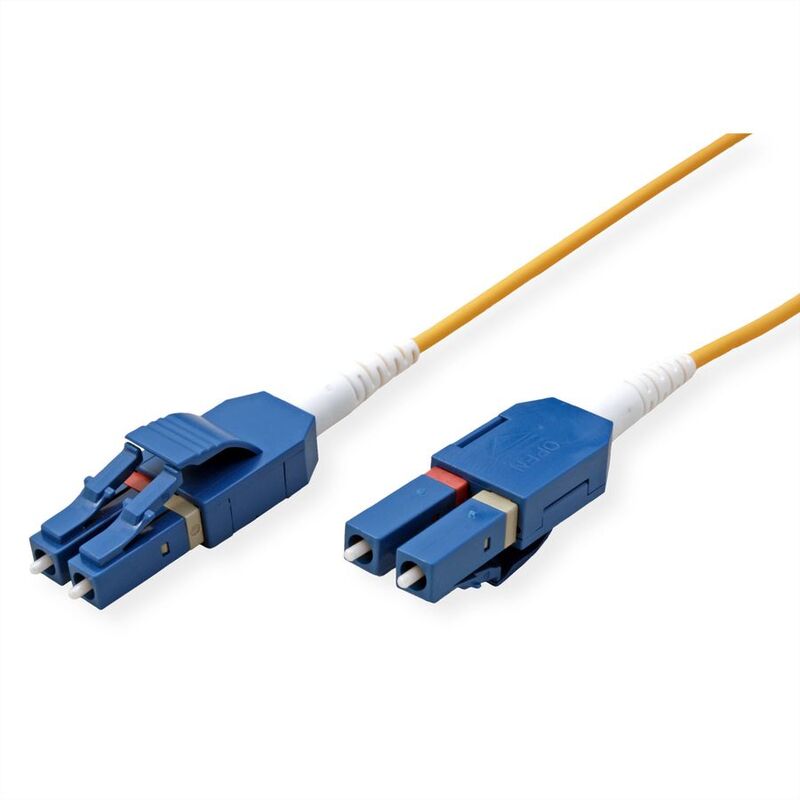

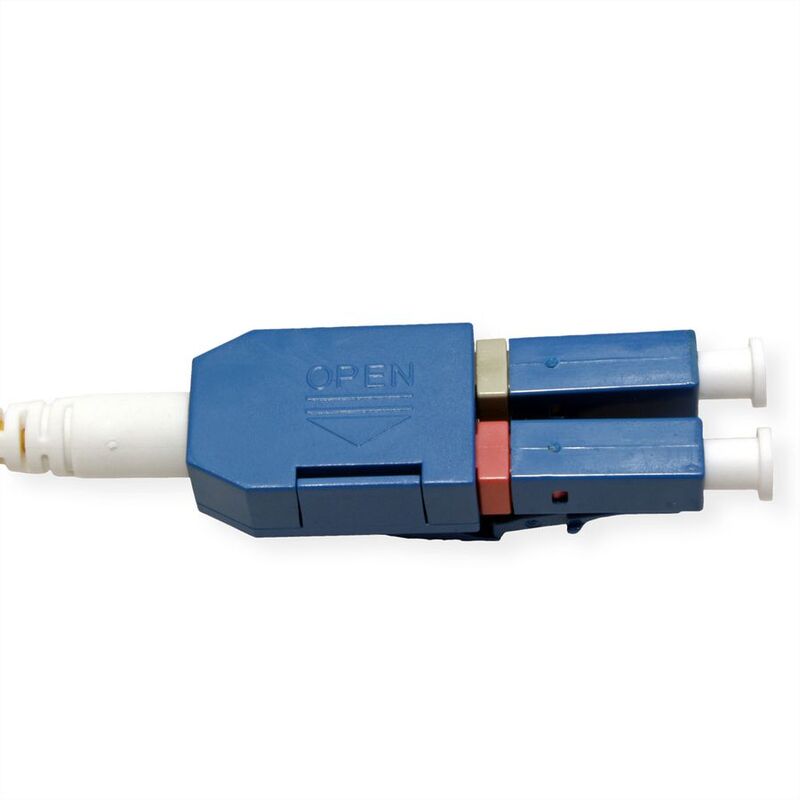

Fiber kábel LC-LC, 10m Duplex OS2(9/125µm), LSOH, uniboot konektor, 2mm, žltý
Fiber kábel LC-LC, 10m Duplex OS2(9/125µm), LSOH, uniboot konektor, 2mm, žltý
ROLINE Fiber Optic Uniboot LSOH Patch Cord LC/LC in OS2 quality. A uniboot connector is ideal for a high-d..... celý popis
Konektory
LC-LC
Typ kábla
Duplex
Typ vlákna
Singlemod OS2(9/125µm) žltý
Dĺžka kábla
10m
Prevedenie kábla
okrúhly kábel ø2mm
ROLINE Fiber Optic Uniboot LSOH Patch Cord LC/LC in OS2 quality. A uniboot connector is ideal for a high-density environment. Compared to conventional duplex patch cords, the design is more compact and only one cable is used for two lines, which enables usage in a high-density environment. Changing the fiber polarity is easily possible without special tools.
- Fiber Optic Duplex LC/LC Patch Cord with fiber type Single-Mode 9/125µm, OS2
- Uniboot for high-density environments

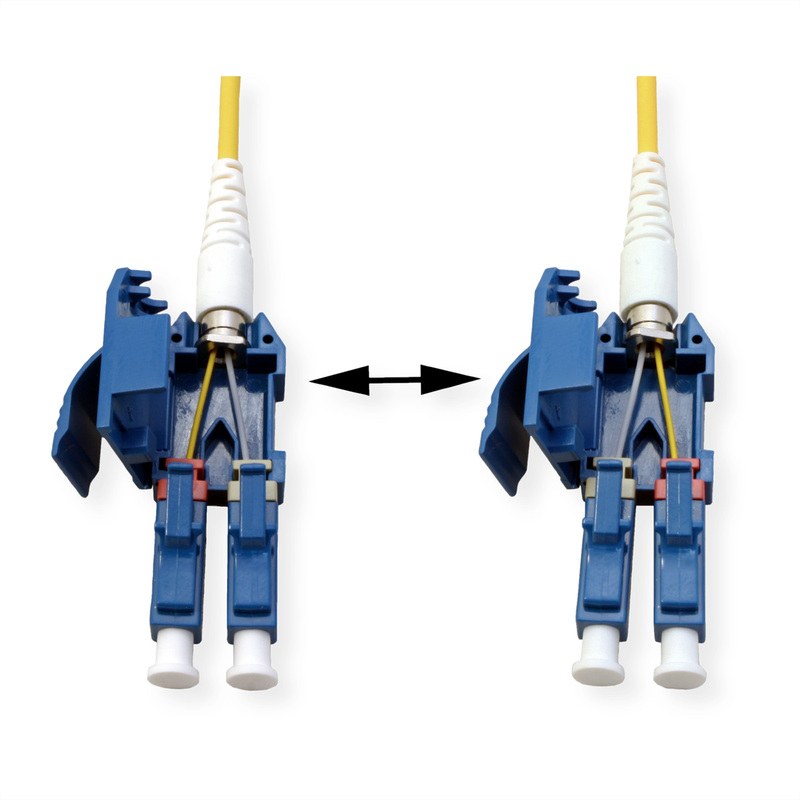

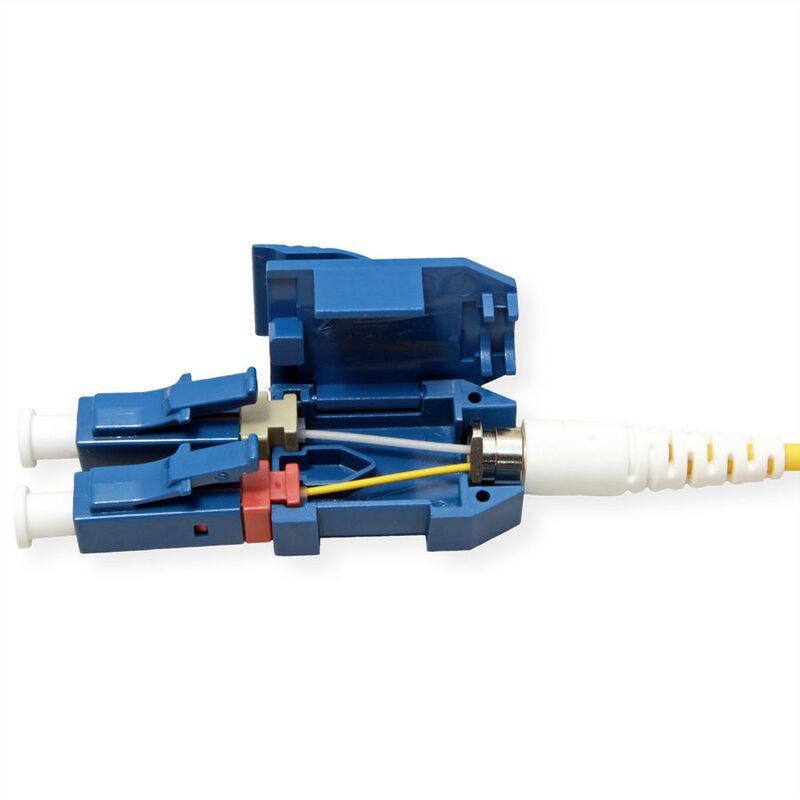

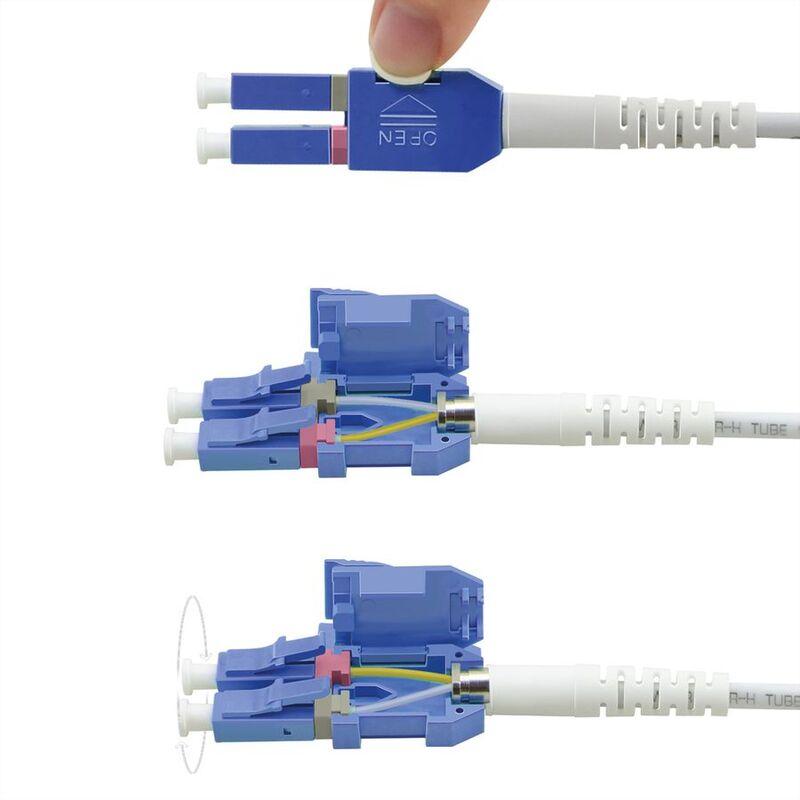

- Fiber polarity can be changed easily without special tools
- Assembled with high-quality connectors with ceramic ferrule
- Material and clothing in ROLINE quality
- Cable sheathing is made of halogen-free, low smoke and flame-retardant material
Technical specifications
| Product group | Fibre optic cable |
| Product type | Fibre Optic Jumper Cables OS2 |
| Colour | yellow |
| Length | 10 |
| Quantity of fibre | 2 |
| Cable type | Duplex Cable |
| External cable | no |
| Fibre section | Single mode 9/125µm OS2 |
| Connection ports | LC / LC |
| Side 1 Connector Type | LC |
| Side 2 Connector Type | LC |
| Bend radius | Static: 20 mm, Dynamic: 40 mm |
| Min. Bending radius, static | 20 |
| Min. Bending radius, dynamic | 40 |
| Colour (Cable) | yellow |
| Crossed | yes |
| External cable diameter | 2 mm |
| Cable LSOH | yes |
| Flame retardant according to IEC 60332-1-2 | yes |
| Low smoke according to IEC 61034-2 | yes |
| Halogen free according to IEC 60754-2 | yes |
| Max. insertion loss | 0.3 |
| Min. return loss | 50 |
| Weight | 63 |
| Height of packaging (single piece) | 20 |
| Width of packaging (single piece) | 150 |
| Depth of packaging (single piece) | 150 |
| Package weight (single piece) | 0.1 |
| Gross weight | 0.1 |
Parametre
Konektory
LC-LC
Typ kábla
Duplex
Typ vlákna
Singlemod OS2(9/125µm) žltý
Dĺžka kábla
10m
Prevedenie kábla
okrúhly kábel ø2mm
LSOH
Áno
Prevedenie konektora
UniBoot (zapuzdrené v spoločnom púzdre)
