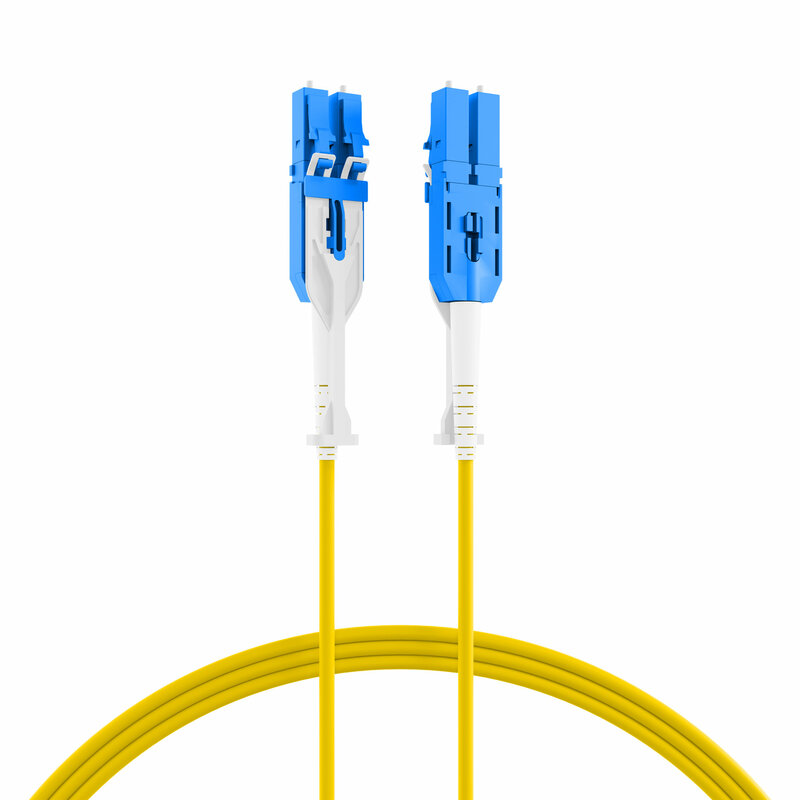

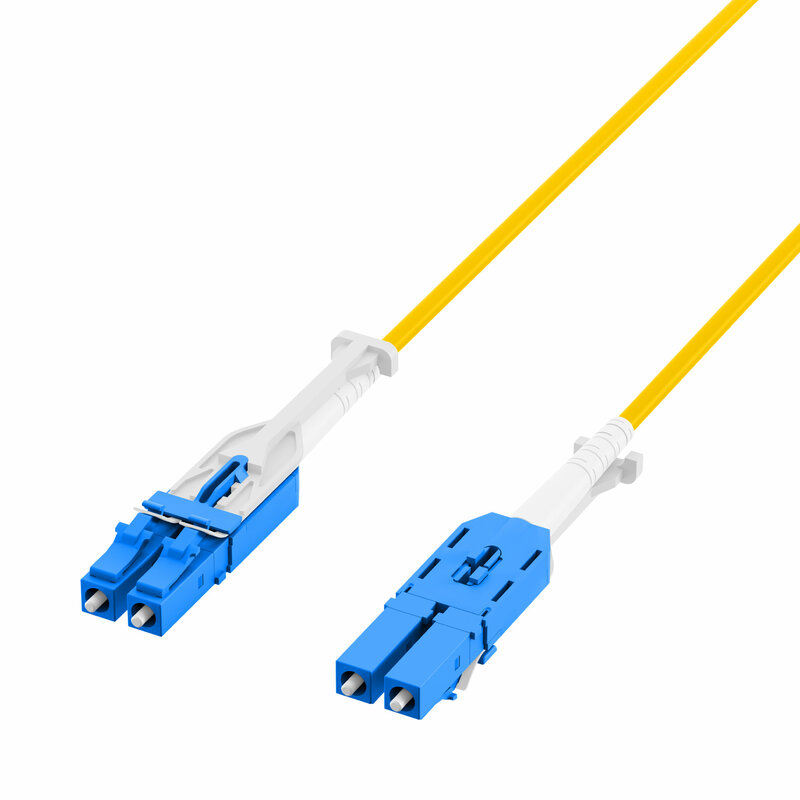

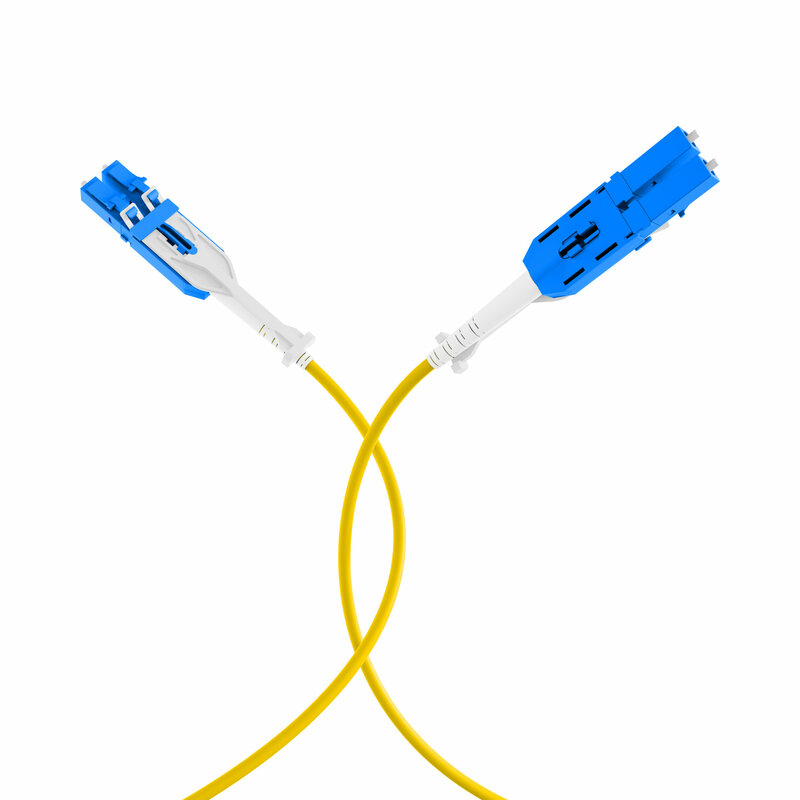

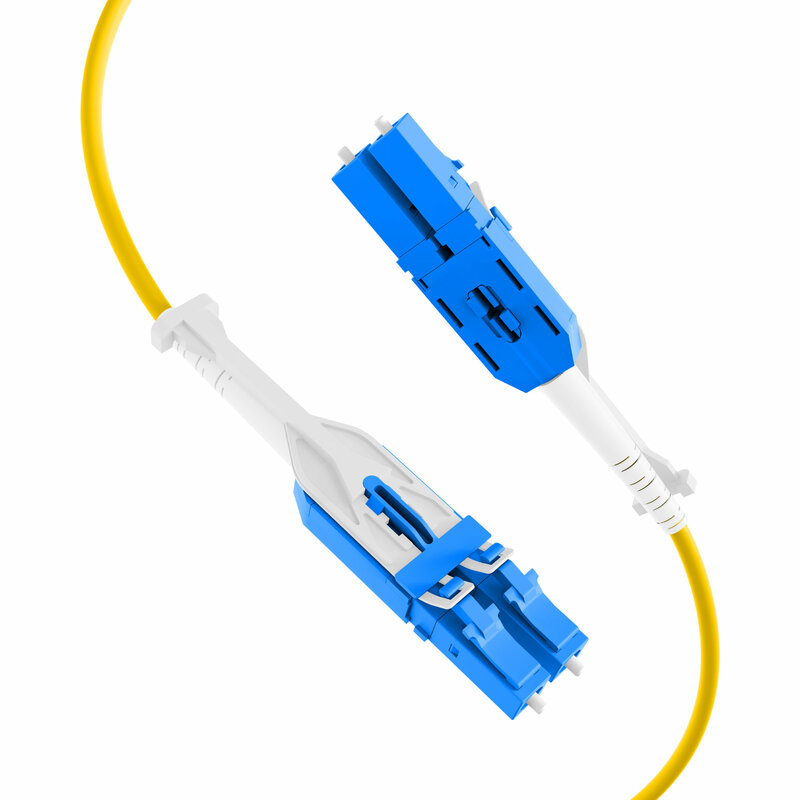

Fiber kábel LC-LC, 1m Duplex OS2(9/125µm), LSOH, uniboot Push/Pull, G657.A1, ohybný, 3mm, žltý
Fiber kábel LC-LC, 1m Duplex OS2(9/125µm), LSOH, uniboot Push/Pull, G657.A1, ohybný, 3mm, žltý
ROLINE LSOH fiber optic patch cable with single mode fibers in OS2 quality. Cable sheathing m..... celý popis
Konektory
LC-LC
Typ kábla
Duplex
Typ vlákna
Singlemod OS2(9/125µm) žltý
Dĺžka kábla
1m
Prevedenie kábla
okrúhly kábel ø3mm
ROLINE LSOH fiber optic patch cable with single mode fibers in OS2 quality.
- Cable sheathing made of halogen-free, low smoke and flame-retardant material
- Assembled with high-quality connectors with ceramic ferrule
- Core structure: Duplex cable I-VH
- High tensile strength due to aramid yarn strain relief
Technical specifications
| Product group | Fibre optic cable |
| Product type | Fibre Optic Jumper Cables OS2 |
| Colour | yellow |
| Length | 2 m |
| Quantity of fibre | 2 |
| Cable type | Duplex Cable |
| External cable | no |
| Fibre section | Single mode 9/125µm OS2 |
| Connection ports | LC / LC |
| Side 1 Connector Type | LC |
| Side 2 Connector Type | LC |
| Min. Bending radius, static | 30 mm |
| Min. Bending radius, dynamic | 60 mm |
| Colour (Cable) | yellow |
| Aramid strain relief | yes |
| Crossed | yes |
| Cable LSOH | yes |
| Flame retardant according to IEC 60332-1-2 | yes |
| Low smoke according to IEC 61034-2 | yes |
| Halogen free according to IEC 60754-2 | yes |
| Max. insertion loss | 0.3 dB |
| Min. return loss | 50 dB |
| Weight | 21.5 g |
| Height of packaging (single piece) | 10 mm |
| Width of packaging (single piece) | 220 mm |
| Depth of packaging (single piece) | 220 mm |
| Package weight (single piece) | 0.04 kg |
| Gross weight | 0.04 |
Parametre
Konektory
LC-LC
Typ kábla
Duplex
Typ vlákna
Singlemod OS2(9/125µm) žltý
Dĺžka kábla
1m
Prevedenie kábla
okrúhly kábel ø3mm
LSOH
Áno
Prevedenie konektora
UniBoot (zapuzdrené v spoločnom púzdre)
