• Fibre type: Multimode OM4, 50/125 µm

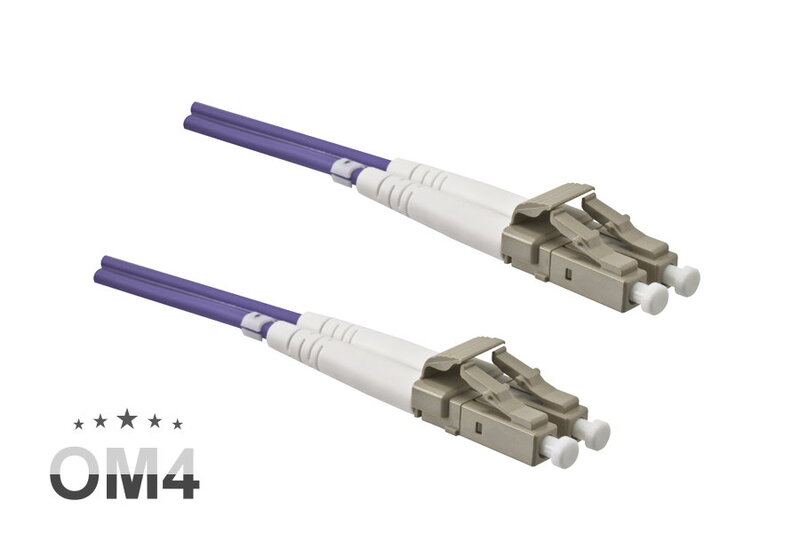

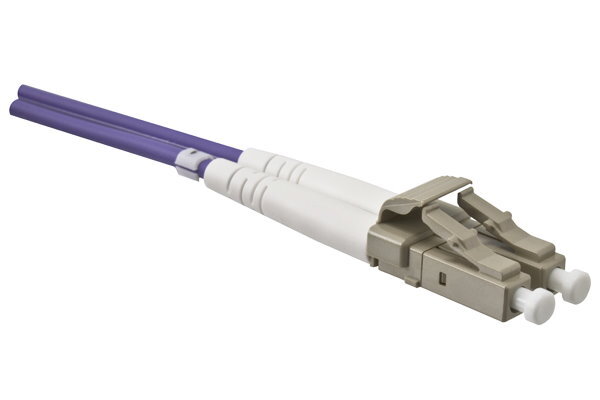

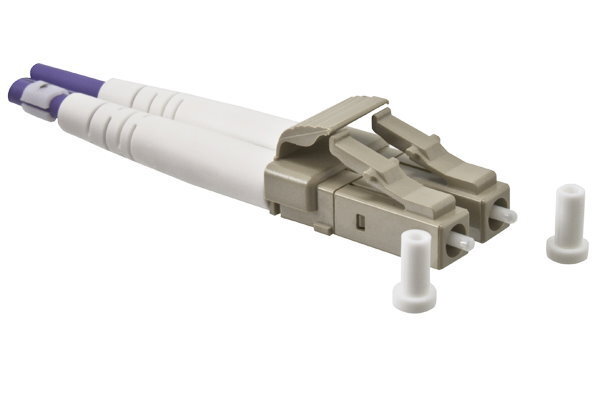

• Connector: LC duplex to LC duplex (pre-assembled on both sides)

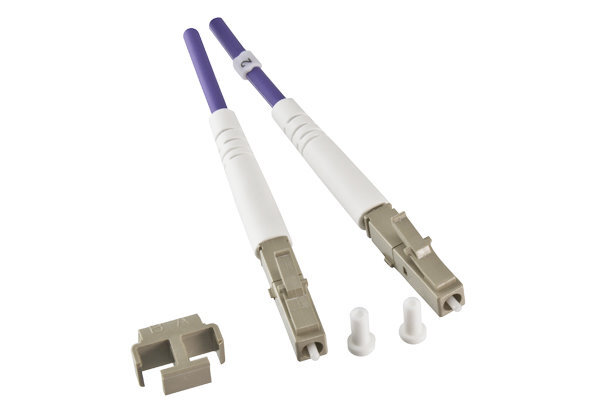

• Duplex design: 2 fibres for transmit/receive direction
• Outer jacket: LSZH (Low Smoke Zero Halogen) - halogen-free, flame-retardant, low-smoke
• Outer diameter (OD): approx. 3.0 mm - robust for patch and route applications
• Operating temperature: -20 °C to +70 °C
• Colour code: eric violet (RAL 4003) for clear OM4 identification
• Length: 50 m - for floor/row cabling and connections over longer distances

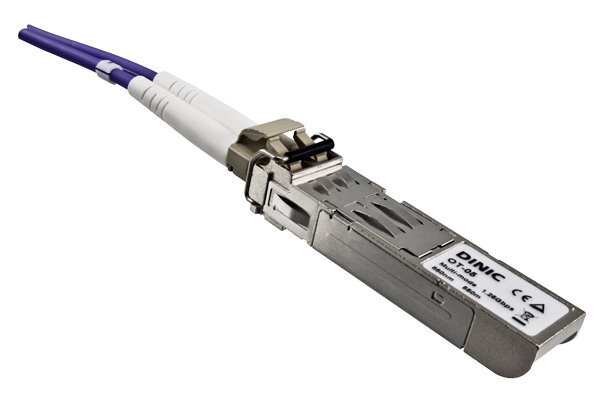

This OM4 fibre optic patch cable is designed for multimode fibre optic links in professional IT and telecommunications installations. The LC duplex connectors enable compact port assignment on switches, patch panels and transceivers and support typical duplex connections (Tx/Rx) without additional adapters.

The LSZH jacket reduces smoke emission and does not release halogens - an important advantage for installations in buildings, escape routes, technical centres and sealed rack environments. The ericaviolet colour code (RAL 4003) supports clear media and quality assignment within structured cabling (OM4).

Typical guide values for maximum transmission distances (depending on transceivers, attenuation budget and installation): 1 Gbit/s up to 1100 m, 10 Gbit/s up to 550 m, 40/100 Gbit/s up to 150 m.
