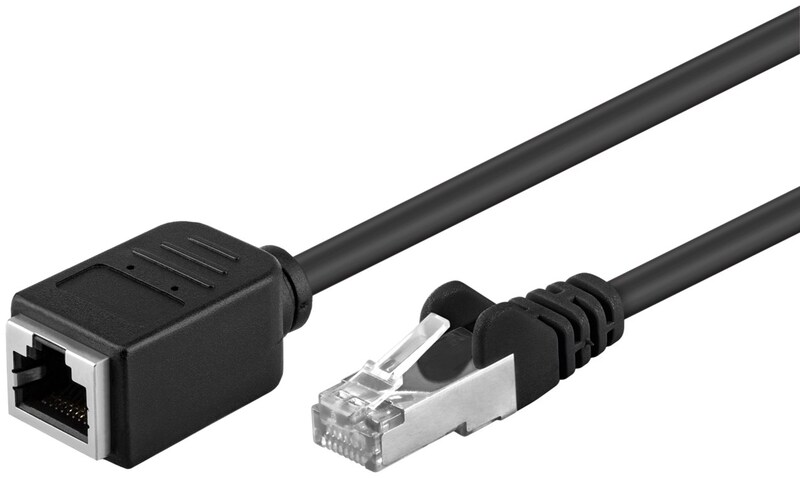

- predĺženie tieneného sieťového kábla na rozšírenie vašich sieťových komponentov
- vonkajší štít: tienenie fólie
- lisovaná zásuvka RJ45
- s pozlátenými PIN
- s indikáciou dĺžky na štíhlom odľahčení ťahu (iba zástrčka)
- zástrčka s ochranou západky
- pin out: 1:1, párová sekvencia podľa podľa EIA/TIA 568B
Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 5,9 mm |
| Trieda tienenia | F/UTP |
| Počet tienenia | 1 x |
| Kontaktovanie | EIA/TIA-568B |
| Označenia | WEEE, CE |
| Prevádzková teplota až | 60 °C |
| Prevádzková teplota od | -20 °C |
| max. šírku pásma | 100 MHz |
| Dĺžka kábla | 1 m |
| Ochrana proti zalomeniu | obe strany |
| Typ kábla | okrúhly kábel |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CU (meď) |
| Typ 1, tienenie | fólia (hliník) |
| Pripojenie, tienenie | Áno |
| Typ pripojenia | RJ45 samec (8P8C) |
| Pripojenie 2, typ | RJ45 samica (8P8C) |
| Ochrana západky | jednostranne |
| Farba | čierna |
| Farebné prevedenie | čierna |
| Jednotka spotreby | 1 ks. v polybagu |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
- Prewired, shielded LAN cable extension with RJ45 plugs for connecting network components
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides ideal signal distribution with minimal losses.
- Gold-plated contact surfaces and pure copper (CU) conductors prevent corrosion and ensure clear signal quality without interference
- Latch protection on the RJ45 connector prevents the latch from snagging or breaking off, helping to provide a reliable internet connection.
- Bend protection and a sturdy PVC jacket effectively protect the network cable from breakage.
- Length of the extension cable indicated on the overmoulded slimline strain relief.
- Network connector: pair sequence according to EIA/TIA 568B, pinout: 1:1
Technical specifications
| Connection 2, type | RJ45 female (8P8C) |
| Kink protection | both sides |
| Latch protection | unilaterally |
| Connection, shielding | yes |
| Connection, contact material | gold-plated 3µm |
| Cable type | round cable |
| Type 1, shielding | foil (aluminium) |
| Inner conductor material | CU (copper) |
| Material cable sheath | PVC |
| Connection, type | RJ45 male (8P8C) |
| Color version | black |
| Color | black |
| Special feature | Length indication on connector |
| Consumption Unit | 1 pc. bulk |
| Packaging type | Cable Tag |
| Contacting | EIA/TIA-568 B |
| Specification | CAT 5e |
| Shielding class | F/UTP |
| Number of shieldings | 1 x |
| AWG | 26/7 (stranded) |
| Cable sheath diameter (approx.) | 5.2 mm |
| bending radius > | 41.6 mm |
| max. bandwidth | 100 MHz |
| Cable length | 1 m |
| max. transmission rate | 1 Gbit/s |
| Markings | WEEE, CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Kategória
cat. 5e / class D 100MHz / 1000 BASE-T
Tienenie
F/UTP
Dĺžka
1m
Farba
čierna
Materiál vodiča
meď
Predlžovací
áno
Zapojenie
1:1 podľa EIA / TIA 568
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Uhlový konektor/konektory
nie
Slim / Plochý
Nie
Certifikovaný kábel
nie
Flexibilný
nie
Montáž na panel
nie
Ochrana západky konektora
áno
Typ vodiča
lanko
