| Dizajn | SC-Simplex |
| Typ montáže | skrutka/zacvakávacia západka |
| Prevádzková teplota | -40 – 75 °C |
| Šírka | 22,2 mm |
| Ochrana pred prachom z farby | Čierna |
| Dizajn bývania | S prírubou |
| Výška | 9,3 mm |
| Vnútorná uzávierka | Nie |
| Zodpovedá norme | IEC61754-4 |
| Skladovacia teplota | -40 – 85 °C |
| dĺžka | 27,5 mm |
| Rozsah dodávky | 1 spojka, 2 skrutky |
| kryt proti prachu | Áno |
| Typ konektora: Port 1 | SC |
| Typ konektora: Port 2 | SC |
| Balenie | Polybag |
| Typ uzamykania | Západkový mechanizmus |
| Materiál rukávov | Keramika |
| Materiál krytu | plast |
| Príslušenstvo | Skrutka do plechu |

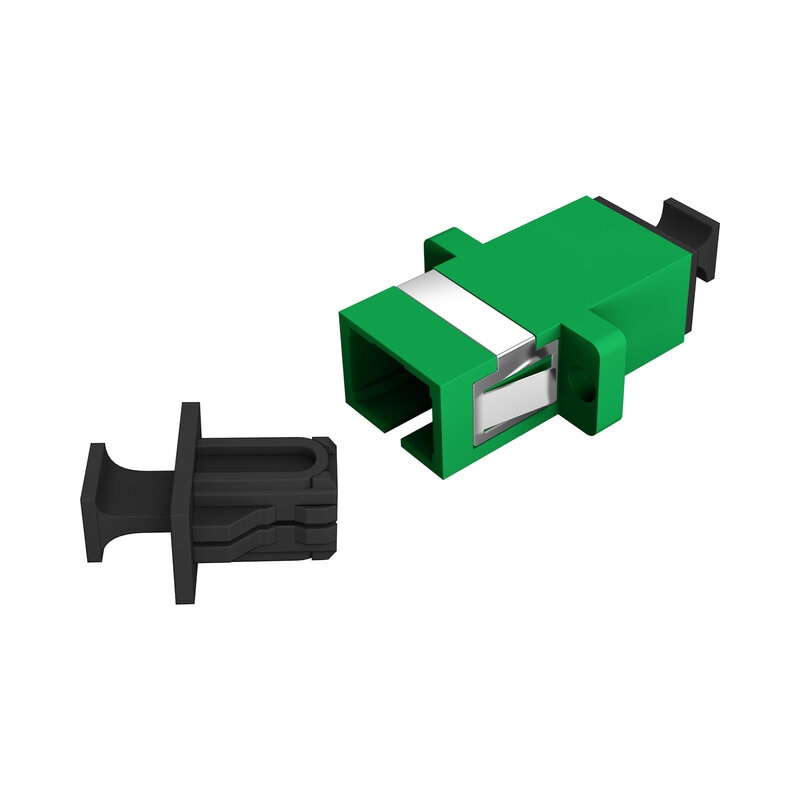

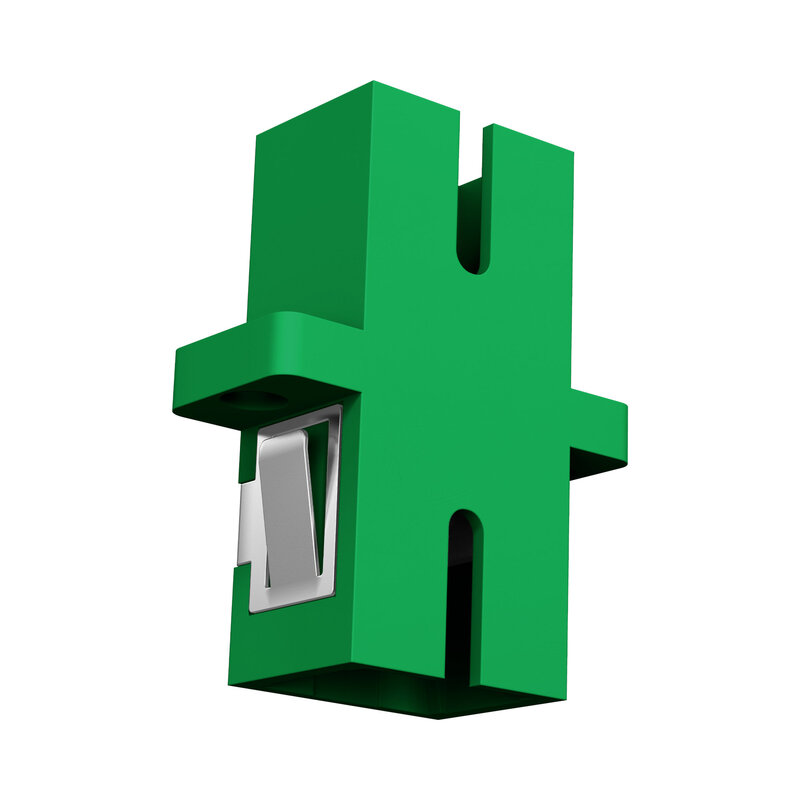

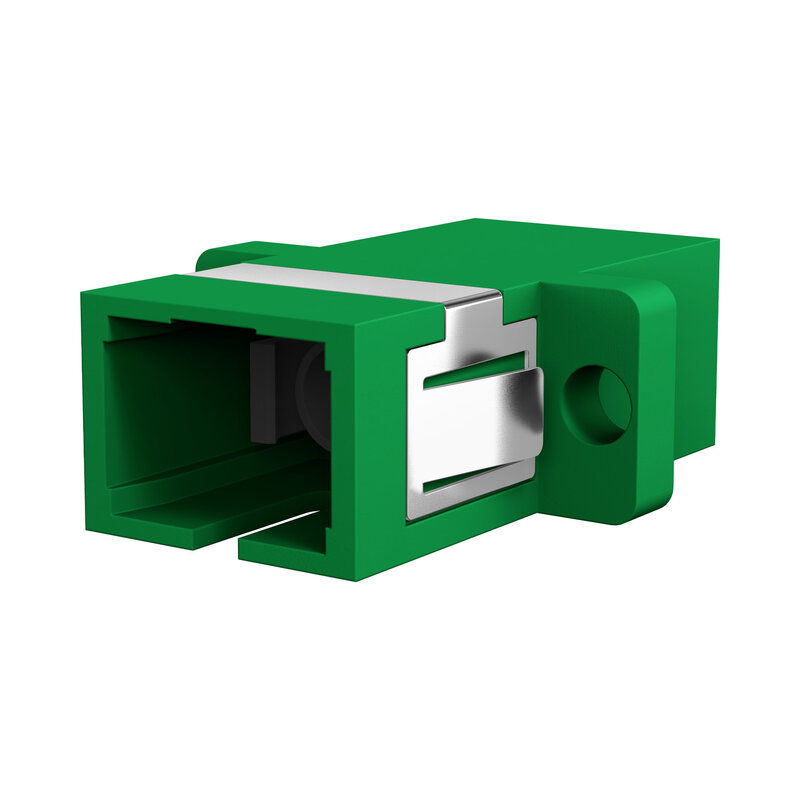

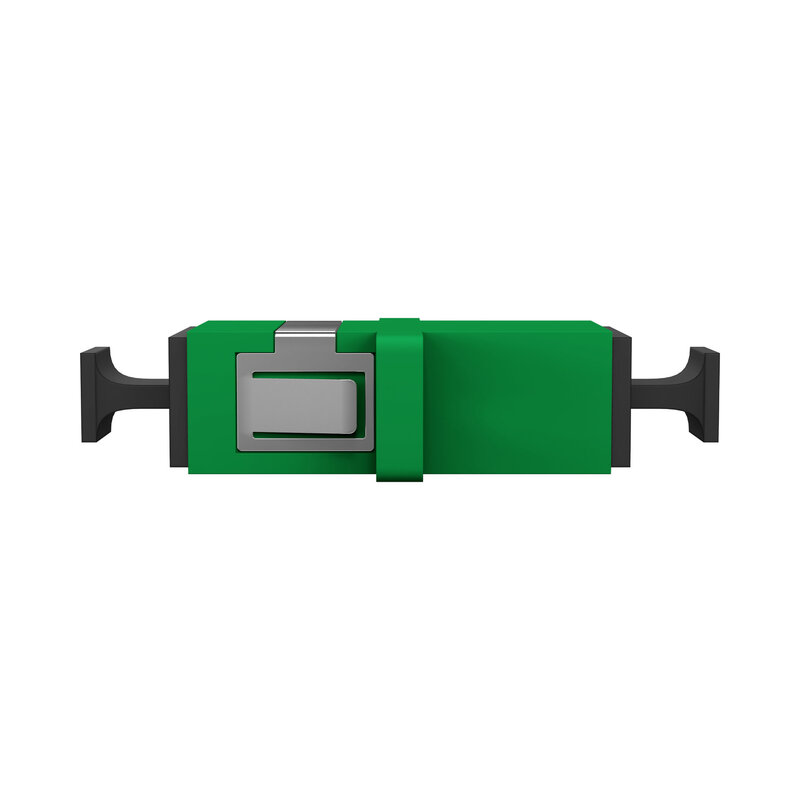

Ì SC/APC design with SC connectors on both sides Í Enables precise connection of compatible fibre links in single-mode installations.
Ì Designed for OS2 single-mode Í Supports low-attenuation, long-range transmission links.
Ì Plastic housing with flange, ceramic sleeve and dust cap Í Ensures a robust and practical design in the installation environment.
The coupling is designed for applications where a stable and precise plug connection is required. The SC simplex design supports simple signal routing. The locking mechanism and fastening by screw or snap-in enable secure integration into matching front panels and housings. The housing with flange and the dust cap increase practical suitability. The green version with black dust protection paint facilitates visual identification.
Technical details
Ì Connector Terminals: SC
Ì Design: SC/APC
Ì Design: SC-Simplex
Ì Category: OS2
Ì Suitable for fibre type: Single-mode
Ì Colour: green
Ì Sleeve material: ceramic
Ì Housing material: plastic
Ì Housing design: Flanged
Ì Locking type: Latching Lock
Ì Mounting type: Screw, Snap-in
Ì Colour dust cover: black
Ì Dust cap: Yes
Ì Scope of delivery: 1 coupling, 2 screws
Ì Accessories: Self-tapping screw
| Bauform | SC-Simplex |
| Befestigungsart | Schraube/einrasten |
| Betriebstemperatur | -40 – 75 °C |
| Breite | 22,2 mm |
| Farbe Staubschutz | Schwarz |
| Gehäuse Ausführung | Mit Flansch |
| Höhe | 9,3 mm |
| Interner Shutter | Nein |
| Konform zu Standard | IEC61754-4 |
| Lagertemperatur | -40 – 85 °C |
| Länge | 27,5 mm |
| Lieferumfang | 1 Kupplung, 2 Schrauben |
| Material der Hülse | Keramik |
| Material des Gehäuses | Kunststoff |
| Staubschutzkappe | Ja |
| Steckverbindertyp Anschluss 1 | SC |
| Steckverbindertyp Anschluss 2 | SC |
| Verpackung | Polybag |
| Verriegelungsart | Rastverriegelung |
| Werkstoff der Hülse | Keramik |
| Werkstoff des Gehäuses | Kunststoff |
| Zubehör | Blechschraube |
