Adaptér ST/SC Duplex s hybridným adaptérom z plastového puzdra| Dizajn | SC-Duplex |
| Typ montáže | skrutka/zacvakávacia západka |
| Prevádzková teplota | -40 – 75 °C |
| Šírka | 34,8 mm |
| Ochrana pred prachom z farby | Modrá/Čierna |
| Dizajn bývania | S prírubou |
| Výška | 9,4 mm |
| Vnútorná uzávierka | Nie |
| Zodpovedá norme | IEC61754-2 / IEC61754-4 |
| Skladovacia teplota | -40 – 85 °C |
| dĺžka | 28,7 mm |
| Rozsah dodávky | 1 spojka, 2 skrutky |
| Prachový kryt | Áno |
| Typ konektora: Port 1 | ST-Duplex |
| Typ konektora: Port 2 | SC-Duplex |
| Balenie | Polybag |
| Typ uzamykania | Západkový mechanizmus |
| Materiál rukávov | Keramika |
| Materiál krytu | plast |
| Príslušenstvo | Skrutka do plechu |
AKCIOVÁ CENA PLATÍ LEN DO VYPREDANIA ZÁSOB!!

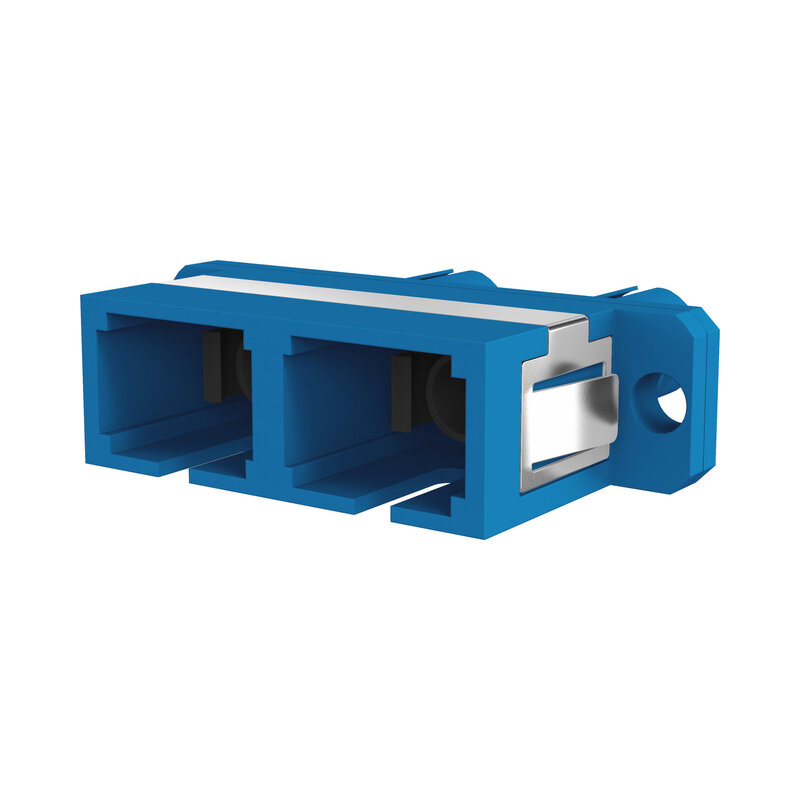

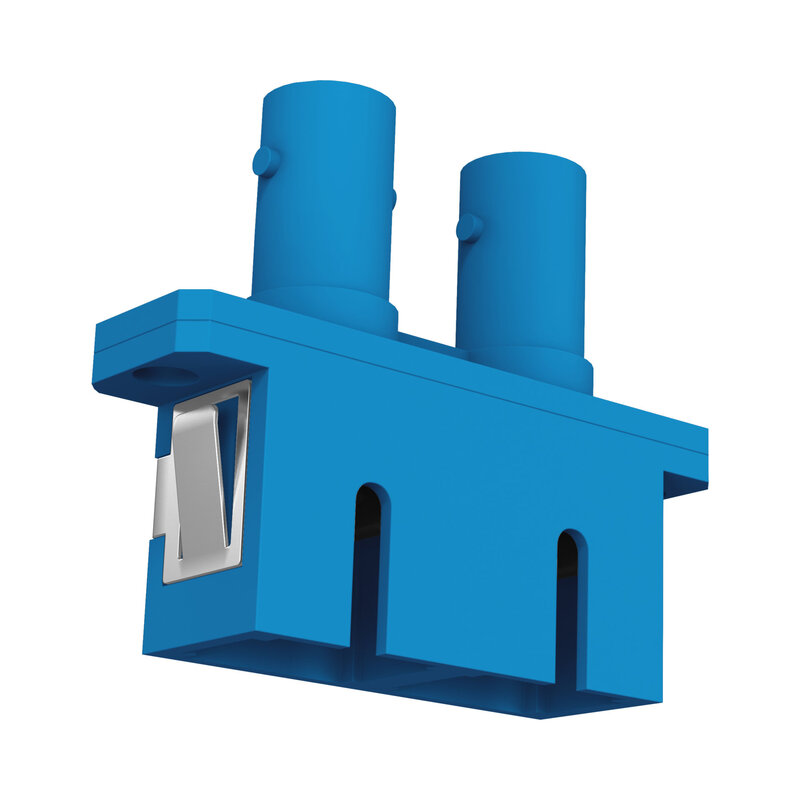

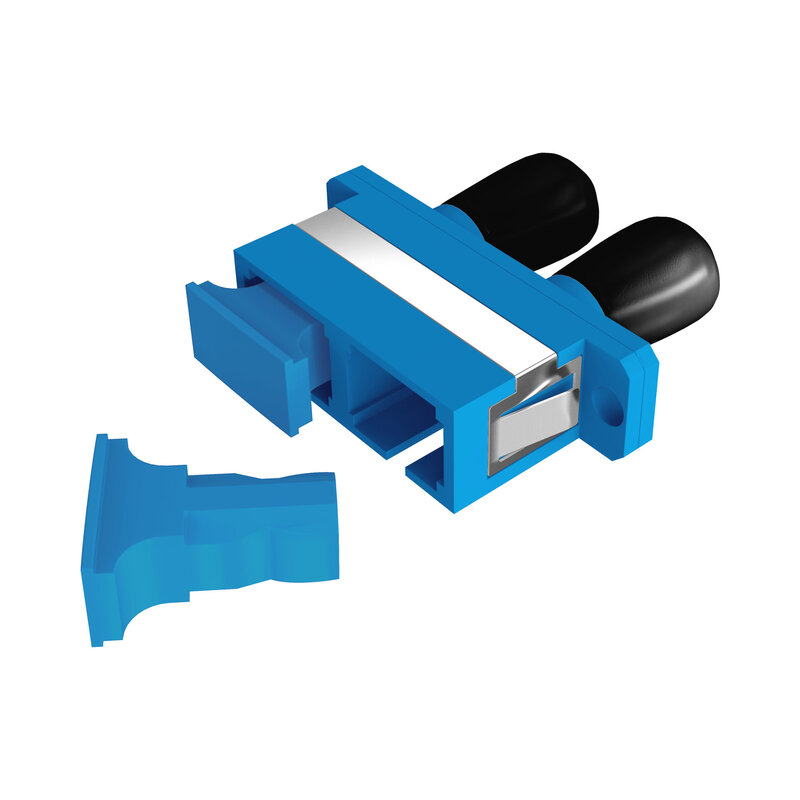

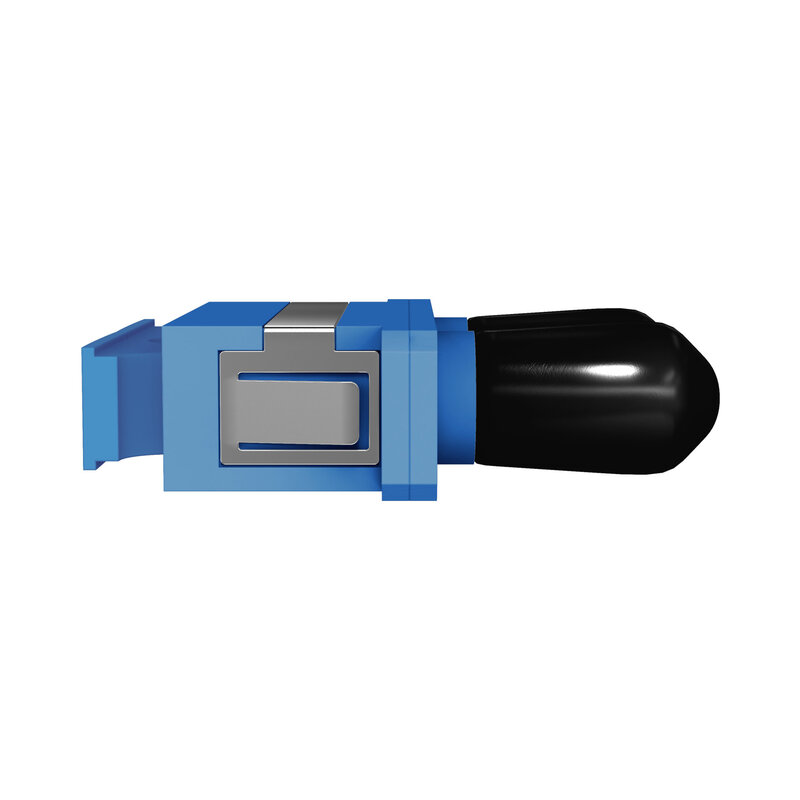

The precisely manufactured fibre optic coupling from EFB-Elektronik combines ST duplex with SC duplex connectors and is designed for single-mode applications in the OS2 category. The plastic housing with ceramic sleeve and flange is designed for reliable use in network, telecommunications and FTTH installations.Ì ST duplex on one side and SC duplex on the other Í Enables the secure coupling of compatible fibre links in single-mode installations.
Ì Designed for OS2 single-mode Í Supports low-attenuation transmissions with long-range connectivity.
Ì Plastic housing with flange, ceramic sleeve and dust cap in blue/black Í Ensures a robust, practical design and facilitates visual assignment in the installation environment.
The SC-ST version combines two different connector types and thus creates a precisely defined interface for stable fibre optic connections. The LC? No. The duplex design supports double signal routing. The latch lock and the fastening by screw or snap-in facilitate integration into matching front panels and housings. The housing with flange and the dust cap increase the practicality in the installation environment. The blue version supports the visual identification of the coupling.
Technical details
Ì Connector type Connector 1: ST-Duplex
Ì Connector type Connector 2: SC Duplex
Ì Design: SC-ST
Ì Design: SC duplex
Ì Category: OS2
Ì Suitable for fibre type: Single-mode
Ì Colour: blue
Ì Colour dust cover: blue / black
Ì Sleeve material: ceramic
Ì Housing material: plastic
Ì Housing design: Flanged
Ì Locking type: Latching Lock
Ì Mounting type: Screw, Snap-in
Ì Dust cap: Yes
Ì Scope of delivery: 1 coupling, 2 screws
Ì Accessories: Self-tapping screw
| Bauform | SC-Duplex |
| Befestigungsart | Schraube/einrasten |
| Betriebstemperatur | -40 – 75 °C |
| Breite | 34,8 mm |
| Farbe Staubschutz | Blau/ Schwarz |
| Gehäuse Ausführung | Mit Flansch |
| Höhe | 9,4 mm |
| Interner Shutter | Nein |
| Konform zu Standard | IEC61754-2, IEC61754-4 |
| Lagertemperatur | -40 – 85 °C |
| Länge | 28,7 mm |
| Lieferumfang | 1 Kupplung, 2 Schrauben |
| Material der Hülse | Keramik |
| Material des Gehäuses | Kunststoff |
| Staubschutzkappe | Ja |
| Steckverbindertyp Anschluss 1 | ST-Duplex |
| Steckverbindertyp Anschluss 2 | SC-Duplex |
| Verpackung | Polybag |
| Verriegelungsart | Rastverriegelung |
| Werkstoff der Hülse | Keramik |
| Werkstoff des Gehäuses | Kunststoff |
| Zubehör | Blechschraube |
