- neukončený dátový/inštalačný kábel na spracovanie a inštaláciu s technológiou pripojenia LSA pre domáce / vnútorné použitie
- tienený krútený kábel LAN
- vonkajší štít: tienenie fólie
- Ideálne pre SOHO aplikácie (malá kancelária, domáca kancelária) do max. prenosová dĺžka 40 m!
Technické špecifikácie
| AWG | 24/1 (pevné) |
| Typ kábla | okrúhly kábel |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 5,7 mm |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CCA (hliník potiahnutý meďou) |
| Trieda tienenia | F/UTP |
| Počet tienenia | 1 x |
| Typ 1, tienenie | fólia (hliník) |
| Označenia | ECA_CPR, CE, SOHO |
| Farba | sivá |
| Jednotka spotreby | 1 ks. box |
| Impedancia | 100 O |
| max. šírku pásma | 100 MHz |
| Farebné prevedenie | sivá |
| Požiarna trieda (CPR) | Eca |
| Dĺžka kábla | 305 m |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
- Shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
- Unterminated patch cable for assembly and installation with IDC connection technology
- Flexible data and installation cable for indoor assembly with a maximum transmission length of 40 m

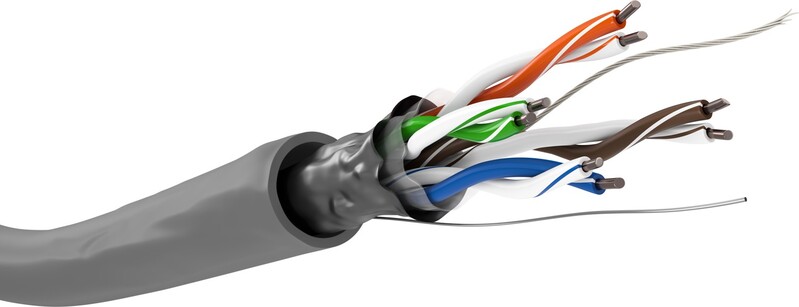

- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides an ideal signal distribution with minimal losses.
- High-quality copper-clad aluminium wire (CCA) and shielding guarantee an excellent and powerful network connection.
- Sturdy PVC cable sheathing protects the Ethernet cable from breakage.
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
| Cable type | round cable |
| Material cable sheath | PVC |
| Meter scaling | yes |
| Inner conductor material | CCA (copper-clad aluminium) |
| Type 1, shielding | foil (aluminium) |
| Fire class (CPR) | Eca |
| Color | grey |
| Color version | grey |
| Consumption Unit | 1 pc. in box |
| Packaging type | Pull-out-Box |
| Specification | CAT 5e |
| Cable length | 305 m |
| Diameter of insulated conductor | 0.9 mm (+/-0.05) |
| AWG | 24/1 (solid) |
| Number of shieldings | 1 x |
| max. bandwidth | 100 MHz |
| usable up to cable length | 40 m |
| Cable sheath diameter (approx.) | 5.7 mm |
| Shielding class | F/UTP |
| max. transmission rate | 1 Gbit/s |
| Impedance | 100 O |
| Markings | ECA_CPR, CE, SOHO |
Dĺžka
305m
Kategória
cat. 5e / class D / 100MHz
Typ
drôt
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Farba
sivá
Tienenie
F/UTP
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Dvojitý (Duplex)
nie
Hrúbka vodiča (AWG)
AWG24
