- neukončený flexibilný dátový/patch kábel pre vnútorné použitie
- tienený krútený kábel LAN
- vonkajší štít: tienenie fólie
- Ideálne pre SOHO aplikácie (malá kancelária, domáca kancelária) do max. prenosová dĺžka 60 m!
Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Typ kábla | okrúhly kábel |
| Špecifikácia | CAT 5e |
| Priemer plášťa kábla (približne) | 5,6 mm |
| Materiál plášťa kábla | PVC |
| Materiál vnútorného vodiča | CU (meď) |
| Trieda tienenia | F/UTP |
| Počet tienenia | 1 x |
| Typ 1, tienenie | fólia (hliník) |
| Označenia | ECA_CPR, CE |
| Farba | sivá |
| Jednotka spotreby | 1 ks. káblový navijak |
| max. šírku pásma | 100 MHz |
| Požiarna trieda (CPR) | Eca |
| Dĺžka kábla | 100 m |
Our patch cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!

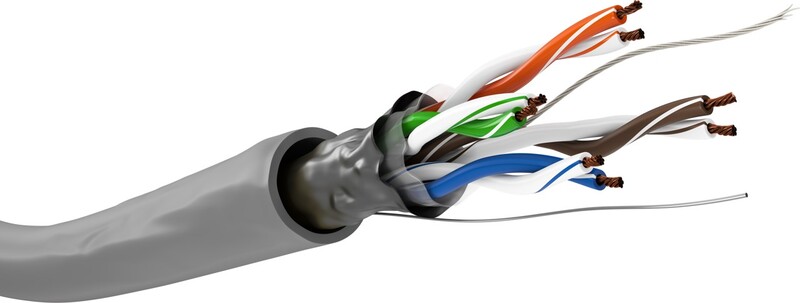

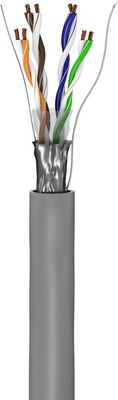

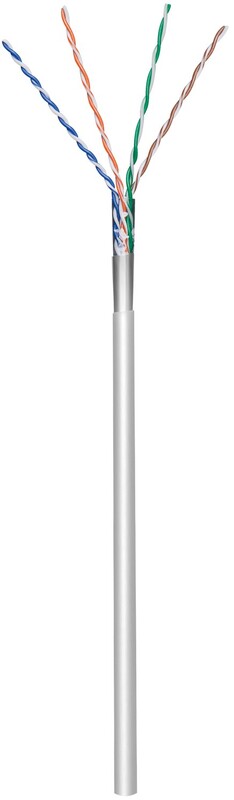

- Shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
- Unterminated patch cable for assembly and installation with IDC connection technology
- Flexible cable for indoor assembly with a maximum transmission length of 60 m
- Foil screen (F/UTP) prevents interference from external sources (crosstalk) and provides an ideal signal distribution with minimal losses
- High-quality copper conductor (CU) and shielding guarantee an excellent and powerful network connection.
- Sturdy PVC cable sheathing protects the Ethernet cable from breakage.
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
| Cable type | round cable |
| Material cable sheath | PVC |
| Meter scaling | yes |
| Inner conductor material | CU (copper) |
| Type 1, shielding | foil (aluminium) |
| Fire class (CPR) | Eca |
| Color | grey |
| Color version | grey |

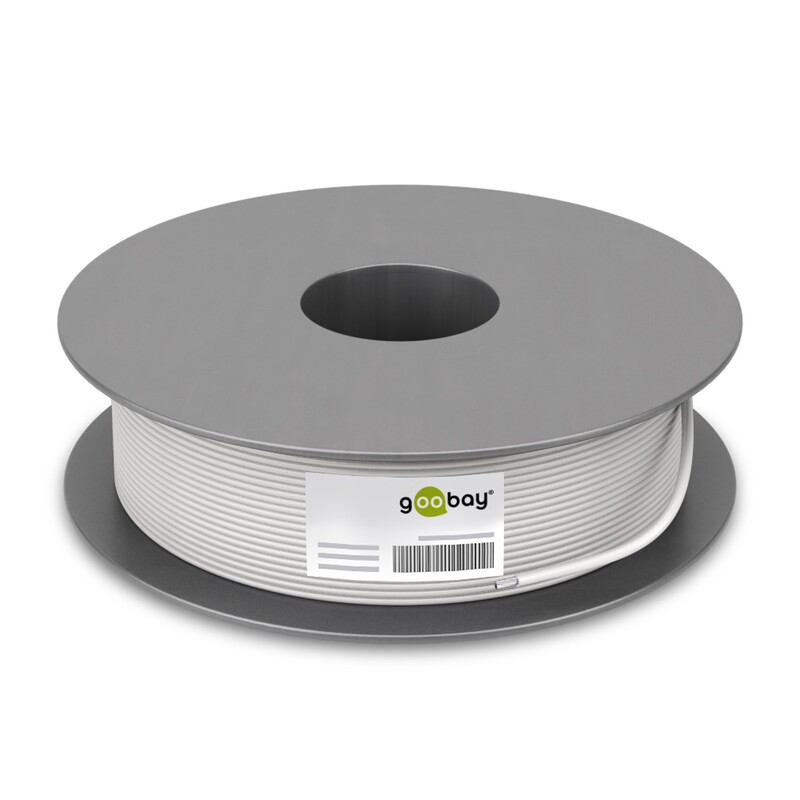

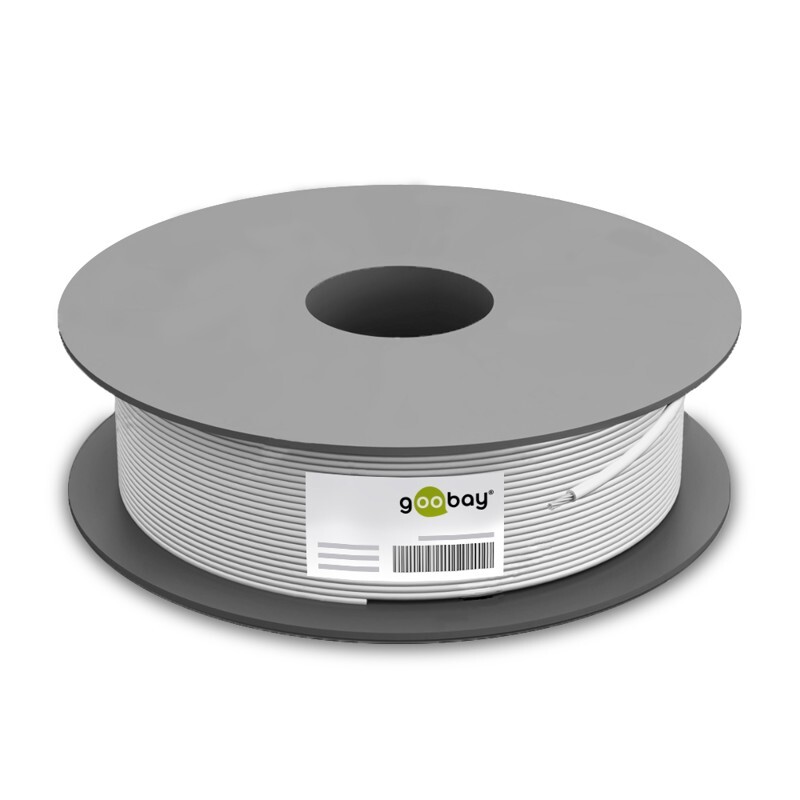

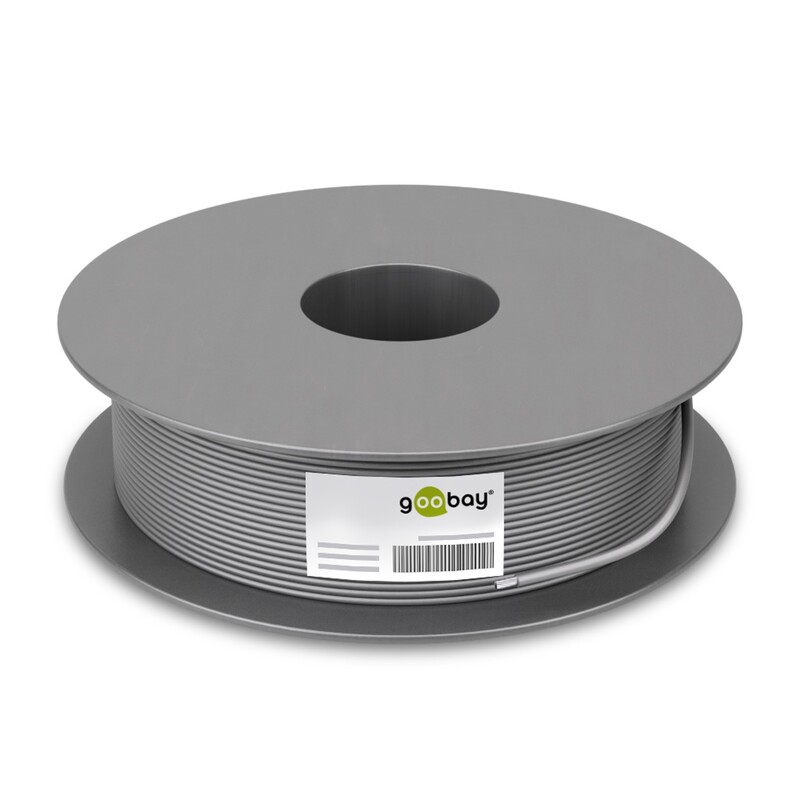

| Consumption Unit | 1 pc. cable reel |
| Packaging type | Cable spool-drum |
| Specification | CAT 5e |
| Cable length | 100 m |
| Diameter of insulated conductor | 0.9 mm (+/-0.05) |
| Inner Conductor number | 7 |
| inner conductor, core diameter | 0.15 mm |
| AWG | 26/7 (stranded) |
| Number of shieldings | 1 x |
| max. bandwidth | 100 MHz |
| usable up to cable length | 60 m |
| Cable sheath diameter (approx.) | 5.6 mm |
| Shielding class | F/UTP |
| max. transmission rate | 1 Gbit/s |
| Impedance | 100 O |
| Markings | ECA_CPR, CE |
Dĺžka
100m
Kategória
cat. 5e / class D / 100MHz
Typ
lanko
Materiál vodiča
Cu
Farba
sivá
Tienenie
F/UTP
LSOH/LSZH bezhalogénový
nie
Vhodný do exteriéru
nie
Dvojitý (Duplex)
nie
Hrúbka vodiča (AWG)
AWG26
