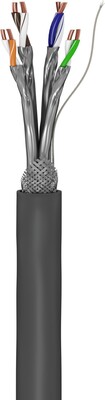

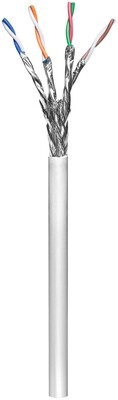

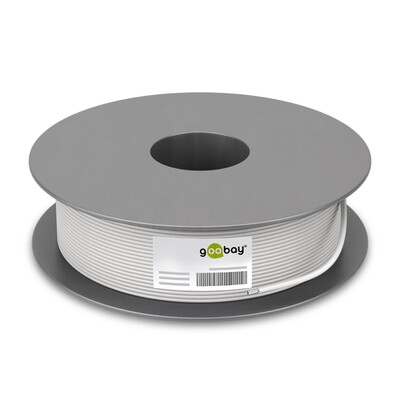

S/FTP (PiMF) drôt LSOH 100m cat.6, CPR Eca, AWG23, 250Mhz, 1000Base-T, sivý, meď
S/FTP (PiMF) drôt LSOH 100m cat.6, CPR Eca, AWG23, 250Mhz, 1000Base-T, sivý, meď
neukončený dátový/inštalačný kábel na spracovanie a inštaláciu s technológiou pripojenia LSA pre vnúto..... celý popis
- neukončený dátový/inštalačný kábel na spracovanie a inštaláciu s technológiou pripojenia LSA pre vnútorné použitie
- dvojitý tienený krútený kábel LAN
- párové tienenie: PIMF (páry v kovovej fólii) + vonkajší štít: opletenie
- Ideálne pre SOHO aplikácie (malá kancelária, domáca kancelária) do max. prenosová dĺžka 60 m!
Technické špecifikácie
| AWG | 23/1 (pevné) |
| Typ kábla | okrúhly kábel |
| Špecifikácia | CAT 6 |
| Priemer plášťa kábla (približne) | 6,3 mm |
| Materiál plášťa kábla | ĽSZH |
| Materiál vnútorného vodiča | CU (meď) |
| Vyhovuje LSZH | Áno |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Typ 1, tienenie | fólia (alu) PiMF |
| Typ 2, tienenie | vrkoč (alu) celkový štít |
| Označenia | ECA_CPR, CE |
| Farba | sivá |
| Impedancia | 100 O |
| max. šírku pásma | 250 MHz |
| Farebné prevedenie | sivá |
| Dĺžka kábla | 100 m |
| Merač mierka | |
| Jednotka spotreby | 1 ks. káblový navijak |
| Požiarna trieda (CPR) | Eca |
Our CAT cables transmit signals in top quality at high speed, always guaranteeing a stable connection. High-quality inner conductors, robust cable sheathing and precisely fitting plugs distinguish our portfolio of connection cables and plugs. Our solutions are especially suitable for high-resolution image transmission in 8K @ 60 Hz and 4K @ 120 Hz. Goobay always provides the perfect products for your network needs - whether you aim to set up a home or company network. Simply. All. You need!
- Double-shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)
- Unterminated patch cable for assembly and installation with IDC connection technology
- Flexible, unterminated data and installation cable for indoor use with a maximum transmission length of 40 m

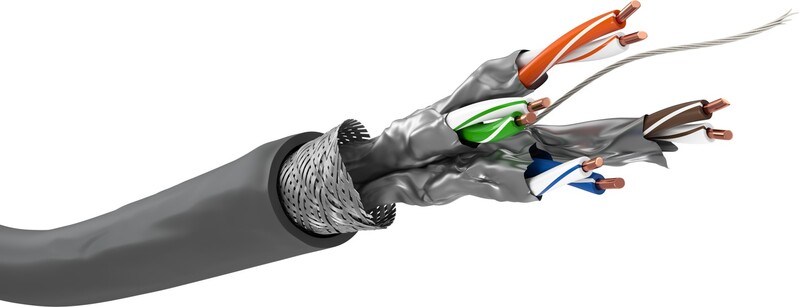

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- High-quality copper conductor (CU) guarantees an excellent, powerful network connection.
- In the event of a fire, the halogen-free jacket of the Ethernet cable prevents the outgassing of hazardous substances and minimises smoke development
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
| AWG | 23/1 (solid) |
| Specification | CAT 6 |
| Cable sheath diameter (approx.) | 6.3 mm |
| Diameter of insulated conductor | 1 mm (+/-0.05) |
| Shielding class | S/FTP (PiMF) |
| Number of shieldings | 2 x |
| Markings | ECA_CPR, CE |
| Impedance | 100 O |
| max. bandwidth | 250 MHz |
| usable up to cable length | 60 m |
| Cable type | round cable |
| Material cable sheath | LSZH |
| Inner conductor material | CU (copper) |
| LSZH compliant | yes |
| Meter scaling | yes |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Color | grey |
| Color version | grey |

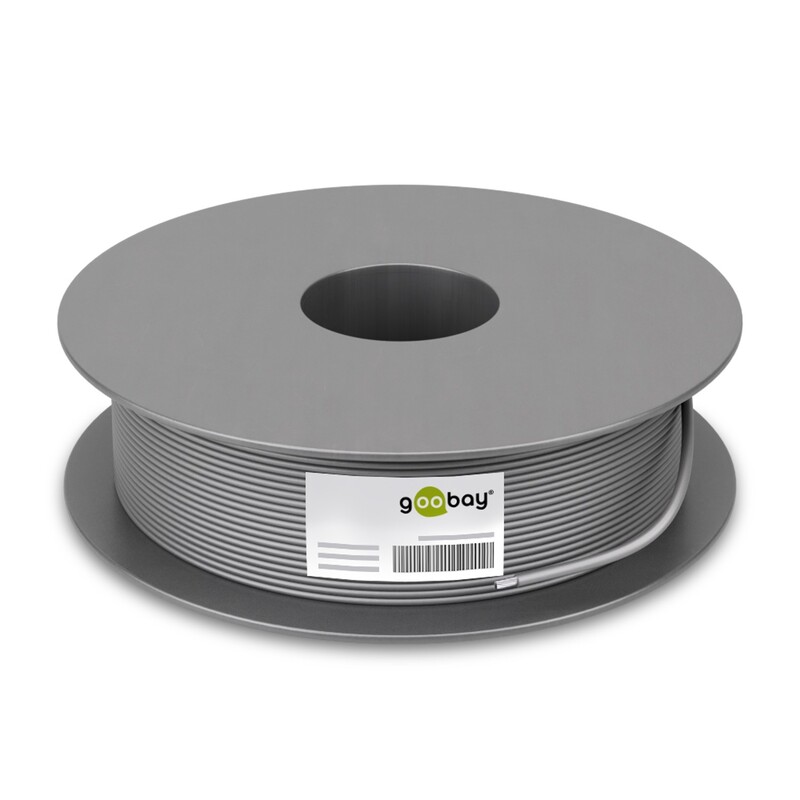

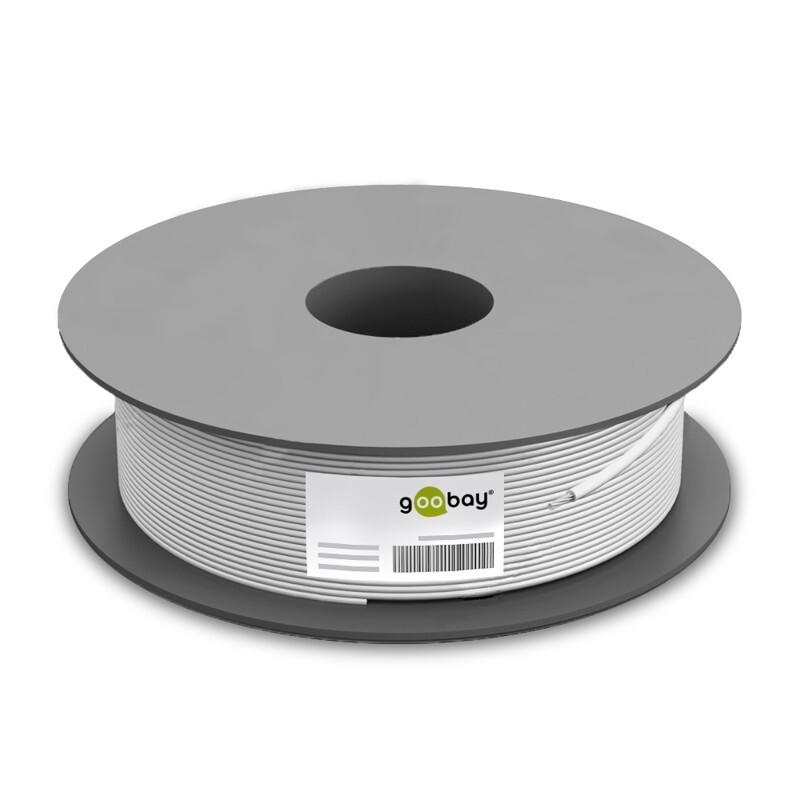

| Consumption Unit | 1 pc. cable reel |
| Fire class (CPR) | Eca |
| Cable length | 100 m |
Parametre
Dĺžka
100m
Kategória
cat. 6 / class E / 250MHz
Typ
drôt
Materiál vodiča
Cu
Farba
sivá
Tienenie
S/FTP (PiMF)
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Dvojitý (Duplex)
nie
Hrúbka vodiča (AWG)
AWG23
