- neukončený flexibilný dátový / prepojovací kábel pre domáce / vnútorné použitie
- dvojitý tienený krútený kábel LAN
- párové tienenie: PIMF (páry v kovovej fólii) + vonkajší štít: opletenie
- Tento výrobok nie je schválený na trvalú inštaláciu v budovách.
- Ideálne pre SOHO aplikácie (malá kancelária, domáca kancelária) do max. prenosová dĺžka 20 m!
Technické špecifikácie
| AWG | 26/7 (uviaznutý) |
| Špecifikácia | CAT 6 |
| Priemer plášťa kábla (približne) | 6,3 mm |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Označenia | ECA_CPR, CE, SOHO |
| Impedancia | 100 O |
| max. šírku pásma | 250 MHz |
| Typ kábla | |
| Materiál plášťa kábla | |
| Materiál vnútorného vodiča | |
| Vyhovuje LSZH | |
| Typ 1, tienenie | |
| Typ 2, tienenie | |
| Farba | |
| Požiarna trieda (CPR) | Eca |
| Dĺžka kábla | 305 m |
| Jednotka spotreby | 1 ks. v kartónovej krabici |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.
- Unterminated, double-shielded LAN cable for the small office and working from home (SOHO and WFH applications)

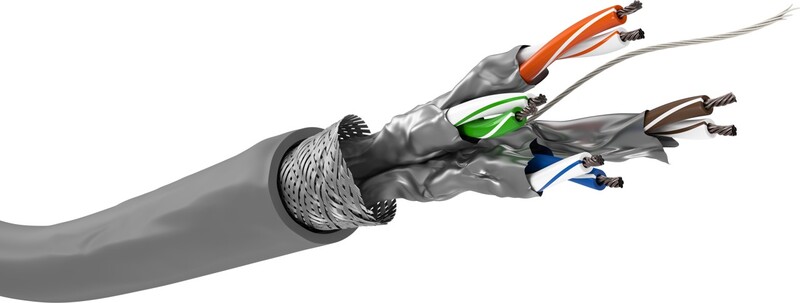

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- Flexible, unterminated twisted pair data cable for indoor use with a maximum transmission length of 20 m
- High-quality copper-clad aluminium wire (CCA) and double shielding guarantee an excellent, powerful network connection.
- In the event of a fire, the halogen-free jacket of the Ethernet cable prevents the outgassing of hazardous substances and minimises smoke development
- Complies with the Construction Products Regulation (CPR) and Eca fire protection class
Technical specifications
| Cable type | round cable |
| Material cable sheath | LSZH |
| Meter scaling | yes |
| Inner conductor material | CCA (copper-clad aluminium) |
| LSZH compliant | yes |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Fire class (CPR) | Eca |
| Color | grey |
| Color version | grey |
| Consumption Unit | 1 pc. in box |

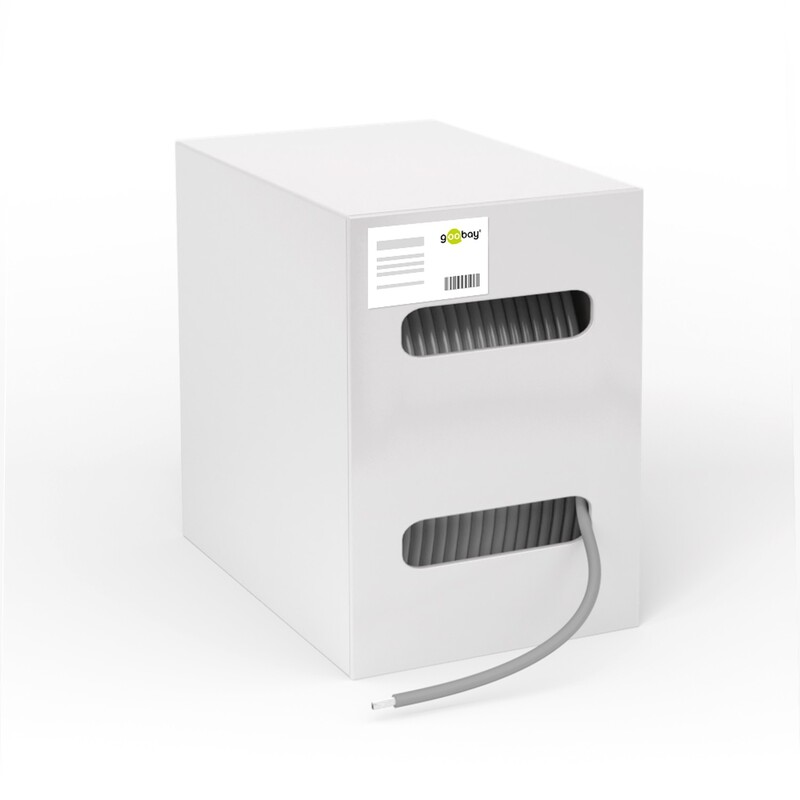

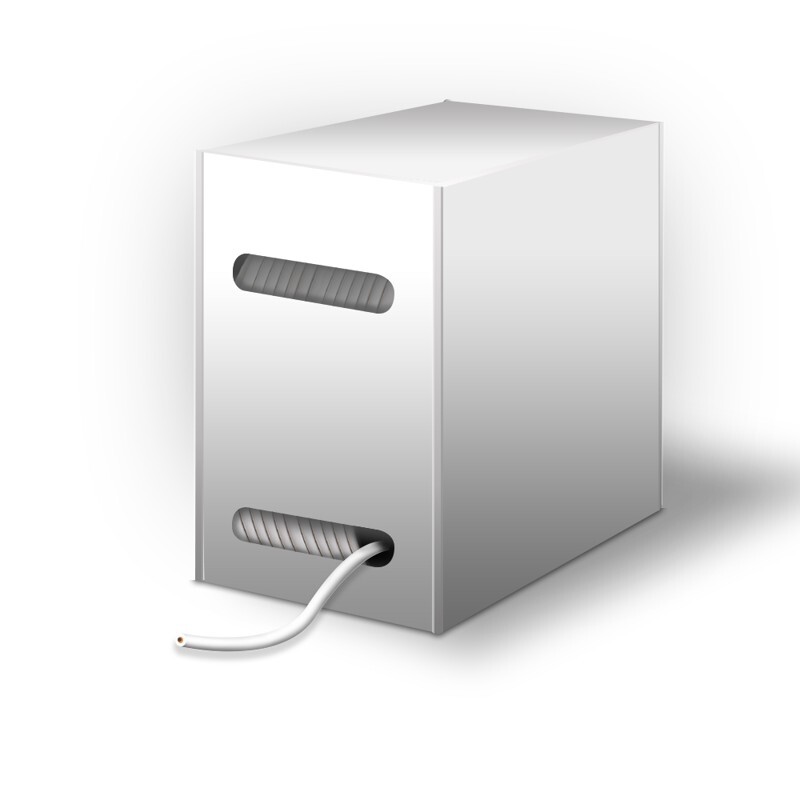

| Packaging type | Pull-out-Box |
| Specification | CAT 6 |
| Cable length | 305 m |
| Diameter of insulated conductor | 1.05 mm (+/-0.05) |
| AWG | 26/7 (stranded) |
| Number of shieldings | 2 x |
| max. bandwidth | 250 MHz |
| usable up to cable length | 20 m |
| Cable sheath diameter (approx.) | 6.3 mm |
| Shielding class | S/FTP (PiMF) |
| max. transmission rate | 10 Gbit/s |
| Impedance | 100 O |
| Markings | ECA_CPR, CE, SOHO |
Dĺžka
305m
Kategória
cat. 6 / class E / 250MHz
Typ
lanko
Materiál vodiča
CCA (Copper Clad Aluminum) - pomedený hliník
Farba
sivá
Tienenie
S/FTP (PiMF)
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Dvojitý (Duplex)
nie
Hrúbka vodiča (AWG)
AWG27
