- neukončený flexibilný dátový/prepojovací kábel pre vnútorné použitie
- dvojitý tienený krútený pár LAN kábel

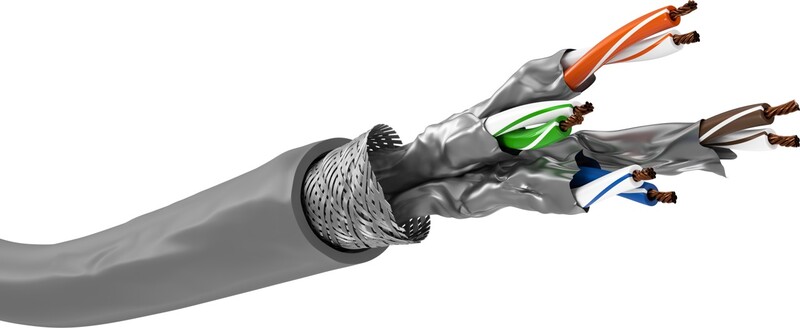

- tienenie párov: PIMF (páry v kovovej fólii ) + vonkajší štít: opletenie
- Tento produkt nie je schválený na trvalú inštaláciu v budovách.
Technické špecifikácie
| AWG< /strong> | 26/7 (uviaznuté) |
| Špecifikácia | CAT 6a |
| Priemer plášťa kábla (približne) | 6,3 mm |
| Trieda tienenia | S/FTP (PiMF) |
| Počet tienenia | 2 x |
| Značky | CE |
| Prevádzková teplota do | 60 °C< /td> |
| Prevádzková teplota od | -20 °C |
| Impedancia | 100 O |
| max. šírka pásma | 500 MHz |
| Typ kábla | okrúhly kábel |
| Materiálový plášť kábla | LSZH |
| Materiálový vnútorného vodiča | CU (meď) |
| Vyhovuje LSZH | áno |
| Meter škálovanie | áno |
| Typ 1, tieniac | fólia (alu) PiMF |
| Typ 2, tienenie | opletenie (alu) celkový štít |
| Farba | sivá |
| Farebné prevedenie | sivá |
| Dĺžka kábla | 305 m |
| Jednotka spotreby | 1 ks. káblový navijak |
With the Goobay CAT cable, you can connect PCs, laptops, routers, switches, smart TVs, games consoles, NAS systems and many other devices quickly and reliably. The practical, reliable solution for home networks, working from home and professional work environments. Goobay patch cables are available in a wide range of categories, shielding options and lengths – for full flexibility in your network.

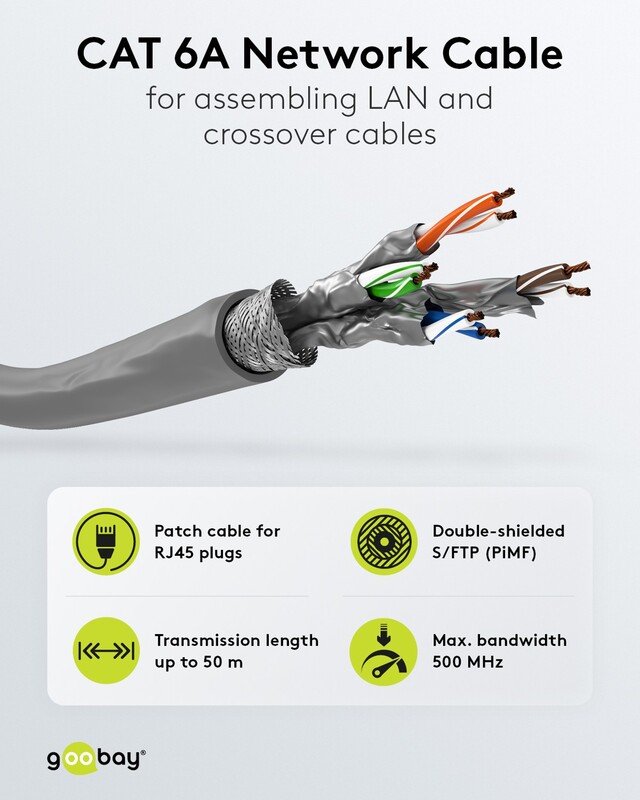

- Double shielded twisted-pair LAN cable for the small office and working from home (SOHO and WFH applications)

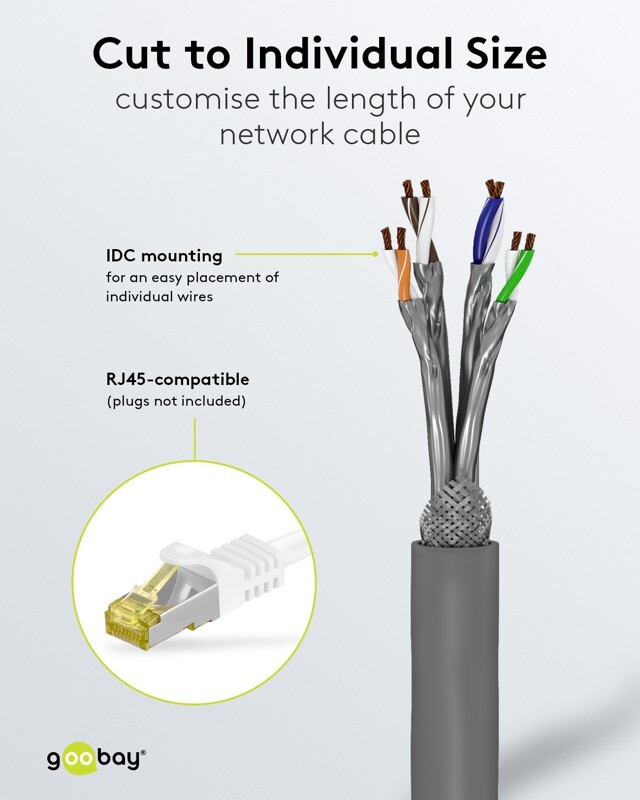

- Unterminated patch cable for assembly and installation with IDC connection technology
- Flexible cable for indoor assembly with a maximum transmission length of 50 m

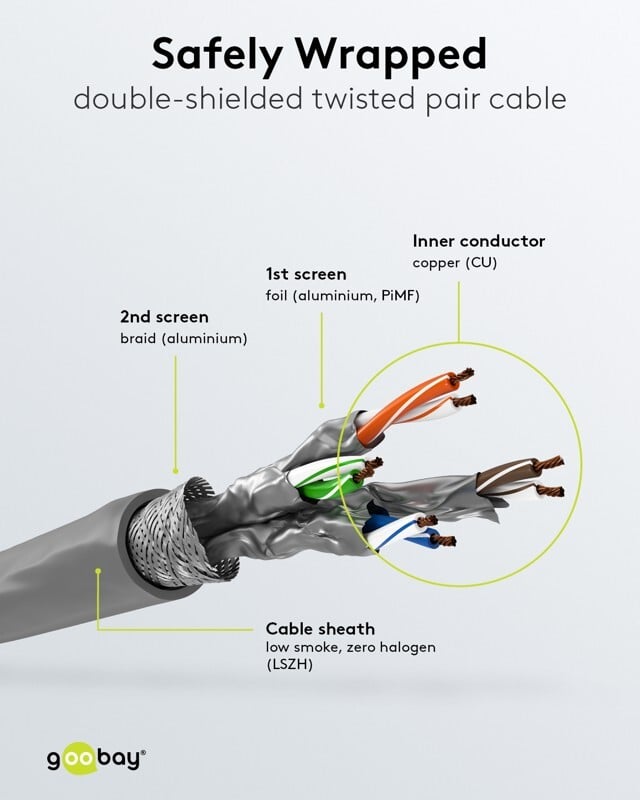

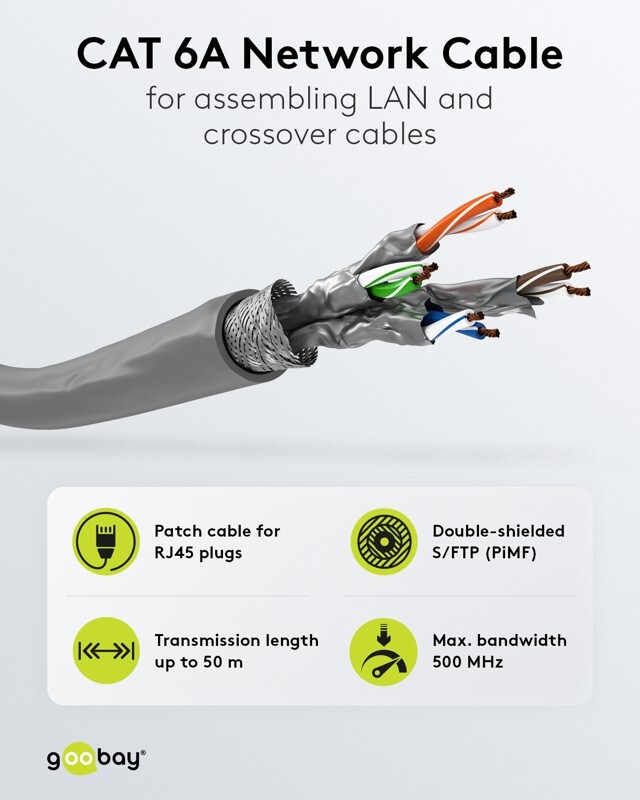

- S/FTP overall shield: aluminium foil shield for individual wire pairs (PiMF) and aluminium braid shield for the cable sheath
- Complies with the Construction Products Regulation (CPR) and Fca fire protection class
- In the event of a fire, the halogen-free jacket of the Ethernet cable prevents the outgassing of hazardous substances and minimises smoke development
- The internet cable is not approved for permanent installation in buildings.
Technical specifications
| Cable type | round cable |
| Material cable sheath | LSZH |
| Meter scaling | yes |
| Inner conductor material | CU (copper) |
| LSZH compliant | yes |
| Type 1, shielding | foil (alu) PiMF |
| Type 2, shielding | braid (alu) overall shield |
| Fire class (CPR) | Fca |
| Color | grey |
| Color version | grey |
| Consumption Unit | 1 pc. cable reel |

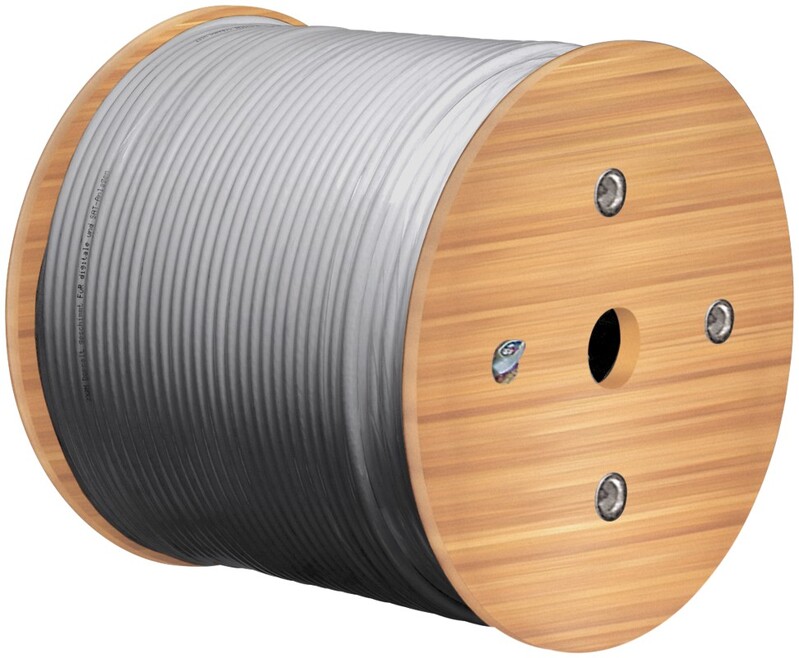

| Packaging type | wooden drum |
| Specification | CAT 6A |
| Cable length | 305 m |
| Diameter of insulated conductor | 1.03 mm (+/-0.05) |
| AWG | 26/7 (stranded) |
| Number of shieldings | 2 x |
| max. bandwidth | 500 MHz |
| usable up to cable length | 50 m |
| Cable sheath diameter (approx.) | 5.9 mm |
| Shielding class | S/FTP (PiMF) |
| max. transmission rate | 10 Gbit/s |
| Impedance | 100 O |
| Markings | CE |
| Operating temperature from | -20 °C |
| Operating temperature up to | 60 °C |
Dĺžka
305m
Kategória
cat. 6a / class E / 500MHz
Typ
lanko
Materiál vodiča
Cu
Farba
sivá
Tienenie
S/FTP (PiMF)
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Dvojitý (Duplex)
nie
Hrúbka vodiča (AWG)
AWG26
