spotreba s adaptérovými rámami Keystone
| Dizajn | SC-Simplex |
| Typ montáže | zacvakne sa na miesto |
| Prevádzková teplota | -40 – 75 °C |
| Šírka | 14,7 mm |
| Ochrana pred prachom z farby | Biela |
| Dizajn bývania | Bez príruby |
| Výška | 9,3 mm |
| Vnútorná uzávierka | Nie |
| Zodpovedá norme | IEC61754-4 |
| Skladovacia teplota | -40 – 85 °C |
| dĺžka | 27,5 mm |
| kryt proti prachu | Áno |
| Typ konektora: Port 1 | SC |
| Typ konektora: Port 2 | SC |
| Balenie | Polybag |
| Typ uzamykania | Západkový mechanizmus |
| Materiál rukávov | Keramika |
| Materiál krytu | plast |
Ì SC/APC connectors on both sides Í Enable precise connection of compatible fibre links in single-mode installations.
Ì Designed for OS2 single-mode Í Supports low-attenuation applications with range-oriented transmission technology.

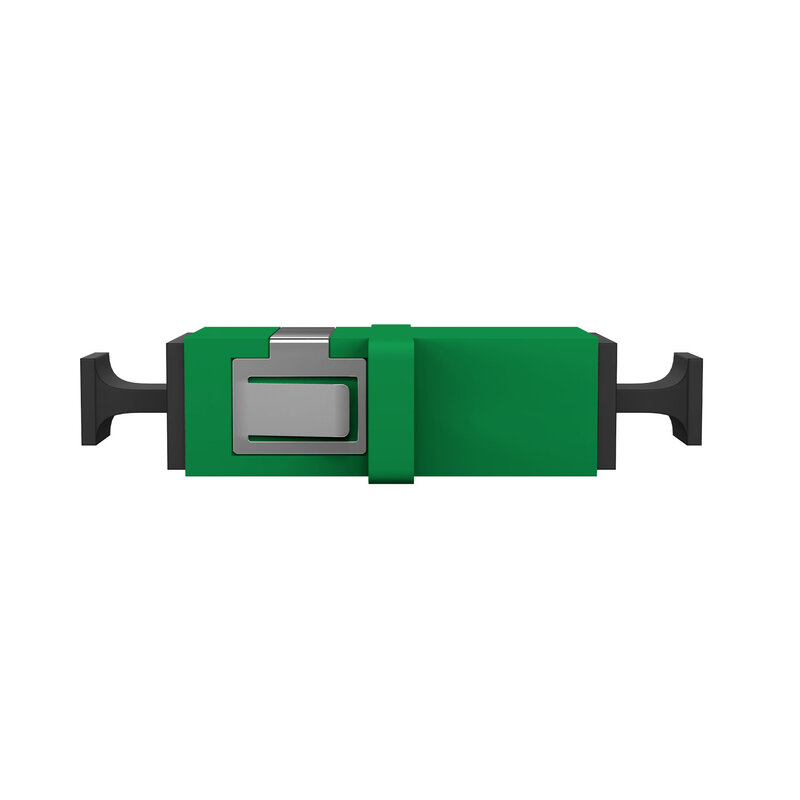

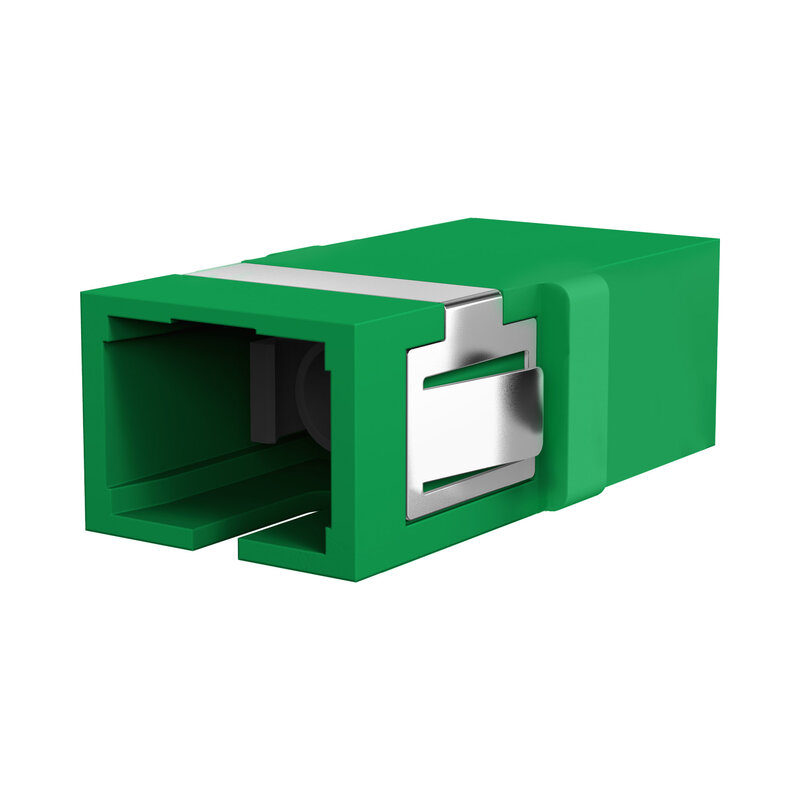

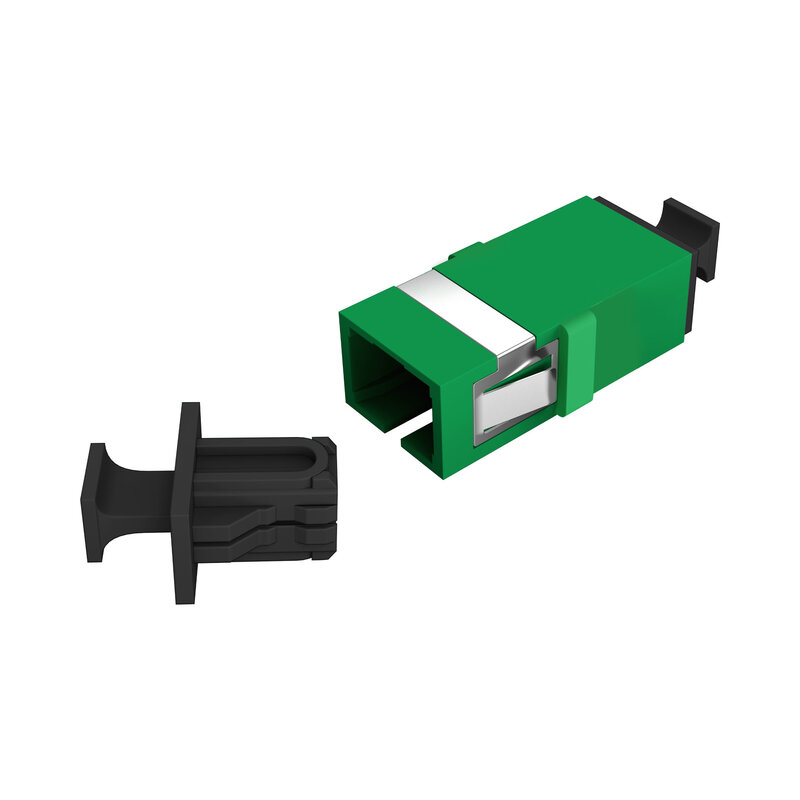

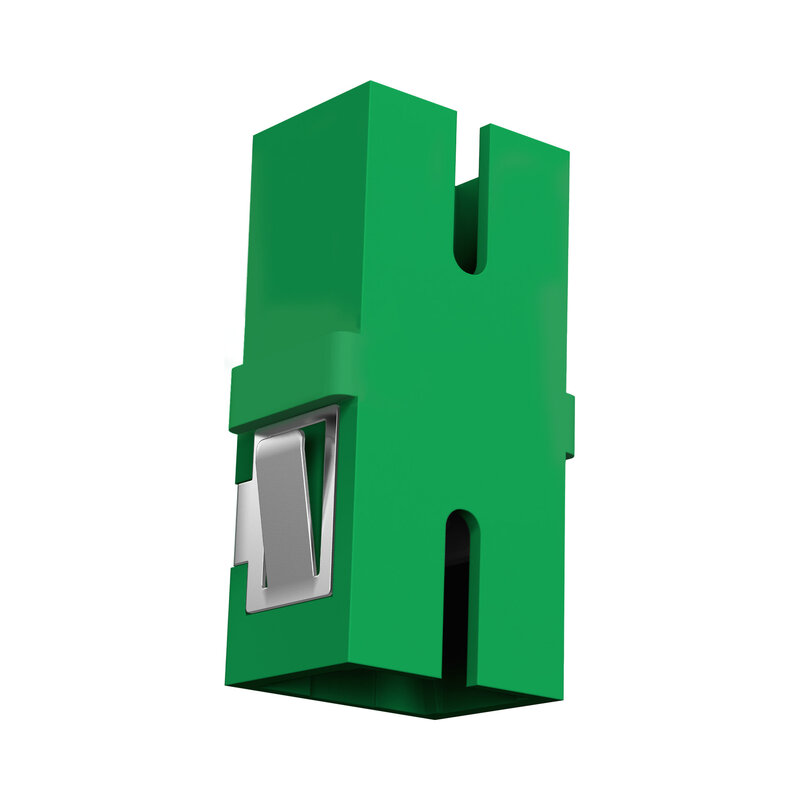

Ì Plastic housing in green with ceramic sleeve and dust cap Í Ensures a robust and practical design in the installation environment.
The coupling is designed for applications where a stable and precise plug-in connection is required. The SC simplex design supports simple signal routing. The latch lock and snap-in fastening enable secure integration into matching front panels and housings. The flangeless housing increases practicality in the installation environment. The green version and the white dust cap facilitate visual identification.
Technical details
Ì Connector Connector 1: SC
Ì Connector Connector 2: SC
Ì Design: SC/APC
Ì Design: SC-Simplex
Ì Category: OS2
Ì Suitable for fibre type: Single-mode
Ì Housing design: flangeless
Ì Mounting type: Snap-in
Ì Locking type: Latching Lock
Ì Colour: green
Ì Colour dust cover: white
Ì Sleeve material: ceramic
Ì Housing material: plastic
Ì Dust cap: Yes
| Bauform | SC-Simplex |
| Befestigungsart | einrasten |
| Betriebstemperatur | -40 – 75 °C |
| Breite | 14,7 mm |
| Farbe Staubschutz | Weiss |
| Gehäuse Ausführung | Flanschlos |
| Höhe | 9,3 mm |
| Interner Shutter | Nein |
| Konform zu Standard | IEC61754-4 |
| Lagertemperatur | -40 – 85 °C |
| Länge | 27,5 mm |
| Material der Hülse | Keramik |
| Material des Gehäuses | Kunststoff |
| Staubschutzkappe | Ja |
| Steckverbindertyp Anschluss 1 | SC |
| Steckverbindertyp Anschluss 2 | SC |
| Verpackung | Polybag |
| Verriegelungsart | Rastverriegelung |
| Werkstoff der Hülse | Keramik |
| Werkstoff des Gehäuses | Kunststoff |
