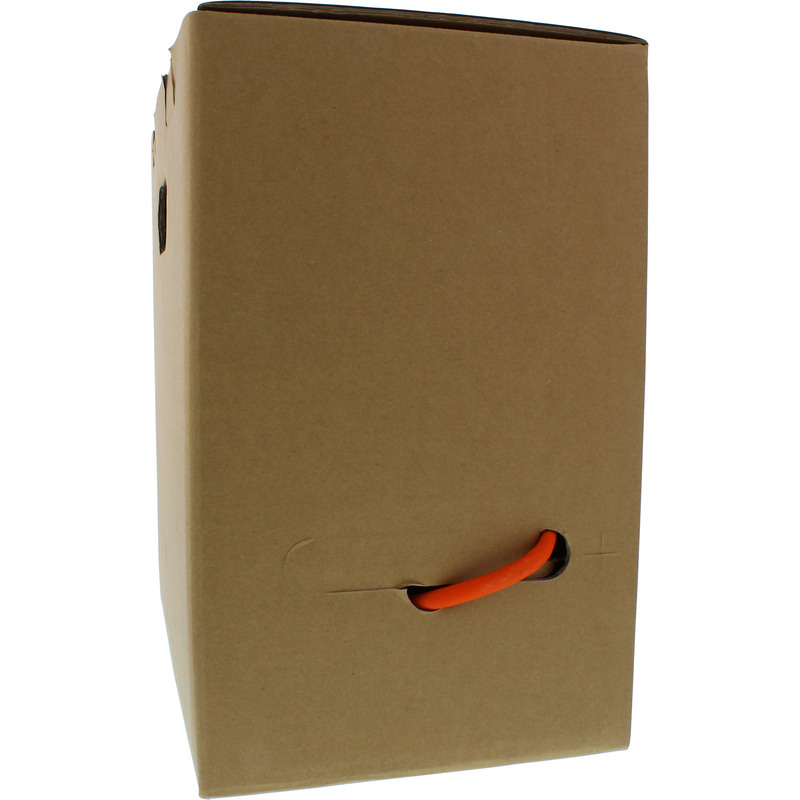

The installation cable is delivered in a drum box for easy removal of the required length. The packaging consists of a plastic reel on which the data cable is rolled up. This roll is fixed in a reinforced cardboard box, which ensures simple and tangle-free unrolling. The reel box offers the following advantages:

• Cost reduction through easy handling on the construction site without additional unwinding device
• Handy and stackable packaging, convenient to transport in the construction site vehicle
• Low weight (can also be sent by parcel service)
• Avoidance of soiling and transport damage to the cable through repackaging by means of cardboard
• Reduction of cutting costs for small quantities

Technical data:

• Cable for installation
• Cat. 7a installation cable up to 1200MHz
• Construction: 4x2xAWG23/1 PIMF (0.58mm²)
• Suitable up to 10 Gbit
• Full copper cores
• Impedance: 100Ohm, DC resistance: max. 93.8 Ohm/km
• Sheath halogen-free LSZH
• Sheath colour orange
• Construction: In pairs in metal foil
• Overall braided shielding
• Cable diameter approx. 7.8mm
• Installation temperature: 0 - 50°C, Operating temperature: -20°C - 60°C, Storage temperature: -20°C - 50°C
• With remaining metre indication on cable
• Fire behaviour B2ca according to EN 50575: 2014 / A1:2016

Note: The drum box is only available for the bundles 50m, 100m, 300m, whereas 500m is delivered on a drum, the lengths 10m and 25m are delivered in a box.
