Inštalačný kábel INFRALAN© 99980.x-CPR je konštruovaný pre prenosy do 1000 MHz a svojimi elektrickými prenosovými vlastnosťami prekračuje požiadavky kategórie 7. S týmto káblom sú možné prenosové rýchlosti až 10 Gb/s podľa normy IEEE 802.3.
| Izolácia drôtu | Pena-Skin-PE |
| Identifikácia vodiča | Farba |
| výstuž | bez |
| Prierez AWG | 23/1 |
| Prevádzková kapacita | 43 pF/km |
| Polomer ohybu (dynamický) | 40 mm |
| Polomer ohybu (statický) | 4 x n. l. |
| Smernica/Nariadenie | Smernica RoHS 2011/65/EÚ |
| Eurotrieda | Eca |
| Spomaľovač horenia | podľa normy EN 60332-1 |
| Bez halogénov | podľa normy EN 60754-1/2 |
| Bez halogénov podľa normy EN 50267-2-2 | Áno |
| Bez halogénov podľa normy EN 60754-1/2 | Áno |
| Harmonizovaná norma | EN 50575 |
| Inštalačná norma | EN 50174 |
| Izolačný odpor (500 V) | ≥ 2000 MOhm/km |
| Kábel | EN 50288-4-1 1000 / IEC 61156-6 |
| Kábel bez silikónu | Áno |
| Konštrukcia káblov | S/FTP |
| Typ kábla | EFB Cat.7 S/FTP AWG23 Eca |
| kategória | 7 |
| Tlmenie spojky | ≥ 80 dB |
| Typ útlmu väzby | Typ 2 |
| Rozdiel v čase behu | ≤ 12 ns/100 m |
| priemer vodiča | 0,56 mm |
| Trieda rebríkov | Trieda 1 = jeden vodič |
| Materiál rebríka | Cu, holá |
| Prierez rebríka | 0,26 mm² |
| Materiál srsti | FRNC-B |
| Maximálna frekvencia | 1000 MHz |
| Hodnota čistej tržnej hodnoty (NVP) | 79 % |
| PoE | podľa IEEE 802.3af PoE / podľa IEEE 802.3at PoE+ / podľa IEEE 802.3bt 4PPoE |
| Skúšobné napätie DC, 1 min | 1000 V |
| Nízka dymivosť | podľa normy EN 61034 |
| Nízka dymivosť podľa normy EN 61034-2 | Nie |
| Dáždnik nad lanovým prvkom | film |
| Dáždnik cez lano | sieťovina |
| Odpor slučky | 154 ohmov/km |
| Prenosová impedancia pri 10 MHz | ≤ 10 mOhm/m |
| Prenosová impedancia pri 1 MHz | 12 mOhm/m |
| Prenosová impedancia pri 30 MHz | 30 mOhm/m |
| Trieda oddelenia podľa normy EN50174-2 | D |
| Prenosové normy | IEEE 802.3 10 Mbit až 10 Gbit |
| Odolné voči UV žiareniu | Nie |
| štandardy kabeláže | EN 50173-1 / ISO/IEC 11801 |
| Splietací prvok | páry |
| Vlnový odpor | 100 ± 5 ohmov |
| Asymetria odporu | 2 % |
| Prípustná vonkajšia teplota kábla, trvalo nainštalovaného | -20 – 60 °C |
| Prípustná vonkajšia teplota kábla počas pohybu | 0 – 50 °C |
| Prípustná vonkajšia teplota kábla, skladovanie | -20 – 60 °C |

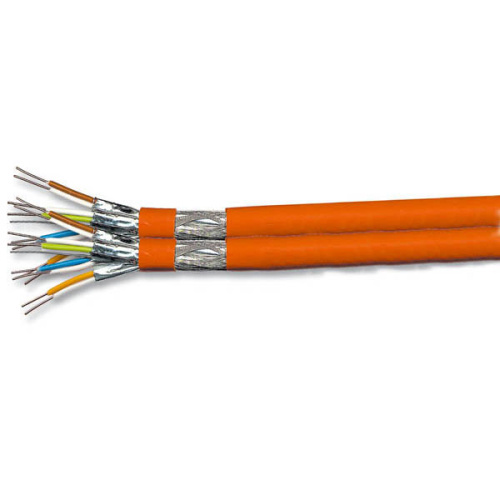

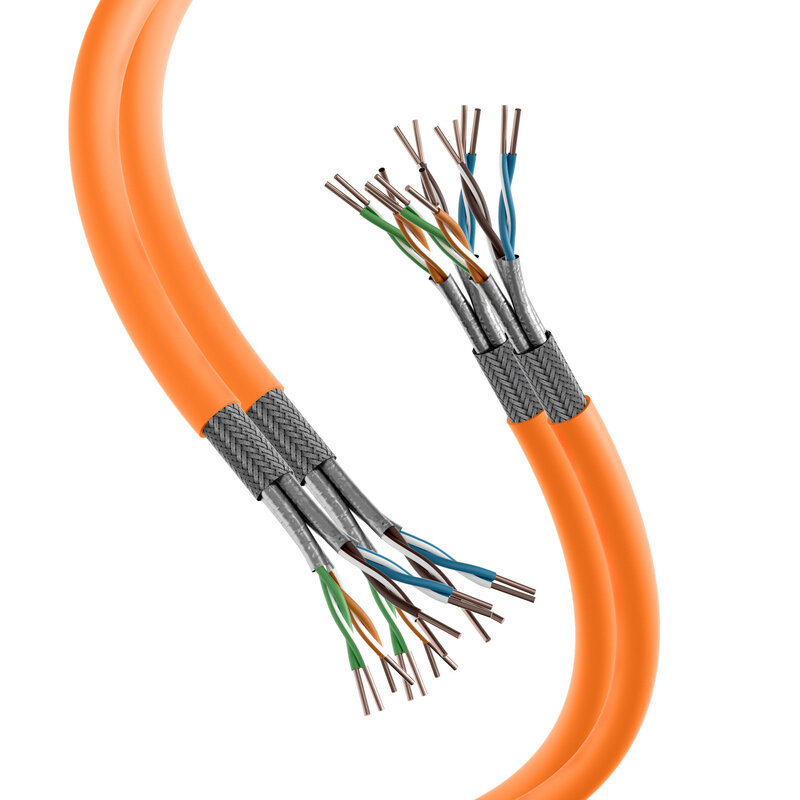

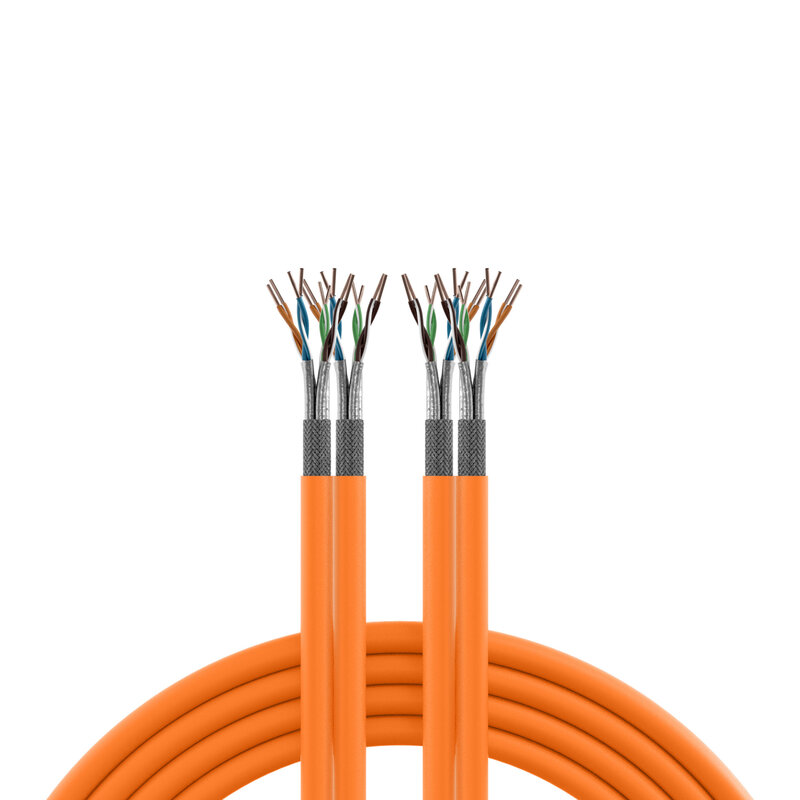

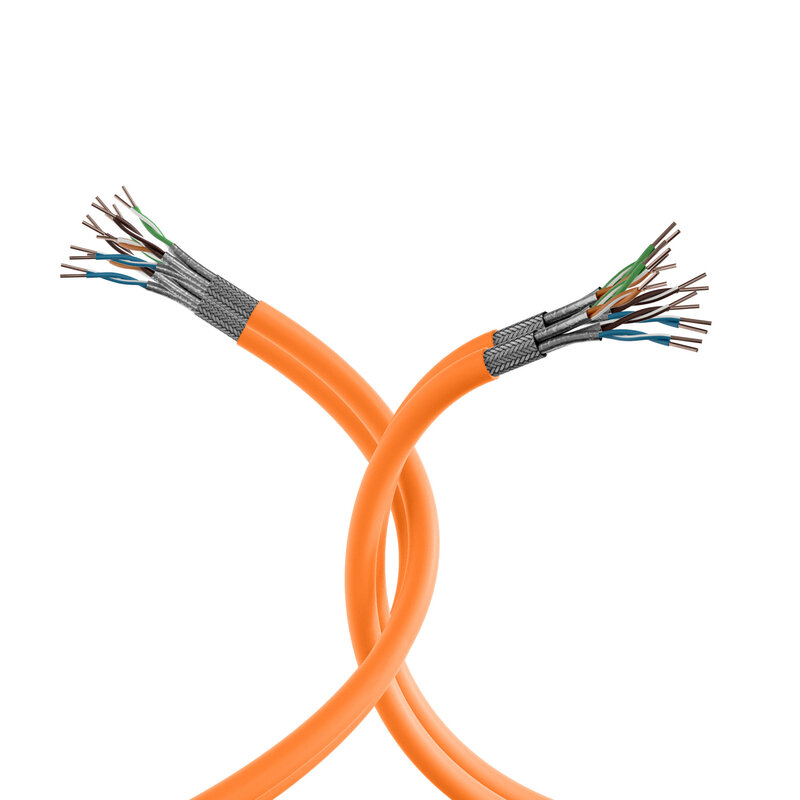

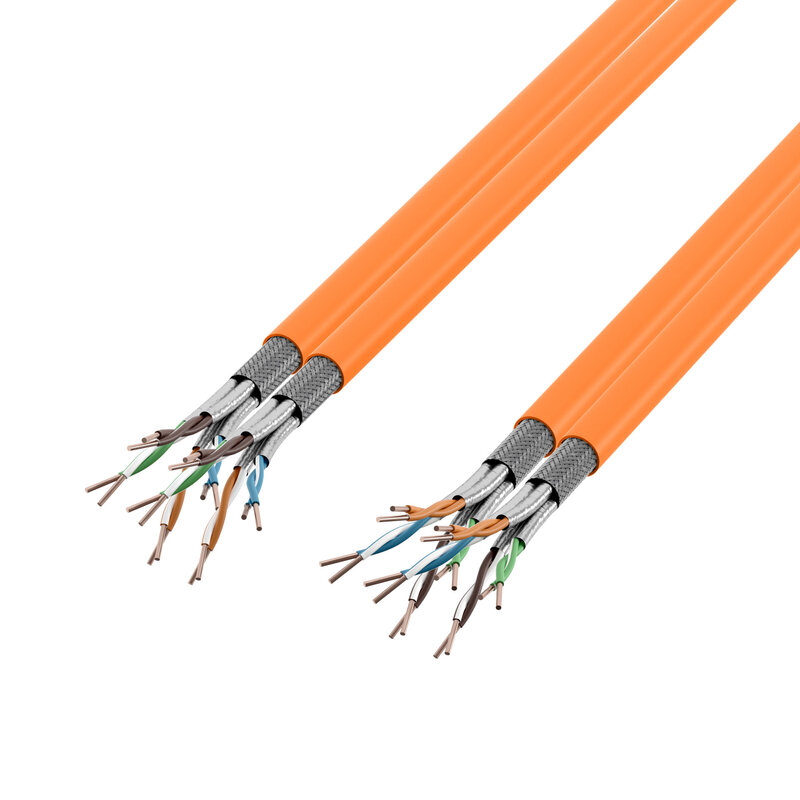

The INFRALAN Cat.7 S/FTP 1000 MHz installation cable in orange is designed for high-performance network cabling. The duplex design with FRNC-B sheath supports stable data connections up to 1000 MHz and is therefore suitable for modern installations with high bandwidth.
Ì 1000 MHz Cat.7 bandwidth Í Supports transmission standards from IEEE 802.3 10Mbit to 10Gbit and creates scope for high-performance networks.
Ì S/FTP design with braid shielding Í Reduces interference and supports stable signal quality in demanding cabling.
Ì FRNC-B jacket in orange with RAL 2003 and Euroclass Eca Í Complements the installation with a halogen-free material selection according to EN 60754-1/2 and RoHS 2011/65/UE.
The cable is designed as a duplex and uses 23/1 conductors with 2x8 wires. The dynamic bending radius of 40 mm facilitates installation. The braided shielding supports decoupling from external influences and the design is intended for PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The version without reinforcement is aimed at laying in structured network environments.
Technical details
Ì Brand: INFRALAN
Ì Category: 7
Ì Transmission standards: IEEE 802.3 10Mbit to 10Gbit
Ì Max. frequency: 1000 MHz
Ì Cable construction: S/FTP
Ì PoE: after IEEE802.3af PoE, after IEEE802.3at PoE+, after IEEE802.3bt 4PPoE
Ì AWG cross-section/number of wires: 23/1
Ì Number of cores: 2x8
Ì Type: duplex
Ì Sheath material: FRNC-B
Ì Sheath colour: orange
Ì RAL colour: RAL 2003
Ì Armour: without
Ì Bend radius (dynamic): 40 mm
Ì Directive/Regulation: RoHS 2011/65/UE
Ì Euroclass: Eca
Ì Halogen-free: according to EN 60754-1/2
Ì Shield over stranding: braid
Ì 1000 MHz Cat.7 bandwidth Í Supports transmission standards from IEEE 802.3 10Mbit to 10Gbit and creates scope for high-performance networks.
Ì S/FTP design with braid shielding Í Reduces interference and supports stable signal quality in demanding cabling.
Ì FRNC-B jacket in orange with RAL 2003 and Euroclass Eca Í Complements the installation with a halogen-free material selection according to EN 60754-1/2 and RoHS 2011/65/UE.
The cable is designed as a duplex and uses 23/1 conductors with 2x8 wires. The dynamic bending radius of 40 mm facilitates installation. The braided shielding supports decoupling from external influences and the design is intended for PoE according to IEEE802.3af, PoE+ according to IEEE802.3at and 4PPoE according to IEEE802.3bt. The version without reinforcement is aimed at laying in structured network environments.
Technical details
Ì Brand: INFRALAN
Ì Category: 7
Ì Transmission standards: IEEE 802.3 10Mbit to 10Gbit
Ì Max. frequency: 1000 MHz
Ì Cable construction: S/FTP
Ì PoE: after IEEE802.3af PoE, after IEEE802.3at PoE+, after IEEE802.3bt 4PPoE
Ì AWG cross-section/number of wires: 23/1
Ì Number of cores: 2x8
Ì Type: duplex
Ì Sheath material: FRNC-B
Ì Sheath colour: orange
Ì RAL colour: RAL 2003
Ì Armour: without
Ì Bend radius (dynamic): 40 mm
Ì Directive/Regulation: RoHS 2011/65/UE
Ì Euroclass: Eca
Ì Halogen-free: according to EN 60754-1/2
Ì Shield over stranding: braid
| Ader-Isolation | Foam-Skin-PE |
| Ader-Kennzeichnung | Farbe |
| Armierung | ohne |
| AWG-Querschnitt | 23/1 |
| Betriebskapazität | 43 pF/km |
| Biegeradius (dynamisch) | 40 mm |
| Biegeradius (statisch) | 4 x AD |
| Direktive/Verordnung | RoHS 2011/65/UE |
| Euroklasse | Eca |
| Flammwidrig | nach EN 60332-1 |
| Halogenfrei | nach EN 60754-1/2 |
| Halogenfrei nach EN 50267-2-2 | Ja |
| Halogenfrei nach EN 60754-1/2 | Ja |
| Harmonisierte Norm | EN 50575 |
| Installationsstandard | EN 50174 |
| Isolationswiderstand (500V) | ≥ 2000 MOhm/km |
| Kabel | EN 50288-4-1 1000, IEC 61156-6 |
| Kabel silikonfrei | Ja |
| Kabelaufbau | S/FTP |
| Kabeltyp | EFB Cat.7 S/FTP AWG23 Eca |
| Kategorie | 7 |
| Kopplungsdämpfung | ≥ 80 dB |
| Kopplungsdämpfung Typ | Typ 2 |
| Laufzeitunterschied | ≤ 12 ns/100m |
| Leiterdurchmesser | 0,56 mm |
| Leiter-Durchmesser | 0,56 mm |
| Leiter-Klasse | Kl.1 = eindrähtig |
| Leiter-Material | Cu, blank |
| Leiternennquerschnitt | 0,26 mm² |
| Mantelmaterial | FRNC-B |
| Mantel-Material | FRNC-B |
| Max. Frequenz | 1000 MHz |
| NVP-Wert | 79 % |
| PoE | nach IEEE802.3af PoE, nach IEEE802.3at PoE+, nach IEEE802.3bt 4PPoE |
| Prüfspannung DC, 1 min | 1000 V |
| Raucharm | nach EN 61034 |
| Raucharm nach EN 61034-2 | Nein |
| Schirm über Verseilelement | Folie |
| Schirm über Verseilung | Geflecht |
| Schleifenwiderstand | 154 Ohm/km |
| Transferimpedanz bei 10MHz | ≤ 10 mOhm/m |
| Transferimpedanz bei 1MHz | 12 mOhm/m |
| Transferimpedanz bei 30MHz | 30 mOhm/m |
| Trennklasse gem. EN50174-2 | D |
| Übertragungsstandards | IEEE 802.3 10Mbit bis 10Gbit |
| UV beständig | Nein |
| Verkabelungsstandards | EN 50173-1, ISO/IEC 11801 |
| Verseilelement | Paare |
| Wellenwiderstand | 100 ± 5 Ohm |
| Widerstandsunsymmetrie | 2 % |
| Zul. Kabelaußentemperatur, fest verlegt | -20 – 60 °C |
| Zul. Kabelaußentemperatur, in Bewegung | 0 – 50 °C |
| Zul. Kabelaußentemperatur, Lagerung | -20 – 60 °C |
Dĺžka
500m
Kategória
cat. 7 / class F / 1000MHz
Typ
drôt
Materiál vodiča
Cu
Farba
oranžová
Tienenie
S/FTP (PiMF)
LSOH/LSZH bezhalogénový
áno
Vhodný do exteriéru
nie
Dvojitý (Duplex)
áno
Hrúbka vodiča (AWG)
AWG23
Po - Št 8:00 - 16:30
Piatok 8:00 - 16:00
-

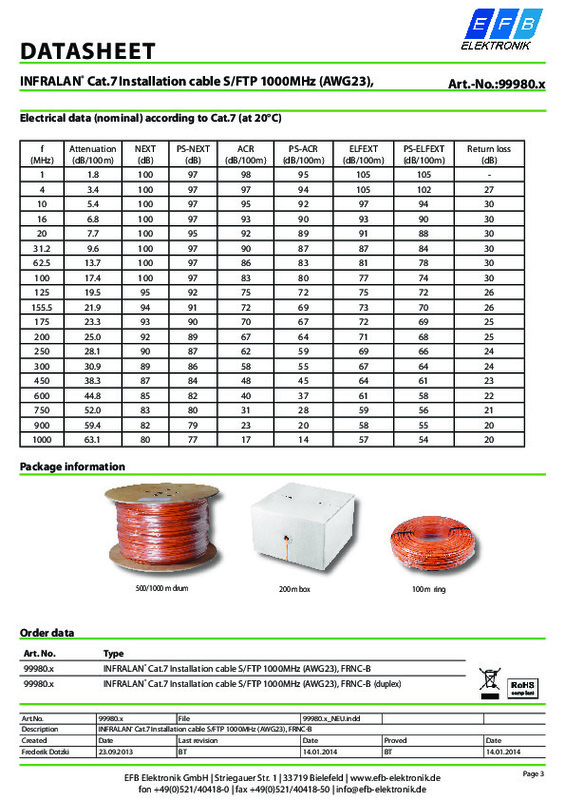

99980.X - Datasheet.pdf 99980.X - Datasheet.pdf
